User Manual for Marshall Electronics VAC-12SH 3G-SDI HD-SDI to HDMI Converter with Loop-Through SDI Output Click to enlarge the picture
Contents of the user manual for the Marshall Electronics VAC-12SH 3G-SDI HD-SDI to
- Product category: Signal Converters Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Signal Converters
 |
User manual for the Marshall Electronics VAC-12SH 3G-SDI HD-SDI to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|

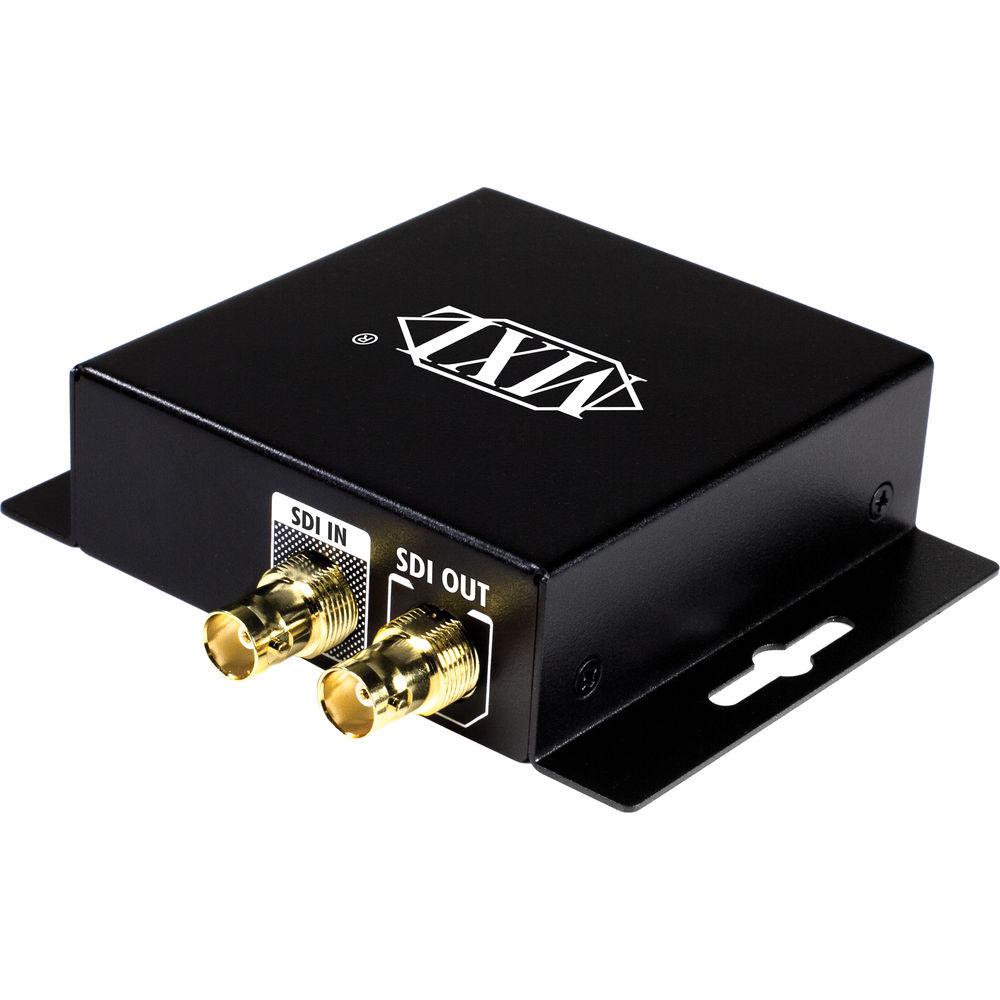

Product description Providing automated signal conversion from SDI to HDMI, the Marshall Electronics VAC-12SH 3G-SDI/HD-SDI to HDMI Converter with Loop-Through SDI Output is a compact unit that supports converting video with embedded audio from SDI to HDMI with embedded audio. It supports NTSC, PAL, HD, and 3G signals, and it auto-detects the input signal from conversion without requiring you to a select from dip switches or navigation menus.
The converter features two outputs: the converted HDMI signal output with embedded 48KHz audio and a loop-through 3G-SDI output. This allows you to use a display with an HDMI input to monitor your signal while maintaining an SDI signal path. Each output is re-clocked to preserve the maximum transmission distance of your signal. A 5 VDC power supply is included with the item. - Auto signal detection allows the device to function without your input; what goes in as SDI comes out as HDMI.
- The unit supports audio embedded in the input SDI signal and re-embeds the audio in the HDMI output.
- LED indicators for power and signal lock indicate that the unit has power and is receiving an active signal.
- The unit supports HDMI Deep Color.
UPC: 801813172485 In the Box Marshall Electronics VAC-12SH 3G-SDI/HD-SDI to HDMI Converter with Loop-Through SDI Output 5 VDC / 2A Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics VAC-12SH 3G-SDI HD-SDI to HDMI Converter with Loop-Through SDI Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics VAC-12SH Specs | Formats Supported | SDI Data Rate
2.97 Gb/s & 2.975/1.001 Gb/s
3G
1080p 50/59.94/60 (4:2:2)
HD
1080p 23.98/24/25/29.97/30
1080i 50/59.94/60
720p 50/59.94/60
SD
NTSC
PAL | | Input Signal | SMPTE 259M
SMPTE 292M, 296M
SMPTE-424M | | Connectors | Input
1 x 3G-SDI
Output
1 x HDMI
1 x 3G-SDI | | Output Impedance | 75 ohms | | Power | Voltage: 5 VDC
Consumption: 3 W (Max) | | Temperature & Humidity | Temperature
Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -20 to 60°C
Relative Humidity
20 to 90% (non-condensing) | | Dimensions | 3.1 x 3.3 x 1.2" / 79 x 84 x 27 mm | | Weight | 8.8 oz / 250 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 7.9 x 5.6 x 3.1" |
