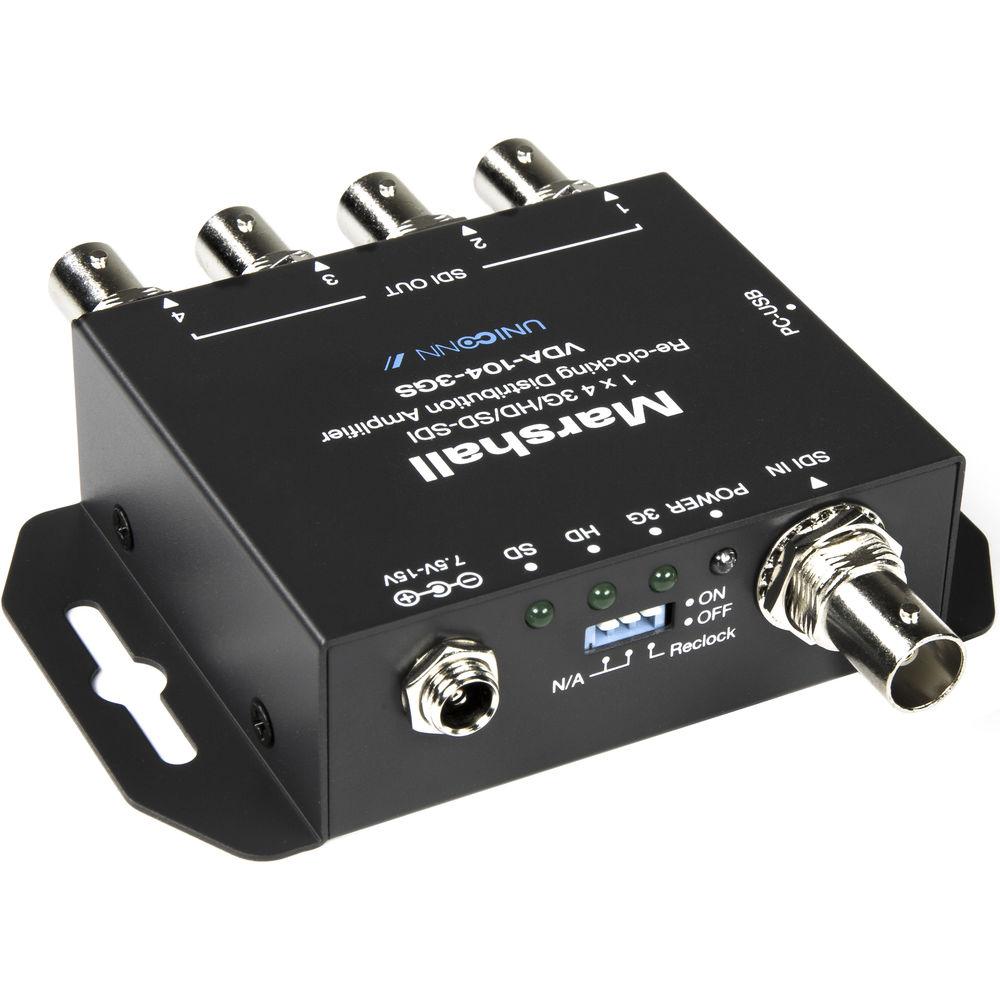

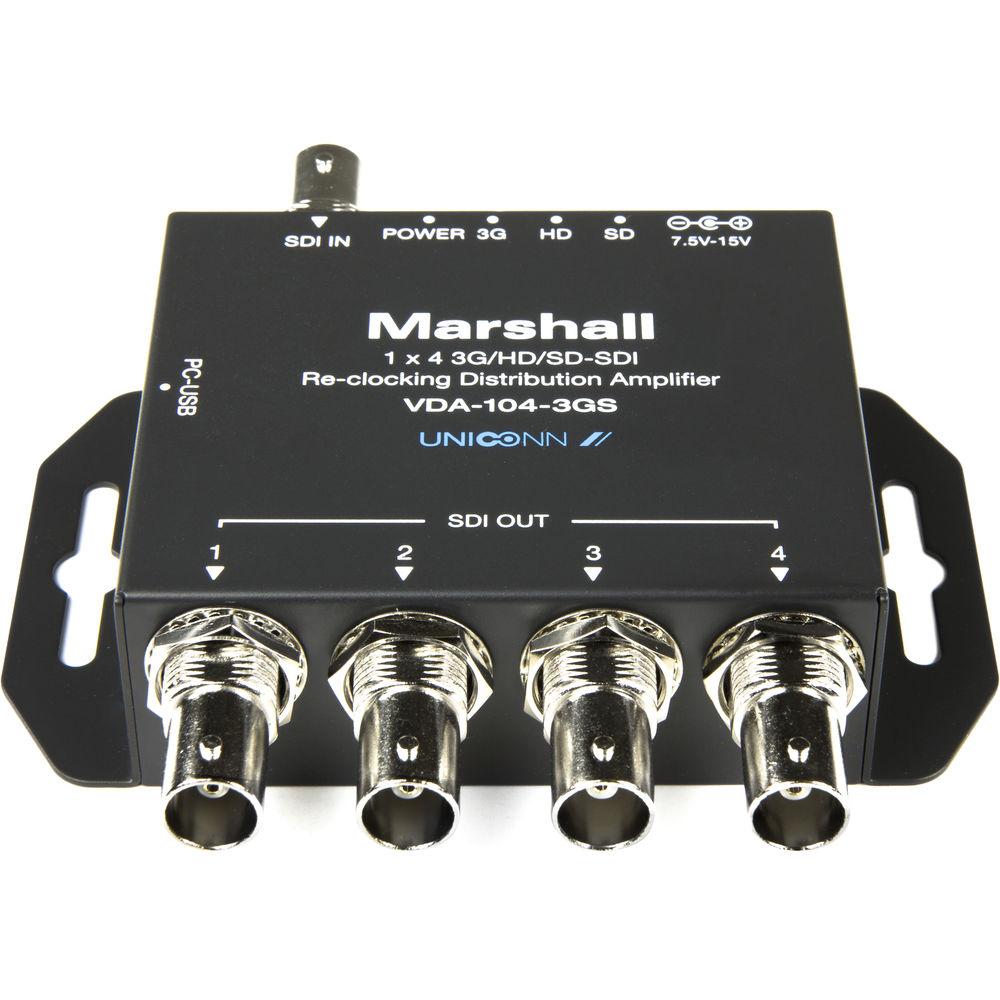

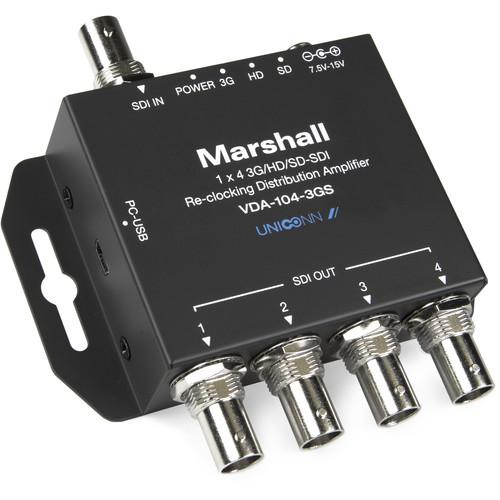

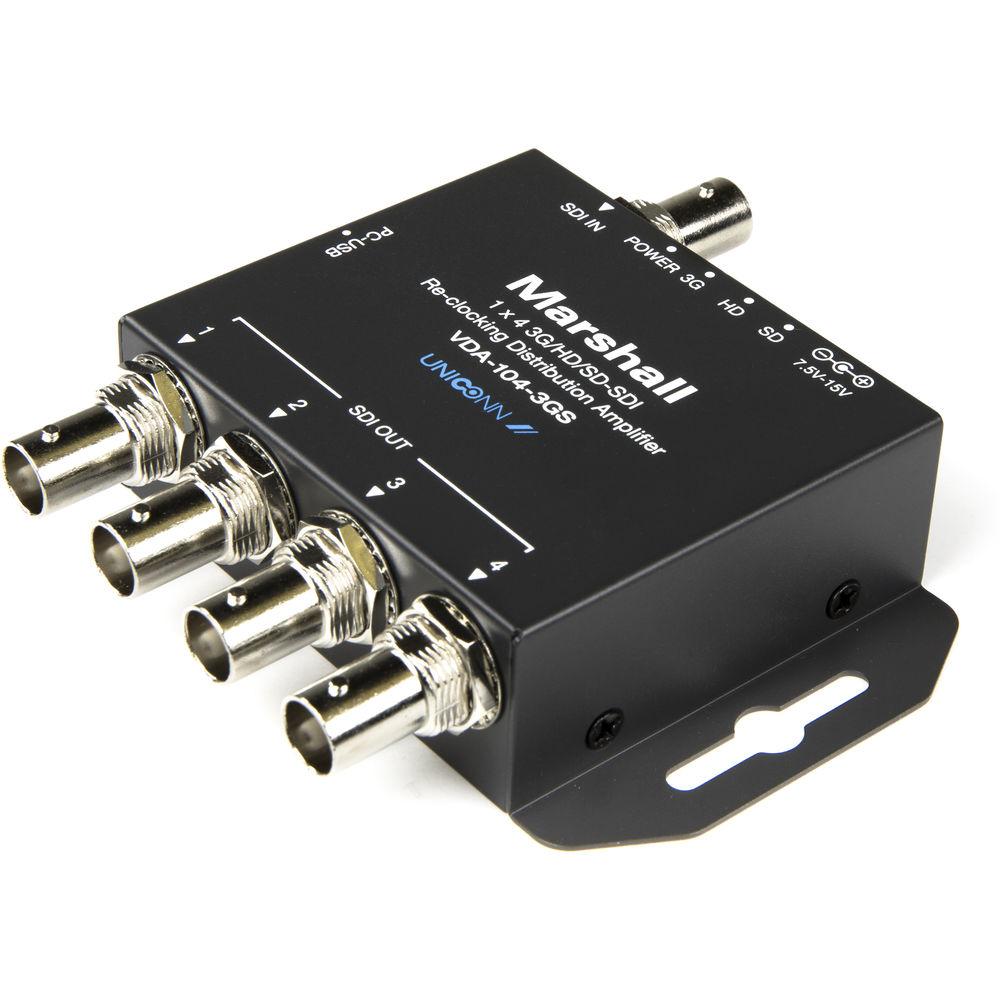

Product description With the Marshall Electronics VDA-104-3GS 1x4 3G/HD/SD-SDI Reclocking Distribution Amplifier, you can take a single SDI signal and send it out to up to four devices simultaneously. SD, HD, and 3G-SDI standards are supported, and the input standard is automatically detected. Each SDI output is separately reclocked and buffered, ensuring signal fidelity over long cable runs. Easy-to-read LED status indicator lights denote the converter's current status. The integrated mounting brackets on both sides of the unit can be used for semi-permanent installation. UPC: 801813178920 In the Box Marshall Electronics VDA-104-3GS 1x4 3G/HD/SD-SDI Reclocking Distribution Amplifier Power Supply Limited 1-Year Warranty MAVDA1043GS User's Manual PDF 181.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics VDA-104-3GS 1x4 3G HD SD-SDI Reclocking Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics VDA-104-3GS Specs | Inputs | 1 x BNC, 3G/HD/SD-SDI | | Outputs | 4 x BNC, 3G/HD/SD-SDI | | SDI Standards | DVB-ASI at 270 Mbps, SMPTE-259M, SMPTE-292M, SMPTE-424M, SMPTE-425M | | Video Bandwidth | 2.97 Gpbs & 2.97/1.001 Gbps | | Data Rates | 270 / 1483 / 1485 / 2970 Mbps | | Output Impedance | 75 Ohms | | Cable Equalization | 3G: Up to 300' / 90 m
HD: Up to 500' / 150 m
SD: Up to 1000' / 300 m | | Eye Pattern Characteristics | Amplitude: Within 800 MV (<10%)
Rise Overshoot: Less than 2% (<10%)
Fall Overshoot: Less than 2% (<10%)
Long Time Jitter: 0.195 UI (<1.0 UI)
Timing Jitter: 0.8 UI (<1.0 UI)
Alignment Jitter: 0.13 UI (<0.2 UI) | | Power Supply | 5 VDC, 4 A
5.5 mm center-positive connection | | Power Consumption | 5 W (max) | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 104°F / -20 to 60°C
Humidity: 20 to 90%, non-condensing | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 9.3 x 5.9 x 1.6" |
