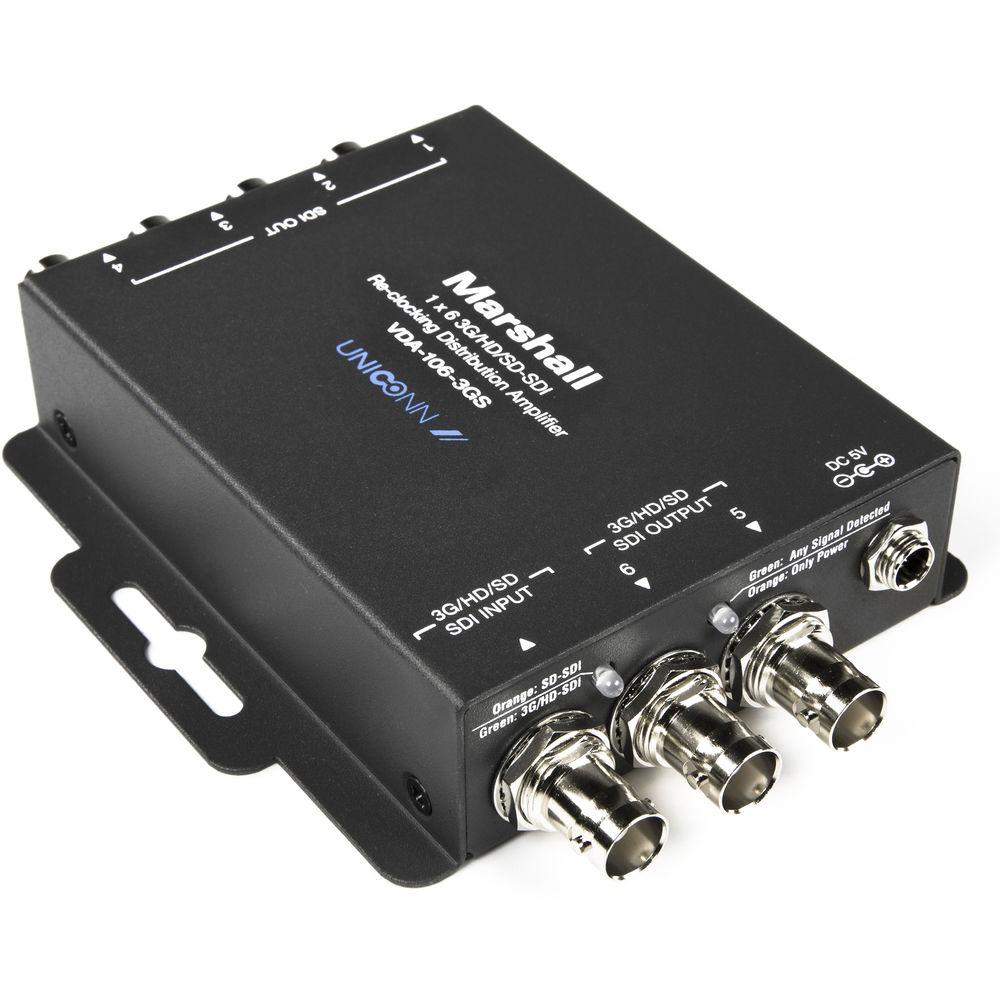

User Manual for Marshall Electronics VDA-106-3GS 1x6 3G HD SD-SDI Reclocking Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Marshall Electronics VDA-106-3GS 1x6 3G HD
- Product category: Distribution Amplifiers (DA's) Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Distribution Amplifiers (DA's)
 |
User manual for the Marshall Electronics VDA-106-3GS 1x6 3G HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|

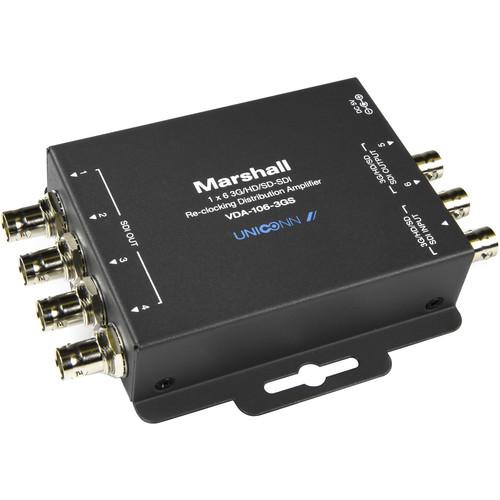

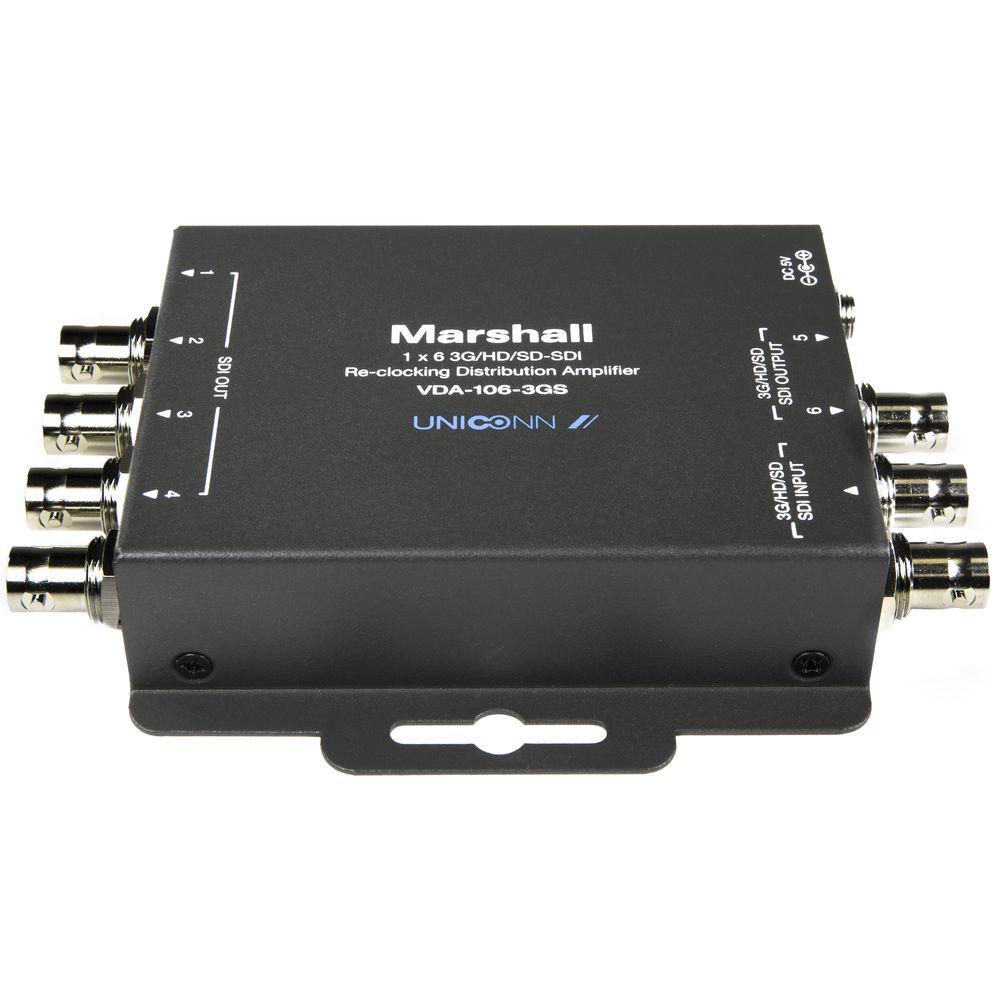

Product description With the Marshall Electronics VDA-106-3GS 1x6 3G/HD/SD-SDI Reclocking Distribution Amplifier, you can take a single SDI signal and send it out to up to six devices simultaneously. SD, HD, and 3G-SDI standards are supported, and the input standard is automatically detected. Each SDI output is separately reclocked and buffered, ensuring signal fidelity over long cable runs. Easy-to-read LED status indicator lights denote the converter's current status. The integrated mounting brackets on both sides of the unit can be used for semi-permanent installation. UPC: 801813178913 In the Box Marshall Electronics VDA-106-3GS 1x6 3G/HD/SD-SDI Reclocking Distribution Amplifier Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics VDA-106-3GS 1x6 3G HD SD-SDI Reclocking Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics VDA-106-3GS Specs | Inputs | 1 x BNC, 3G/HD/SD-SDI | | Outputs | 6 x BNC, 3G/HD/SD-SDI | | SDI Standards | DVB-ASI at 270 Mbps, SMPTE-259M, SMPTE-292M, SMPTE-424M, SMPTE-425M | | Video Bandwidth | 2.97 Gpbs & 2.97/1.001 Gbps | | Data Rates | 270 / 1483 / 1485 / 2970 Mbps | | Output Impedance | 75 Ohms | | Cable Equalization | 3G: Up to 300' / 90 m
HD: Up to 500' / 150 m
SD: Up to 1000' / 300 m | | Eye Pattern Characteristics | Amplitude: Within 800 MV (<10%)
Rise Overshoot: Less than 2% (<10%)
Fall Overshoot: Less than 2% (<10%)
Long Time Jitter: 0.195 UI (<1.0 UI)
Timing Jitter: 0.8 UI (<1.0 UI)
Alignment Jitter: 0.13 UI (<0.2 UI) | | Power Supply | 5 VDC, 4 A
5.5 mm center-positive connection | | Power Consumption | 5 W (max) | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 104°F / -20 to 60°C
Humidity: 20 to 90%, non-condensing | | Dimensions | 4 x 3 x 1" / 105 x 78 x 27 mm | | Weight | 10.9 oz / 310 g | | | | Package Weight | 1.54 lb | | Box Dimensions (LxWxH) | 10.6 x 7.0 x 3.05" |
