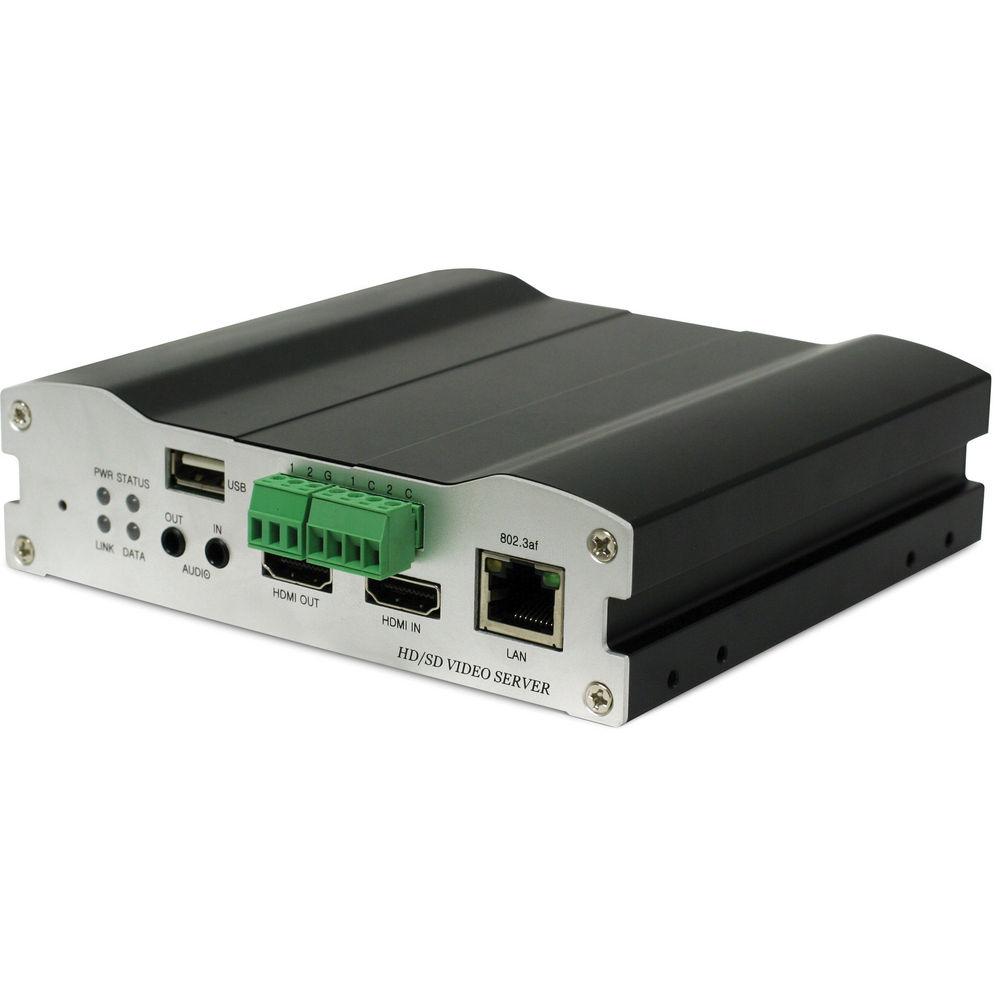

Product description The Marshall Electronics VS-102-HDSDI H.264-based Video Server (Codec System) enables real-time transmission of an SD/HD-SDI, HDMI, or NTSC/PAL composite video signal with bi-directional AAC encoded high-definition stereo audio. The high-definition video server offers support for TCP/IP, Multicast, HTTP, SMTP, SNMP, FTP, DHCP, DNS, Dynamic DNS, RTP, and RTSP protocols, and uses H.264 and MJPEG compression technology. In addition, it uses an IP network to transfer video resolutions up to 1920 x 1080i at 60fps with 50% more compression capacity.
Providing optimal video transmission quality in networks with limited bandwidth, the VS-102-HDSDI H.264-based Video Server can act as a point-to-point talent monitoring system when used with other computers or VS-102-HDSDI video servers. It supports Automatic System Recovery with support for PTZ and controller, offers local data storage via a USB 2.0 port, and uses an Ethernet cable for power. - High-definition video server
- Allows real-time transmission of an SD/HD-SDI, HDMI, or NTSC/PAL composite video signals with bi-directional AAC encoded high definition stereo audio
- Offers support for TCP/IP, Multicast, HTTP, SMTP, SNMP, FTP, DHCP, DNS, Dynamic DNS, RTP, and RTSP protocols
- Uses H.264 and MJPEG compression technology
- Uses an IP network to transfer video resolutions up to 1920 x 1080i at 60fps
- Provides optimal video transmission quality in networks with limited bandwidth
- Can act as a point-to-point talent monitoring system
- Supports Automatic System Recovery with support for PTZ and controller
- Local data storage via a USB 2.0 port
UPC: 801813148602 Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics VS-102-HDSDI H.264-based Video Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Marshall Electronics VS-102-HDSDI H.264-based Video Server can be downloaded in PDF format at the link stated below.
Technical parametersMarshall Electronics VS-102-HDSDI Specs | | | Network Interface | Ethernet 10/100Base-T (RJ-45) | | Network Protocol | TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP | | | | Standards | Dual streaming (H.264/H.264, H.264/MJPEG) | | Data Rate | 32Kbps ~ 8Mbps | | Resolution | 1920x1080/60i ~ 352x240/30fps, 18 resolution step | | Frame Rate | 1 ~ 30fps

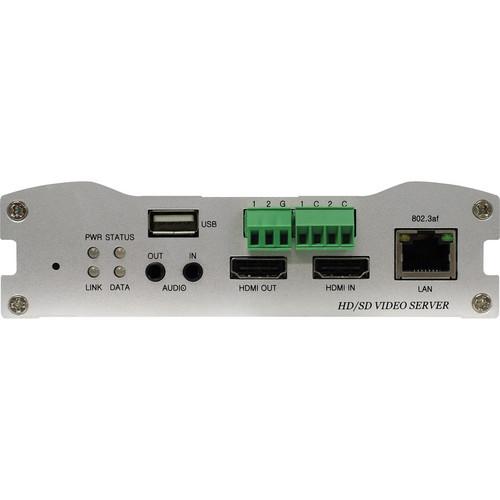

NTSC - 0.2 ~ 30fps / PAL - 0.2 ~ 25fps | | Inputs | 1 HDMI type A, HDMI RX

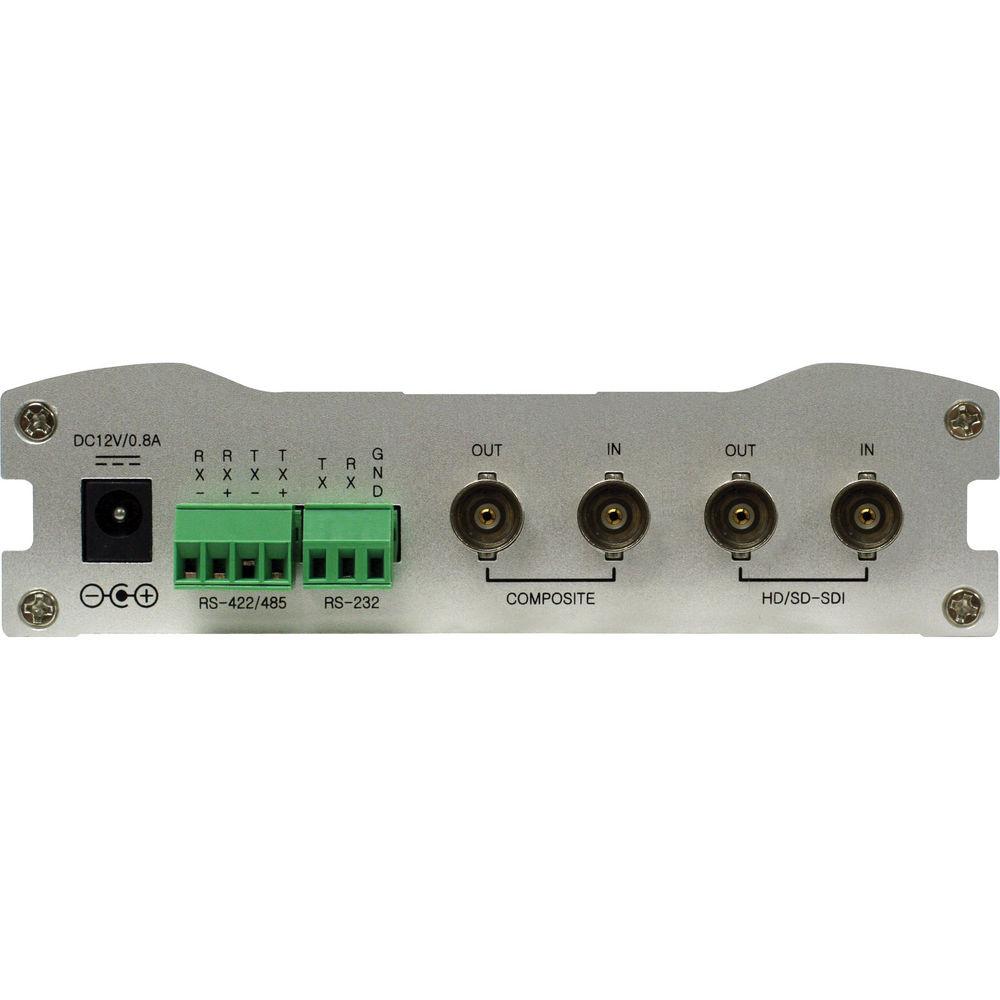

1 BNC, SD/HD-SDI
1 BNC, Composite NTSC/PAL | | Outputs | 1 HDMI type A, HDMI TX
1 BNC, SD/HD-SDI
1 BNC, Composite NTSC/PAL | | Motion Detection | Sensitivity adjustment | | | | Standards | AAC (advanced audio codec) | | Sample Rate | up to 128KHz | | Input | 1 Line-in (3.5MM mini-stereo, stereo / mono) | | Output | 1 Line-out (3.5MM mini-stereo, stereo / mono) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 10.85 x 9.0 x 3.8" |
