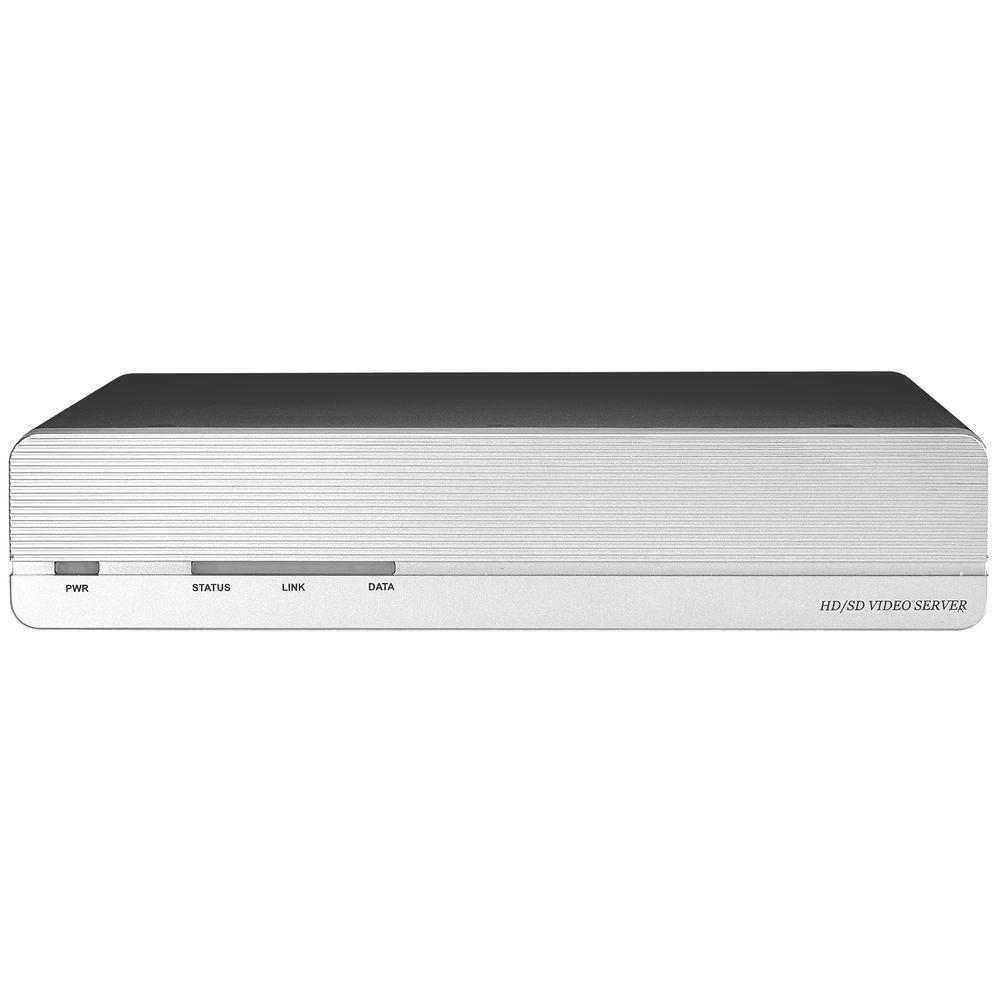

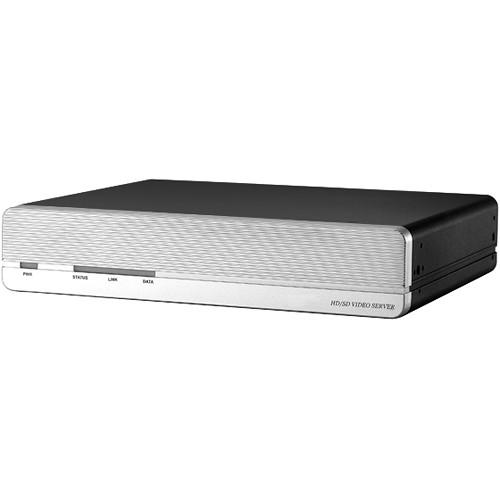

User Manual for Marshall Electronics VS-104-3GSDI 1080p Full HD Video Encoder Decoder Click to enlarge the picture
Contents of the user manual for the Marshall Electronics VS-104-3GSDI 1080p Full HD
- Product category: Video Encoders & Decoders Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Video Encoders & Decoders
 |
User manual for the Marshall Electronics VS-104-3GSDI 1080p Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The VS-104-3GSDI 1080p Full HD Video Encoder/Decoder from Marshall Electronics allows encoding or decoding of video and embedded audio over standard IP networks and the internet. The VS-104-3GSDI offers quad streaming of H.264 and /or MJPEG. Embedded audio is supported in 3GSDI, HDSDI, SDI and HDMI. The VS-104-3GSDI has configurable inputs and outputs like CVBS, HDMI, SDI, HDSDI, and 3GSDI. The unit comes with a power supply; however it also supports PoE (Power over Ethernet). When connected to a compatible switch, the VS-104-3GSDI can draw power directly from the Ethernet connection. - Can be used as either an encoder or decoder (user selectable)
- Supports 60 fps at resolution of 1920 x 1080
- Supports quad streaming (H.264/H.264, H.264/M-JPEG)
- Supports MPEG2-TS and 33GSDI, HDSDI, SDI, HDMI, and CVBS I/O
- Supports PoE (Power-over-Ethernet 802.3af), USB recording, motion detection, and watchdog for system recovery
- 2-way audio communication (G.711, AAC)
- Embedded audio is supported in 3G-SDI, HDSDI, SDI and HDMI
- RS-232, RS-422/485 communication
- 2-channel sensor input and alarm output
- Adjustable video bitrate; 32 kbps to 16 Mbps for primary video and 32 kbps to 1 Mbps for secondary video
- Adjustable video data bandwidth; 2,400 to 115,200 bps
- Supports various protocols like TCP/IP, Multicast, UDP, HTTP, SMTP, FTP, DHCP, DNS, Dynamic DNS, RTP, RTSP, and SNMP
- SDK & API available on request
In the Box Marshall Electronics VS-104-3GSDI 1080p Full HD Video Encoder/Decoder Power Supply Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics VS-104-3GSDI 1080p Full HD Video Encoder Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

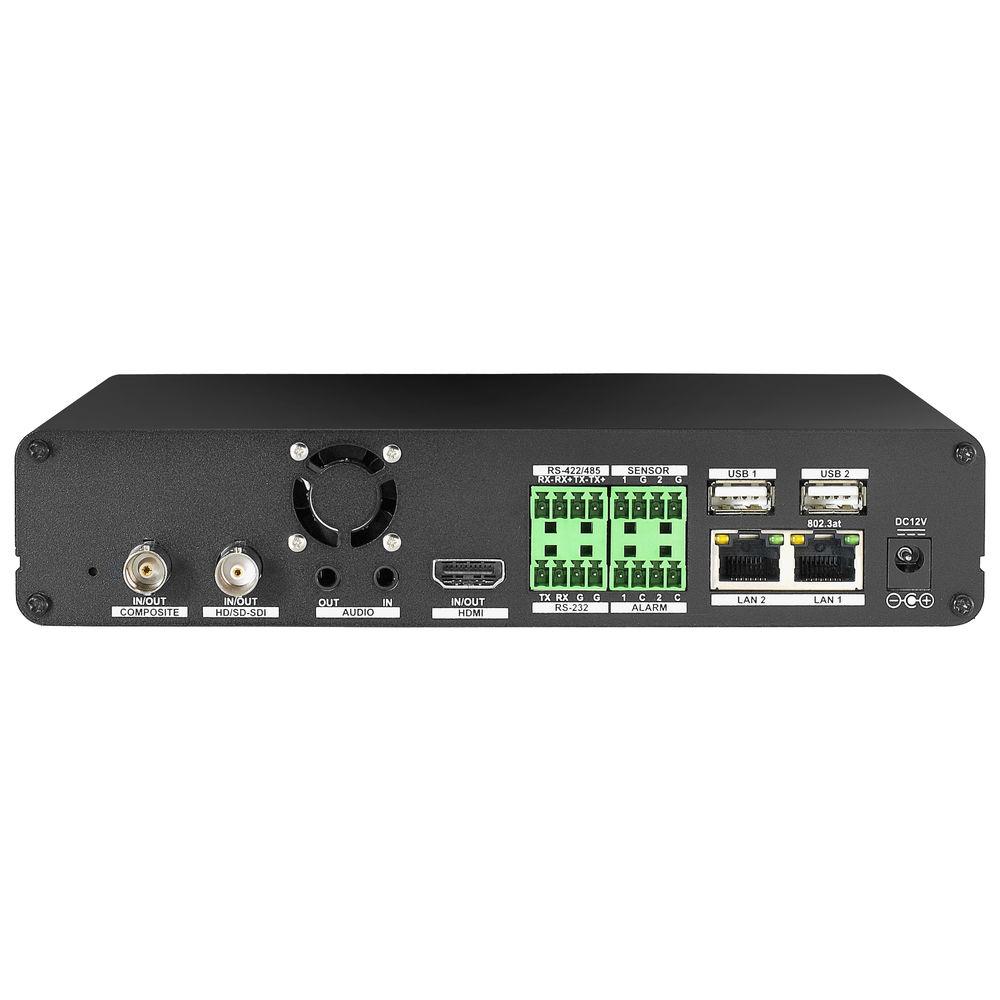

Technical parametersMarshall Electronics VS-104-3GSDI Specs | | | Interface | 2 x Ethernet 10/100Base-T (RJ-45) | | Protocol | IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTPS, RTP, RTSP, FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Configuration, NTP, DDNS | | Protection | Password protection, IP address filtering, HTTPS encryption | | Application Programming Interface | MEI Protocol/SDK, ONVIF, PSIA | | | | Compression | H.264 / MJPEG | | Frame Rate | Maximum 60 fps @ 1920 x 1080 | | Data Rate | 32 kbps to 8 Mbps | | Resolution | 352 x 240 to 1920 x 1080 | | Streaming | Primary: H.264, Secondary: 3 x H.264/MJPEG | | Inputs | Input 1: 1 x HDMI type A, HDMI RX
Input 2: 1 x Composite (BNC type)
Input 3: 1 x HD/SD-SDI (BNC type) All are IO configurable | | OSD | Built-in, multi lingual | | | | Compression | G.711 , AAC | | Sample Rate | G.711: 8 kHz, AAC: 32 / 44.1 / 48 kHz | | Data Rate | G.711: 64 kbps, AAC: 64 kbps, 128 kbps | | Streaming | Full duplex | | Input | 1 x Line-in (stereo, mini-stereo type) | | Output | 1 x Line-out (stereo, mini-stereo type) | | | | External Devices | 2 x Sensor-In (dry contact, NO/NC)
2 x Alarm-Out (dry contact, NO)
1 x RS-232 port
1 x RS-422/485 port
1 x Buzzer (88 dB minimum) | | Edge Storage | 2 x USB 2.0 port | | Alarm/Events | Motion, sensor input, video loss, client disconnection | | Event Action | Notification (e-mail), FTP, PTZ preset, alarm control, recording | | Housing | Aluminum | | | | Certifications | CE, FCC, KC, RoHS | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Power Source | Minimum 12 VDC 5 A, PoE+ (Power over Ethernet): 802.3at | | Power Consumption | 12 VDC/PoE+: Maximum 13.4 V | | Dimension | 8.5 x 7.2 x 1.7" (21.5 x 18.4 x 4.4 cm) | | Weight | 33 oz (940 g) | | | | Package Weight | 4.15 lb | | Box Dimensions (LxWxH) | 14.8 x 10.0 x 2.9" |
