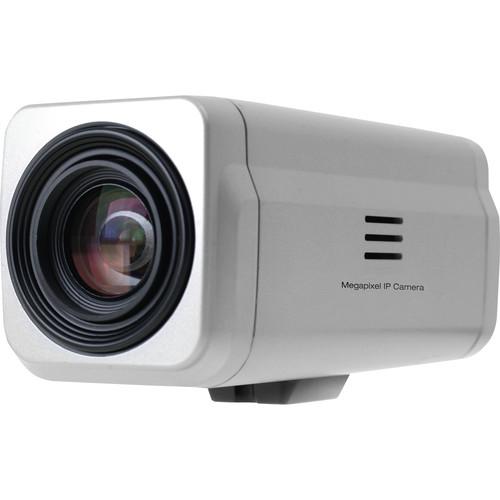

Product description The VS-541-CVBS 2MP True Day/Night IP Box Camera with 20x Optical Zoom Lens from Marshall Electronics is equipped with a 2MP, 1/2.5" CMOS sensor, and a 4.7 to 94mm 20x optical zoom lens. It features a mechanical IR Cut filter, Wide Dynamic Range, and Back Light Compensation. This network camera allows dual streaming of real-time imagery in H.264 and MJPEG formats, at a resolution of 1920 x 1080 at up to 30 fps. - 2MP 1/2.5" 1920 x 1080 CMOS sensor
- Full HD 1080p30/1080i60 resolution video and audio encoding
- Built-in 20x optical zoom lens (F=4.7 to 94mm, f/1.6 to f/3.5)
- 240x Zoom (20x optical, 12x digital)
- True day and night functionality, with motorized IR Cut filter
- BLC (Back Light Compensation)
- Up to 30 fps @ 1920 x 1080 live streaming
- H.264 and H.264 MJPEG dual streaming
- Two-way audio communication (G.711/AAC)
- SD card recording (card not included)
- RS-485 communication, Pelco D, or Pelco P protocol
- Integrated video motion detection
- Two motion sensor inputs and two alarm outputs
- Built-in PoE (Power over Ethernet) 802af
- Supports TCP/IP, Multicast, UDP, HTTP, SMTP, FTP, DHCP, DNS, Dynamic DNS, RTP, RTSP, and SNMP protocols
In the Box Marshall Electronics VS-541-CVBS 2MP True Day/Night IP Box Camera with 20x Optical Zoom Lens VMS Network Video Management Software CD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics VS-541-CVBS 2MP True Day Night IP Box Camera with 20x Optical Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics VS-541 Specs | | | Image Sensor | 2 MP 1/2.5" CMOS image sensor | | Focal Length | 4.7 to 94mm | | Aperture | f/1.6 to f/3.5 | | Zoom | 20x Optical
12x Digital | | Focus | 0.4" (1 cm) to infinity | | Horizontal Angle of View | 54.1° (Wide) to 3° (Tele) | | Minimum Illumination | 1 lux (B/W), f/1.8 with 50 IRE | | S/N Ratio | 50 dB or more | | AE Mode | Auto, manual, bright, shutter priority, iris priority, spot | | Iris Control | f/1.8 to f/26, close
Auto / Manual | | Gain Control | -3 to 18 dB
Auto / Manual | | Shutter | 1/2 to 1/10,000 sec
Auto / Manual | | White Balance | Red, blue gain adjustable
Auto / Manual | | DSS Limit | 1/60 to 1/2 or 1/50 to 1/2 | | Day & Night | Auto / Day / Night (mechanical ICR) | | BLC | Auto / Manual | | WDR Control | On / Off | | Aperture Control | 16 Steps | | | | Network Interface | Ethernet 10/100Base-T (RJ45) | | Network Protocol | TCP/IP, UDP, Multicast, DHCP, SMTP, HTTP, SNMP, RTP, RTSP | | | | Standards | Main Stream: H.264
Secondary Stream: H.264/MJPEG | | Output | 1 x Composite video | | Resolution | 1920 x 1080 to 352 x 240 (18 resolution steps) | | Maximum Frame Rate | H.264/MJEPG: All resolutions @ 30 fps | | Bit Rate | 32 kb/s to 8 Mb/s | | | | Algorithm | G.711, AAC | | Input | 1 x 3.5 mm Mini stereo signal, line in | | Output | 1 x 3.5 mm Mini stereo signal, line out | | Sample Rate | G.711: 8 kHz
AAC: 32 kHz | | Bit Rate | G.711: 64 kb/s
AAC: 64 kb/s, 128 kb/s, 196 kb/s | | Port | 1 x RS-485 | | Data Rate | 2,400 to 115,200 bit/s | | | | Sensor Input | 1 x Photo-coupler input | | Alarm Output | 1 x Relay output (normal open) | | Reset Button | Factory reset button | | System Status | LED | | Software | True NVR/CMS:Live Monitoring, Recording, Search & Playback, Backup | | | | Power | 12 VDC / 0.7 A
PoE: 802.3af | | Maximum Power Consumption | 8.5 W | | Operation Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions (W x L x H) | 6.6 x 2.9 x 2.9" (167.1 x 74.0 x 73.0 mm) | | Weight | 24.2 oz (685 g) |
