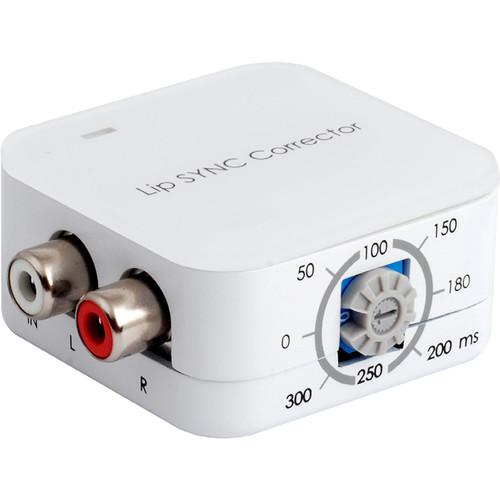

User Manual for Marshall Electronics VS-LSC L R In-Out Lip SYNC Corrector Click to enlarge the picture
Contents of the user manual for the Marshall Electronics VS-LSC L R In-Out
- Product category: Broadcast Processors Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Broadcast Processors
 |
User manual for the Marshall Electronics VS-LSC L R In-Out contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The VS-LSC L/R In-Out Lip SYNC Corrector from Marshall Electronics is a compact device that corrects audio delays between audio and video. When distributing video over long distances through multiple devices like distribution amplifiers and set top boxes there can sometimes be a noticeable delay which results in audio being played before the video. This unit lets you manually adjust the audio delay from 0 to 300 ms so you can synchronize your audio and video, so when it reaches the display your media is synced. The VS-LSC is ideal for use in applications such as home theaters, cable TVs, set-top box, and showroom displays. - Analog to analog signal bypass
UPC: 801813161922 In the Box Marshall Electronics VS-LSC L/R In-Out Lip SYNC Corrector 5V / 1A Power Adaptor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics VS-LSC L R In-Out Lip SYNC Corrector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics VS-LSC Specs | Connectors | 1 x RCA, L/R input
1 x RCA, L/R output | | Control | Lip sync selector switch | | LED Indicator | Power | | Sampling Frequency | 48 kHz | | Input Impedance | 44 kOhms | | Output Impedance | 1 kOhms | | ESD Protection | Human Body Model:
± 8kV (air-gap discharge)
± 6kV (contact discharge) | | Silkscreen Color | White | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 to 90% RH, non-condensing | | Power Supply | 5 VDC / 1 A (US/EU standards, CE/FCC/UL certified) | | Power Consumption | 0.5 W | | Dimensions | 1.7 x 1.6 x 0.9" (42 x 40.5 x 22 mm) | | Weight | 1.1 oz (32 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.9 x 4.8 x 2.3" |
