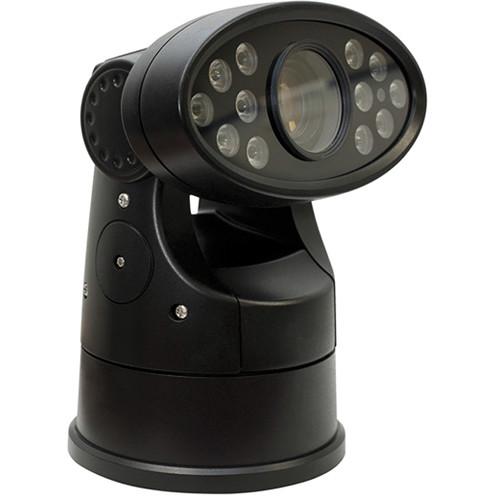

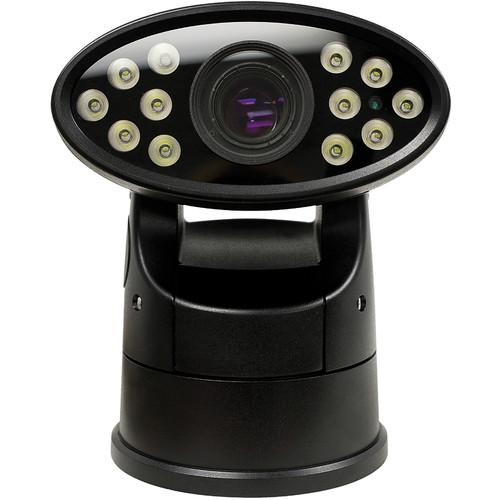

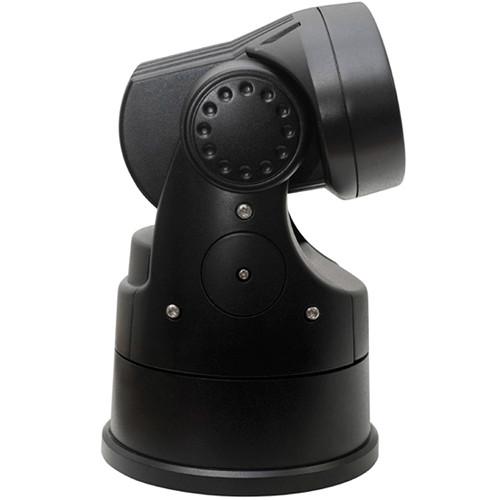

Product description The black VS-WC202B-HDSDI Full HD 2MP Rugged IR PTZ Camera from Marshall Electronics features a 1/3” CMOS sensor that captures Full HD images. This camera supports 1080i/720p 60/59.94 standards for broadcast applications. The camera outputs video as a digital HD-SDI signal or an analog composite signal. The auto WDR function helps deliver clear, high-quality pictures by increasing exposure in dark areas while simultaneously decreasing it in bright areas.Auto ICR function ensures optimal sensitivity in both day and night applications with clear image capture in light levels as low as 0.0005 lux. The built-in 12 IR LEDs allow the camera to capture images in near darkness up to 394’ away, making it suitable for 24/7 operation in a variety of lighting conditions. - 1/3" 2MP CMOS image sensor
- Captures images at Full HD resolutions
- Supports 1080i/720p60/59.94 standards for broadcast
- Progressive scan and auto WDR
- 20x optical zoom and f/1.6 aperture (optical zoom + digital zoom = 240x)
- Noise reduction function for clear images in low-light environments
- Video signals can be output as digital (HD-SDI) and analog composite outputs
- 12 IR LEDs allow capture of clear images up to 394' in near darkness
- 12VDC operation allows use in vehicles when used with a compatible power adapter (available separately)
- IP66-rated for outdoor applications
- Endless pan rotation (Top 15 to 270°, Bottom 345 to 90° tilt angle)
- Up to 63 programmable presets
- Less than 0.3° preset accuracy
- Eight programmable tours, 2 patterns
- Alarm trigger can be programmed for a maximum of 2 preset positions
- Four scans (programmable speed and diagonal scan)
- Programmable privacy masking (2 zones)
- RS-422, RS-485 communication
- Supports WTX, PELCO-D V1, PELCO-P, and PELCO-D V5 protocols
- Built-in menu system for setup of programmable functions

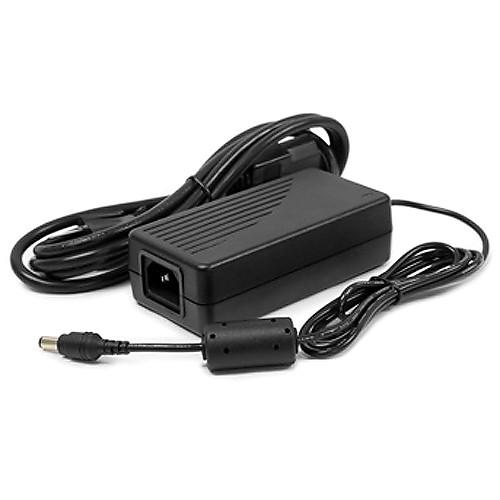

UPC: 801813162035 In the Box Marshall Electronics VS-WC202B-HDSDI Full HD 2MP Rugged IR PTZ Camera (Black) 5VDC Power Supply Brochure PDF 1.1mbaruzuqtxrwweytczerwveturs Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics VS-WC202B-HDSDI Full HD 2MP Rugged IR PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics VS-WC202 Specs | | | Imager | 1/3" 2 MP pixel CMOS sensor | | Picture Elements | 1920 x 1080 pixels | | Zoom | 20x optical zoom, with 12x digital zoom (240x total) | | Aperture | f/1.6 to f/3.5 | | Lens | F= 4.7mm (wide) to 94mm (tele) | | Angle of View | 1080i Mode: 55.4° (wide end), 2.9° (tele end) approximately
720p Mode: 37.6° (wide end), 2° (tele end) | | Minimum Focus Distance | 0.4" (10mm) (wide end), 31.5" (800mm) (tele end) | | Sync System | Internal | | Minimum Illumination | Interlace Mode, High Sensitivity Mode On: 0.5 lux / 1/30 sec, 50%
Typical Value: 1.7 lux / 1/30 sec, 50%
NTSC: 0.26 lux / 1/4 sec
PAL: 1/3 sec (PAL) (Typical value)
ICR-ON Mode: 0.0005 lux / 1/4 sec (NTSC), 1/3 sec (PAL) | | Illumination Strength | Recommended: 100 to 100,000 lux | | S/N Ratio | 50 dB (weight on) | | Back Light Compensation | On/Off | | Electronic Shutter Speed | 60/30 Mode: 1 to 1/10,000 sec (22 steps)
50/25 Mode: 1 to 1/10,000 sec. (22 steps) | | White Balance | Auto, ATW, indoor, outdoor, one push WB, manual WB, outdoor auto, sodium vapor | | Gain | Auto/Manual: -3 to 28 dB, 16 steps | | Wide Dynamic Range | On / Off / Auto | | Noise Reduction | On / Off (level 5 to 1 / Off, 6 steps) | | Enhancements | Color: On / Off | | Aperture Control | 16 steps | | Preset | 6 positions | | | | Video Out | HD-SDI - 1 channel (1080i60, 1080p30, 720p60, 1080i50, 1080p25, 720p50)
CVBS: 1 channel, IP webserver (optional) | | Certification | CE, FCC CLASS A, RoHS | | | | Preset | 63 points | | Tour | 8 programmable | | Pattern | 2 patterns | | Flip Inputs | Mechanical / auto / off (rotate 90° at bottom of tilt) | | Auto Scanning | 4 (programmable speed and diagonal scan) | | Privacy Zone | 2 blocks with title (masking / video off) | | Address | Up to 255 selectable ID (rotary switch) | | Data Communication | RS-485 / RS-422 | | Protocols Supported | WTX, PELCO-D V1, PELCO-P, PELCO-D V5 | | Baud Rate | 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps | | Alarm | Input: 2 x alarm (NO/NC, priority)
Output: 2 x relay out (hold, latch) | | Display | Zone title on/off (start/end zone) | | | | Power | 12 VDC, 40 W, 3.3 A | | Power Consumption | IR: 1.9 A (23 W) (Fan & Heater On) | | IR LED Count | 12 LEDs (18ø) | | IR Distance | 394' (120 m) (manual focusing) | | | | Construction | Aluminum | | Ingress Protection Rating | IP66 | | Operating Temperature | -4 to 122°F (-20 to 50°C) (with fan & heater on) | | Humidity | 0 to 90% | | | | Pan | 360° endless pan, 0.1 to 100°/sec | | Preset Speeds | Pan: 110°/sec, 0.3° accuracy
Tilt: 60°/sec, 0.3° accuracy | | Tilt | Top: 15 to 270°
Bottom: 345 to 90°, tilt angle, proportional to zoom | | Dimensions (Ø x H) | 5.4 x 8.3" (13.8 x 21.2 cm) | | Weight | 5.9 lb (2.7 kg) | | | | Package Weight | 9.7 lb | | Box Dimensions (LxWxH) | 13.307 x 11.26 x 8.898" |
