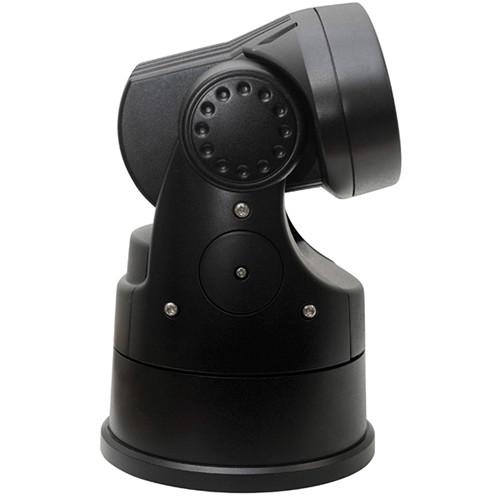

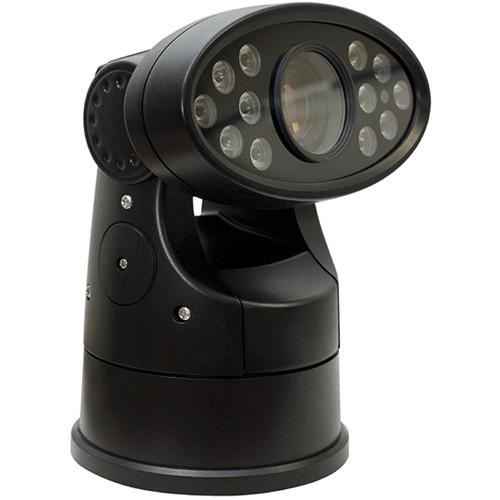

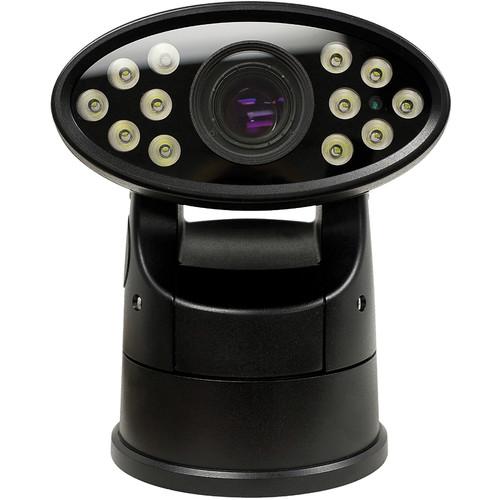

Product description The black VS-WC363 36x Zoom Day/Night WDR Outdoor Rugged IR PTZ Camera from Marshall Electronics features 1/4" 612,688 pixels SONY Super HAD dual scan CCD, 700 TVL of high resolution, and offers NTSC/PAL composite video output. The 12 built-in IR LEDs illuminate a distance of up to 393.7' (120m) to capture clear images with manual focusing. This camera offers optimal sensitivity in both day and night applications.
Thanks to Wide Dynamic Range (WDR), the camera delivers clear, high-quality pictures even when the subject is backlit by increasing exposure in dark areas while simultaneously decreasing it in bright areas results in a corrected image with clear details. The built-in 36x optical zoom lens with auto-focus is combined with a 32x digital zoom providing a maximum of 1,152x zoom. The built-in heater and fan allow you to use this weatherproof IP66-rated camera both indoor and outdoors.
At a preset level of darkness, the IR-cut filter is automatically disabled (ICR Off) and near-infrared sensitivity is increased, while at a preset level of brightness, the filter is automatically enabled (ICR On). The IR-cut filter automatically engages depending on the ambient light, allowing the camera 24/7 operation in a variety of lighting conditions. - 1/4" 612,688 pixels SONY Super HAD dual scan CCD
- 700 TVL of highest resolution (HR7 mode)
- Progressive scan 612,688 pixels
- Optical 36x power zoom and 32x digital zoom
- 1/4" Exview HAD CCD, Sony optical 36x zoom with WDR
- 12 IR LEDs (120m manual focusing)
- High-powered 36x optical zoom
- Light Distance: 80m (manual focusing)
- IP66-rated outdoor application
- Pan rotation with -22.5° to 90° tilt angle
- Up to 63 programmable presets
- Less than 0.1° preset accuracy
- 8 programmable tours, 4 patterns
- Move the camera to the programmed preset position with alarm trigger (maximum 2)
- 4 Scan presets with programmable speed and diagonal scan
- Programmable privacy masking (2 zones)
- RS-422, RS-485 communication
- Multiple protocol PELCO-D, PELCO-P
- Built-in menu system for setup of programmable functions
- 12VDC, 1.5A with optional 24VAC power input

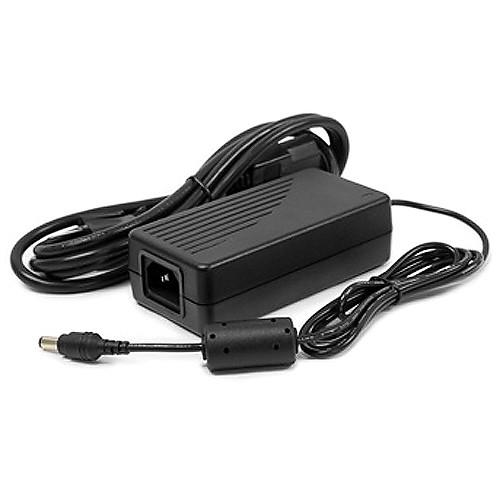

In the Box Marshall Electronics VS-WC363 36x Zoom Day/Night WDR Outdoor Rugged IR PTZ Camera with Heater & Fan (Black) V-PS12-5V Power Supply Brochure PDF 1.3mbrxvcrwruruxvacbbrtaybutrsswdrzxxx Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics VS-WC363 36x Zoom Day Night WDR Outdoor Rugged IR PTZ Camera with Heater & Fan in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics VS-WC363 Specs | | | Image Sensor | 1/4" SONY Super HAD II CCD (Double Screen) | | Zoom | Optical 36x, Digital 32x | | Total Pixels (H x V) | NTSC: 1028 x 508
PAL: 1028 x 596 | | Scanning frequency (H, V) | NTSC: 15.734 kHz, 59.94 Hz
PAL: 15.625 kHz, 50 Hz | | Sync System | Internal | | Minimum Working Distance | Wide End: 0.4" (1.0 cm)
Tele End: 31.5" (80.0 cm) | | Resolution | 700 TVL (Color) / 800 TVL (B&W) | | Minimum Illumination | Color: 0.5 lux, B&W: 0.2 lux
Color DSS: 0.001 lux, B&W DSS: 0.0004 lux | | DNR | Off / Manual / Auto | | Focus Distance | 50 dB (weight ON) | | Focal Length | f = 3.4 to 122.4 mm (F 1.6 to 4.5) | | Focus | Auto | | S/N Ratio | More than 50 dB (AGC off) | | Communication | Baud Rate: 2,400/4,800/9,600/19,200/38,400
Protocol: Pelco-D / Pelco-P | | Zoom Type | Off / Maximum 2x to 32x (Electonic) | | Exposure | Auto / Shutter PRI / Manual | | Gain Control | Off / On (Auto Max 32 dB) | | Display | Display Select / Initial Select / Set Tilt / Set Initial Message /Language | | Shutter Speed | NTSC: 1/60 to 1/100,000 sec
PAL: 1/50 to 1/100,000 sec | | WDR Mode | Off / WDR / BLC | | Day & Night | Auto / Sens-in / Ext / Day / Night | | White Balance | ATW / One-Push / Indoor / Outdoor / Manual / Auto | | | | Preset | 63 points, less than 0.1° accuracy | | Tours | 8 programmable | | Patterns | 4 | | Flip and Rotate | Mechanical / Auto / Off (Rotate 90° at bottom of tilt) | | Auto Scanning | 4 (programmable speed and diagonal scan) | | Privacy Zone | 2 blocks with title (masking/video off) | | Address | Up to 255 selectable ID (Rotary switch) | | Data Communication | RS-485 / RS-422 | | Protocol | Multiple protocol | | Baud Rate | 2,400, 4,800, 9,600, 19,200, 38,400, 57,600, 115,200 bps | | Alarm | In: 2 alarm (NO/NC, Priority)
Out: 2 relay out (Hold, Latch) | | Display | Zone title on/off (start / end zone) | | | | Power | 12 VDC, 22 W, 1.5 A (with extra IR 3 A)
(V-PS12-5V Power Supply included)
IR: 1.9 A (23 W) (Fan & Heater ON) | | IR LED | 12 pieaces 18ø IR LEDs | | Light Distance | 393.7' (120.0 m) (manual focusing) | | | | Video Out | 1.0 Vpp (75 Ω, composite) | | Certification | CE, FCC CLASS A, RoHS | | | | Construction | Aluminum | | Ingress Protection Rating | IP66 | | Operating Temperature | -4 to 122°F (-20 to 50°C) (Fan & Heater power ON) | | | | Pan | 360° endless pan / 0.1° to 100°/sec | | Pan Speed | Preset Speed: 110°/sec, 0.1° accuracy | | Tilt | -22.5° to 90° angle, 64 steps proportional to zoom | | Tilt Speed | Preset Speed: 60°/sec, 0.3° accuracy | | Dimensions (Ø x H) | 5.4 x 8.1" (13.8 x 20.6 cm) | | Weight | 5.9 lb (2.7 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 12.0 x 12.0 x 6.0" |
