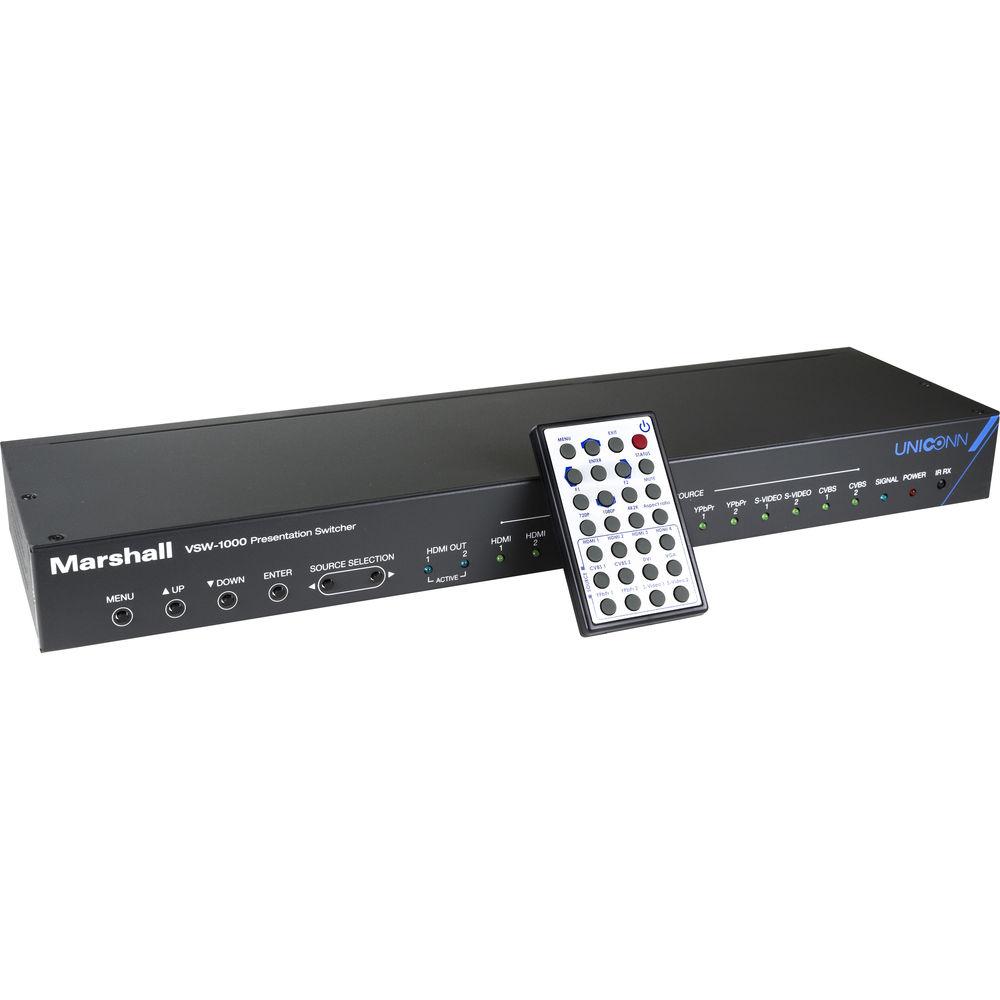

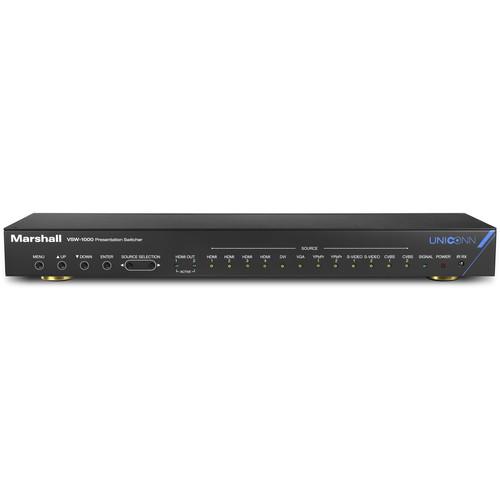

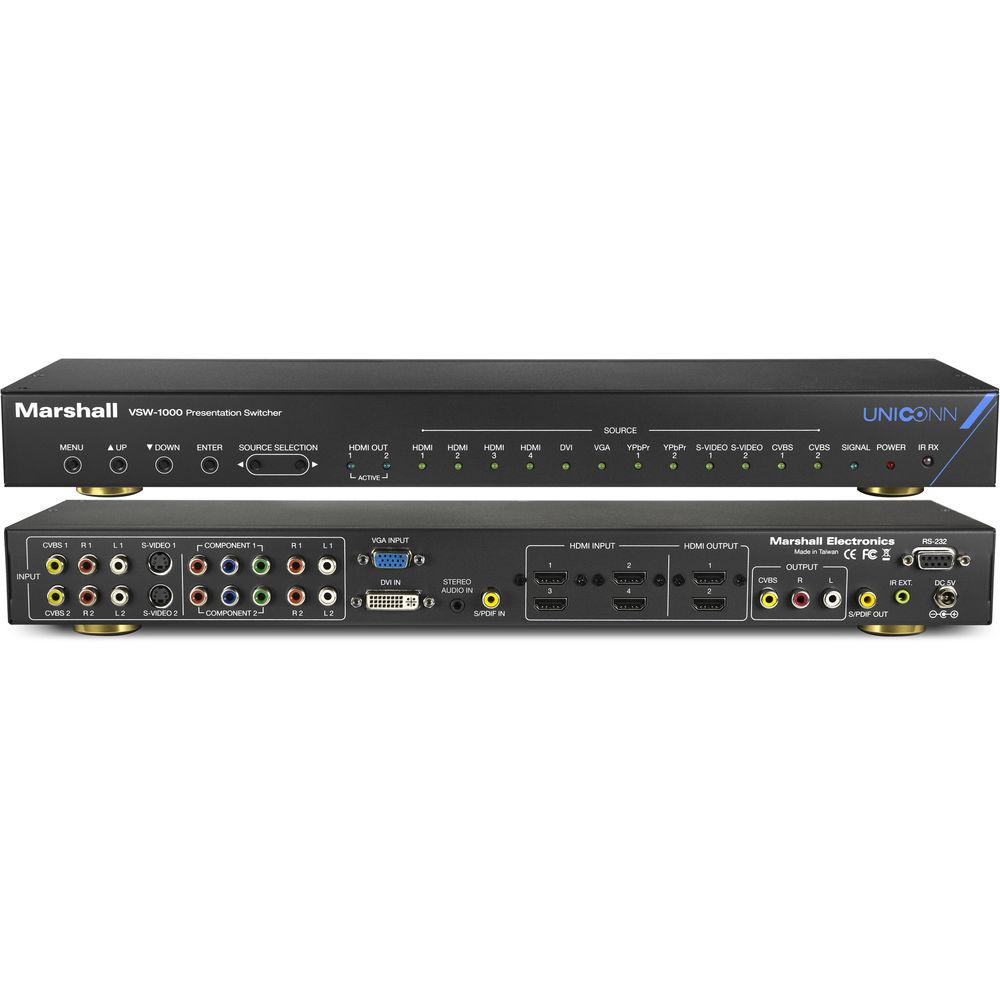

User Manual for Marshall Electronics VSW-1000 Presentation Switcher Click to enlarge the picture
Contents of the user manual for the Marshall Electronics VSW-1000 Presentation Switcher
- Product category: Routers & Switchers Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Routers & Switchers
 |
User manual for the Marshall Electronics VSW-1000 Presentation Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description Offering composite, S-video, component, DVI, VGA, and HDMI source switching, the Marshall Electronics VSW-1000 Presentation Switcher can accept input from nearly any conventional video source. Whether you want to incorporate a VCR, a computer, a DVD player, or a video game console into your A/V presentation setup, the VSW-1000 can easily accommodate. Outputs include dual HDMI terminals and a composite video + RCA audio output. Screen resolutions up to UHD 4K are supported via the HDMI outputs; great for large screen presentations of high-resolution content. Video with lower resolution can also be upscaled to 4K on output.Every video input supports audio. Composite and S-video share RCA audio inputs, DVI and VGA can embed audio from SPDIF or a stereo analog 3.5mm input, and HDMI supports embedded audio, up to eight channels. Audio can be embedded and output into the HDMI signal, or separately via RCA or SPDIF.All functionality of the VSW-1000 can be controlled via the OSD menu and with the included IR remote control. An RS-232 port can be used for professional A/V integration setups with software control. For rack installation, a rack ear set is included. The VSW-1000 fits into a single standard rack space. Features - Software control through RS-232 port
- Noise reduction and video enhancement features (HDMI only)
- Overscan and underscan adjustment (HDMI only)
- Video H/V mirror (HDMI only)
- Active video area adjustment
- Output scalable up to 4K (2K supported)
- Eight-channel audio down-mix to two channels
UPC: 801813177237 In the Box Marshall Electronics VSW-1000 Presentation Switcher Power Supply IR Receiver IR Remote Control Rack Ear Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics VSW-1000 Presentation Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics VSW-1000 Specs | Video Bandwidth | Input:
HDMI: 225 MHz
DVI/VGA: 165 MHz
Component: 74.25 MHz
Output:
297 MHz | | Audio Support | HDMI: Bypass to HDMI output / SPDIF output / stereo output
SPDIF: Bypass to HDMI output or SPDIF output
Analog: Bypass to HDMI output or stereo output | | ESD Protection | Human Body Model: ±19 kV Air gap discharge, ±12 kV contact discharge

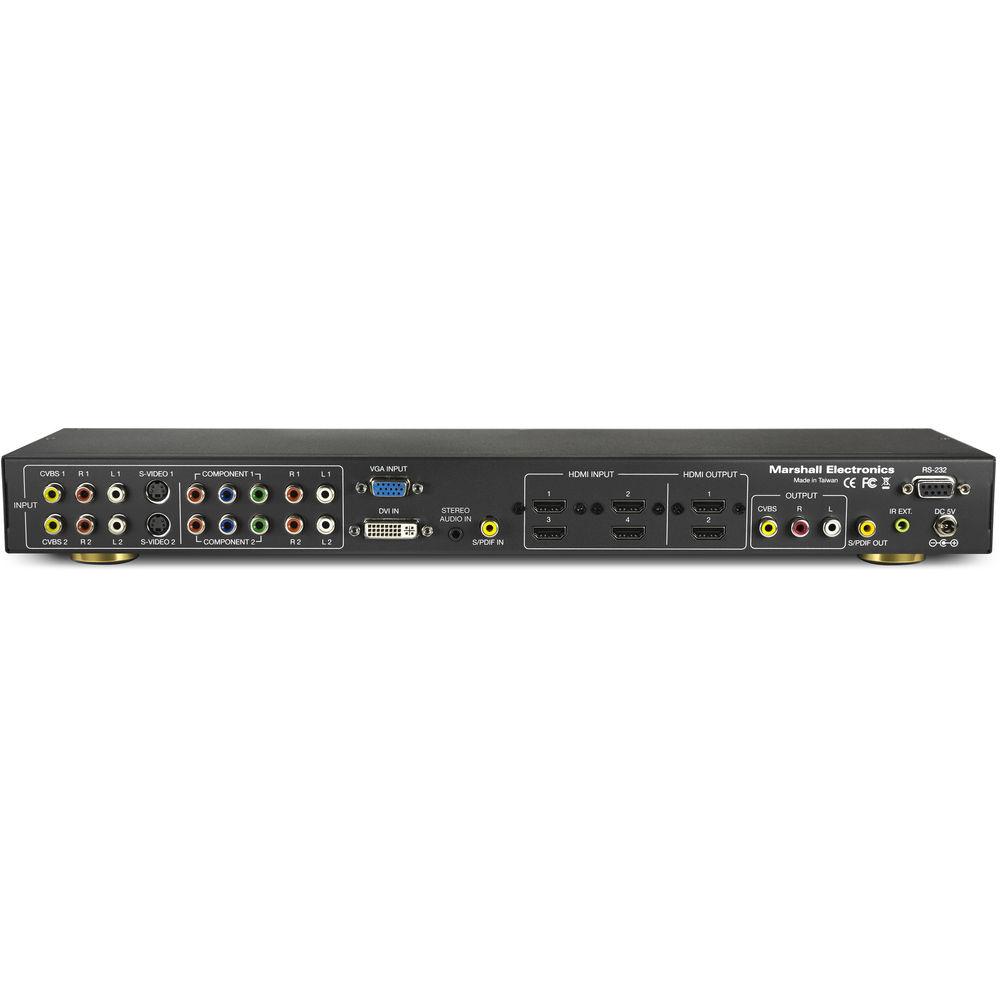

Core Chipset: ±2 kV | | PCB Stack-up | 4-Layer board | | Inputs | 2 x Component YPbPr with RCA audio
2 x S-video/Composite with RCA audio
4 x HDMI
1 x VGA
1 x DVI
1 x 3.5 mm Mini stereo audio
1 x SPDIF | | Outputs | 2 x HDMI
1 x Composite with RCA audio
1 x SPDIF output | | Controls | 1 x RS-232 (Also for firmware updates)
IR remote
Front panel buttons | | Power Consumption | 10 W (5V, 2A) | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Relative Humidity: 20-90% RH, non-condensing | | Dimensions | 17.3 x 1.8 x 4.8" / 438 x 46 x 122 mm | | Weight | 3.6 lb / 1.6 kg |
