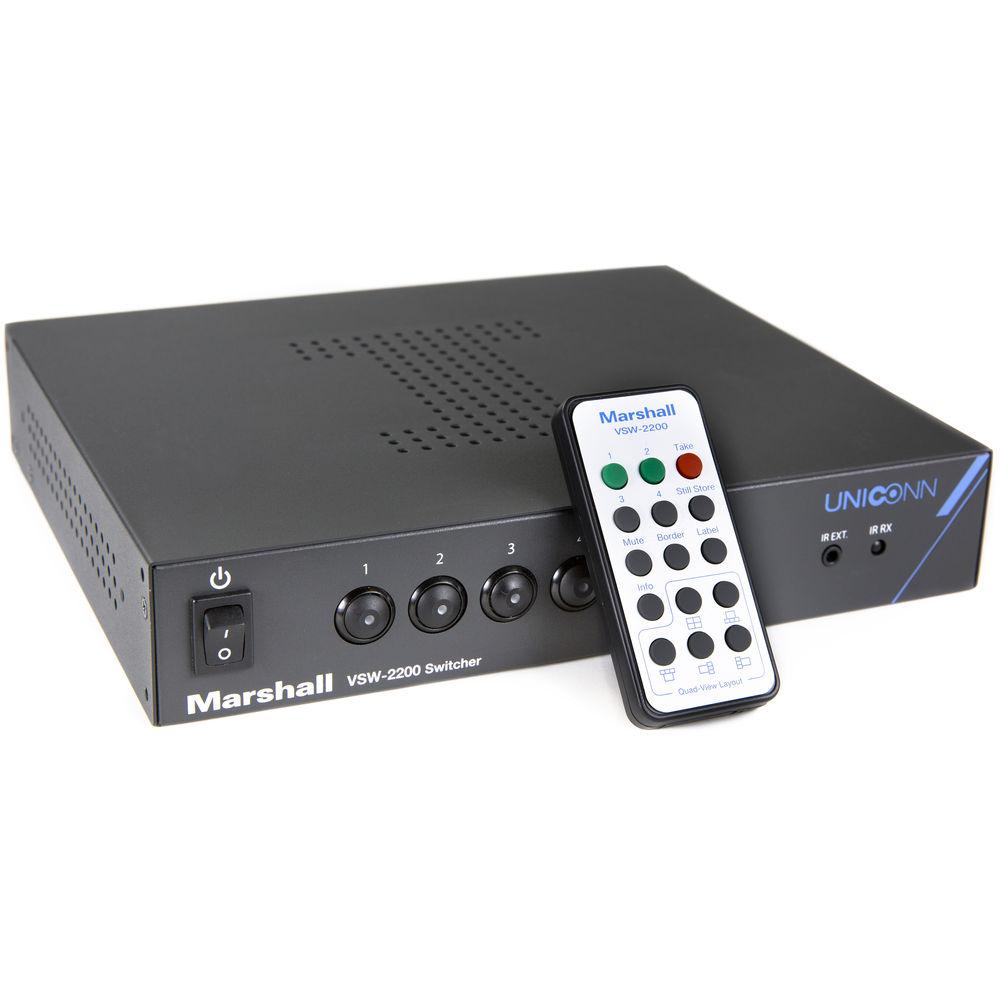

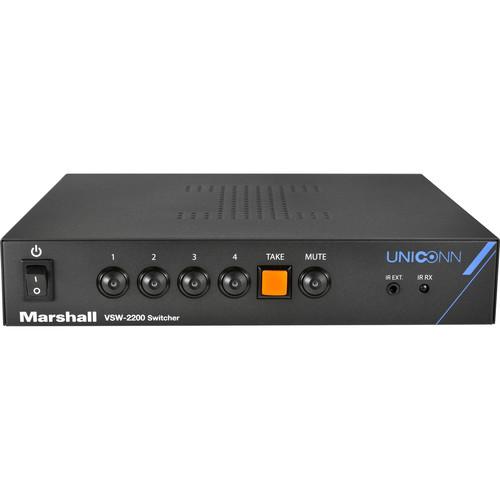

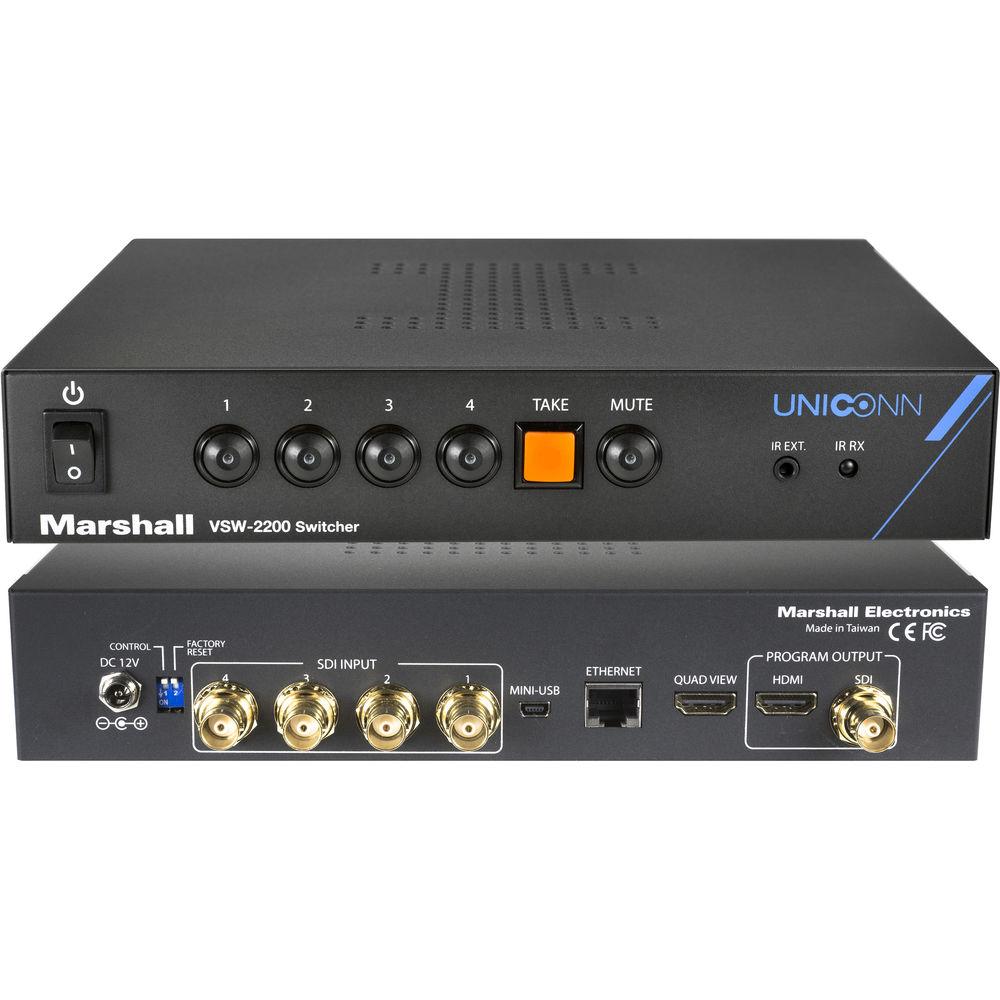

Product description Useful in small multimedia operations including live streaming, teleconferencing, camera switching, and more, the Marshall Electronics VSW-2200 4x1 Seamless 3G-SDI Switcher offers an easy-to-use video switching solution in a compact form factor. The VSW-2200 can switch four 3G/HD/SD-SDI signals to either a single HDMI or SDI output. A second HDMI output offers a multi-view display for seeing all angles simultaneously. Switching between sources is seamless, regardless of format or frame rate. Audio can be passed through from each input or embedded from a single input. If incorporating into an A/V integration setup, remote control can be achieved via the included IR remote, or through Ethernet with software control. Rack ears are included in order to fit the VSW-2200 into half a rack space. Features - Seamless, glitch-free switching
- Accepts multiple formats, frame rates, interlaced video, and progressive video simultaneously
- HDMI and SDI program outputs
- Independently selectable Program and Preview output formats
- Pass-through or mute embedded audio (two channels, one AES pair)
UPC: 801813177114 In the Box Marshall Electronics VSW-2200 4x1 Seamless 3G-SDI Switcher Rack Ears Power Supply AC Power Cord IR Remote Control IR Receiver Extension Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics VSW-2200 4x1 Seamless 3G-SDI Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

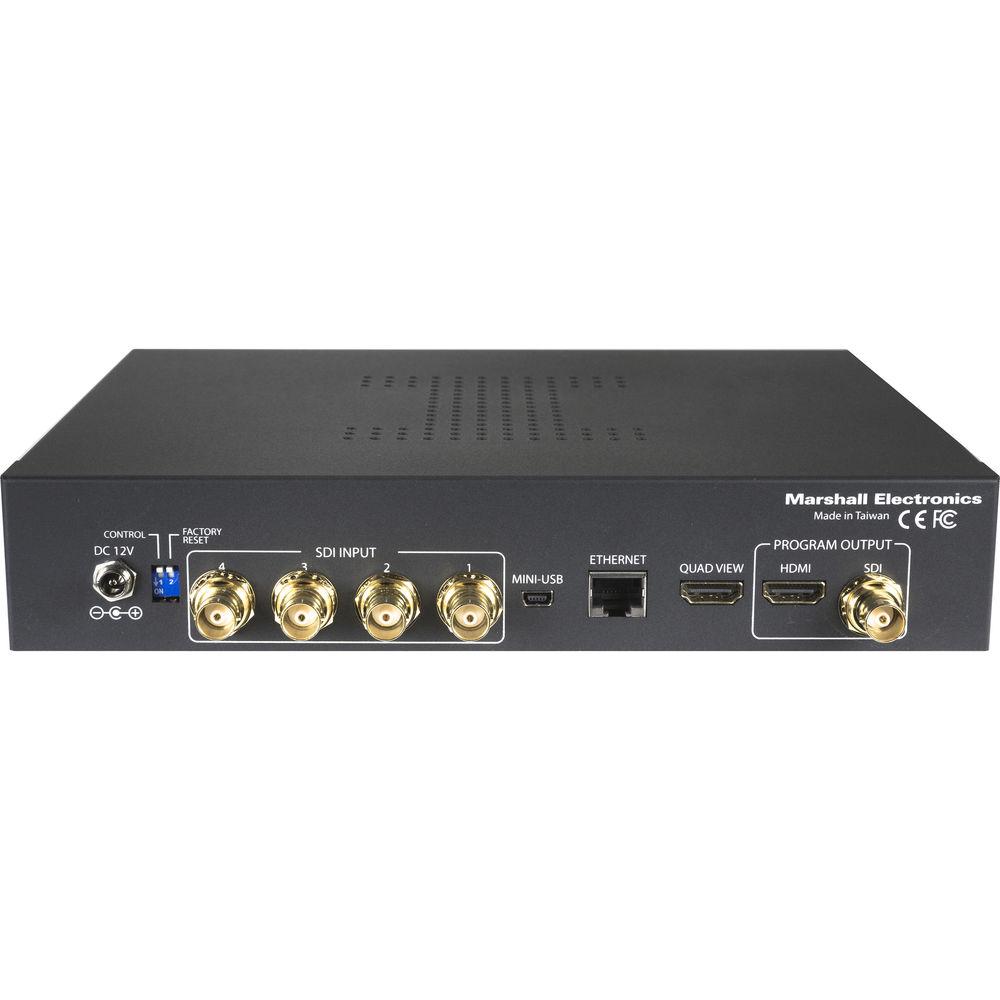

Technical parametersMarshall Electronics VSW-2200 Specs | Video Inputs | 4 x 3G/HD/SD-SDI BNC | | Supported Input Formats | 1080p60/59.94/50/25/24/23.98
1080i59.94/50
720p59.94/50
NTSC
PAL | | Embedded Audio Input | Two-channel or one 5.1-channel surround mix from SDI (48 kHz sample rate) | | Video Outputs | Preview: 1 x HDMI
Program: 1 x 3G/HD/SD-SDI, 1 x HDMI | | Supported Output Formats | 1080p60/59.94/50/25/24/23.98
720p60/59.94/50 | | Power Supply | 12 VDC, 5 A | | Power Consumption | 14.5 W Nominal | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Relative Humidity: 20-90% RH, non-condensing | | ESD Protection | Human Body Model: ±12 kV Air-gap discharge, ±8 kV contact discharge | | Dimensions | 9.4 x 7.9 x 1.8" / 239 x 201 x 44 mm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 5.165 lb | | Box Dimensions (LxWxH) | 14.75 x 9.6 x 4.45" |
