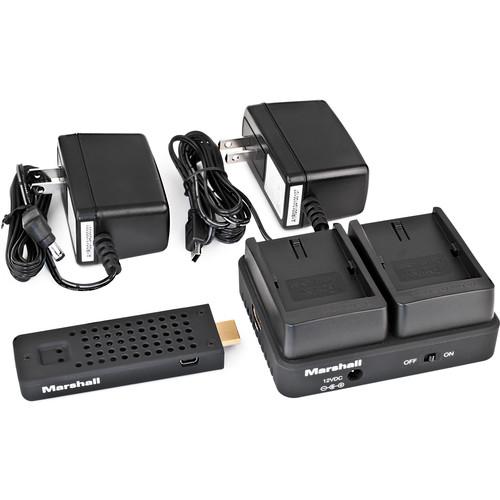

User Manual for Marshall Electronics WP-2S Wireless HDMI Transmitter Receiver System Click to enlarge the picture
Contents of the user manual for the Marshall Electronics WP-2S Wireless HDMI Transmitter
- Product category: Wireless Transmission Systems Marshall Electronics
- Brand: Marshall Electronics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Marshall Electronics Wireless Transmission Systems
|
User manual for the Marshall Electronics WP-2S Wireless HDMI Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Marshall Electronics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Marshall Electronics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Marshall Electronics product will considerably shorten its lifespan!
|
Product description The WP-2S Wireless HDMI Transmitter Receiver System with single Sony NPF970 type battery plate from Marshall Electronics features stick-style HDMI dongle transmitter that can plug directly in to the camera's HDMI port or be extended using a male-to-female HDMI cable. The system has wireless range of up to 100' line-of-sight with less than 1 millisecond of latency, and will broadcast resolutions up to 1080p60. The system supports HDMI 1.3 and is HDCP compliant, meaning it can pass copy-protected sources such as commercial Blu-ray discs.
The transmitter powers from USB bus power, meaning you will need a USB power source on hand to plug it in to. Meanwhile the receiver can either be battery-powered or powered using AC. An AC adapter comes with the system and there is also a PowerTap cable, available separately, if you want to use an external 12V DC source, such as a professional video battery system instead. - Supports Marshall Universal Battery Plates
- The Receiver can use the same battery plates as many Marshall Electronics field monitors, opening you up to a range of powering options, and the existing plate can be replaced as the batteries you use change. There is also a PowerTap cable (WP-2 Tap), available separately, for powering from an external 12V DC source
- WHDI 1.0 Protocol Wireless Technology
- By using WHDI (Wireless Home Digital Interface) and a 5.3 GHz carrier, the WP-2 is able to transmit uncompressed Full HD video up to 100' with less than a millisecond of latency
- Multi-Camera Friendly
- Several WP-1/WP-2 systems can be used in the same space, making the WP-2 suitable for live switching and A/V applications that require several sources of video. Each transmitter (Tx) is paired to the receiver (Rx) it came with--a single feed cannon be sent to multiple receivers
UPC: 801813170689 In the Box Marshall Electronics WP-2S Wireless HDMI Transmitter Receiver System (Single NPF970) V-WHT-A Stick Transmitter V-WHT-A Receiver Power Supply Single Sony NPF970 Battery Plate Table of Contents
|
Upload User Manual
Have you got an user manual for the Marshall Electronics WP-2S Wireless HDMI Transmitter Receiver System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarshall Electronics WP-2S Specs | | | Frequency | 5.3 GHz | | Protocol | WHDI 1.0 | | Range | Up to 100' (30 m) line-of-sight | | Latency | > 1 ms | | Maximum Resolution | 1080p60 | | | | Inputs | 1 x HDMI (HDMI 1.3 and HDCP compliant) 1 x USB mini type B for power | | | | Input | 1 x 12 VDC on coaxial connector | | Output | 1 x HDMI | | | | Power Requirements | Transmitter: USB bus power (5 VDC)
Receiver: 12 VDC | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 7.244 x 5.197 x 4.095" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
