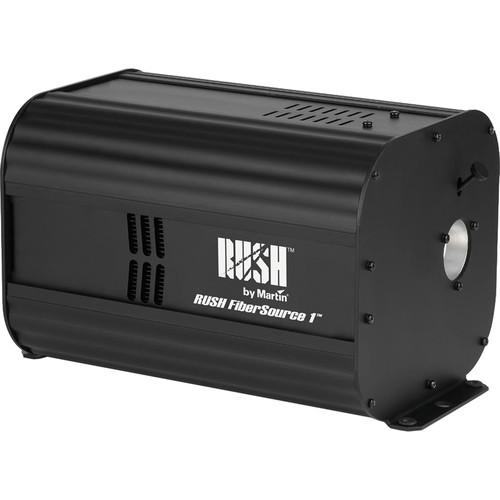

User Manual for Martin Professional Lighting RUSH FiberSource 1 - Fiber Optic Projector Click to enlarge the picture
Contents of the user manual for the Martin Professional Lighting RUSH FiberSource 1
- Product category: DJ & Effect Lights Martin Professional Lighting
- Brand: Martin Professional Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Martin Professional Lighting DJ & Effect Lights
|
User manual for the Martin Professional Lighting RUSH FiberSource 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Martin Professional Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Martin Professional Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Martin Professional Lighting product will considerably shorten its lifespan!
|
Product description Building upon the success of the FiberSource QFX 150, the Martin Professional Rush FiberSource 1 is a powerful tool for illuminating fiber optic cables in permanent installations, such as clubs, event halls, retail spaces, restaurants, and more.
With an updated CREE 78W LED light source, the FiberSource 1 projector boasts an improved efficiency and reliability, while retaining all key features including nine interchangeable color filters, a twinkle effects wheel, and electronic dimming. For control options, the instrument offers five channels of DMX and can work standalone or mater/slave. The Martin Professional Rush FiberSource 1 ships with a power cord and four color filters (red, green, blue, yellow) with adapters. -
- 78 W LED fiber projector
- 9 x interchangeable colors
- Dimmer: 0-100% electronic intensity control
- Twinkle effect wheel
- DMX or standalone control
- Up to 300 fiber cables (1 mm)
- Includes four color filters (RGBY)
In the Box Martin Professional Lighting RUSH FiberSource 1 - Fiber Optic Projector Power Cord 4 x Color Filter M05 (Red, Green, Blue, Yellow) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting RUSH FiberSource 1 - Fiber Optic Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting RUSH FiberSource... Specs | Dynamic Effects | Color Wheel: 9 interchangeable filters + open, indexing, continuous rotation
Twinkle Effect: Continuous rotation, variable speed and direction
Dimmer: 0 to 100% continuous dimming | | Control and Programming | Control Options: DMX, standalone, master/slave
DMX Channels: 5
Standalone Programming: DIP switch
Settings and DMX Addressing: DIP switch
DMX Compliance: USITT DMX512/1990 | | Optics | Light Source: CREE 78 W LED
Color Temperature: 6000–7000 K
CRI (Color Rendering Index): >70
Minimum LED Lifetime: 35,000 hours | | Construction | Color: Black (RAL 9005)
Housing: Steel and aluminum
Protection Rating: IP20 | | Installation | Mounting Points: Four rubber-mounting grommets, two 0.5" / 13.0 mm Ø (diameter) holes for rigging clamps
Location: Indoor use only, must be fastened to surface or structure
Minimum Distance to Combustible Materials: 7.9" / 200.7 mm
Minimum Clearance Around Fans and Vents: 4.0" / 101.6 mm
Orientation: Any | | Connectors | AC Power In / Thru: Neutrik PowerCon
DMX Data In / Out: 3-pin and 5-pin locking XLR | | Thermal | Cooling: Forced air (temperature-regulated, low noise)
Maximum Ambient Temperature (Ta max.): 104°F / 40°C
Minimum Ambient Temperature (Ta min.): 41°F / 5°C
Maximum Surface Temperature, Steady State: 104°F / 40°C
Ambient: 122°F / 50°C | | Approvals | EU Safety: EN 60598-2-1
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61547
US Safety: ANSI/UL 1598
US EMC: 47 CFR Part 15 Class A
Canadian Safety: CSA C22.2 No. 250.0
Australia/NZ: C-TICK N4241 | | Electrical | AC Power: 100 to 240 VAC, 50/60 Hz
Power Supply Unit: Auto-ranging electronic switch mode | | Dimensions (L x W x H) | 12.0 x 8.3 x 7.9" / 304.8 x 210.8 x 200.7 mm | | Weight | 16.8 lb / 7.6 kg |
