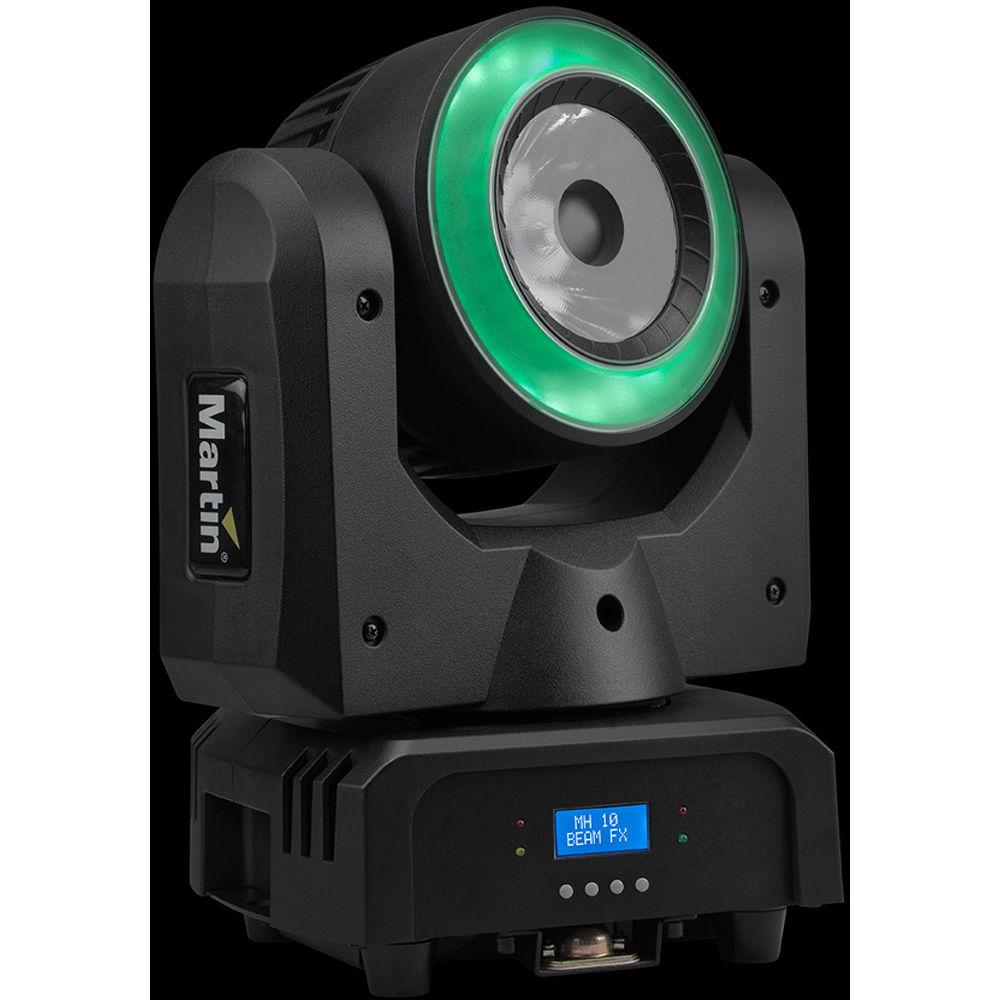

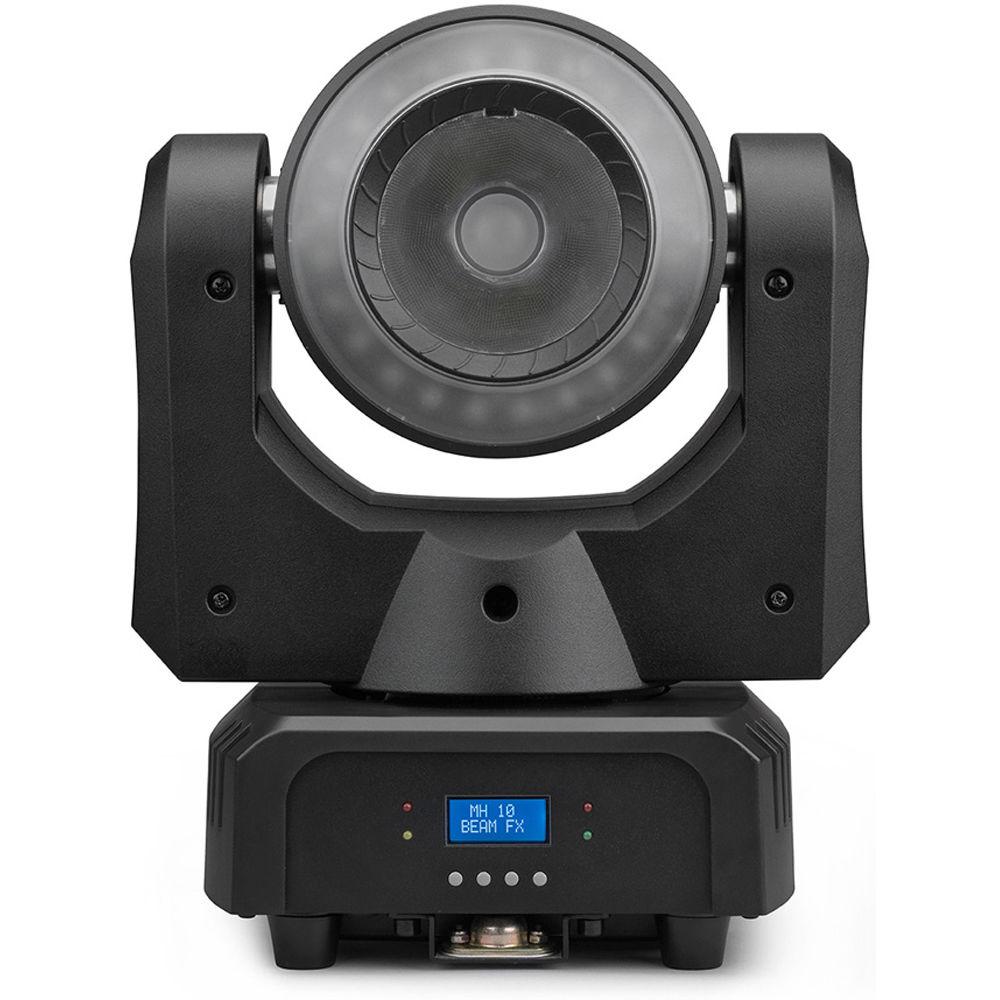

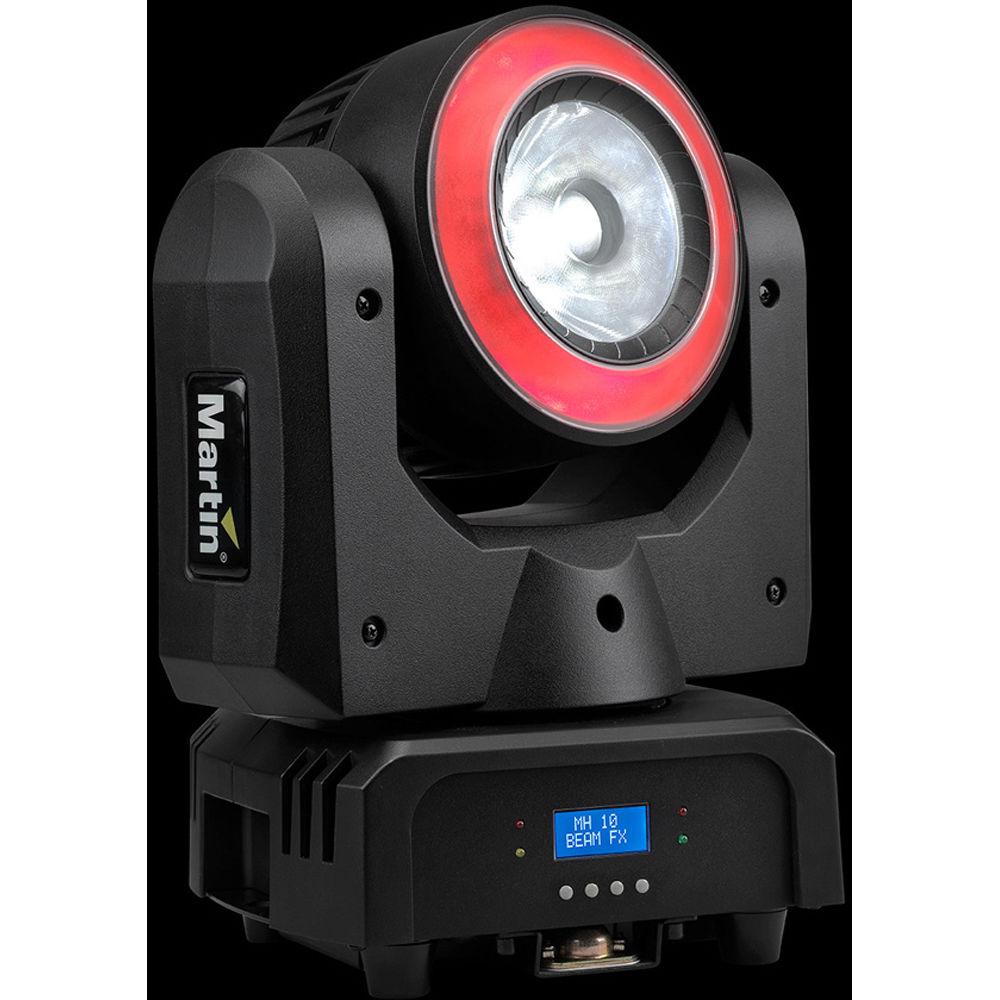

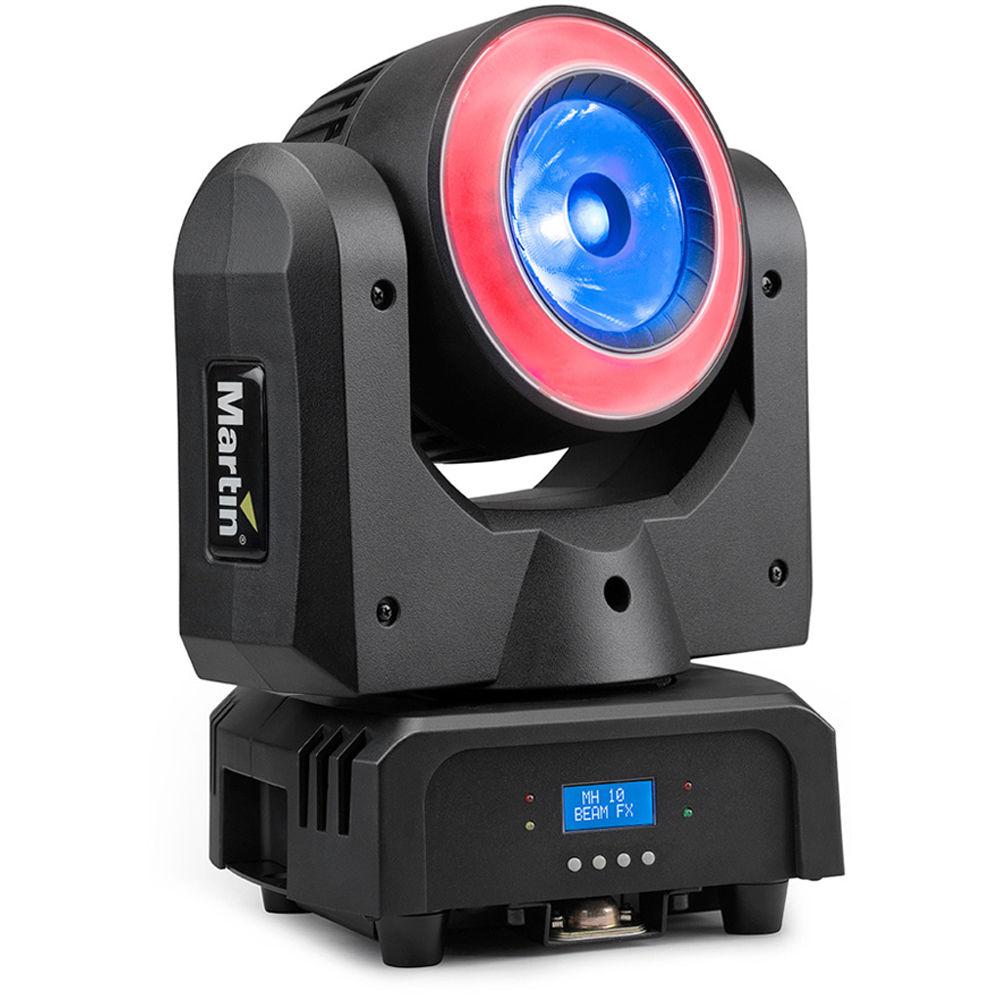

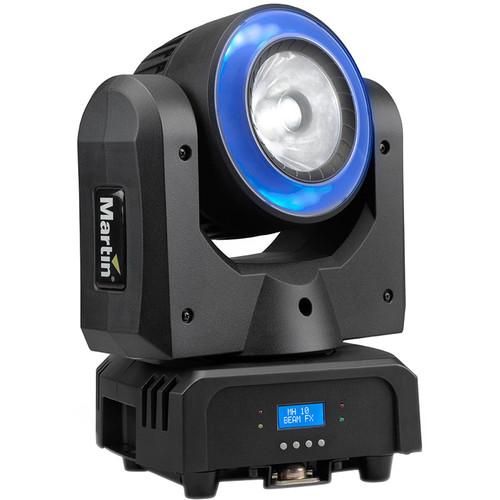

Product description - Introducing the Martin RUSH MH 10 Beam FX
The Martin Professional Rush MH 10 Beam FX is a compact RGBW LED moving head with an independent, built-in LED ring, well suited for nightlife, houses of worship, cruise ships, and small-to-medium touring and rental customers.
Rush MH 10 Beam FX features a 60W Osram LED engine and a collimator lens design, which creates a striking, high-intensity look on stage and provides professional color mixing with other fixtures including the Martin MAC Aura, RUSH MH 6 and RUSH Par 2. The center ring utilizes 24 individually controllable RGB LEDs, which help the fixture to easily blend into onstage LED video elements. Additional features include continuous pan and tilt, as well as a lightweight build, providing a number of interesting rigging possibilities and high-speed looks.
For control options, the MH 10 Beam FX can be controlled via RMX, standalone, master/slave or via DMX with 24 or 93 channels modes. Standalone trigger options include music trigger and auto-trigger. The Martin Professional RUSH MH 10 Beam FX ships with a power cord and two omega brackets. -
- Bright 60W Osram RGBW LED engine
- Collimator lens with tight 4.5° beam angle
- Ambient glow ring with 24 individually pixel-controllable RGB LEDs
- Electronic dimming and strobe
- Temperature-controlled fan cooling
- Unlimited pan and tilt rotating
- 3- & 5-pin XLR DMX connection
- Neutrik TRUE 1 in and thru socket
In the Box Martin Professional Lighting Rush MH 10 Beam FX - Compact Moving Head with LED Ring Power Cord 2 x Omega Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting Rush MH 10 Beam FX - Compact Moving Head with LED Ring in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting RUSH MH 10 Beam ... Specs | Dynamic Effects | Beam Color Mixing: RGBW
Ring Color Mixing: RGB, grouped or individual control of 24 cells
Virtual Color Wheel: 33 color presets, virtual color wheel rotation effects, random color (independent in beam and ring)
Preprogrammed Effects: FX (effect macros) in ring with variable speed and direction of sequences, synchronization and chases across multiple fixtures
Dimming: 0-100%, coarse and fine control (independent in beam and ring)
Electronic Shutter Effect: Strobe effect, pulse effects, instant open and blackout (independent in beam and ring)
Pan: 540°
Tilt: 270°
Pan and Tilt Rotation Effect: Constant, variable speed and direction | | Control and Programming | Control Options: DMX, RDM, stand-alone, master/slave
DMX Channels: 24 or 93
Standalone Trigger Options: Music trig, auto trig
Setting and Addressing: Control panel with backlit LCD display
Pan and Tilt Speed: Adjustable via onboard control panel and DMX
DMX Compliance: USITT DMX512/1990
RDM Compliance: ANSI/ESTA E1.20 | | Optics | Beam Effect Light Source: 60 W RGBW Osram LE RTDUW S2WP
Ring Effect Light Source: 24 x 0.25 W RGB LEDs
Cutoff Beam Angle: 4.4°
Minimum LED Lifetime: 20,000 hours to >70% luminous output | | Construction | Color: Black
Housing: High-impact flame-retardant thermoplastic
Protection Rating: IP20 | | Installation | Mounting Points: Two quarter-turn omega brackets for rigging clamps
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any Minimum distance to illuminated surfaces: 8.0" / 203.2 mm
Minimum Distance to Combustible Materials: 4.0" / 101.6 mm

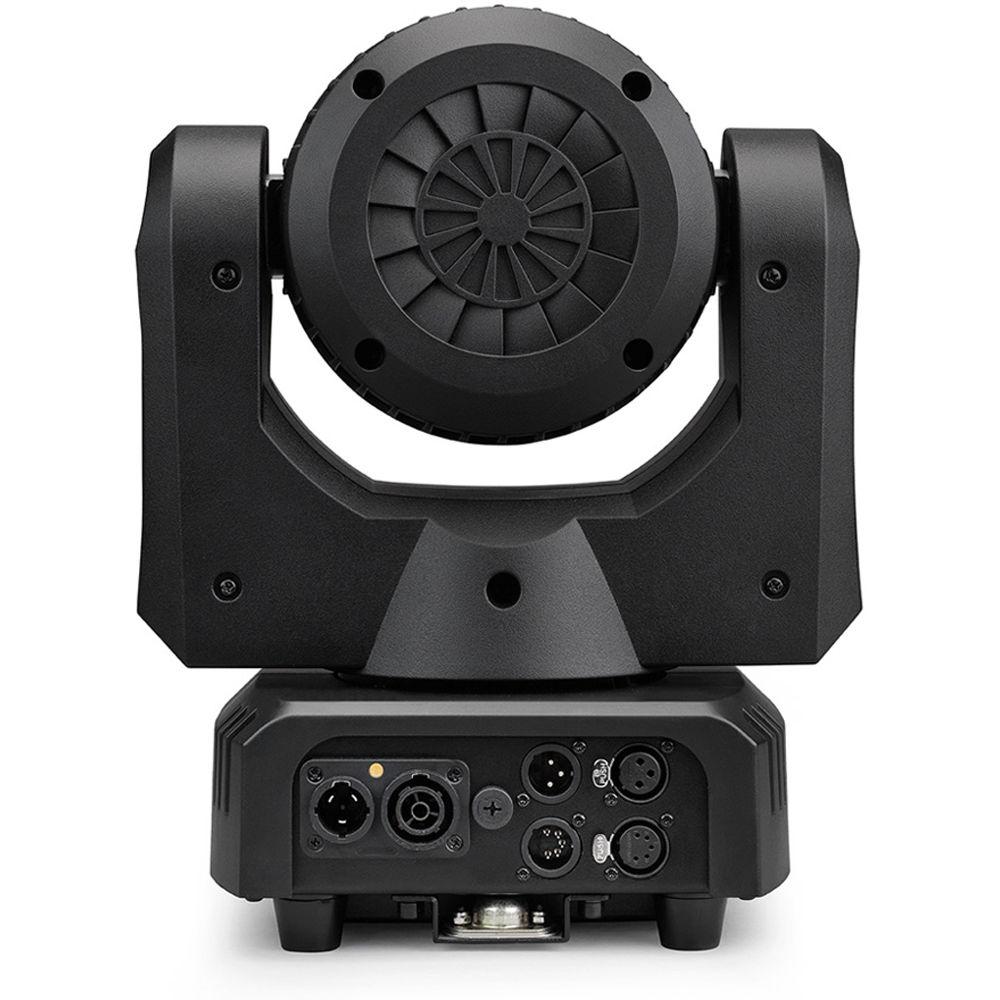

Minimum Clearance Around Fans and Air Vents: 4.0" / 101.6 mm | | Connectors | AC Power In/Thru: Neutrik TRUE1
DMX Data In/Out: 3-pin and 5-pin locking XLR | | Thermal | Cooling: Forced air, temperature controlled
Maximum Ambient Temperature (Ta max.): 104°F / 40°C
Minimum Ambient Temperature (Ta min.): 32°F / 0°C
Total Heat Dissipation (Calculated, ±10%, At Full Intensity, Full White): 1300 BTU / hour | | Approvals | EU Safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3
US Safety: UL 1573
US EMC: CFR Title 47 Part 15 Class A
Canadian Safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ (Pending): RCM | | Power | Power: 100 to 240 VAC nominal, 50/60 Hz
Power Supply Unit: Auto-ranging electronic switch mode
120 V, 60 Hz: 0.85 A, 100W, PF 0.99
230 V, 50 Hz: 0.49 A, 108W. PF 0.99 | | Dimensions (L x W x H) | 10.8 x 7.4 x 12.8" / 274.3 x 188.0 x 325.1 mm | | Weight | 16.5 lb / 7.5 kg |
