User Manual for Martin Professional Lighting Rush MH 11 Beam - High-Intensity Moving Head Click to enlarge the picture
Contents of the user manual for the Martin Professional Lighting Rush MH 11
- Product category: DJ & Effect Lights Martin Professional Lighting
- Brand: Martin Professional Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Martin Professional Lighting DJ & Effect Lights
 |
User manual for the Martin Professional Lighting Rush MH 11 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Martin Professional Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Martin Professional Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Martin Professional Lighting product will considerably shorten its lifespan!
|

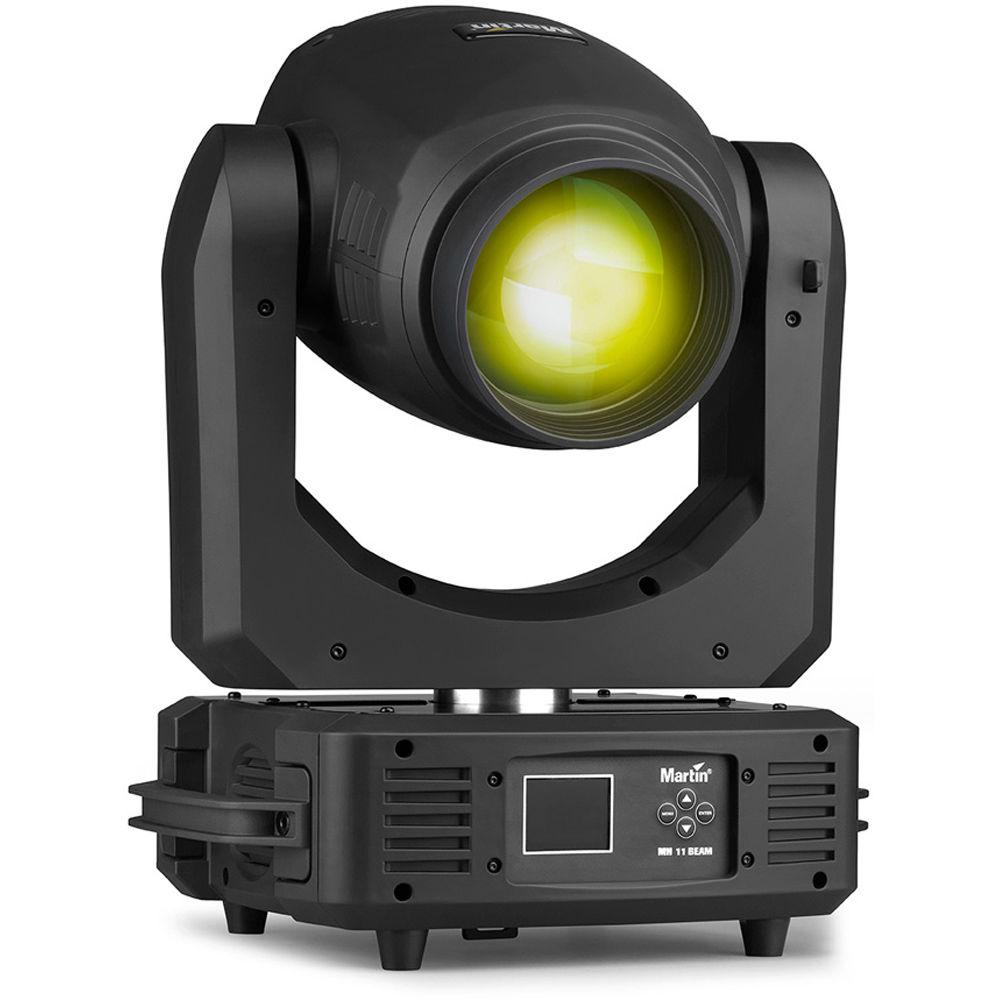

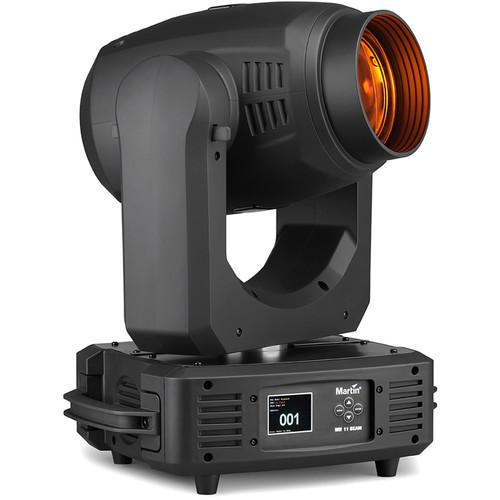

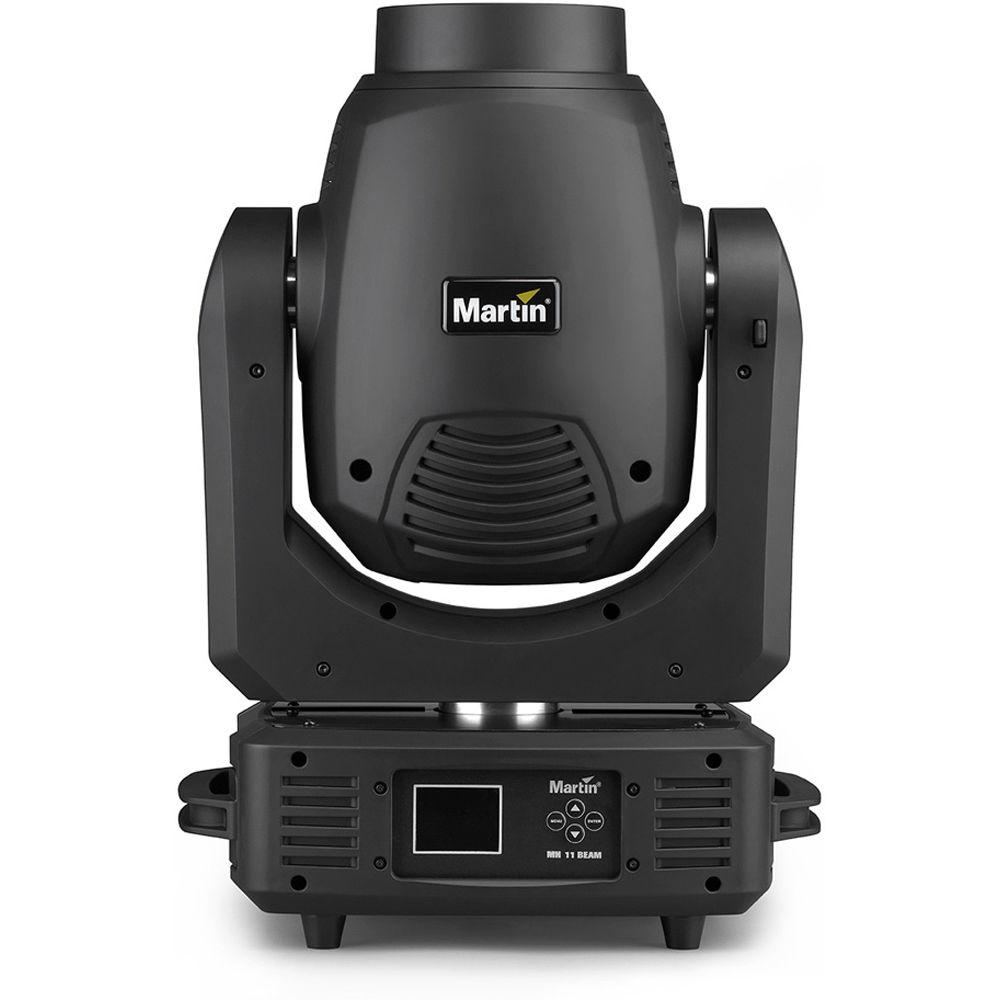

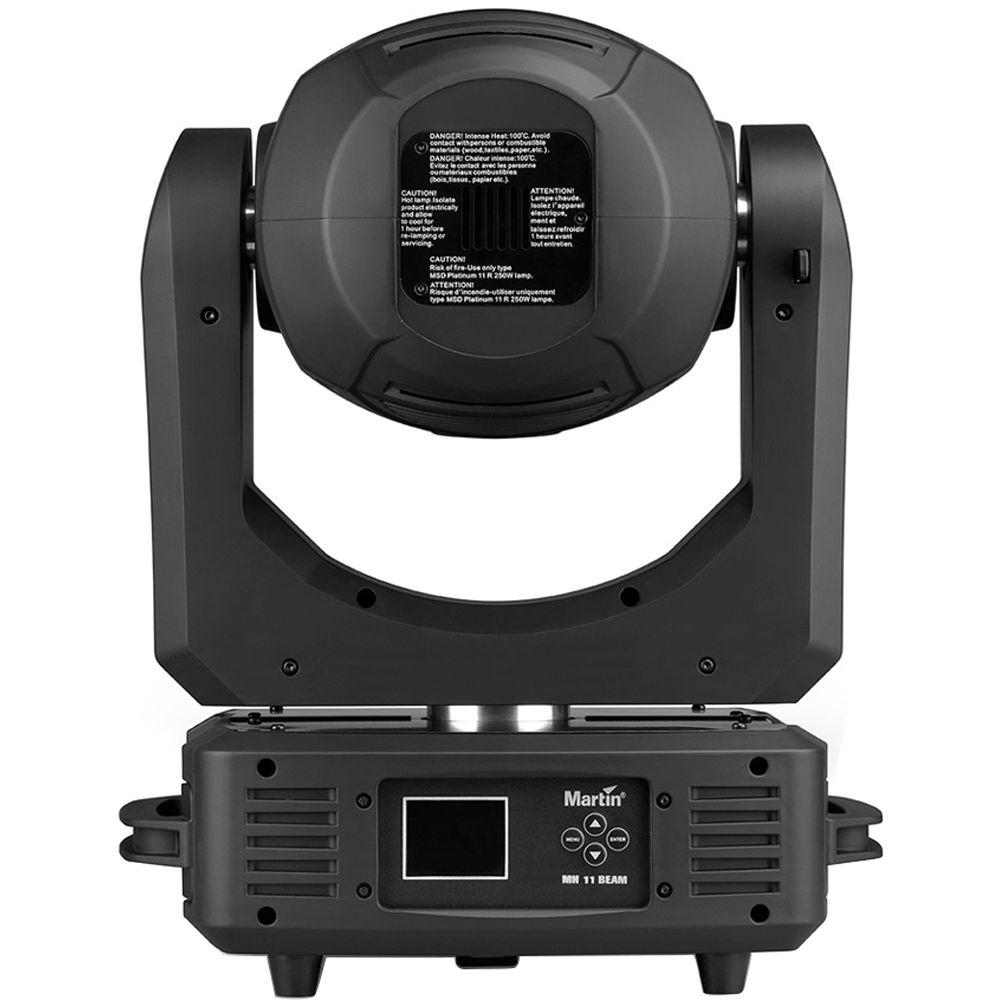

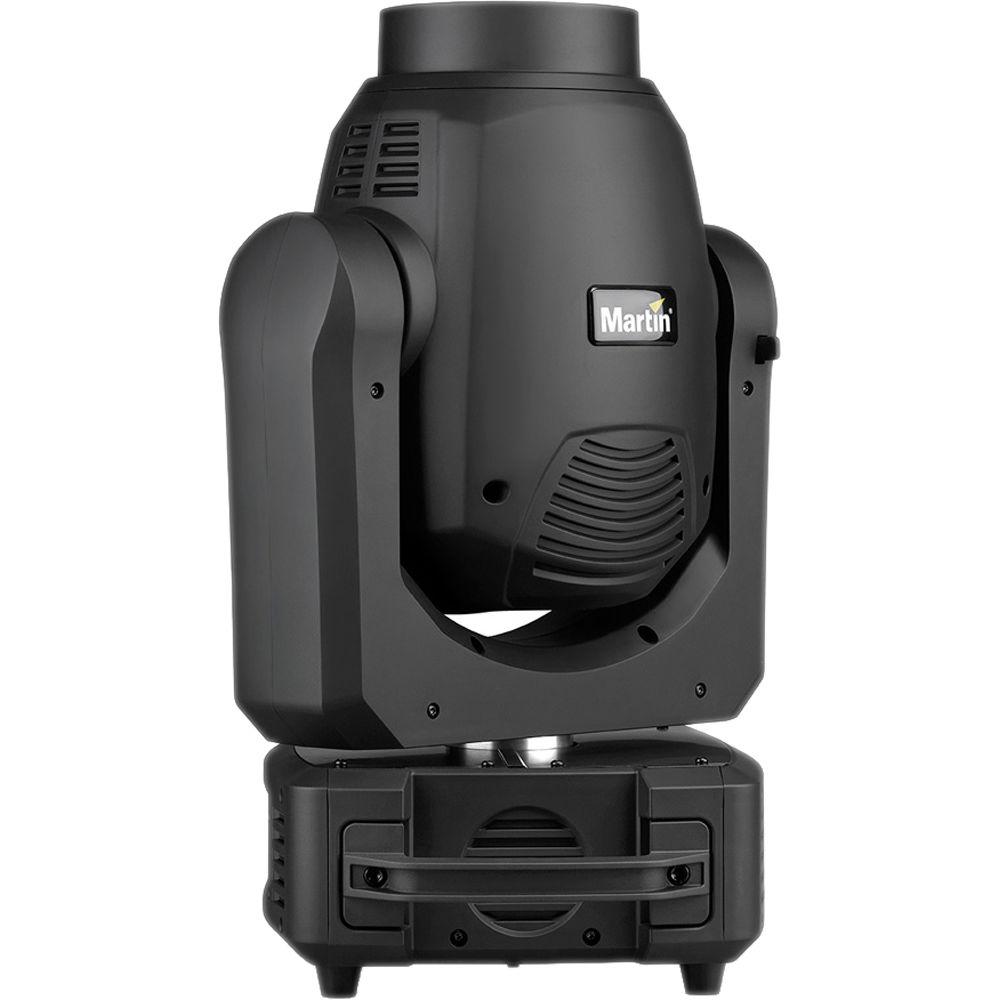

Product description The Martin Professional RUSH MH 11 Beam is a high-intensity beam moving head, well suited for high-end installations, rental applications, professional touring companies, houses of worship, and cruise ships.
The fixture utilizes a 250W Platinum 11R lamp with refined beam optics that provide remarkable intensity and sharp effects in a beam-only fixture. The super-tight 2.6° beam angle offers razor-sharp imaging, and when coupled with the 8 rotating and indexing gobos and 8-facet prism, produces complex and precise midair effects and looks. Additionally, the RUSH MH 11 offers 13 selectable colors, frost effects, and motorized focus. The MH 11 Beam can be controlled via RMD, standalone, or via DMX with 18 channels. The Martin Professional RUSH MH 11 Beam ships with a power cord and two omega brackets. -
- Powerful 250 W Philips Platinum 11R lamp
- Tight 2.6° beam angle
- 8 rotating and indexing gobos
- Ultra-sharp, narrow long-throw beam
- Midair effects
- 10 selectable colors + CTO, CTB, UV
- Frost effect
- 8-facet circular prism
- Motorized focus
- 3 + 5 pin XLR DMX connection
- Neutrik TRUE 1 in and thru socket
In the Box Martin Professional Lighting Rush MH 11 Beam - High-Intensity Moving Head Power Cord 2 x Omega Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting Rush MH 11 Beam - High-Intensity Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting RUSH MH 11 Beam Specs | Dynamic Effects | Color Wheel: 13 colors (incl. CTO and UV) + open, rotation with variable direction and speed
Rotating Gobo Wheel: 8 gobos + open, wheel rotation, gobo indexing, rotation and shake
Prism: 8-facet circular, indexing, rotation with variable direction and speed
Focus: Motorized, 16-bit coarse and fine control
Frost
Dimming: 0-100%, coarse and fine control
Electronic Shutter Effect: Strobe effect, pulse effects, instant open and blackout
Pan: 660°
Tilt: 250° | | Control and Programming | Control Options: DMX, standalone, RDM
DMX Channels: 18
Setting and Addressing: Control panel with backlit LCD display
Pan and Tilt Speed: Adjustable via onboard control panel and DMX
DMX Compliance: USITT DMX512/1990
RDM Compliance: ANSI E1.20 | | Lamp | Approved Lamp: Philips MSD Platinum 11R 250 W
Color Temperature: 6800 K ± 250 K
CRI (Color Rendering Index): 81
Average Lifetime: 2000 hours | | Optics | Cutoff Beam Angle: 2.6° | | Construction | Color: Black
Housing: High-impact flame-retardant thermoplastic
Protection Rating: IP20 | | Gobos | Interchangeable rotating gobos
Permitted Material: Steel or aluminum
Diameter: 0.6" / 14.0 mm (±0.008" / 0.203 mm)
Image Diameter (Max): 0.5" / 13.0 mm
Gobo Thickness: 0.03" / 0.80 mm | | Installation | Mounting Points: Two quarter-turn omega brackets for rigging clamps
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any Minimum Distance to Illuminated Surfaces: 32.8' / 10.0 m
Minimum Distance to Combustible Materials: 7.9" / 200.0 mm

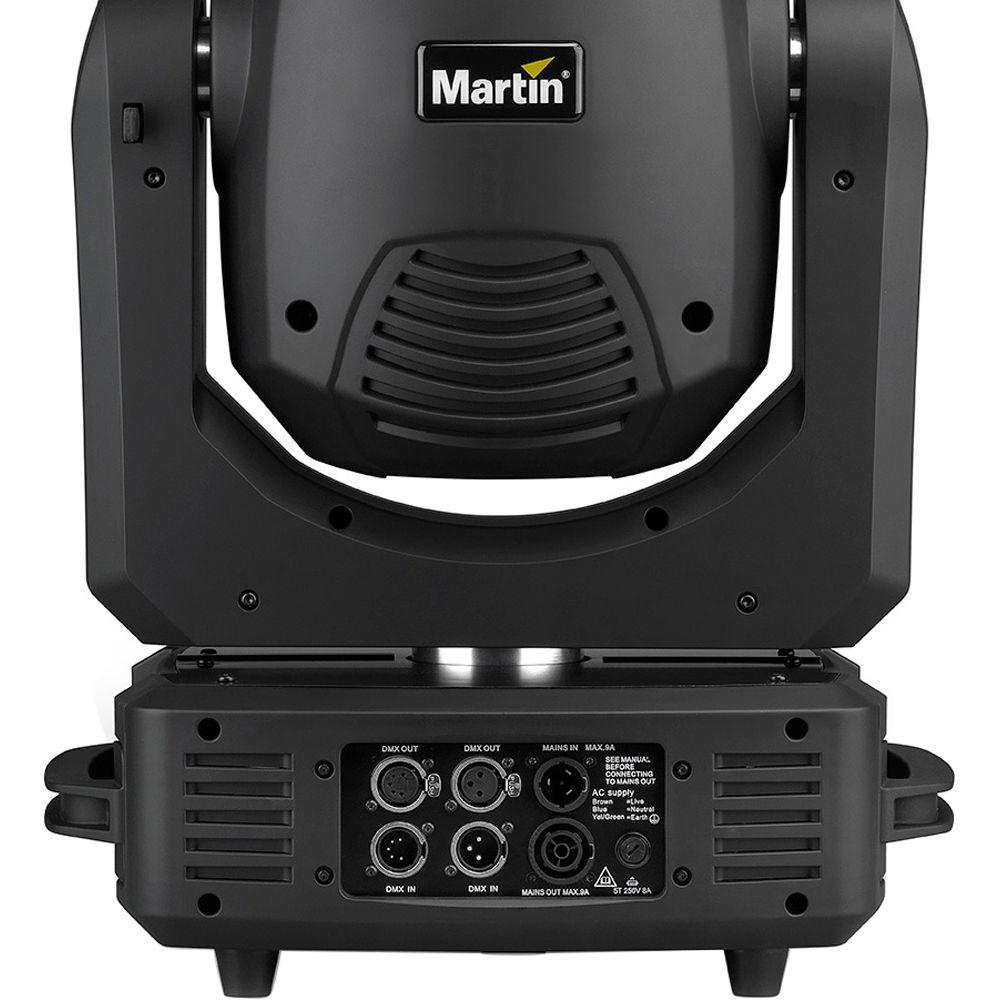

Minimum Clearance Around Fans and Air Vents: 7.9" / 200.0 mm | | Connectors | AC Power In/Thru: Neutrik TRUE1
DMX Data In/Out: 3-pin and 5-pin locking XLR | | Thermal | Cooling: Forced air, temperature controlled
Maximum Ambient Temperature (Ta max.): 104°F / 40°C
Minimum Ambient Temperature (Ta min.): 32°F / 0°C
Total Heat Dissipation (Calculated, ±10%, At Full Intensity, Full White): 1300 BTU / hour | | Approvals | EU Safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3
US Safety: UL 1573
US EMC: CFR Title 47 Part 15 Class A
Canadian Safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ (Pending): RCM | | Power | Power: 100 to 240 VAC nominal, 50/60 Hz
Power Supply Unit: Auto-ranging electronic switch mode
120 V, 60 Hz: 380 W, 3.5 A, PF 0.9
230 V, 50 Hz: 370 W, 1.7 A, PF 0.9 | | Dimensions (L x W x H) | 14.3 x 12.0 x 22.9" / 364.0 x 305.0 x 581.0 mm | | Weight | 43.0 lb / 19.5 kg |
