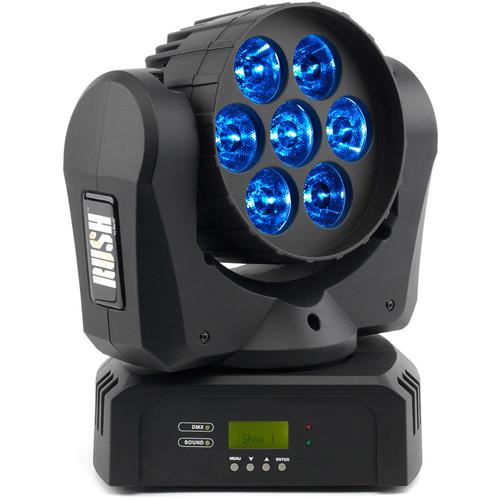

User Manual for Martin Professional Lighting Rush MH 2 Wash - LED Wash - Professional Moving Head Click to enlarge the picture
Contents of the user manual for the Martin Professional Lighting Rush MH 2
- Product category: DJ & Effect Lights Martin Professional Lighting
- Brand: Martin Professional Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Martin Professional Lighting DJ & Effect Lights
|
User manual for the Martin Professional Lighting Rush MH 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Martin Professional Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Martin Professional Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Martin Professional Lighting product will considerably shorten its lifespan!
|
Product description The Martin Professional Rush MH 2 Wash is a compact, yet powerful moving head wash light featuring RGBW color mixing with super fast moving pan and tilt, making it well suited for night club installations, touring companies, large event halls, and more.
Rush MH 2 Wash features 7 x 10 W RGBW Cree MC-E LEDs with white balanced control over RGB adjustment. The fixture features an electronic color wheel effect, which provides 33 LEE-referenced colors plus white and a variable-speed color-wheel rotation effect. Additionally, the MH2 Wash offers electronic shutter effects including strobe, pulse, instant open, and blackout.
For control options, the MH 2 Wash offers twelve channels of DMX and can work standalone with four pre-programmed shows, 20 standalone scene memories, and two standalone trigger options including music trigger and auto trigger. The Martin Professional Rush MH 2 Wash ships with a power cord and a mounting bracket. -
- LED wash light moving head
- Compact yet powerful
- RGBW color mixing
- DMX, music trig and auto trig operation
- 17° one-tenth peak angle
- Extremely fast and agile
- Electronic dimming and strobe
- 3- and 5-pin XLR
In the Box Martin Professional Lighting Rush MH 2 Wash - LED Wash - Professional Moving Head (RGBW) Power Cord Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting Rush MH 2 Wash - LED Wash - Professional Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting RUSH MH 2 Wash Specs | Dynamic Effects | Color Mixing: RGBW
Electronic Color Wheel Effect: 33 x LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random color
Electronic Shutter Effect: Strobe effect, pulse effects, instant open and blackout
Electronic Dimming: 0 to 100%, four dimming curve options
Pan: 540°
Tilt: 180° | | Control and Programming | Control Options: DMX, standalone
DMX Channels: 12
Standalone Trigger Options: Music trig, auto trig
Standalone Options: 4 preprogrammed shows
Standalone Memory: 20 scenes
White Balance Control: RGB adjustment
Setting and Addressing: Control panel with LCD display
Protocol: USITT DMX512/1990 | | Optics | Light Source: 7 x 10 W RGBW Cree MC-E LEDs
Minimum LED Lifetime: 50,000 hours (to >70% luminous output) | | Construction | Color: Black
Housing: High-impact flame-retardant thermoplastic
Protection Rating: IP20 | | Installation | Mounting Points: Hex bolts
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any | | Connectors | AC Power In/Thru: Neutrik PowerCon
DMX Data In/Out: 3-pin and 5-pin locking XLR | | Thermal | Cooling: Forced Air (temperature-regulated, low noise)
Maximum Ambient Temperature (Ta max.): 104°F / 40°C
Minimum Ambient Temperature (Ta min.): 32°F / 0°C
Total Heat Dissipation (Calculated, ±10%, At Full Intensity, Full White): 430 BTU/hour | | Approvals | EU Safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US Safety: UL 1573
US EMC: 47 CFR Part 15 Class A
Canadian Safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ: C-TICK N4241 | | Electrical | Power: 100 to 240 VAC Nominal, 50/60 Hz
Typical Total Power Consumption: 125 W (±10% variation)
Typical Power and Current:
110 VAC, 60 Hz: 1.9 A, 125 W
230 VAC, 50 Hz: 1.0 A, 121 W | | Dimensions (L x W x H) | 10.16 x 6.14 x 12.01" / 258.00 x 156.00 x 305.00 mm | | Weight | 12.6 lb / 5.7 kg |
