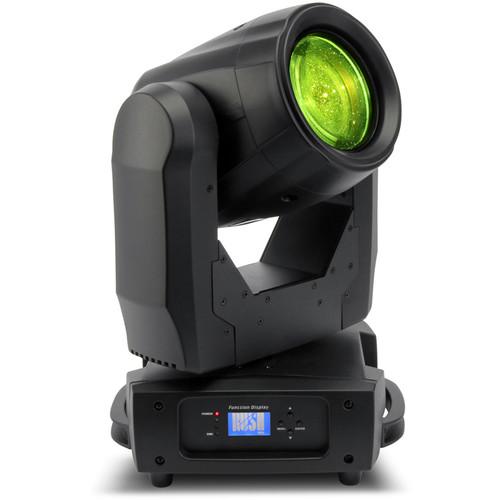

User Manual for Martin Professional Lighting Rush MH 4 Beam Compact Moving Head Click to enlarge the picture
Contents of the user manual for the Martin Professional Lighting Rush MH 4
- Product category: DJ & Effect Lights Martin Professional Lighting
- Brand: Martin Professional Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Martin Professional Lighting DJ & Effect Lights
|
User manual for the Martin Professional Lighting Rush MH 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Martin Professional Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Martin Professional Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Martin Professional Lighting product will considerably shorten its lifespan!
|
Product description The Martin Professional RUSH MH 4 Beam is a sharp, narrow long-throw beam moving head well suited for high-end installations, rental applications, professional touring companies, houses of worship, and cruise ships.
The fixture utilizes an Osram Sirius HRI 132 W lamp with refined beam optics that provide remarkable intensity and sharp effects in a beam-only fixture. The super-tight beam angle offers razor-sharp imaging, and when coupled with the 17 fixed gobos and 6-facet prism, produces complex and precise midair effects and looks. Additionally, the RUSH MH 4 offers 14 selectable colors and a motorized focus. The MH 4 Beam can be controlled via DMX with 13 channels. The Martin Professional RUSH MH 4 Beam ships with a power cord and two Omega mounting brackets. -
- Powerful beam moving head
- Sharp, narrow long-throw beam
- Powerful midair effects
- Fixed gobo wheel
- Color wheel
- Mechanical dimming and strobe
- 6-facet prism
- Motorized focus
- 3- and 5-pin XLR
In the Box Martin Professional Lighting Rush MH 4 Beam Compact Moving Head Power Cord 2 x Omega Mounting Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting Rush MH 4 Beam Compact Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting RUSH MH 4 Beam Specs | Dynamic Effects | Color Wheel: 14 colors plus open, continuous and stepped scrolling, rotation with variable direction and speed
Static Gobo Wheel: 17 gobos plus open, continuous and stepped scrolling, rotation with variable direction and speed
Shutter: Strobe effect, pulse effects, instant open, and blackout
Prism: 6-facet, indexing and rotation with variable direction and speed
Focus: Motorized
Dimmer: 0 to 100% continuous dimming
Pan: 540°
Tilt: 270° | | Control and Programming | Control System: DMX
DMX Channels: 13
Setting and Addressing: Control panel with LCD display
DMX Compliance: USITT DMX512/1990
16-Bit Control: Dimming, pan and tilt
Pan and Tilt Speed: Adjustable via onboard control panel and DMX
Position Correction System: Available for pan and tilt | | Lamp | Osram HRI 132 W Lamp Models:
Approved Lamp: Osram Sirius HRI 132 W
Color Temperature: 8800K
CRI (Color Rendering Index): 62
Average Lifetime: 6000 hours | | Optics | Beam Angle: 3° | | Construction | Color: Black
Housing: High-impact flame-retardant thermoplastic
Protection Rating: IP20 | | Installation | Minimum Distance to Illuminated Surfaces: 21.3' / 6.5 m
Mounting Points: Two quarter-turn brackets for rigging clamps
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any | | Connectors | AC Power In/Thru: Neutrik PowerCON
DMX Data In/Out: 3-pin and 5-pin locking XLR | | Thermal | Cooling: Forced air (temperature-regulated, low noise)
Maximum Ambient Temperature (Ta): 104°F / 40°C
Minimum Ambient Temperature (Ta): 32°F / 0°C
Total Heat Dissipation (Calculated, ±10%): 800 BTU / hour | | Approvals | EU Safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
Canadian EMC: ICES-003 Class A
Australia/NZ: C-TICK N4241
US Safety: UL 1573
US EMC: 47 CFR Part 15 Class A
Canadian Safety: CSA C22.2 No. 166 | | Power | AC Power: 100-240 VAC nominal, 50/60 Hz
Typical Total Power Consumption: 234 W
110 VAC, 60 Hz: 2.2 A, 234 W, PF 0.996
230 VAC, 50 Hz: 1.1 A, 231 W, PF 0.996 | | Dimensions (L x W x H) | 12.6 x 10.0 x 18.9" / 31.9 x 25.5 x 48.1 cm | | Weight | 30.9 lb / 14.0 kg |
