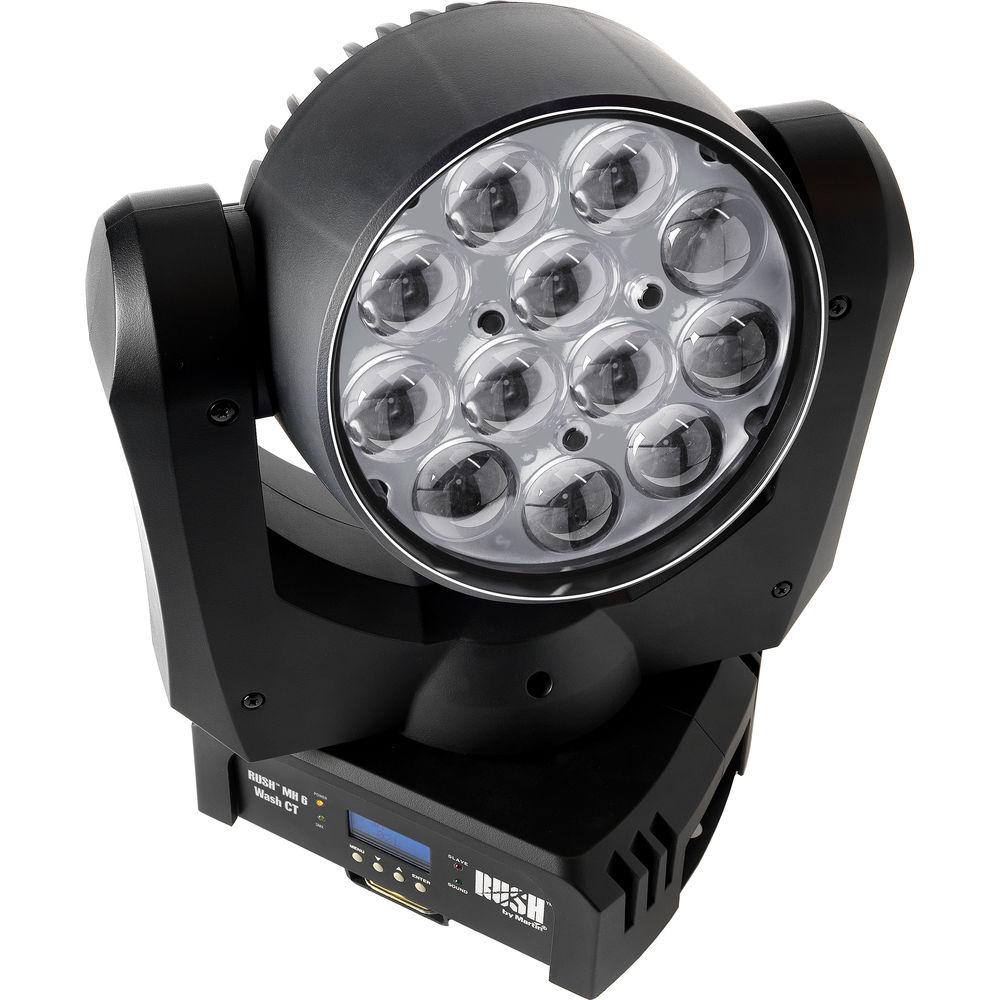

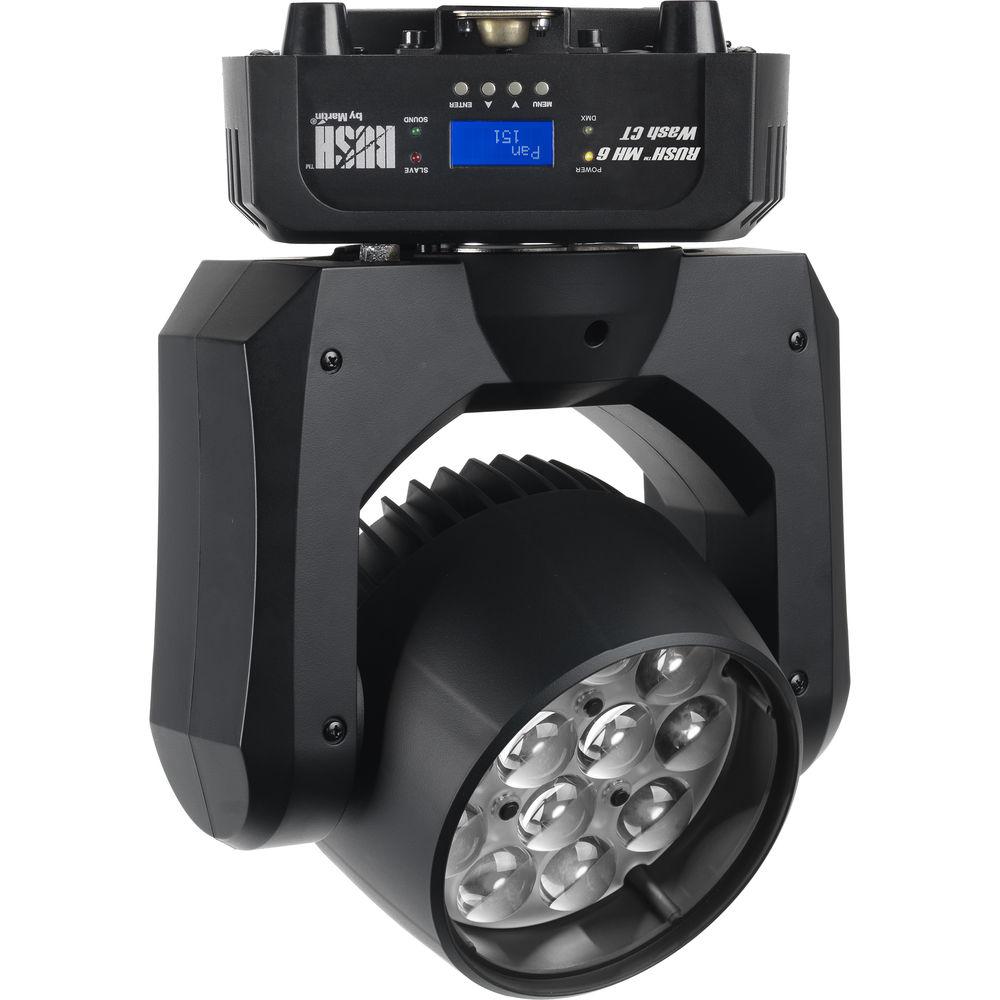

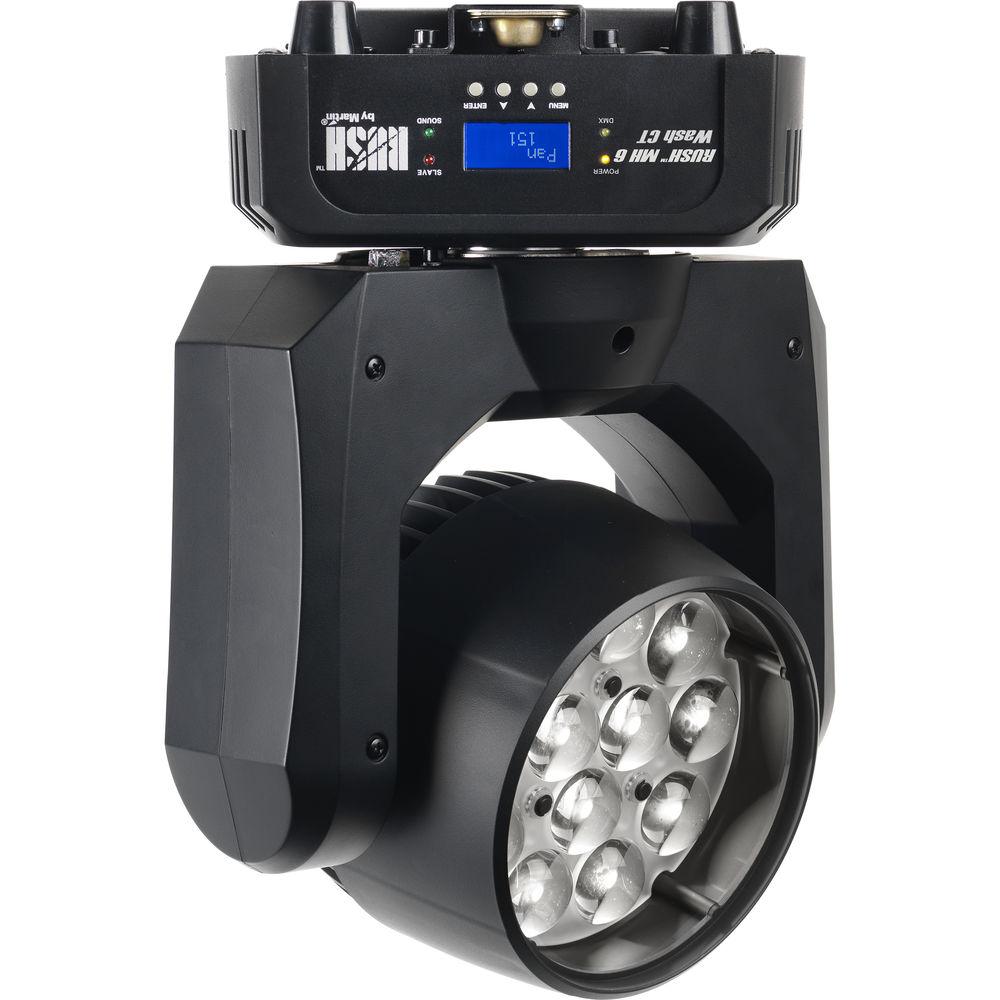

Product description The Martin Professional Rush MH 6 Wash CT is a compact, lightweight, and bright single-lens LED moving head with fully premixed white color temperatures, well suited for key lighting applications within the house of worship, performing arts and live stage environments where color temperature control of white light is critical.
Rush MH 6 Wash CT features 12 x 10W CW/WW (cool white / warm white) LEDs with a color temperature from 2700 to 7800K, which allows the fixture to be matched for multiple sources from tungsten to metal halide. Ideal for limited ceiling height or weight restrictions, the MH 6 Wash CT can be used as a mid effect with a tight beam, for washing a stage, and for other key lighting applications. Its motorized zoom offers a 10 to 60° zooming. Additionally, the fixture offers electronic shutter effects including strobe, pulse, instant open, and blackout.
For control options, the MH 6 CT Wash offers twelve channels of DMX with 16-bit fine control over dimming, pan, and tilt, for precise control. The Martin Professional Rush MH 6 Wash CT ships with a power cord and a mounting bracket. -
- Color Temp Range: 2700K to 7800K
- Allows key lighting to be matched for multiple sources from tungsten to metal halide
- Zoom System: 10 to 60°
- Compact and lightweight design
- Can be used as a mid effect with a tight beam look to washing a stage for key lighting applications
- Ideal for applications that have limited ceiling height or weight restrictions
In the Box Martin Professional Lighting Rush MH 6 Wash CT - LED Wash - Professional Moving Head (WW/CW) Power Cord Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting Rush MH 6 Wash CT - LED Wash - Professional Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting RUSH MH 6 Wash C... Specs | Dynamic Effects | Color Temperature: 2700 to 7800K
Color Temperature Presets: 2700 to 7800K in approximately 100K steps
Electronic Dimming: 16-bit, 0 to 100%, four dimming curve options
Strobe and Pulse Effects: Variable speed and action, random strobe
Electronic Shutter Effect: Instant open and blackout
Zoom: Motorized, 10 to 60°
Pan: 540°, 16-bit control
Tilt: 220°, 16-bit control | | Control and Programming | Control Options: DMX
DMX Channels: 12
16-Bit Fine Control: Dimming, pan and tilt
DMX Address Setting: Control panel with LCD display
DMX Compliance: USITT DMX512/1990
| | Optics | Light Source: 12 x 10 W CW/WW LEDs
Minimum LED Lifetime: 50,000 hours (to >70% luminous output)
Zoom Range: 10 to 60° | | Construction | Housing: High-impact flame-retardant thermoplastic
Color: Black
Ingress Protection Rating: IP20
| | Installation | Mounting Points: One quarter turn bracket for rigging clamp
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum Distance to Illuminated Surfaces: 8.0" / 203.2 mm
Minimum Distance to Combustible Materials: 4.0" / 101.6 mm
Minimum Clearance Around Fans and Vents: 4.0" / 101.6 mm
| | Connectors | AC Power Input: Neutrik PowerCon
AC Power Throughput: Neutrik PowerCon
DMX Data In/Out: 3-pin and 5-pin locking XLR | | Thermal | Cooling: Forced air (temperature-regulated, low noise)
Maximum Ambient Temperature (Ta Max.): 104°F / 40°C
Minimum Ambient Temperature (Ta Min.): 32°F / 0°C | | Approvals | EU Safety: EN 60598-2-17 (EN605989-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US Safety: UL 1573, UL 8750
US EMC: CFR Title 47 Part 15
Canadian Safety: CSA C22.2 No. 166
Australia/NZ: C-TICK N4241 / RCM
| | Electrical | AC Power: 100 to 240 V nominal, 50/60 Hz
Power Supply Unit: Auto-ranging electronic switch mode
Fuse: T 3.15 A
Typical Power and Current:
120 V, 60 Hz: 1.3 A, 150 W, PF 0.99
230 V, 50 Hz: 0.7 A, 150 W, PF 0.94
| | Dimensions (L x W x H) | 11.4 x 7.4 x 14.2" / 289.6 x 188.0 x 360.7 mm | | Weight | 15.7 lb / 7.1 kg |
