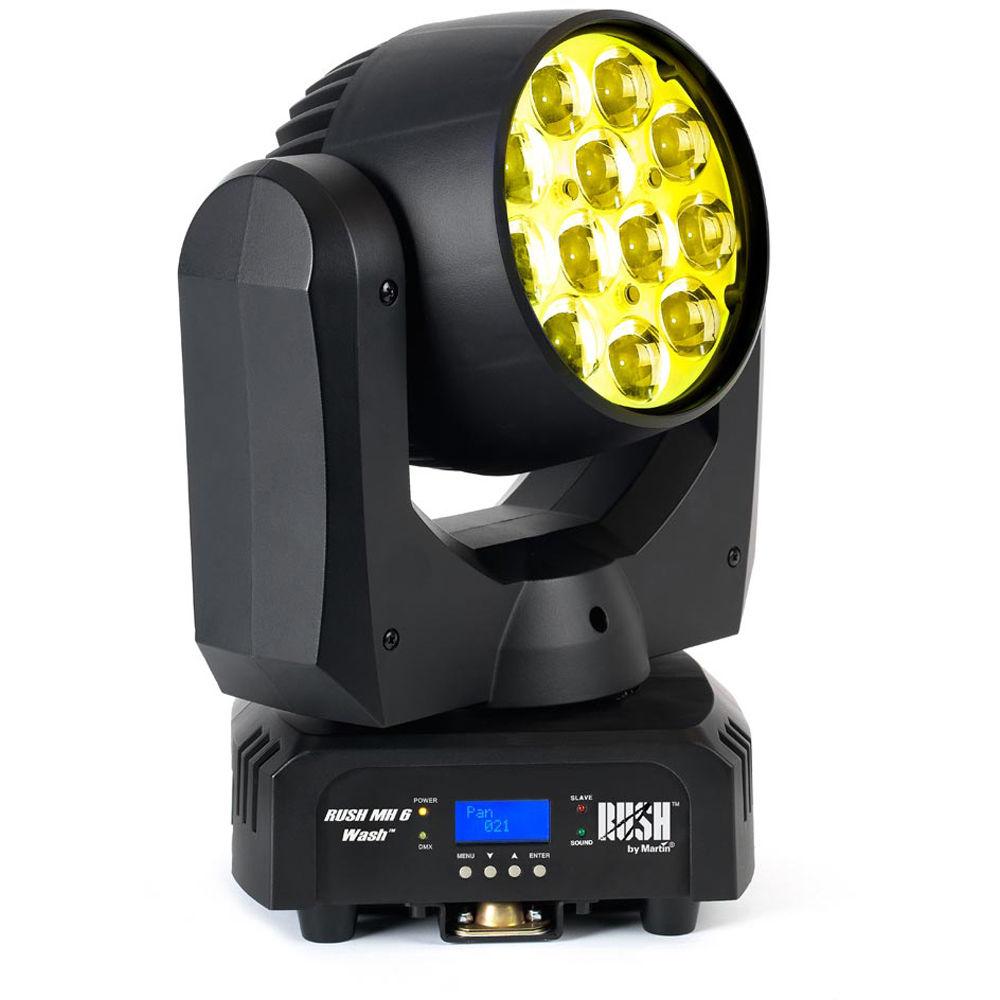

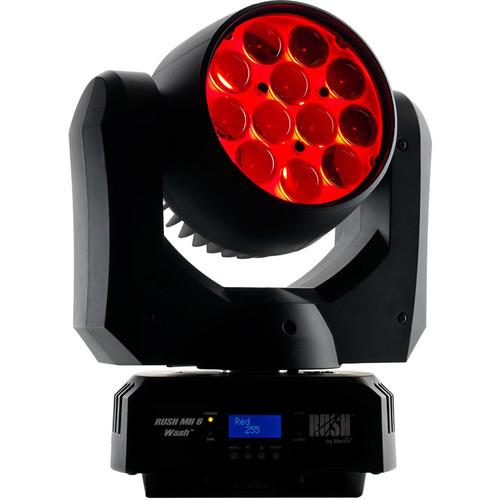

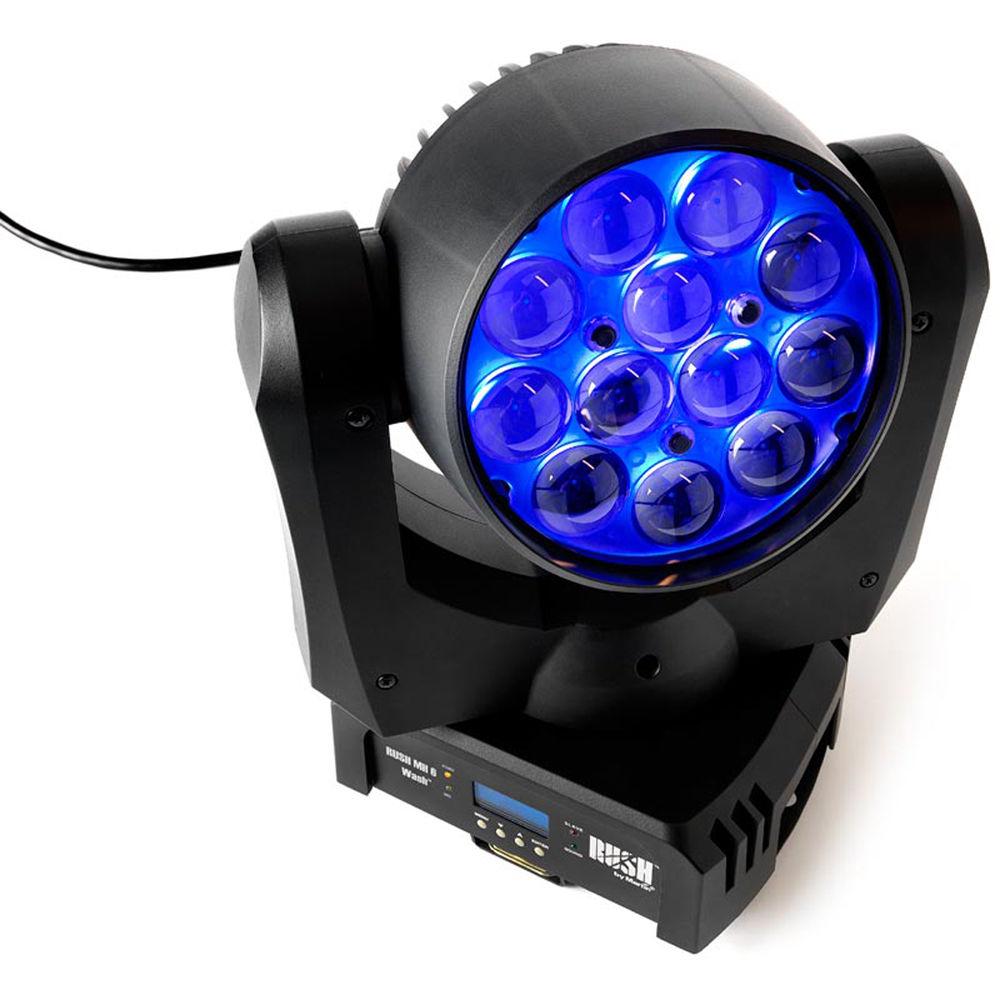

User Manual for Martin Professional Lighting Rush MH 6 Wash - LED Wash - Professional Moving Head Click to enlarge the picture
Contents of the user manual for the Martin Professional Lighting Rush MH 6
- Product category: DJ & Effect Lights Martin Professional Lighting
- Brand: Martin Professional Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Martin Professional Lighting DJ & Effect Lights
 |
User manual for the Martin Professional Lighting Rush MH 6 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Martin Professional Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Martin Professional Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Martin Professional Lighting product will considerably shorten its lifespan!
|
Product description The Martin Professional Rush MH 6 Wash is a compact single-lens moving head wash light featuring RGBW color mixing with fast moving pan and tilt, making it well suited for night club installations, touring companies, large event halls, and more.
Rush MH 6 Wash features 12 x 10W Osram Ostar LEDs with white balanced control over RGB adjustment. The fixture features an electronic color wheel effect, which provides 36 color presets colors plus full white and a color-wheel rotation effect. Additionally, the Rush MH 6 Wash offers electronic shutter effects including strobe, pulse, instant open, and blackout.
For control options, the Rush MH 6 Wash can be controlled standalone via the rear control panel with display, while DMX offers fourteen channels of DMX with 16-bit fine control for dimming, pan and tilt. The Martin Professional Rush MH 6 Wash ships with a power cord and a mounting bracket. -
- 12 x 10W Osram Ostar RGBW LEDs
- Single-lens wash with fully premixed color
- Output: 2000 lumens
- Motorized Zoom: 10 to 60°
- 32 prebuilt color macros
- Temperature-controlled cooling system
- Digital display menu
- PowerCON in and through
- 3- and 5-pin DMX I/O connectors
In the Box Martin Professional Lighting Rush MH 6 Wash - LED Wash - Professional Moving Head (RGBW) Power Cord Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting Rush MH 6 Wash - LED Wash - Professional Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting RUSH MH 6 Wash Specs | Dynamic Effects | Color Mixing: RGBW
Color Presets: 36 color presets plus full white, color wheel effects
Electronic Dimming: 0 - 100%, four dimming curve options
Strobe and Pulse Effects: Variable speed and action, random strobe
Electronic Shutter Effect: Instant open and blackout
Zoom: Motorized
Pan: 540°
Tilt: 200° | | Control and Programming | Control Options: DMX
DMX Channels: 14
White Balance Control: RGB adjustment
16-Bit Fine Control: Dimming, pan and tilt
DMX Address Setting: Control panel with LCD display
DMX Compliance: USITT DMX512/1990 | | Optics | Light Source: 12 x 10 W RGBW Osram Ostar LEDs
Minimum LED Lifetime: 50,000 hours (to >70% luminous output)
Zoom Range: 10 to 60° | | Construction | Color: Black
Housing: High-impact flame-retardant thermoplastic
Protection Rating: IP20 | | Installation | Mounting Points: One quarter-turn bracket for rigging clamp
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum Distance to Illuminated Surfaces: 8.0" / 203.2 mm
Minimum Distance to Combustible Materials: 4.0" / 101.6 mm
Minimum Clearance Around Fans and Vents: 4.0" / 101.6 mm
| | Connectors | AC Power In/Thru: Neutrik PowerCon
DMX Data In/Out: 3-pin and 5-pin locking XLR | | Thermal | Cooling: Forced air (temperature-regulated, low noise)
Maximum Ambient Temperature (Ta Max.): 104°F / 40°C
Minimum Ambient Temperature (Ta Min.): 32°F / 0°C | | Approvals | EU Safety: EN 60598-2-17 (EN605989-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US Safety: UL 1573, UL 8750
US EMC: CFR Title 47 Part 15
Canadian Safety: CSA C22.2 No. 166
Australia/NZ: C-TICK N4241 / RCM | | Electrical | AC Power: 100-240 V nominal, 50/60 Hz
Power Supply Unit: Auto-ranging electronic switch mode
Fuse: T 3.15 A)
Typical Power and Current:
120 V, 60 Hz: 1.3 A, 150 W, PF 0.99
230 V, 50 Hz: 0.7 A, 150 W, PF 0.94
Typical Half-Cycle RMS Inrush Current at 240 VAC: 11.3 A | | Dimensions (L x W x H) | 11.4 x 7.4 x 14.2" / 289.6 x 188.0 x 360.7 mm | | Weight | 15.7 lb / 7.1 kg |
