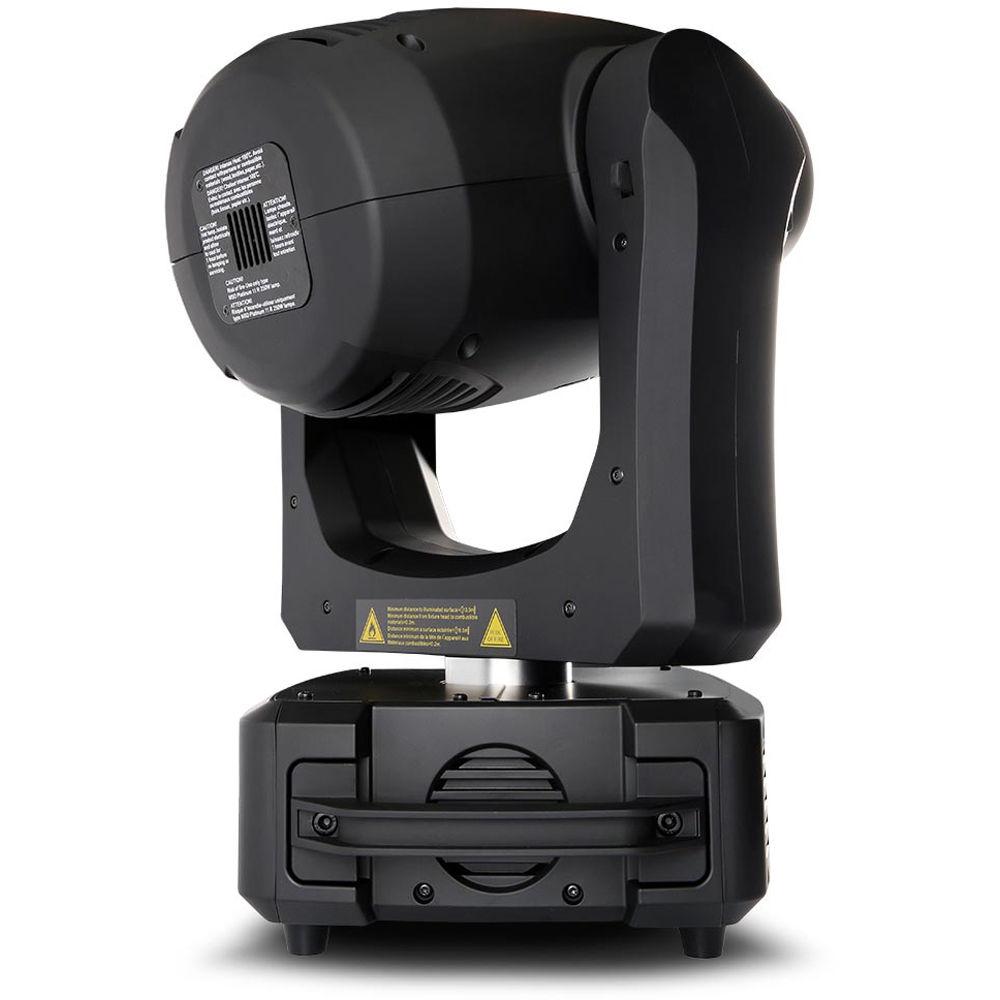

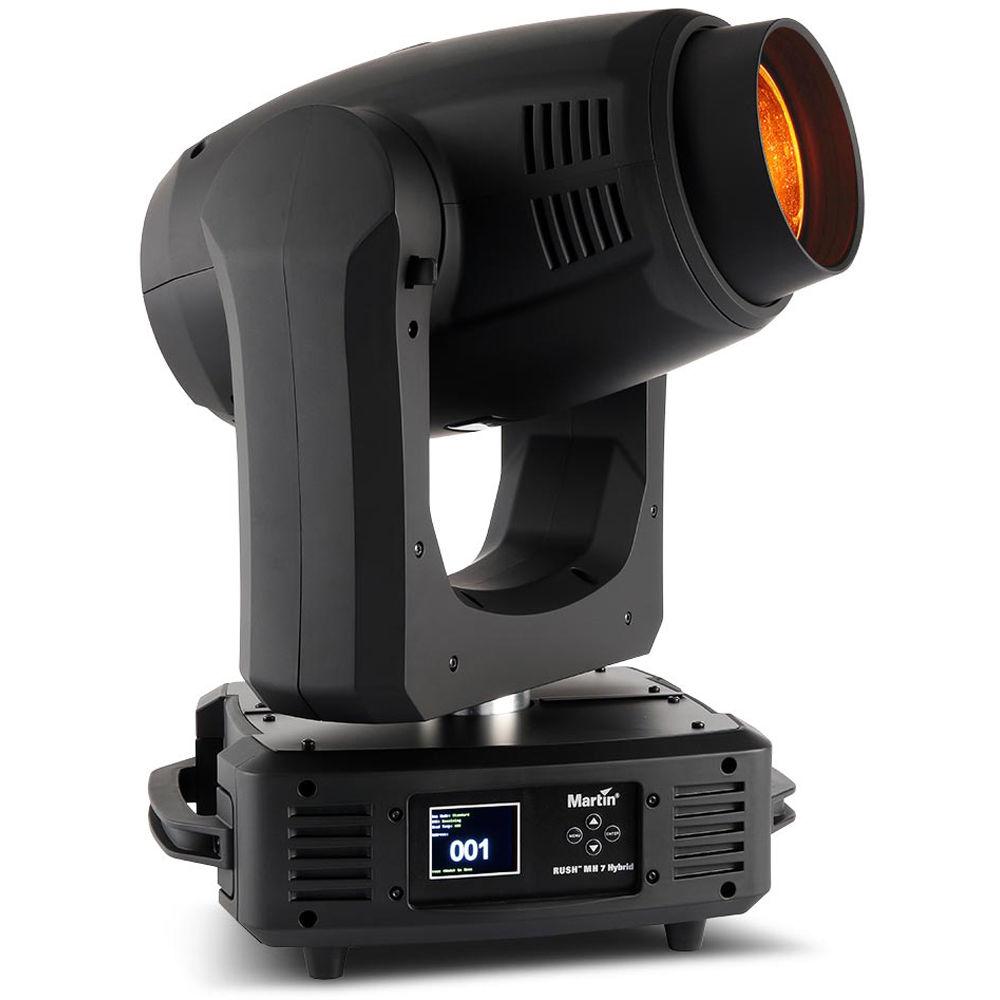

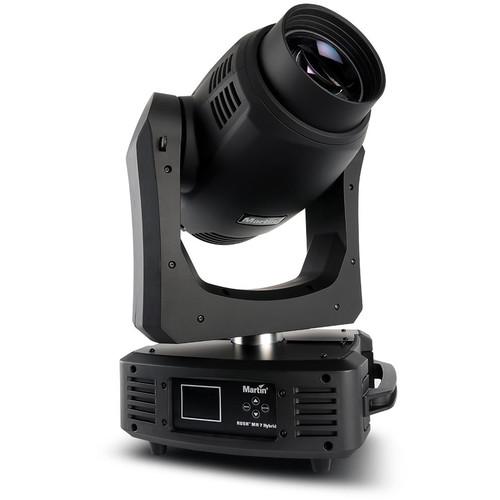

Product description The Martin Professional Rush MH 7 Hybrid is an all-in-one beam, spot, and wash moving head well suited for high-end installations, rental applications, professional touring companies, houses of worship, cruise ships, night clubs, and performing arts spaces.
The fixture utilizes a 250W Platinum 11R lamp with sharp, crisp optics with a powerful zoom that ranges from a smooth 45° wash to a punchy 2.2° beam. The fixture features 8 rotating/indexing and 12 static gobos, 10 selectable colors, and exciting beam effects from its 8-facet circular and 4-facet linear prisms. The MH 7 Hybrid can be controlled via DMX with 21 channels. The Martin Professional RUSH MH 7 Hybrid ships with a power cord and two mounting brackets. -
- 250 W Philips Platinum 11R Lamp
- Beam mode: 2.2 – 24° zoom
- Spot mode: 2.5 – 24° zoom
- Wash Mode: 15 – 45° zoom
- Eight rotating/indexing gobos
- 12 static gobos
- 10 colors plus CTO, CTB, UV
- Four-facet linear prism
- Eight-facet circular prism
- Motorized focus
- 3- and 5-pin XLR DMX connection
- PowerCON in and thru
In the Box Martin Professional Lighting Rush MH 7 Hybrid All-in-One Beam, Spot, and Wash Moving Head Power Cord (4.9') 2 x Omega Mounting Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting Rush MH 7 Hybrid All-in-One Beam, Spot, and Wash Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting RUSH MH 7 Hybrid... Specs | Dynamic Effects | Color Wheel: 13 colors including CTO, CTB, UV, and open
Rotating Gobo Wheel: 8 gobos plus open, 16-bit indexing, rotation, and shake
Static Gobo Wheel: 12 gobos plus open, wheel rotation, and shake
Prism 1: 4-facet linear, 16-bit indexing, variable rotation direction, and speed
Prism 2: 8-facet radial, 16-bit indexing, variable rotation direction, and speed
Focus: Motorized, 16-bit coarse and fine control
Zoom: Motorized, 16-bit coarse and fine control
Dimming: 0-100%, coarse and fine control
Shutter: Strobe effect, pulse effects, instant open, and blackout
Pan: 540°
Tilt: 250° | | Control and Programming | Control System: DMX
DMX Channels: 21
Setting and Addressing: Control panel with backlit LCD display
DMX Compliance: USITT DMX512/1990 | | Lamp | Approved Lamp: Philips MSD Platinum 11R 250 W
Color Temperature: 7800K
Average Lifetime: 2000 hours | | Optics | Cutoff Angle, Beam Mode: 2.2° to 24°
Cutoff Angle, Spot Mode: 2.5° to 24°
One-Tenth Peak Angle, Wash Mode: 15° to 45° | | Construction | Color: Black
Housing: High-impact flame-retardant thermoplastic
Protection Rating: IP20 | | Gobos | Interchangeable rotating gobos
Permitted Material: Stainless steel or borosilicate glass with 842°F / 450°C high-temperature coating
Diameter: 0.55" +0/-0.008" / 14 mm +0/-0.2 mm
Maximum Image Diameter, Glass: 0.3" / 8.0 mm
Maximum Image Diameter, Metal: 0.37" / 9.5 mm
Thickness, Glass: 0.045" +0/-0.002" / 1.1 mm +0/-0.05 mm
Thickness, Metal: 0.008" / 0.2 mm, nominal | | Installation | Mounting Points: Two quarter-turn brackets for rigging clamps
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum Distance to Illuminated Surfaces: 32.8' / 10.0 m
Minimum Distance to Combustible Materials: 8.0" / 203.2 mm

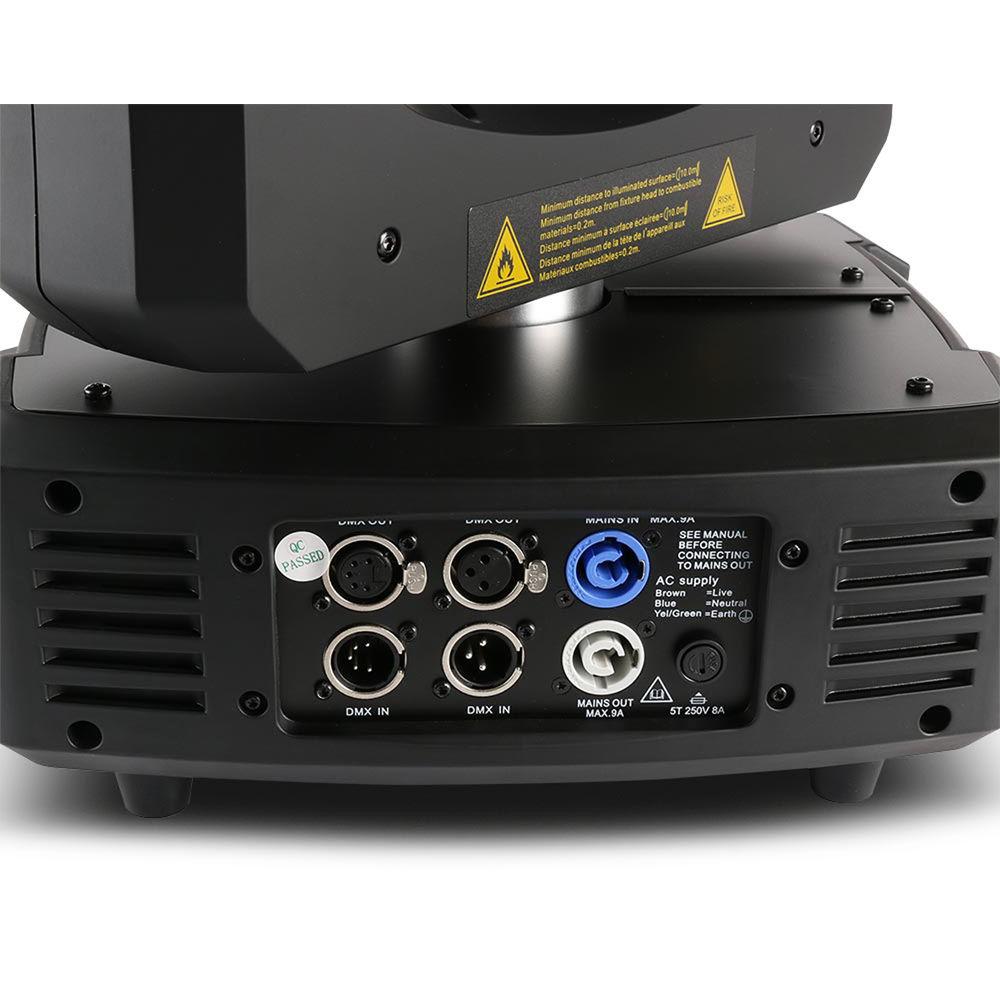

Minimum Clearance Around Fans and Vents: 20.0" / 508.0 mm | | Connectors | AC Power In/Thru: Neutrik PowerCON
DMX Data In/Out: 3-pin and 5-pin locking XLR | | Thermal | Cooling: Forced air (temperature-regulated, low noise)
Maximum Ambient Temperature (Ta): 104°F / 40°C
Minimum Ambient Temperature (Ta): 32°F / 0°C
Total Heat Dissipation (Calculated, +/- 10%, at Full Intensity, Full White): 1430 BTU/hr | | Approvals | EU Safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55103-1, -2; EN 61000-3-2, -3; EN 61000-4-2, -4, -5; EN 61547
US Safety: UL 1573
US EMC: CFR Title 47 Part 15 Class A
Canadian Safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ (Pending): RCM | | Power | AC Power (EU Models): 100-240 VAC nominal, 50/60 Hz
Power Supply Unit: Auto-ranging electronic switch mode
Primary Fuse: 5T, 250 V, 8.0 A
120 VAC, 60 Hz: 377 W, 3.1 A, PF 0.985
230 VAC, 50 Hz: 372 W, 1.7 A, PF 0.978 | | Dimensions (L x W x H) | 11.9 x 16.1 x 25.4" / 30.1 x 40.8 x 64.4 cm | | Weight | 52.9 lb / 24.0 kg |
