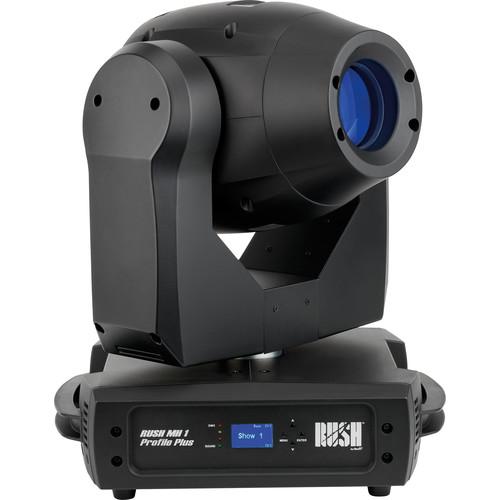

User Manual for Martin Professional Lighting Rush MH1 Profile Plus - Professional Moving Head Click to enlarge the picture
Contents of the user manual for the Martin Professional Lighting Rush MH1 Profile
- Product category: DJ & Effect Lights Martin Professional Lighting
- Brand: Martin Professional Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Martin Professional Lighting DJ & Effect Lights
|
User manual for the Martin Professional Lighting Rush MH1 Profile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Martin Professional Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Martin Professional Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Martin Professional Lighting product will considerably shorten its lifespan!
|
Product description Building upon the success of the original MH1, the Martin Professional Rush MH1 Profile Plus is a professional-grade moving head with super-bright and efficient optics, well suited for professional club installations, touring companies, large event halls, and more.
Rush MH1 Profile Plus features a 180W LED engine, which offers a 50% increase in lumen output with a 16° beam angle and a regulated fan control for quite operation. Each of the two color wheels offers seven colors plus open, and rotation with variable direction and speed. There is a rotating gobo wheel offering seven gobos plus open, wheel rotation, gobo indexing, and gobo shake. Additionally, the MH1 Profile Plus offers electronic shutter effects including strobe, pulse, instant open, and blackout, as well as prism indexing and rotation with variable direction and speed.
For control options, the MH1 Profile Plus offers seventeen channels of DMX and can run as a standalone with four preprogrammed shows, 20 standalone scene memories, and two standalone trigger options including music trigger and auto trigger. The Martin Professional Rush MH1 Profile Plus ships with a power cord and two omega brackets. -
- LED profile moving head
- Super bright, efficient optics
- Rotating gobo wheel
- Fixed gobo wheel
- 2 color wheels
- Electronic dimming and strobe
- Iris and 3-facet prism
- 3- and 5-pin XLR
In the Box Martin Professional Lighting Rush MH1 Profile Plus - Professional Moving Head Power Cord 2 x Omega Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting Rush MH1 Profile Plus - Professional Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting RUSH MH 1 Profil... Specs | Dynamic Effects | Color Wheel 1: 7 colors plus open, rotation with variable direction and speed
Color Wheel 2: 7 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed
Rotating Gobo Wheel: 7 gobos plus open, wheel rotation, gobo indexing, rotation and shake
Static Gobo Wheel: 8 gobos plus open, wheel rotation and shake
Electronic Shutter Effect: Strobe effect, pulse effects, instant open and blackout
Prism: Indexing and rotation with variable direction and speed
Iris: Motorized
Focus: Motorized
Electronic Dimming: 0 to 100%, four dimming curve options
Pan: 540°
Tilt: 270°
Pan and Tilt Speed: Adjustable via onboard control panel and DMX | | Control and Programming | Control Options: DMX, standalone
DMX Channels: 17
Standalone Trigger Options: Music trig, auto trig
Standalone Sequences: 4 preprogrammed shows
Standalone Memory: 20 scenes
Music Trig Sensitivity: Adjustable
Setting and Addressing: Control panel with backlit graphic display
DMX Compliance: USITT DMX512/1990 | | Optics | Light Source: 180 W LED engine
Minimum LED Lifetime: 20 000 hours (to >70% luminous output) | | Photometric Data | Efficacy: 25.5 lumens per W
Cutoff Angle: 16°
Total Output: 7100 lumens | | Construction | Color: Black
Housing: High-impact flame-retardant thermoplastic
Protection Rating: IP20 | | Gobos | Gobo Diameter: 1.06" / 26.80 mm ±0.01" / 0.20 mm
Maximum Image Diameter: 0.9" / 22.0 mm
Gobo Thickness: 0.01 to 0.14" / 0.30 to 3.50 mm
Gobo Material: Steel, aluminum or borosilicate glass | | Installation | Mounting Points: Two quarter-turn brackets for rigging clamps
Location: Dry location only, must be fastened to surface or structure
Orientation: Any | | Connectors | AC Power In/Thru: Neutrik PowerCon
DMX Data In/Out: 3-pin and 5-pin locking XLR | | Thermal | Cooling: Forced air, temperature controlled
Maximum Ambient Temperature (Ta max.): 104°F / 40°C
Minimum Ambient Temperature (Ta min.): 32°F / 0°C
Total Heat Dissipation (Calculated, ±10%, At Full Intensity, Full White): 1010 BTU / hour | | Approvals | EU Safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US Safety: UL 1573
US EMC: 47 CFR Part 15 Class A
Australia/NZ: RCM | | Electrical | Power: 100 to 240 VAC nominal, 50/60 Hz
Typical Total Power Consumption: 300 W (±10% variation) | | Dimensions (L x W x H) | 16.46 x 12.91 x 23.15" / 418.00 x 328.00 x 588.00 mm | | Weight | 39.7 lb / 18.0 kg | | | | Package Weight | 47.705 lb | | Box Dimensions (LxWxH) | 23.2 x 18.8 x 17.3" |
