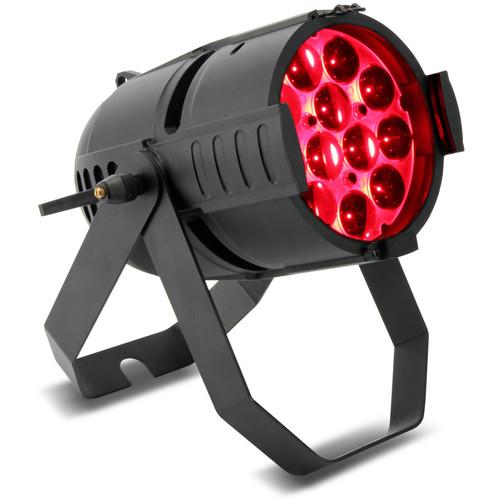

User Manual for Martin Professional Lighting Rush PAR 2 RGBW Zoom LED PAR Can Click to enlarge the picture
Contents of the user manual for the Martin Professional Lighting Rush PAR 2
- Product category: DJ & Effect Lights Martin Professional Lighting
- Brand: Martin Professional Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Martin Professional Lighting DJ & Effect Lights
|
User manual for the Martin Professional Lighting Rush PAR 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Martin Professional Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Martin Professional Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Martin Professional Lighting product will considerably shorten its lifespan!
|
Product description The Martin Professional Rush PAR 2 RGBW Zoom is a bright LED PAR Can with premixed red, green, blue, and white color mixing and a motorized 10 to 60° zoom, well suited for clubs, theaters, conferences, and exhibition environments. The fixture features twelve 10W Osram Ostar LEDs, and offers dynamic effects including electronic dimming, strobe and pulse effects with variable speed and action, and an electronic shutter effect for instant-open and blackout. For control options, the PAR 2 features a standalone mode, while the DMX channel operation affords five or nine channel modes. The flexible bracket allows the unit to be used on the floor or mounted onto a truss. The Rush PAR 2 RGBW Zoom ships with a power cord and a mounting bracket. -
- Bright LED PAR Can
- Twelve 10W RGBW LEDs
- Single-lens wash with fully premixed color
- 10 to 60° zoom
- Electronic dimming and strobe
- Temperature-controlled fan cooling
- Flexible bracket: Floor or truss-mounted
- Standalone mode
- DMX: 5 or 9 channels
- 5-pin XLR
In the Box Martin Professional Lighting Rush PAR 2 RGBW Zoom LED PAR Can Power Cord (4.9') Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting Rush PAR 2 RGBW Zoom LED PAR Can in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting RUSH Par 2 RGBW ... Specs | Dynamic Effects | Color Mixing: RGBW
Color Selection: 33 color presets plus full white, 'color wheel' effects
Electronic Dimming: 0 to 100%
Strobe and Pulse Effects: Variable speed and action, random strobe
Electronic 'Shutter' Effect: Instant open and blackout
Zoom: Motorized | | Control and Programming | Control Options: DMX, standalone scene
DMX Channels: 5/9
White Balance Control: RGB adjustment
DMX Address Setting: Control panel with LCD display
Standalone Programming: Control panel with LCD display
Protocol: USITT DMX512/1990 | | Optics | Light Source: 12 x 10 W RGBW Osram Ostar LEDs
Zoom Range: 10 to 60°
Minimum LED Lifetime: 50,000 hours (to >70% luminous output) | | Construction | Housing: Aluminum
Color: Black
Protection Rating: IP20 | | Installation | Mounting: Adjustable bracket, surface or truss mount
Orientation: Any
Location: Indoor use only | | Connectors | AC Power Input: Neutrik PowerCON
AC Power Throughput: Neutrik PowerCON
DMX Data In/Out: 2 x 5-pin locking XLR | | Thermal | Cooling: Forced air (temperature-regulated, low noise)
Maximum Ambient Temperature (Ta): 104°F / 40°C
Minimum Ambient Temperature (Ta): 32°F / 0°C
Total Heat Dissipation (Calculated, ±10%, at Full Intensity, Full White): 520 BTU/hr | | Approvals | EU Safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US Safety: UL 1573
US EMC: 47 CFR Part 15 Class A
Canadian Safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ: C-TICK N4241 | | Electrical | Power: 100 to 240 VAC nominal, 50/60 Hz
Total Power Consumption: 151 W
Typical Power and Current:
120 V, 60 Hz: 1.3 A, 151 W, PF 0.993
230 V, 50 Hz: 0.7 A, 148 W, PF 0.961 | | Dimensions (L x W x H) | 10.5 x 11.3 x 13.0" / 26.7 x 28.7 x 33.0 cm | | Weight | 12.2 lb / 5.5 kg | | | | Package Weight | 13.83 lb | | Box Dimensions (LxWxH) | 14.1 x 10.9 x 10.3" |
