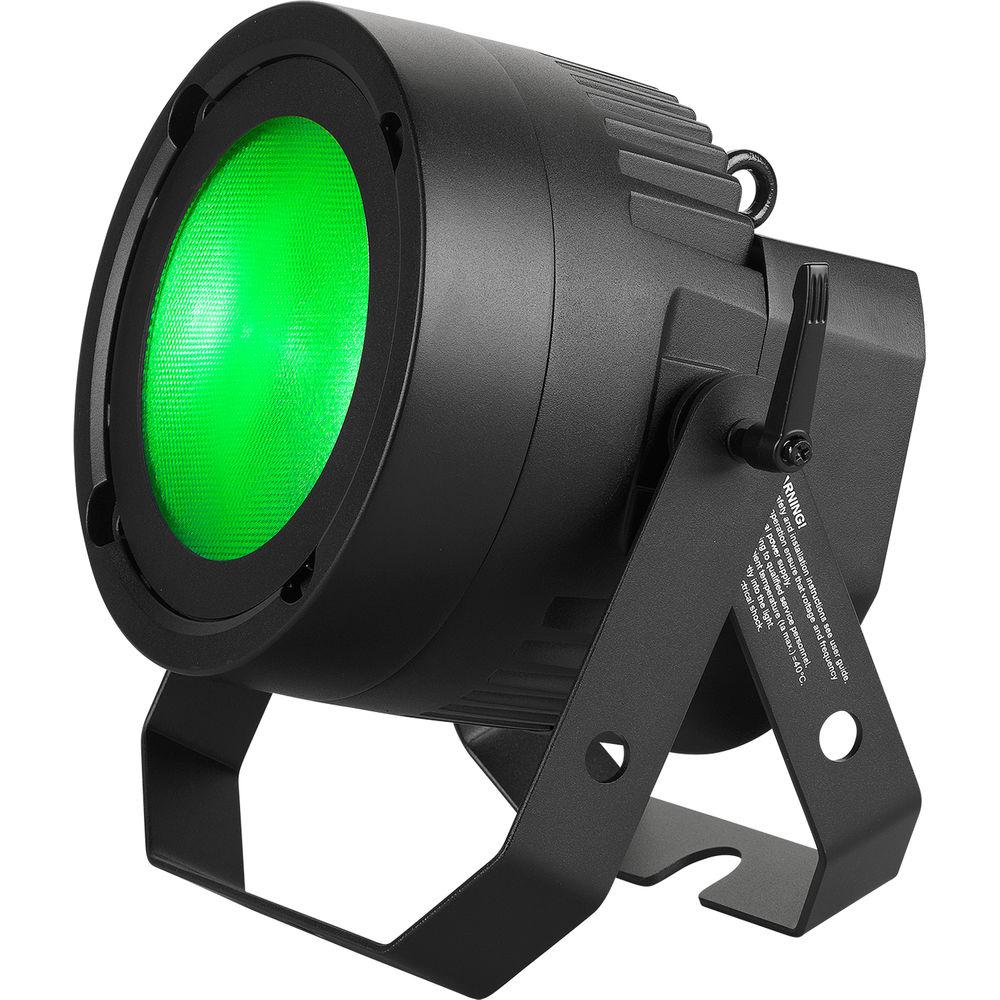

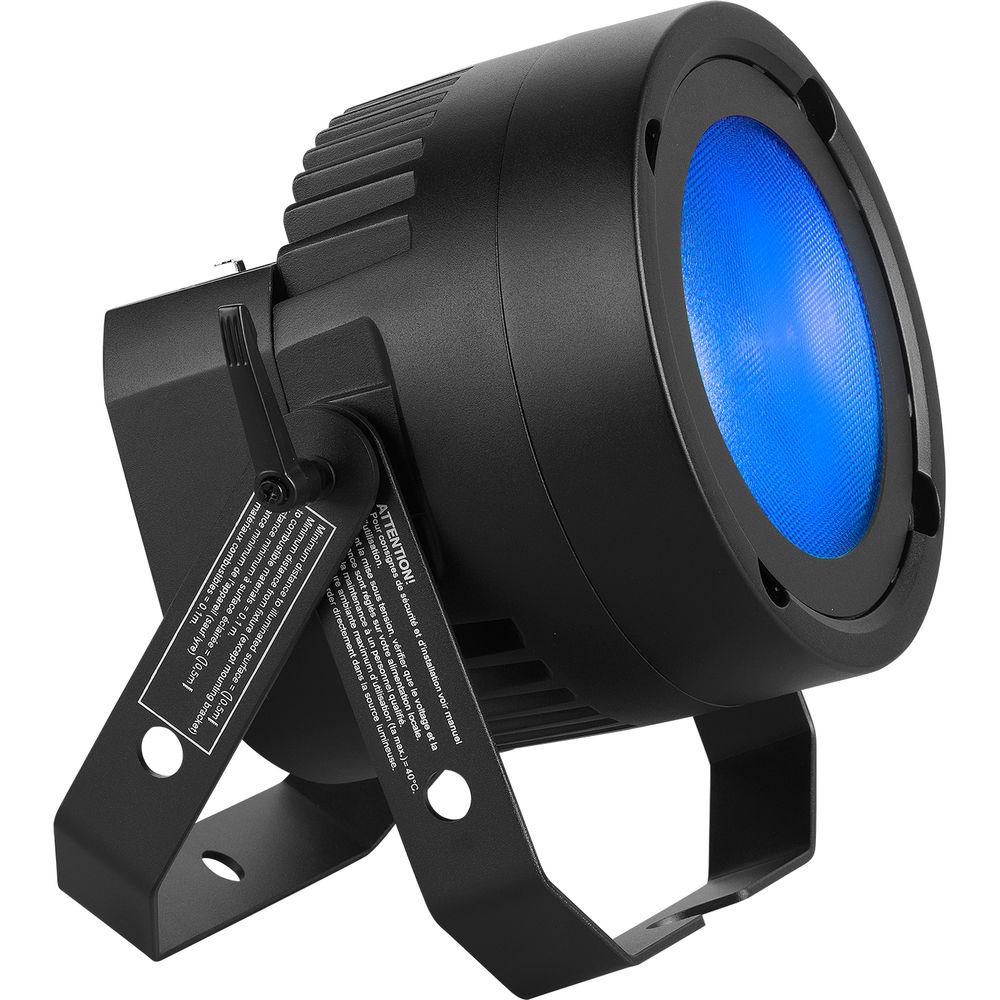

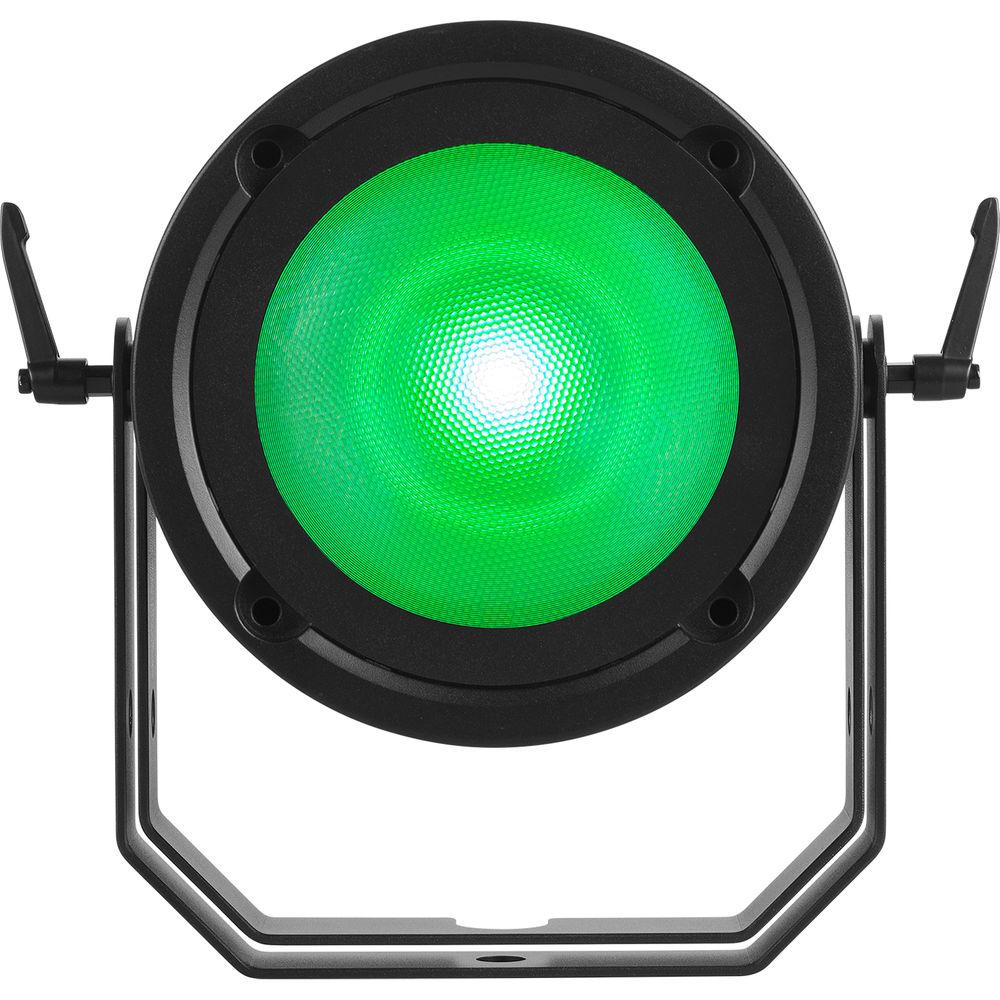

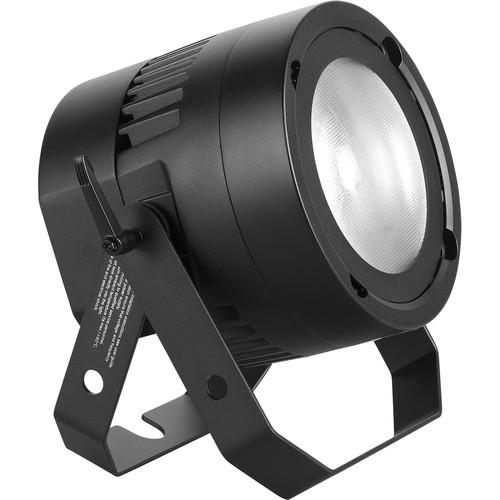

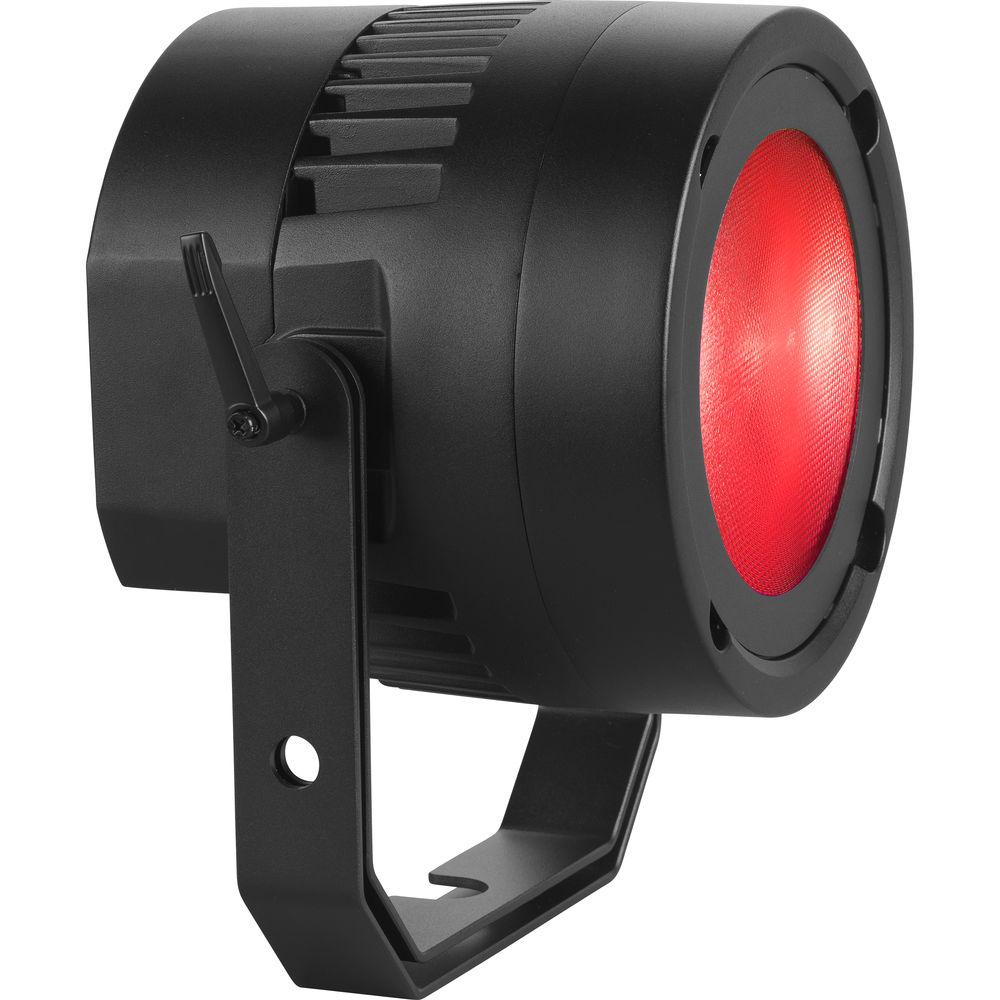

Product description The black Martin Professional Lighting RUSH PAR 3 RGB is a single-lens, RGB (red, green, blue) PAR can with premixed colors, designed for key lighting applications or to produce bright color washes. It features a 36W COB RGB LED and a removable beam-angle-reducer lens, which can be magnetically attached to offer both 80 and 14° beam angle options, making the fixture ideal for live shows, performing arts, house of worship, bars, nightlife, architectural installations, and more. The RUSH PAR 3 RGB comes equipped with 0-100% electronic dimming and strobe effects, and can be operated via nine DMX channels or the built-in LED display with 4-button menu. Other features include a lightweight (at 7.5 lb) aluminum construction, a fanless design for quiet operation in sound-sensitive environments, a universal auto-ranging power supply, and a dual-yoke bracket that can be used for conventional mounting to a truss or lighting stand, or to create a variable-angle floor stand. - Key Features
-
- Single-lens, 36W COB RGB LED PAR with premixed color
- For use in wash and key lighting applications
- Includes magnetically attached, removable beam-angle-reducer prismatic lens
- 80° and 14° beam angles
- Electronic dimming and strobe
- 9 x DMX channels
- LED display with 4-button menu for easy navigation
- Fanless design for quiet operation
- Universal auto-ranging power supply
- Bracket suitable for floor or truss mounting
- Lightweight (at 7.5 lb) aluminum construction
In the Box Martin Professional Lighting RUSH PAR 3 RGB Single-Lens RGB LED PAR (Black) Prismatic Lens 4.9' Power Cable (without Mains Plug) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting RUSH PAR 3 RGB Single-Lens RGB LED PAR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting RUSH PAR 3 RGB Specs | Light Source | 36 W COB RGB (red, green, blue) LED | | Optics | Single-lens design
Beam/Field Angle Without Angle-Reducer Lens: 83 to 106°
Lumens Output without Angle-Reducer Lens: 570 lumens
Beam/Field Angle with Angle-Reducer Lens: 14.5 to 33°
Lumens Output with Angle-Reducer Lens: 370 lumens | | Dynamic Effects | Dimming: 0-100%, coarse and fine control
Shutter: Strobe and pulse effects, instant open and blackout
Color: 8-bit RGB color mixing | | Controls | Control System: USITT DMX512/1990 with RDM
DMX Channels: 9
RDM Compliance: ANSI/ESTA E.120

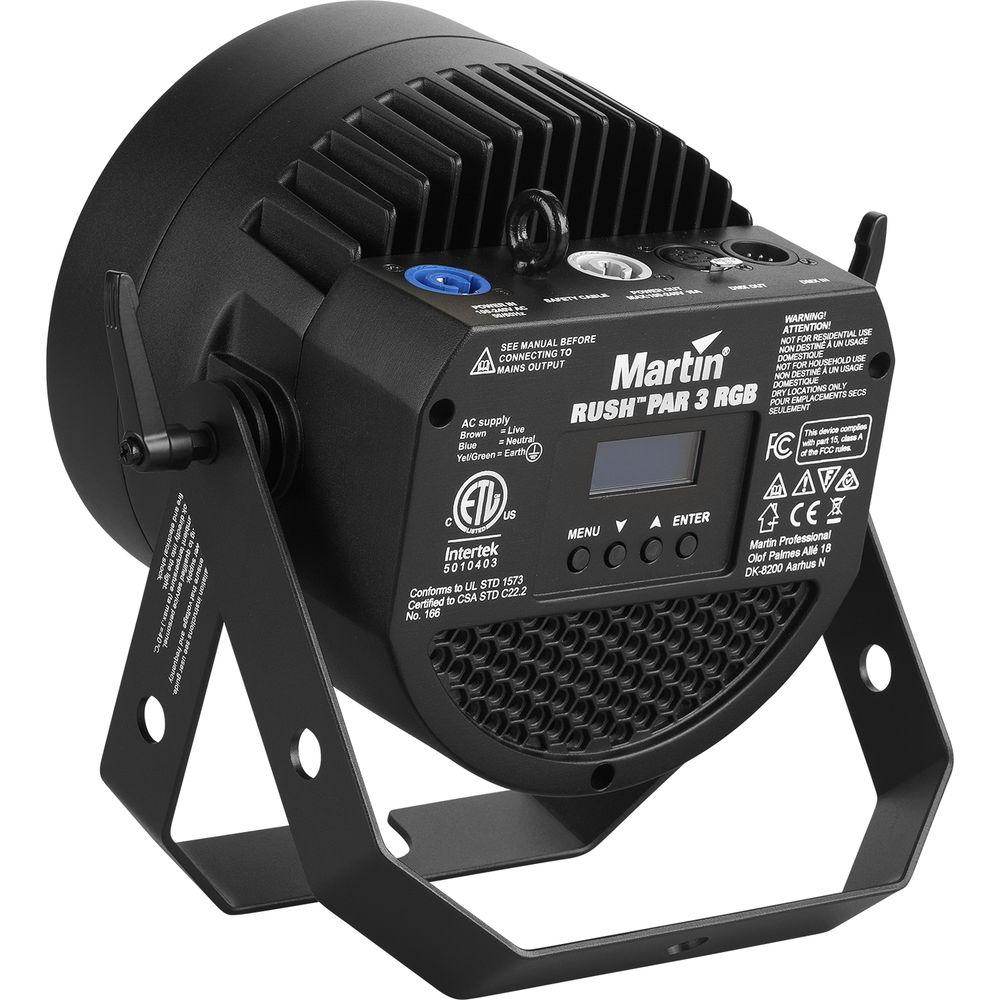

Interface: Control panel with backlit LCD display | | Connections | AC Power Input/Output: Neutrik powerCON
DMX & RDM Data I/O: 5-pin locking XLR | | Electrical | AC Power: 100-240 V nominal, 50/60 Hz
Power Supply Unit: Auto-ranging electronic switch mode
Total Power Consumption: 30 W, maximum
Half-Cycle RMS Inrush Current: 7.8 A, typical
Recommended Miniature Circuit Breaker when Power Linking: Type D (per IEC 60898/UL489/CSA C22.2 No. 5) | | Power and Current | 100 V, 60 Hz: 30 W, 0.5 A, PF 0.615
120 V, 60 Hz: 30 W, 0.4 A, PF 0.599
230 V, 50 Hz: 30 W, 0.3 A, PF 0.496
Measurements made at nominal voltage
Figures are typical, not maximum
Allow for a deviation of +/- 10% | | Thermal | Cooling: Forced air, temperature-regulated
Maximum Ambient Temperature: 104°F / 40°C

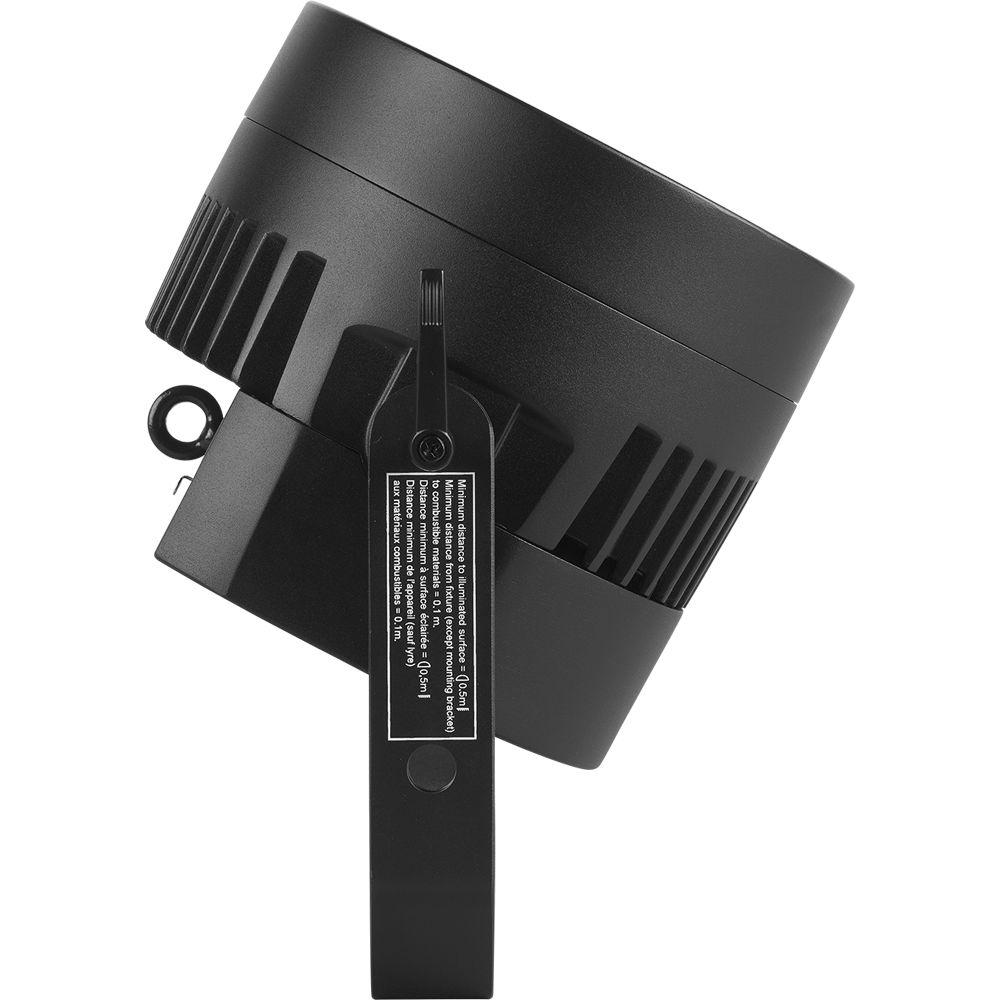

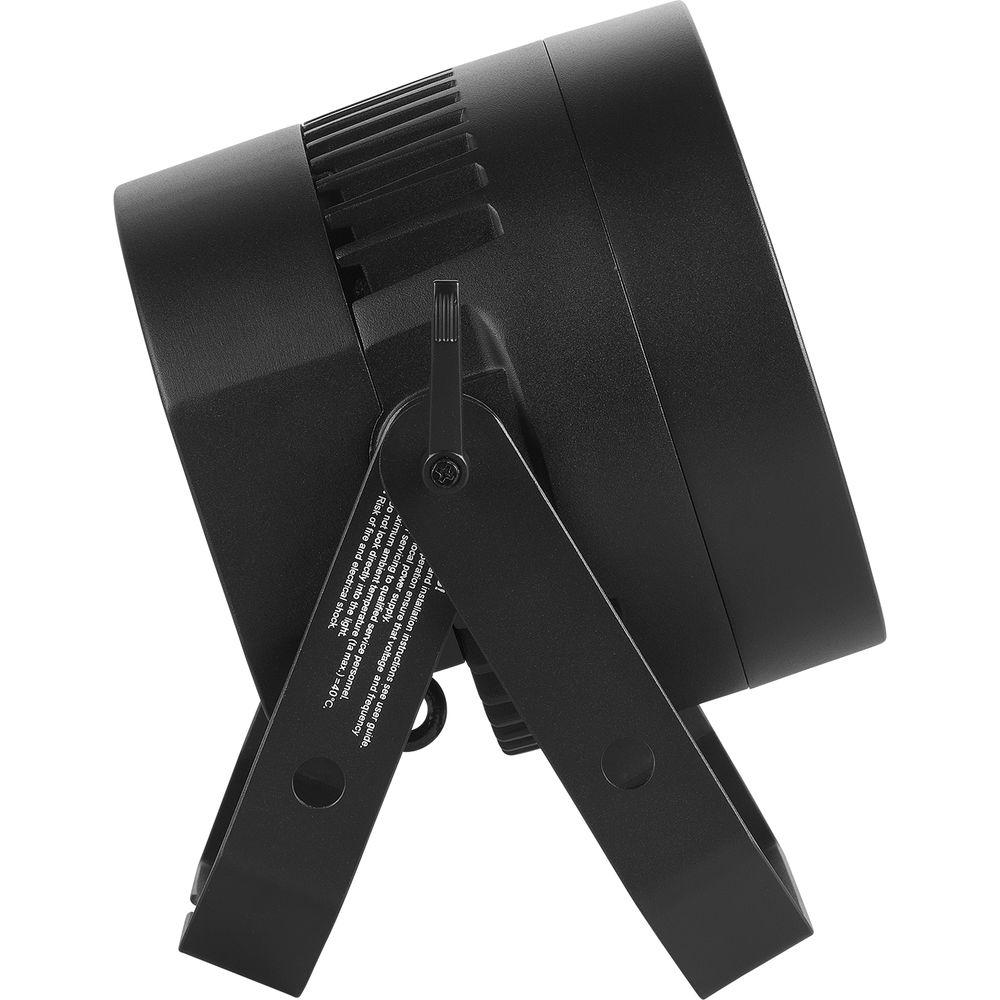

Minimum Ambient Temperature: 32°F / 0°C | | Installation | Double-bracket yoke / floor stand
Mounting Points for adjustable bracket and surface or truss mount
Location: Indoor location only
Orientation: Any
Minimum Distance to Illuminated Surfaces: 20" / 0.5 m
Minimum Distance to Combustible Materials: 4" / 0.1 m | | Construction | Color: Black
Housing: Cast aluminum
IP Rating: IP 20 | | Approvals | EU safety: EN 60598-2-17 (EN 60598-1) / EN 62471 / EN 62493
EU EMC: EN 55015, EN 55032 / EN 55103-1, -2 / EN 61000-3-2, -3 / EN 61000-4-2, -4, -5 / EN 61547
US Safety: UL 1573
US EMC: 47 CFR 15 Class A
Canadian Safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ: RCM (pending) | | Dimensions (L x W x H) | 9.4 x 10.6 x 6.5" / 250 x 265 x 165 mm | | Weight | 7.5 lb / 3.4 kg |
