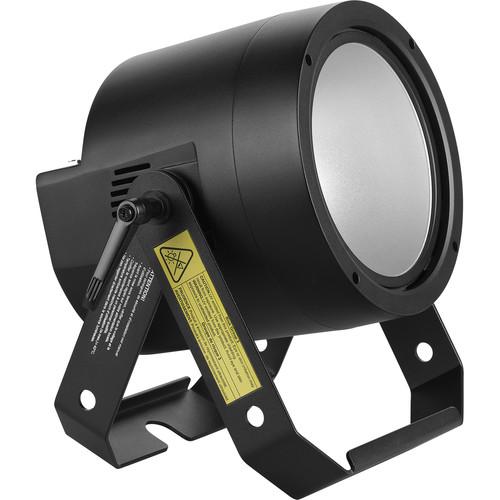

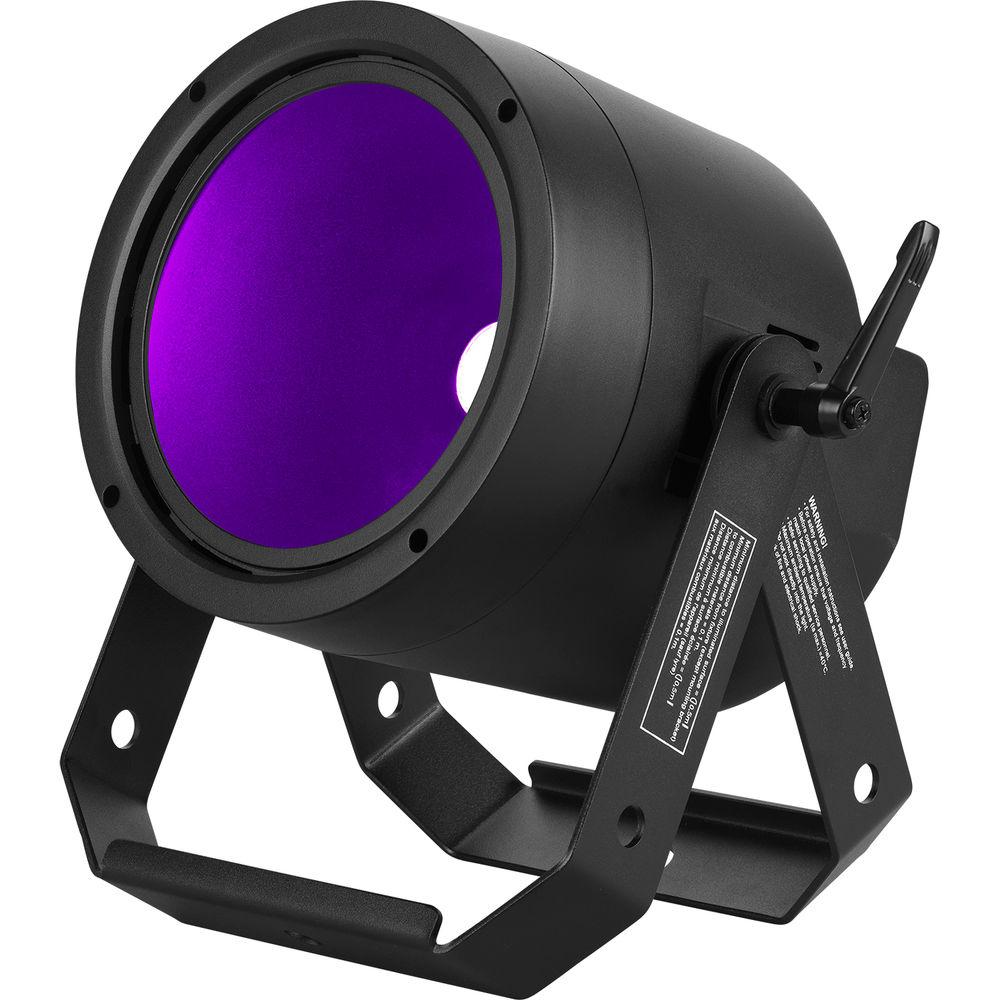

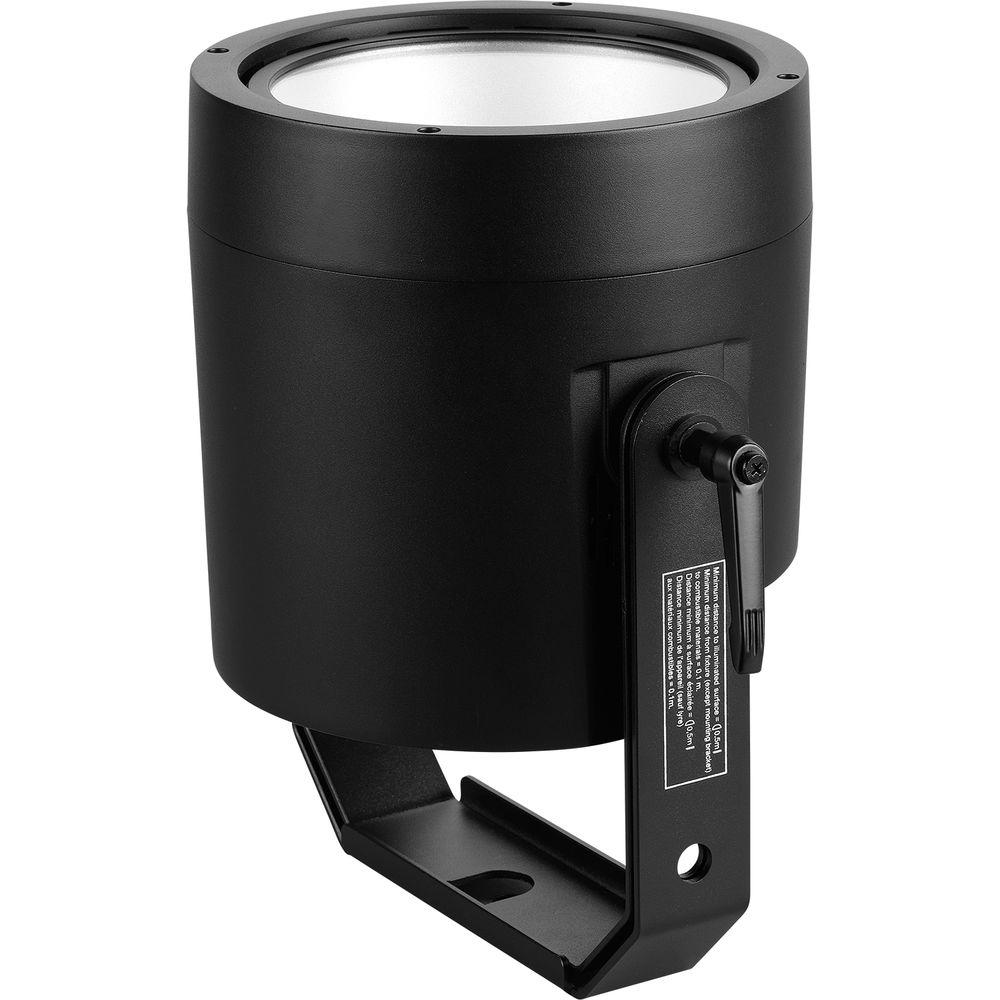

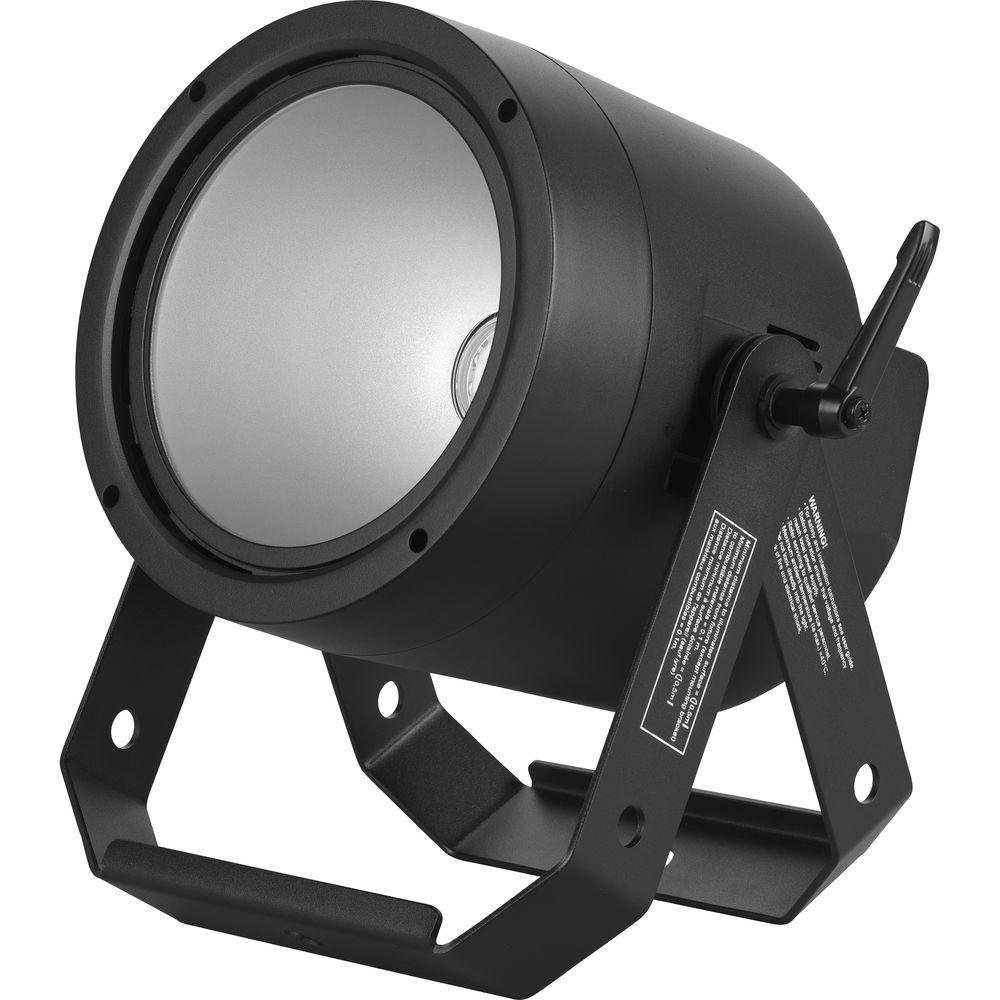

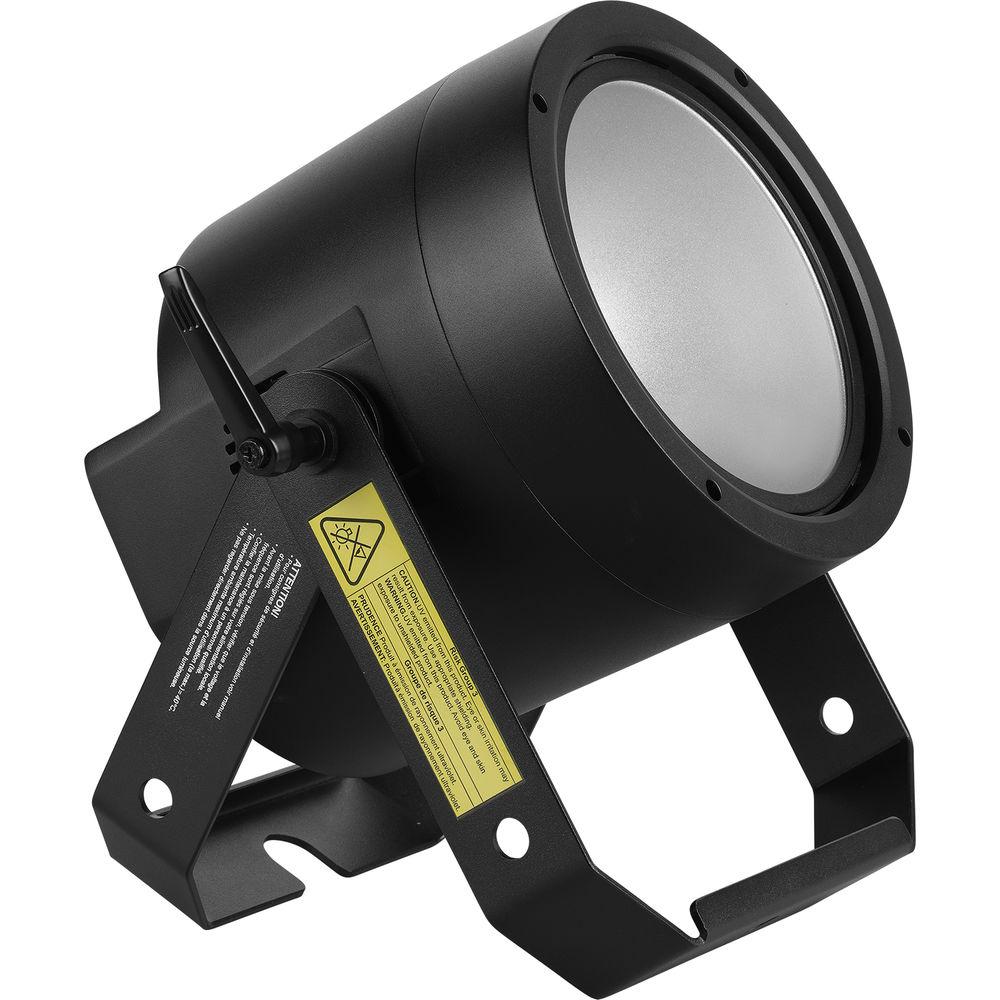

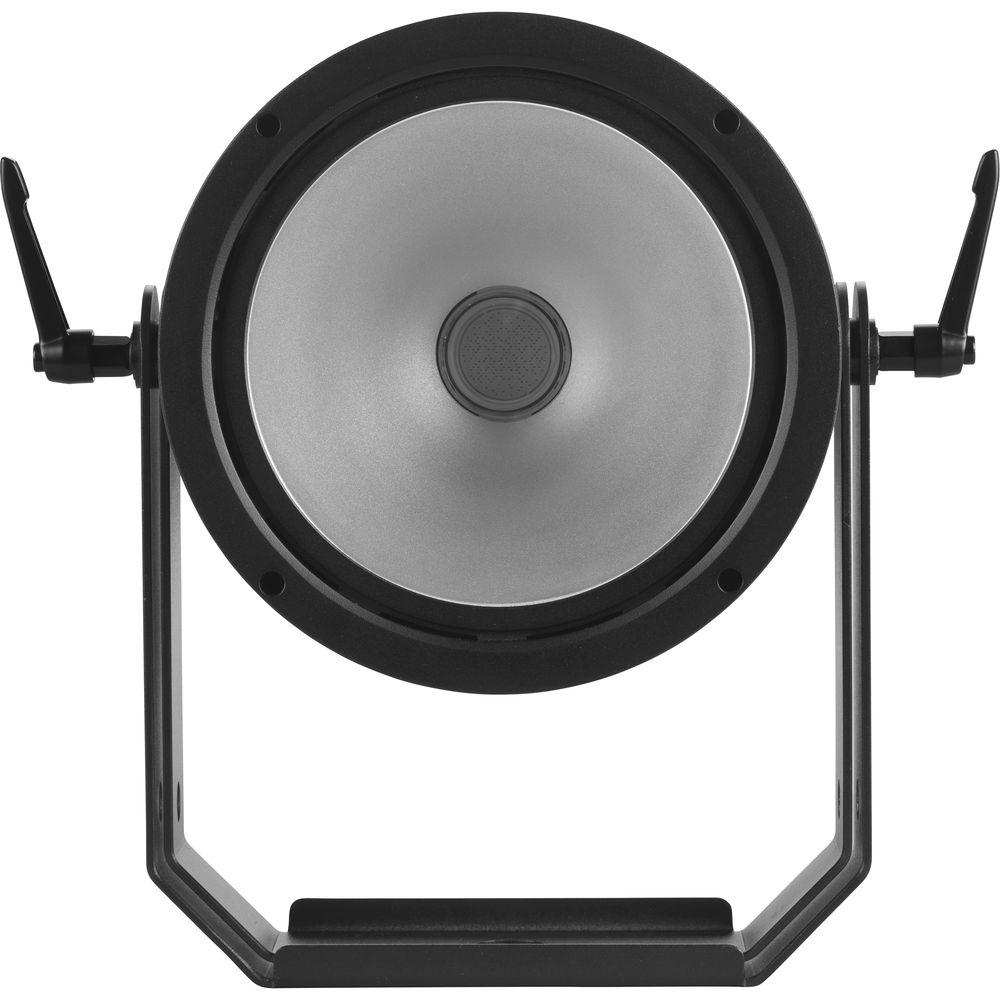

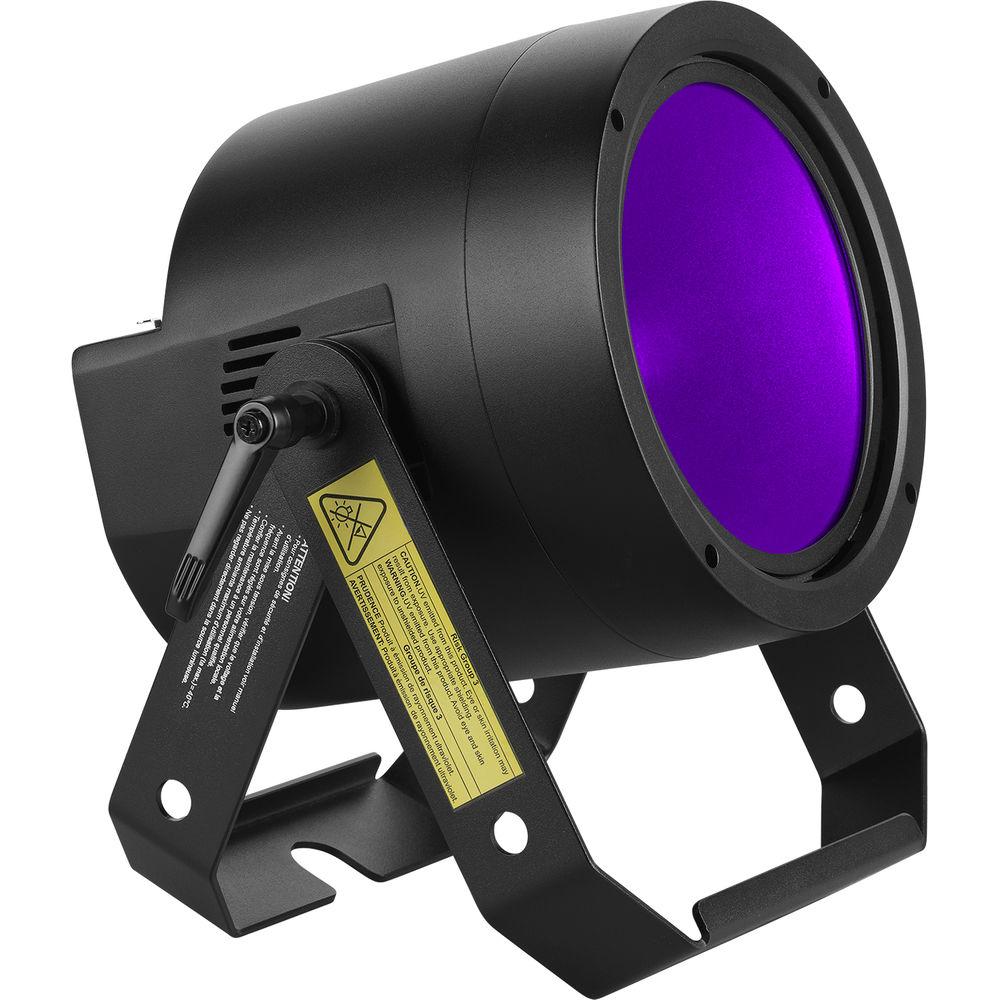

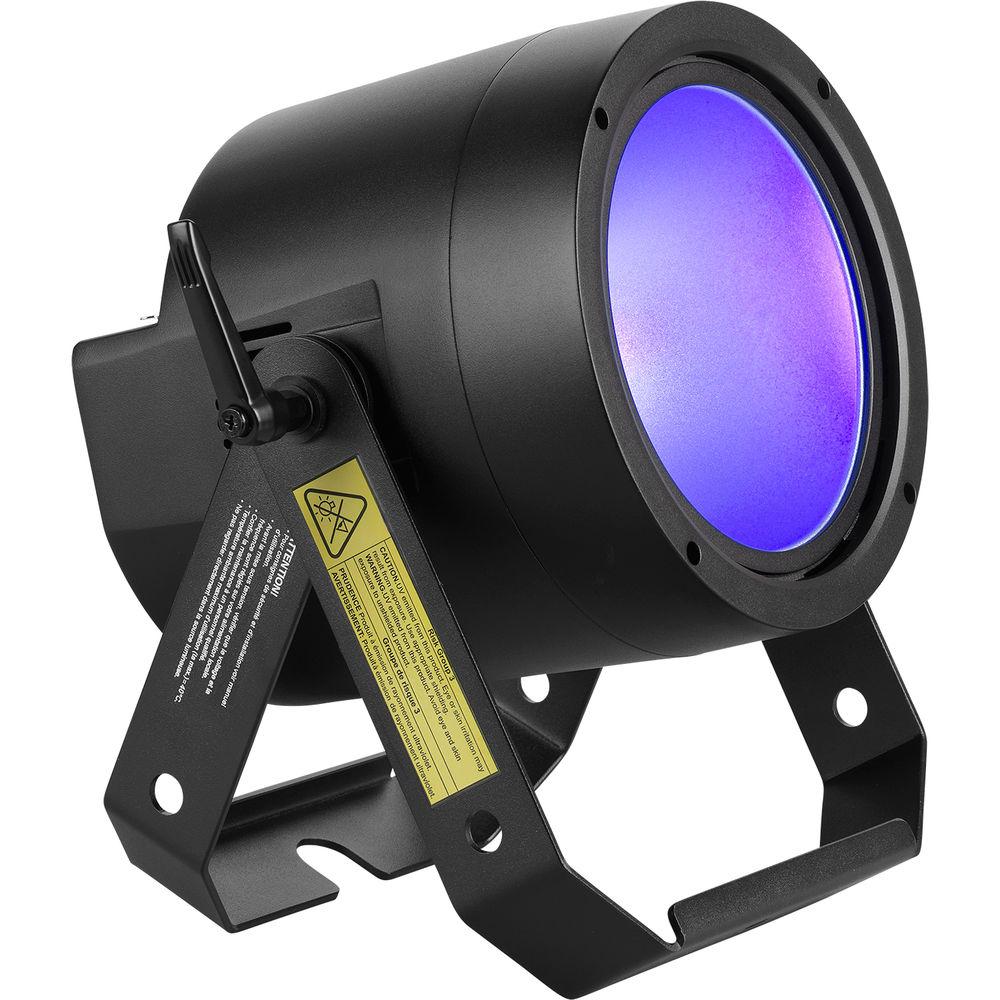

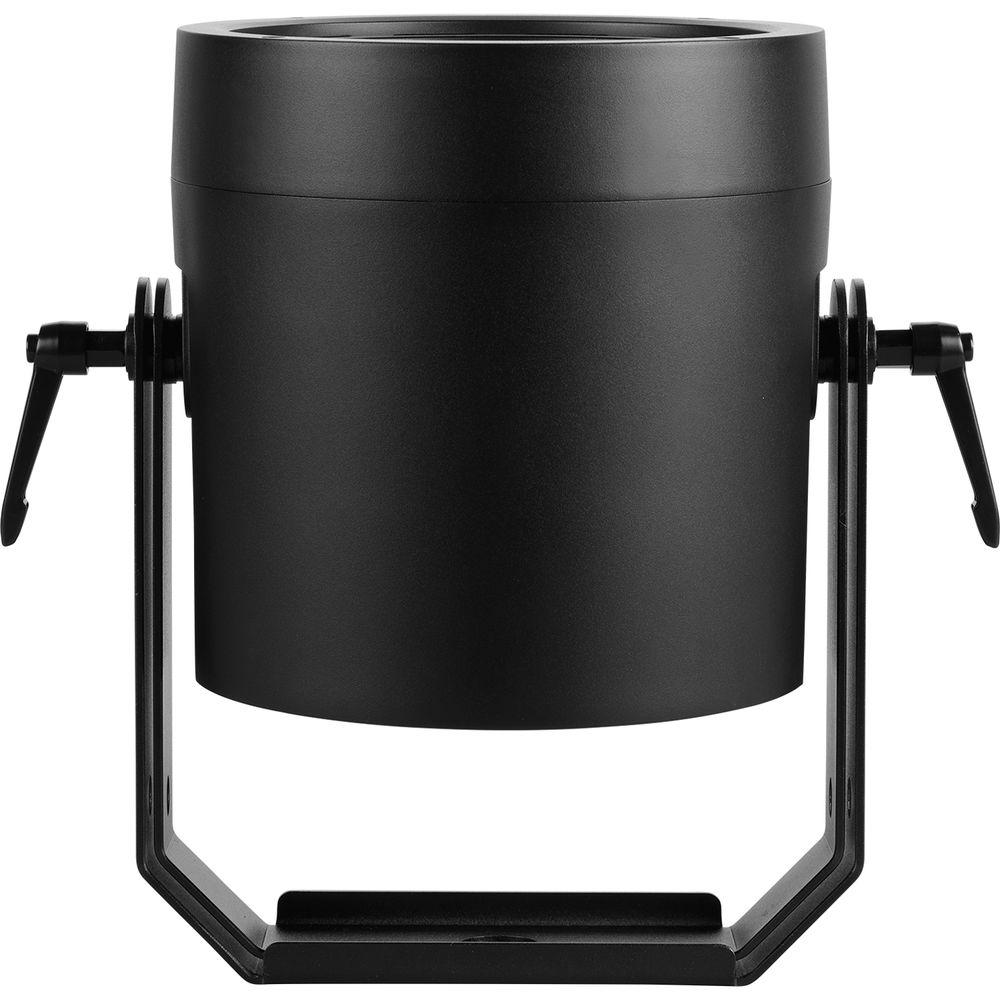

Product description The Martin Professional Lighting RUSH PAR 4 UV is a single-lens UV (ultraviolet) PAR can designed for high-output black light applications. It features a 100W COB UV LED mounted in a reflector and can be easily operated via three DMX channels or the built-in LED display with 4-button menu. The RUSH PAR 4 UV is equipped with a lightweight (at 8.8 lb) aluminum housing, a forced-air cooling design for quiet operation in sound-sensitive environments, a universal auto-ranging power supply, and a dual-yoke bracket that can be used for conventional mounting to a truss or to create a variable-angle floor stand, making the fixture ideal for live shows, performing arts, house of worship, bars, nightlife, architectural installations, and more. - Key Features
-
- Single-lens, 100W COB UV (ultraviolet) LED PAR
- For use in black light applications
- Electronic dimming and strobe
- 3 x DMX channels
- LED display with 4-button menu for easy navigation
- Forced-air cooling design for quiet operation
- Universal auto-ranging power supply
- Bracket suitable for floor or truss mounting
- Lightweight (at 8.8 lb) aluminum construction
In the Box Martin Professional Lighting RUSH PAR 4 UV Single-Lens UV LED PAR 4.9' Power Cable (without Mains Plug) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting RUSH PAR 4 UV Single-Lens UV LED PAR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting RUSH PAR 4 UV Specs | Light Source | 1 x 100 W COB UV (ultraviolet) LED
UV: 400 nm | | Optics | Single-lens design | | Dynamic Effects | Dimming: 0-100%, coarse and fine control
Shutter: Strobe and pulse effects, instant open and blackout | | Controls | Control System: USITT DMX512/1990 with RDM
DMX Channels: 3
RDM Compliance: ANSI/ESTA E.120

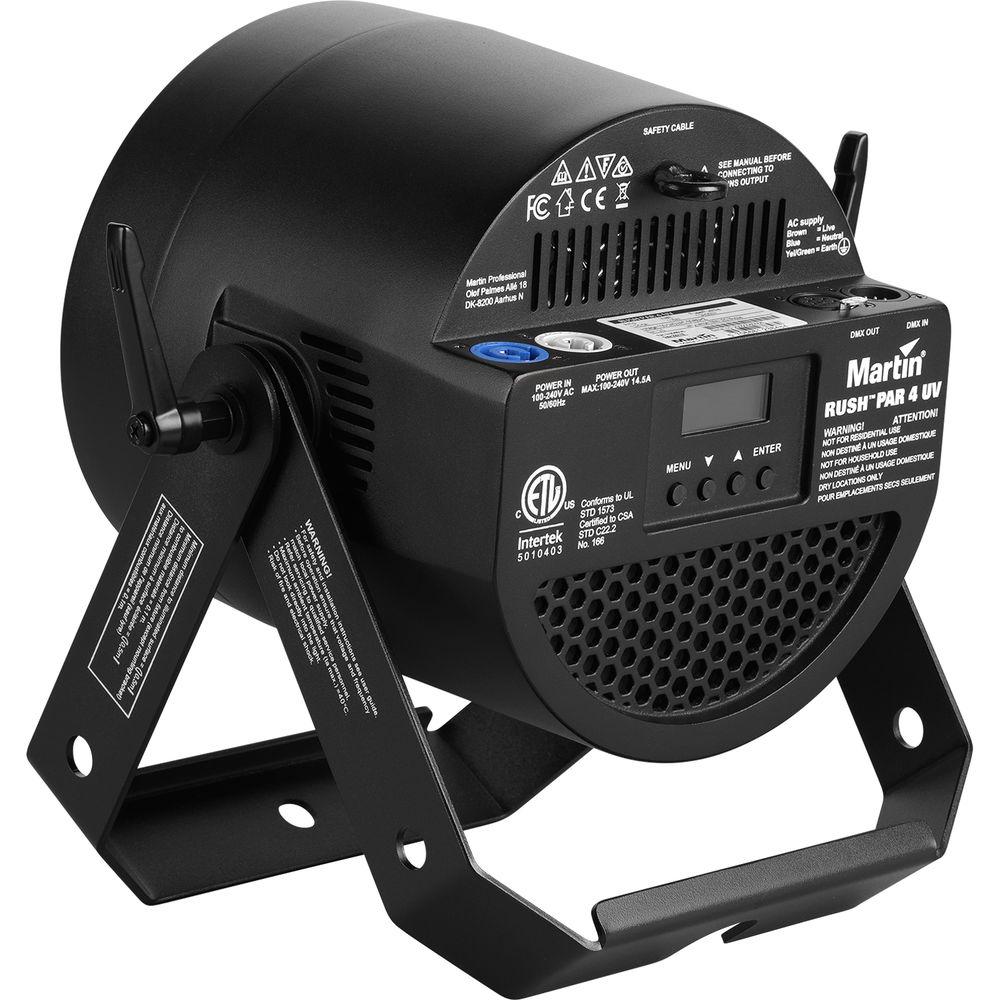

Interface: Control panel with backlit LCD display | | Connections | AC Power Input/Output: Neutrik powerCON
DMX & RDM Data I/O: 5-pin locking XLR | | Electrical | AC Power: 100-240 V nominal, 50/60 Hz
Power Supply Unit: Auto-ranging electronic switch mode
Total Power Consumption: 114 W, maximum
Half-Cycle RMS Inrush Current: 11.2 A, typical
Recommended Miniature Circuit Breaker when Power Linking: Type D (per IEC 60898/UL489/CSA C22.2 No. 5) | | Power and Current | 100 V, 60 Hz: 114 W, 1.2 A, PF 1.000
120 V, 60 Hz: 114 W, 1.0 A, PF 0.996
230 V, 50 Hz: 114 W, 0.5 A, PF 0.933
Measurements made at nominal voltage
Figures are typical, not maximum
Allow for a deviation of +/- 10% | | Thermal | Cooling: Forced air, temperature-regulated
Maximum Ambient Temperature: 104°F / 40°C
Minimum Ambient Temperature: 32°F / 0°C | | Installation | Double-bracket yoke / floor stand
Mounting Points for adjustable bracket and surface or truss mount
Location: Indoor location only
Orientation: Any
Minimum Distance to Illuminated Surfaces: 20" / 0.5 m
Minimum Distance to Combustible Materials: 4" / 0.1 m | | Construction | Color: Black
Housing: Cast aluminum
IP Rating: IP 20 | | Approvals | EU safety: EN 60598-2-17 (EN 60598-1) / EN 62471 / EN 62493
EU EMC: EN 55015, EN 55032 / EN 55103-1, -2 / EN 61000-3-2, -3 / EN 61000-4-2, -4, -5 / EN 61547
US Safety: UL 1573
US EMC: 47 CFR 15 Class A
Canadian Safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ: RCM (pending) | | Dimensions (L x W x H) | 12.8 x 12.3 x 8.1" / 327 x 312 x 207 mm | | Weight | 8.8 lb / 4.0 kg |
