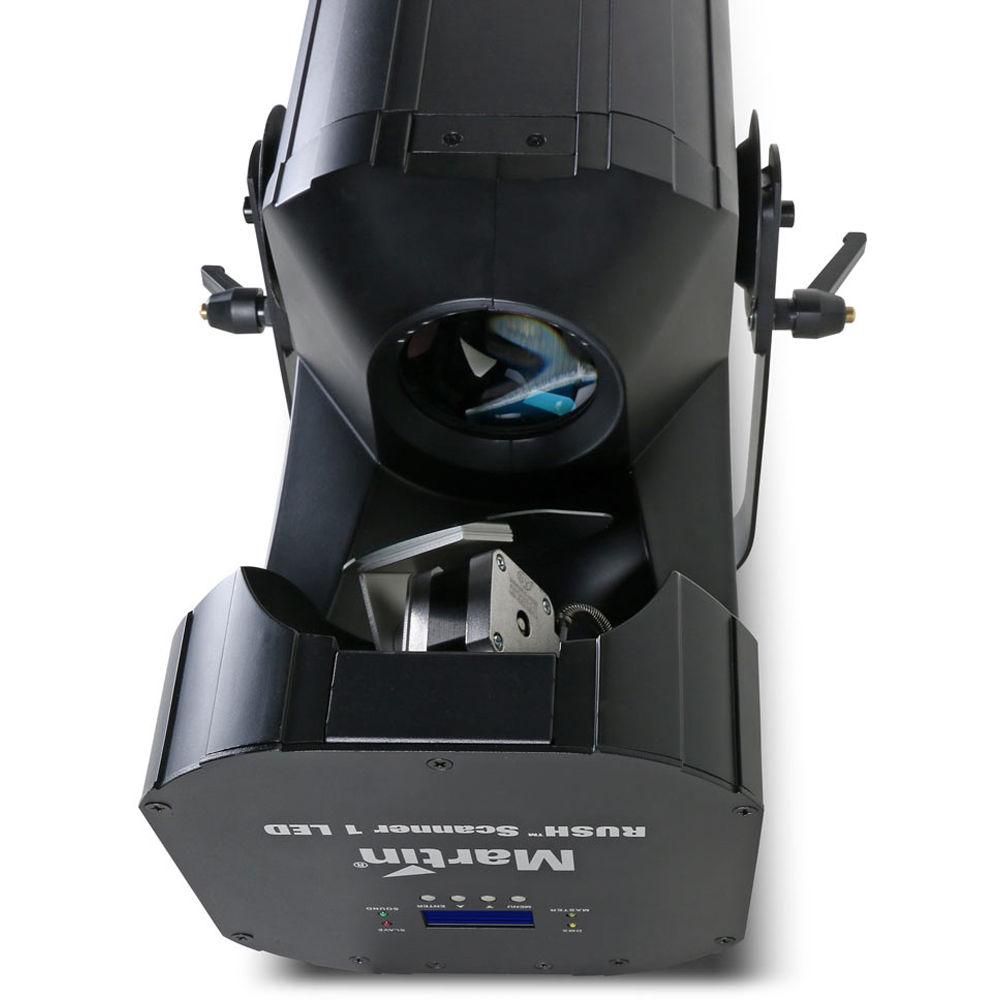

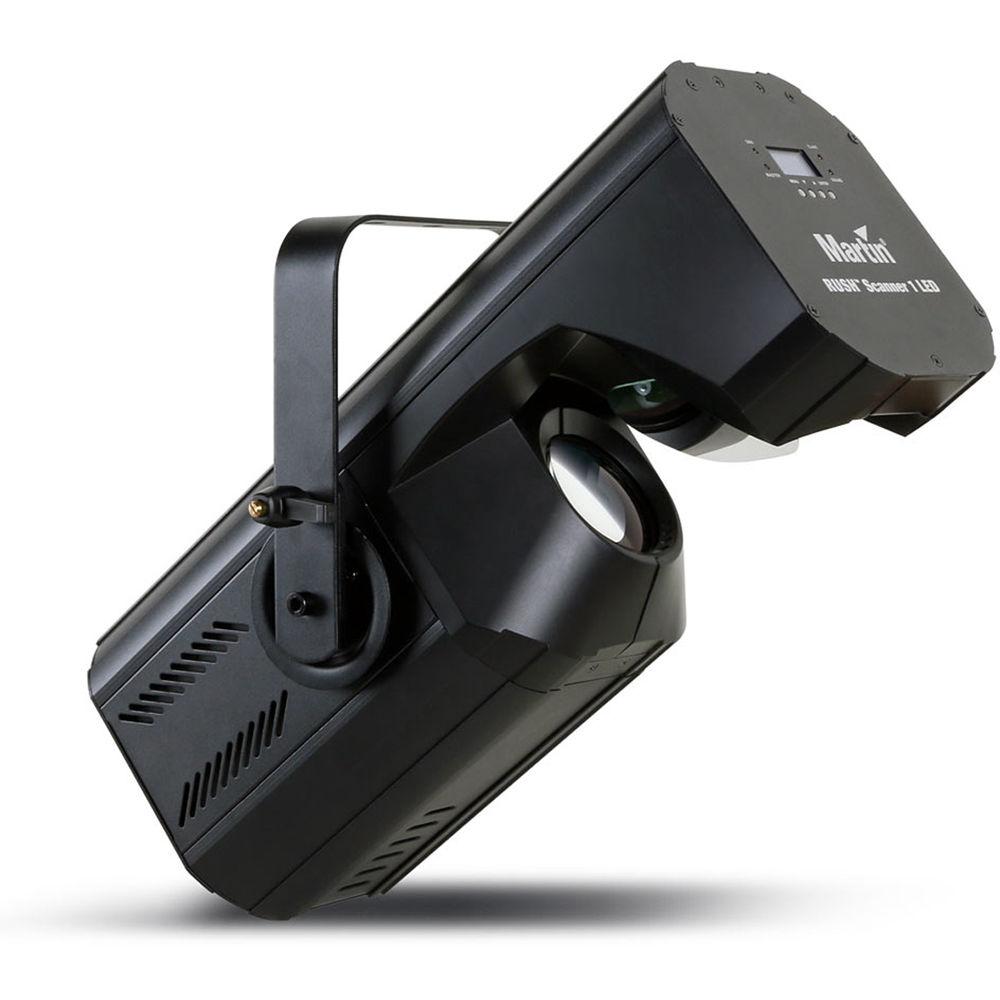

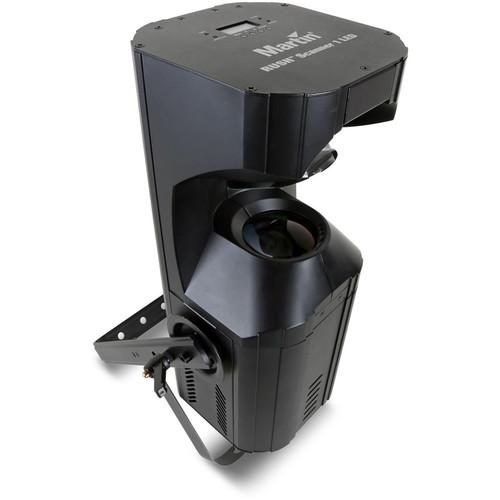

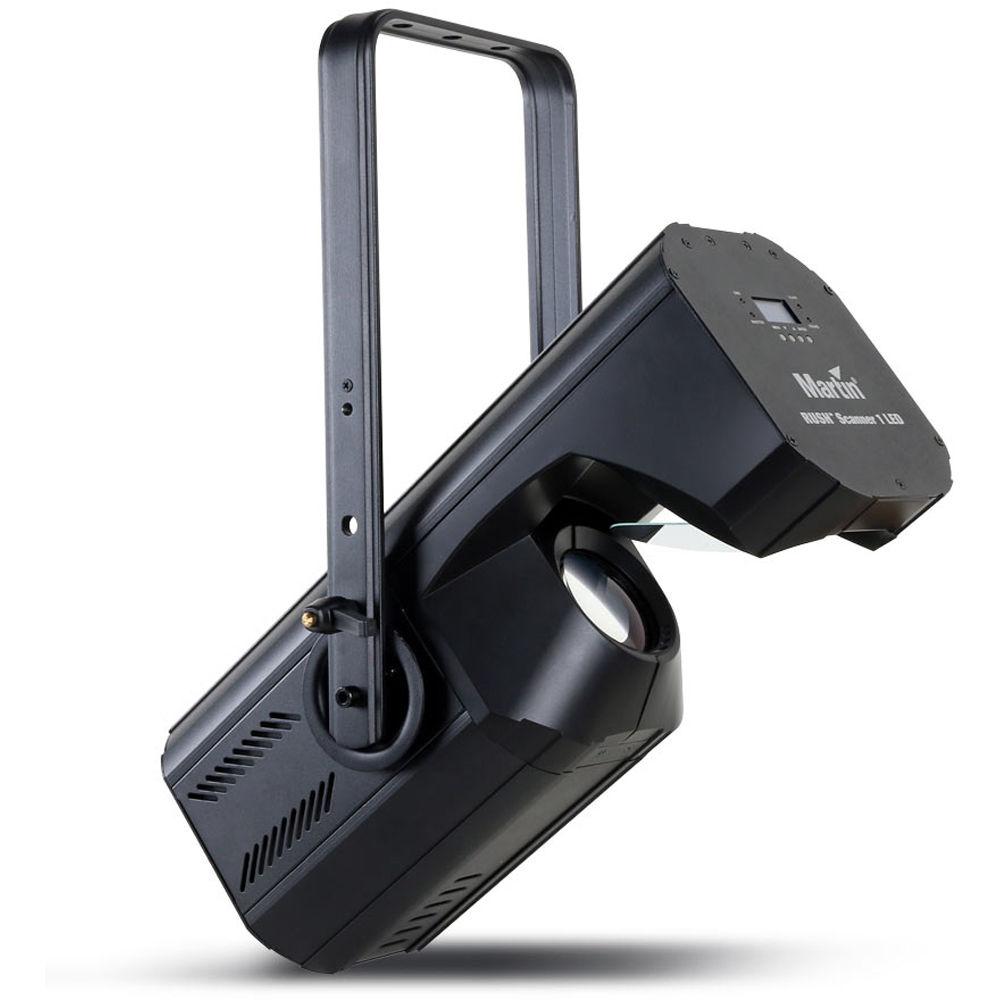

Product description The Martin Professional RUSH Scanner 1 LED is a bright LED mirror scanner, capable of high-speed mid-air effects, and is well suited for clubs, theaters, conferences, and exhibition environments. The fixture features a single white 90W LED, and offers dynamic effects including two color wheels, a rotating gobo wheel, a fixed gobo wheel, electronic dimming, strobe and pulse effects with variable speed and action, and an electronic shutter effect for instant-open and blackout. Additionally, a 3-facet prism provides indexing and rotation with variable direction and speed, as well as a motorized focus.

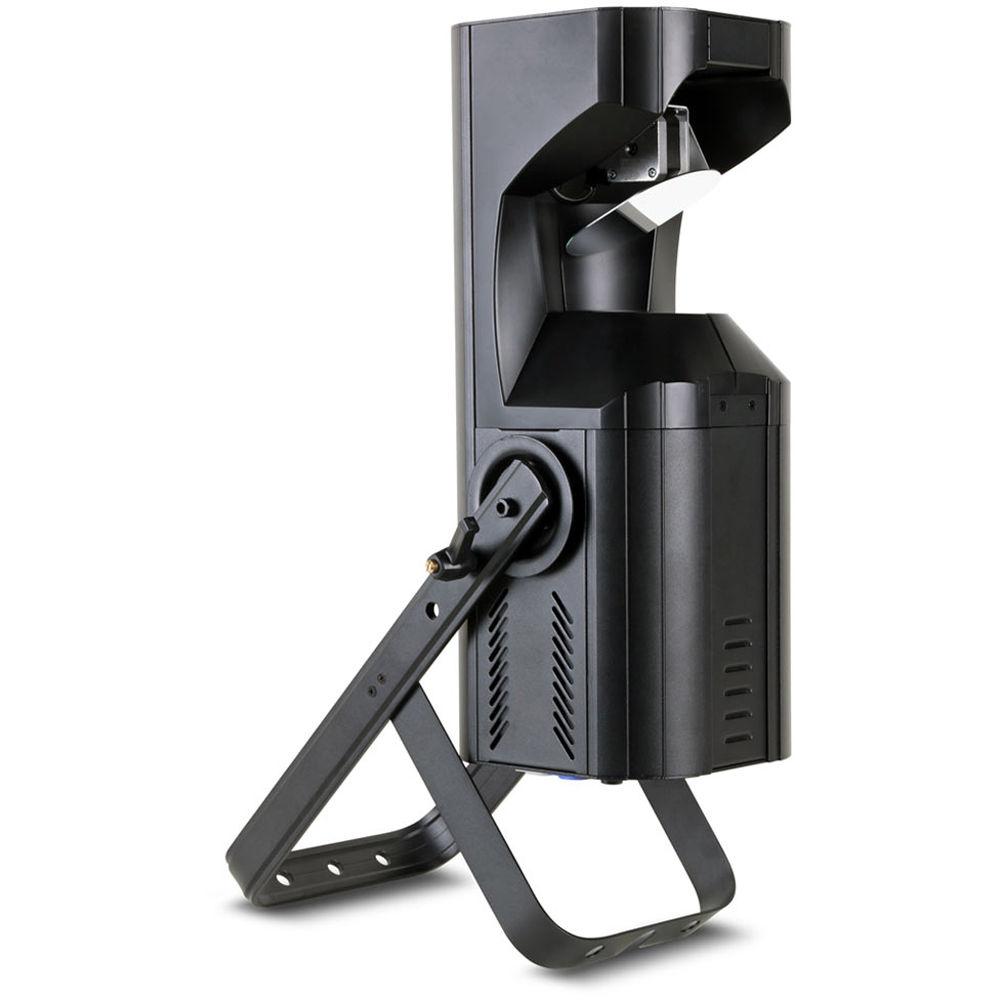

For control options, the RUSH Scanner 1 LED features a standalone mode with sound and auto trigger modes, nine pre-programmed shows, and 20 scenes, while the DMX channel operation affords 16 channels of control. Additionally, several lights can be synchronized via a master/slave setup. The flexible bracket allows the unit to be used on the floor or mounted onto a truss. The RUSH Scanner 1 LED ships with a power cord and a mounting bracket. -
- High-power, long-life 90W white LED engine
- Effects include two gobo wheels. two color wheels, and a 3-facet prism
- Sharp projections with motorized focus
- DMX control and standalone operation
- Auto-trig and music-trig standalone modes
- Compact size and rugged construction
In the Box Martin Professional Lighting Rush Scanner 1 LED Power Cord (4.9') Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting Rush Scanner 1 LED in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting RUSH Scanner 1 L... Specs | Dynamic Effects | Color Wheel 1: 8 colors plus open, rotation with variable direction and speed
Color Wheel 2: 8 colors (including 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed
Rotating Gobo Wheel: 6 rotating/indexing gobos plus open
Fixed Gobo Wheel: 7 gobos plus open
Electronic 'Shutter' Effect: Strobe, pulse effects, instant open, and blackout
Prism: Indexing and rotation with variable direction and speed
Focus: Motorized
Electronic Dimming: 0 - 100%, four dimming curve options
Pan: 170°, coarse and fine control
Tilt: 75°, coarse and fine control | | Control and Programming | Control Options: DMX, standalone, synchronized master/slave
DMX Channels: 16
Standalone Trigger Options: Sound activation (music trig), auto trig
Standalone Sequences: 9 pre-programmed shows
Standalone Memory: 20 scenes
Music Trig Sensitivity: Adjustable

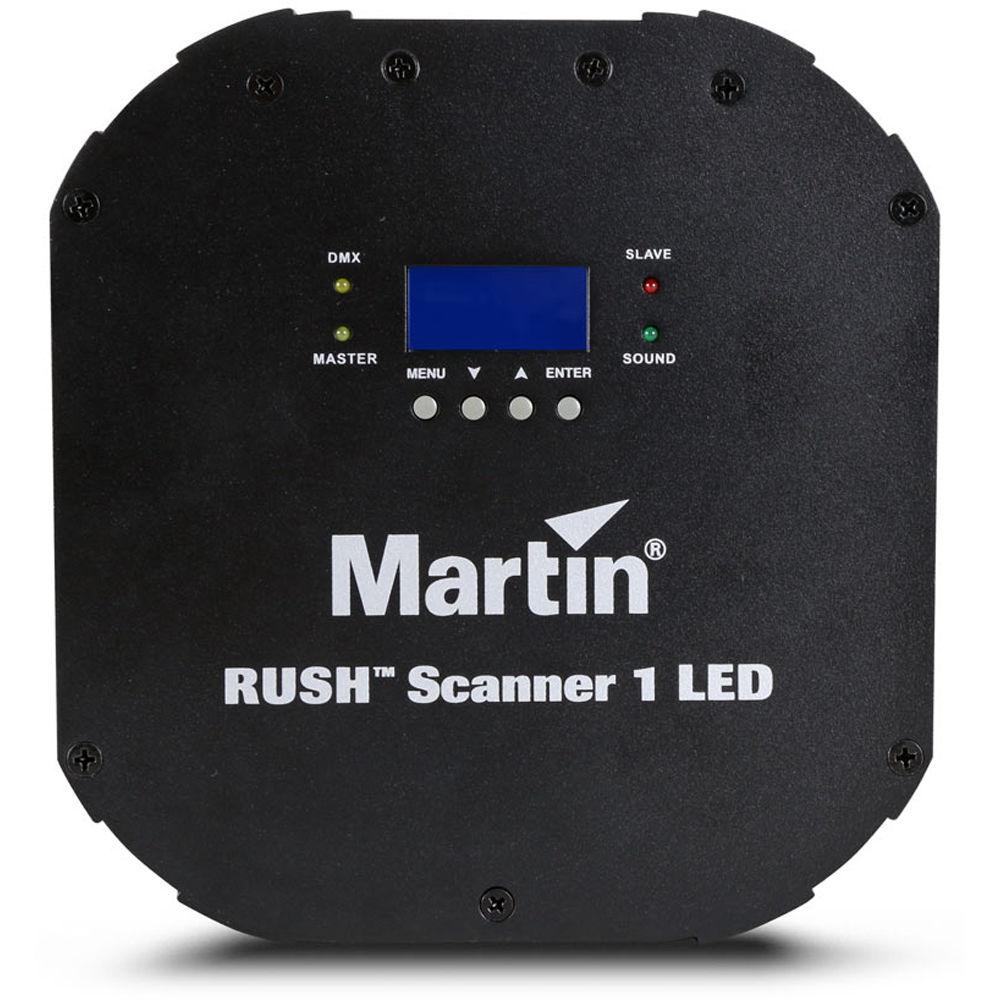

Setting and Addressing: Control panel with backlit LCD display
DMX Compliance: USITT DMX512/1990 | | Optics | Light Source: 90 W LED engine
Minimum LED Lifetime: 30,000 hours (to >70% luminous output)
Rotating Gobo Size: 0.9" / 24 mm
Rotating Gobo Image Size: 0.8" / 20 mm | | Construction | Housing: High-impact, flame-retardant thermoplastic
Color: Black
Protection Rating: IP20 | | Installation | Mounting: Adjustable bracket, surface, or truss mount
Orientation: Any

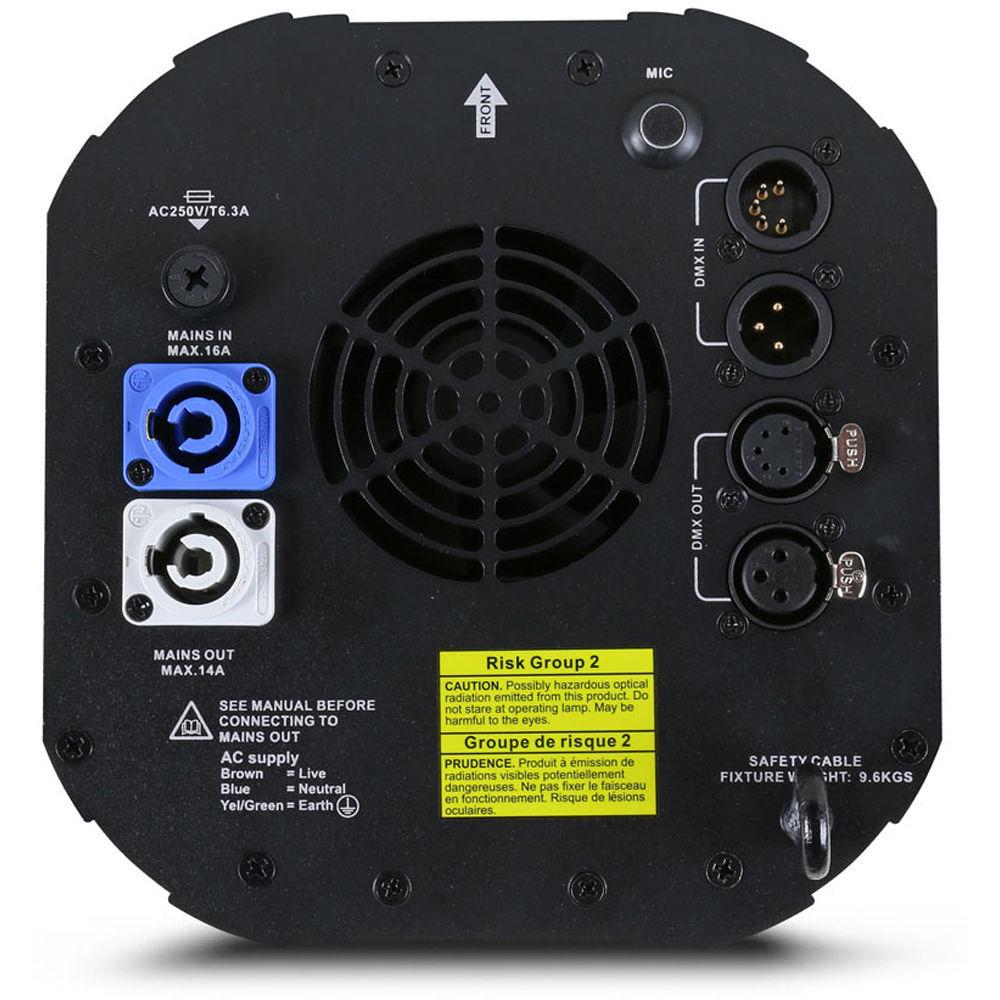

Location: Indoor use only | | Connectors | AC Power Input: Neutrik PowerCON
AC Power Throughput: Neutrik PowerCON
DMX Data In/Out: 2 x 5-pin locking XLR and 2 x 3-pin locking XLR | | Thermal | Cooling: Forced air
Maximum Ambient Temperature (Ta): 104°F / 40°C
Minimum Ambient Temperature (Ta): 32°F / 0°C
Total Heat Dissipation (Calculated, ±10%, at Full Intensity): 570 BTU/hr | | Approvals | EU Safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US Safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian Safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ: RCM | | Electrical | AC Power: 100 to 240 VAC nominal, 50/60 Hz
Power Consumption: 168 W
Typical Half-Cycle RMS Inrush Current at 240 VAC: 10 A
Fuse: T 6.3 A
Power Supply Unit: Auto-ranging electronic switch mode
Typical Power and Current
100 V, 60 Hz: 1.7 A, 170 W, PF 0.997
120 V, 60 Hz: 1.4 A, 165 W, PF 0.994
230 V, 50 Hz: 0.7 A, 162 W, PF 0.937 | | Dimensions (L x W x H) | 23.1 x 11.9 x 7.6" / 58.7 x 30.2 x 19.3 cm | | Weight | 21.1 lb / 9.6 kg |
