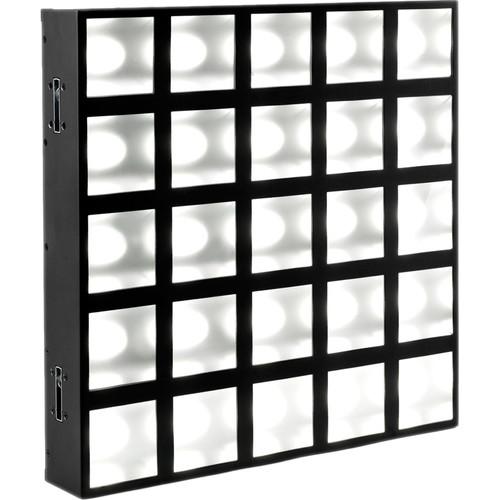

User Manual for Martin Professional Lighting RUSH Strobe 1 White Strobe Blinder 5x5 Matrix Click to enlarge the picture
Contents of the user manual for the Martin Professional Lighting RUSH Strobe 1
- Product category: DJ & Effect Lights Martin Professional Lighting
- Brand: Martin Professional Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Martin Professional Lighting DJ & Effect Lights
|
User manual for the Martin Professional Lighting RUSH Strobe 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Martin Professional Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Martin Professional Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Martin Professional Lighting product will considerably shorten its lifespan!
|
Product description The Martin Professional RUSH Strobe 1 is a white strobe/blinder with a 5x5 matrix panel of individually controllable LEDs. It is well suited for concerts, clubs, event halls, bars, and more. The fixture utilizes 25 five-watt Cree cool white LEDs with a color temperature of 6000 to 6500K. The RUSH Strobe 1 features electronic strobe effects with regular and random pulse/burst, as well as electronic dimming (0 to 100%). The instrument also offers pre-programmed effects, letters, and number display macros, and can be oriented in standard or inverted (180°).
The RUSH Strobe 1 works in standalone mode with music and auto trigger options, as well as eight pre-programmed shows and 20 standalone scenes, while the DMX mode provides 4/25/29 channel controls. The RUSH Strobe 1 ships with mounting brackets and hardware, as well as a power cord. -
- White LED strobe/blinder
- 5x5 matrix panel
- Individually controllable LEDs
- Pre-programmed macros (effects, letters, numbers, etc.)
- Linkable—integrated horizontal and vertical locking
- DMX or sound activated
- Multiple DMX control options
- 3- and 5-pin XLR
In the Box Martin Professional Lighting RUSH Strobe 1 White Strobe Blinder 5x5 Matrix Power Cord (4.9') Mounting Bracket and Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting RUSH Strobe 1 White Strobe Blinder 5x5 Matrix in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting RUSH Strobe 1 Specs | Dynamic Effects | Strobe Effect: Electronic, with regular and random pulse, burst, and strobe effects
Pre-Programmed Effects: Effect, letter, and number display macros
Electronic Dimming: 0 to 100% continuous, individually dimmable pixels
Effects Orientation: Standard or inverted 180° | | Control and Programming | Control Options: DMX, standalone
DMX Channels: 4/25/29
Standalone Trigger Options: Music trig, auto-trig
Standalone Sequences: 8 x Pre-programmed shows or random show
Standalone Memory: 20 x Scenes
Setting and Addressing: Control panel with LED display
DMX Compliance: USITT DMX512/1990 | | Optics | Light Source: 25 x 5 W Cree cool white LEDs
Color Temperature: 6000 to 6500K
Minimum LED Lifetime: 50,000 hours (to >70% luminous output) | | Construction | Housing: Steel
Color: Black
Protection Rating: IP20 | | Installation | Location: Indoor use only, must be fastened to surface or structure
Mounting Points: Integral hanging brackets (removable), side-by-side mounting locks
Orientation: Any | | Connectors | AC Power Input: Neutrik PowerCON
AC Power Throughput: Neutrik PowerCON
DMX Data In/Out: 2 x 5-pin locking XLR, 2 x 3-pin locking XLR | | Thermal | Cooling: Forced air (temperature-regulated, low noise)
Maximum Ambient Temperature (Ta): 104°F / 40°C
Minimum Ambient Temperature (Ta): 32°F / 0°C
Total Heat Dissipation (Calculated, +/- 10%): 510 BTU/hr. | | Approvals | EU Safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US EMC: 47 CFR Part 15 Class A
Canadian EMC: ICES-003 Class A
Australia/NZ: C-TICK N4241 | | Electrical | Power: 100 to 240 VAC nominal, 50/60 Hz
Total Power Consumption: 148 W
Typical Power and Current:
110 V, 60 Hz: 2.0 A, 148 W
230 V, 50 Hz: 1.2 A, 146 W | | Dimensions (L x W x H) | 19.7 x 4.0 x 19.7" / 50.0 x 10.1 x 50.0 cm | | Weight | 20.9 lb / 9.5 kg |
