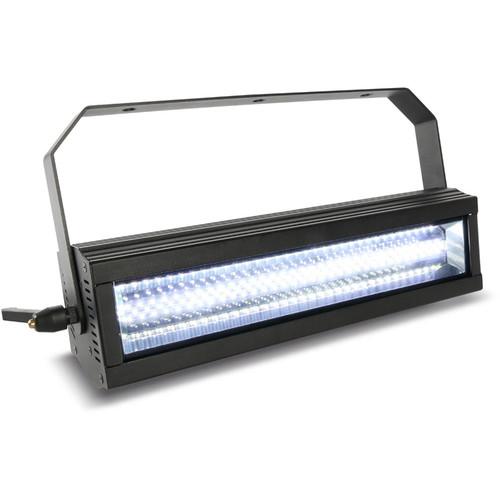

User Manual for Martin Professional Lighting RUSH Strobe CWL Linear Strobe Blinder Click to enlarge the picture
Contents of the user manual for the Martin Professional Lighting RUSH Strobe CWL
- Product category: DJ & Effect Lights Martin Professional Lighting
- Brand: Martin Professional Lighting
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Martin Professional Lighting DJ & Effect Lights
|
User manual for the Martin Professional Lighting RUSH Strobe CWL contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Martin Professional Lighting product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Martin Professional Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Martin Professional Lighting product will considerably shorten its lifespan!
|
Product description The Martin Professional RUSH Strobe CWL is a bright, compact LED linear strobe/blinder well suited for mobile DJs, lounge bars, venues, and cruise ships. The fixture utilizes 99 three-watt Cree XP-D LEDs with a reflector design that offers a traditional Xenon strobe look with a 17,000-lumen output. The RUSH Strobe CWL features a variety of dynamic effects including strobe, blinder, ramp up/down, up-down, random flash, lightning, and single flash. The strobe rate ranges from 0 to 25 Hz, and the strobe duration can be up to 8.3 ms (with 60 Hz power supply).
The RUSH Strobe CWL features several control options including standalone, master/slave, sound trigger, and DMX with 1- or 4-channel modes. The RUSH Strobe ships with mounting brackets and hardware, as well as a power cord. - Key Features
-
- Compact LED linear strobe
- 17,000-lumen output
- Color system: 99 cold white LEDs
- 87° beam angle
- Eight strobe macros
In the Box Martin Professional Lighting RUSH Strobe CWL Linear Strobe/Blinder Power Cord (4.9') Mounting Bracket and Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting RUSH Strobe CWL Linear Strobe Blinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting RUSH Strobe CWL Specs | Dynamic Effects | Strobe Rate: 0 to 25 Hz
Strobe Duration: 0 to 10 ms (50 Hz supply), or 0 to 8.3 ms (60 Hz supply)
Blinder Effect: Continuous with autofade
Special Effects: Ramp up/down, up-down, random flash, lightning, blinder, single flash | | Control and Programming | Control Options: DMX, standalone, master/slave, sound trigger
DMX Channels: 1 or 4
Setting and Addressing: Control panel with LCD display
Compliance: USITT DMX512/1990 | | Optics | Beam Angle: 87°
Light Source: 99 x 3 W CREE white XB-D LED
Color Temperature: 7000 to 8000K
Minimum LED Lifetime: 50,000 hours (to >70% luminous output) | | Construction | Housing: Steel and aluminum
Color: Black
Protection Rating: IP20 | | Installation | Mounting Points: Bracket with 0.5" / 13.5 mm holes
Orientation: Any
Location: Indoor use only, must be fastened to surface or structure
Minimum Distance to Illuminated Surfaces: 8.0" / 20.3 cm
Minimum Distance to Combustible Materials: 4.0" / 10.2 cm
Minimum Clearance Around Fans and Vents: 4.0" / 10.2 cm | | Connectors | AC Power Input: Neutrik PowerCON
AC Power Throughput: Neutrik PowerCON
DMX Data In/Out: 2 x 5-pin locking XLR, 2 x 3-pin locking XLR | | Thermal | Cooling: Forced air (temperature-regulated, low-noise)
Maximum Ambient Temperature (Ta): 104°F / 40°C
Minimum Ambient Temperature (Ta): 32°F / 0°C | | Approvals | EU safety: EN 60598-2-17 (EN 605981-1)
EU EMC: EN 55015, EN55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US Safety: UL 1573
US EMC: 47 CFR Part 15 Class A
Canadian Safety: CSA 22.2 No. 166
Australia/NZ: C-Tick N4241 | | Electrical | Power: 100 to 240 VAC nominal, 50/60 Hz
Power Supply Unit: Diode bridge
Typical Power and Current:
110 V, 60 Hz: 2.5 A, 250 W, PF 0.9
230 V, 50 Hz: 2.7 A, 380 W, PF 0.6 | | Dimensions (L x W x H) | 19.9 x 5.5 x 8.9" / 50.5 x 13.9 x 22.6 cm | | Weight | 8.9 lb / 4.0 kg |
