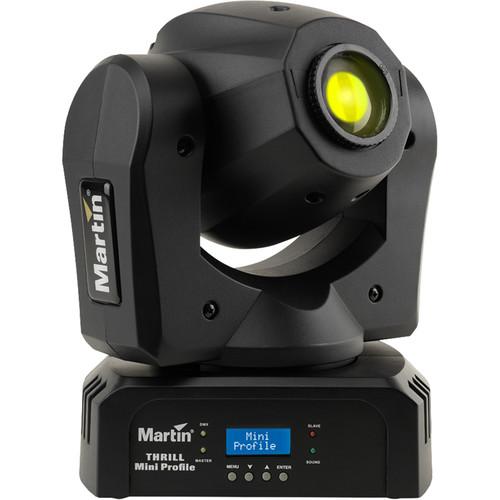

Product description The Martin Professional Lighting Thrill Mini Profile Compact LED Moving Head features a 14° beam angle, crisp optics, and even output. It is designed to energize dance floors in clubs, bars, and event spaces with its moving beams of light, color washes, and strobe effects. Featuring fast and precise head movements and separate rotating gobos and color wheels, this versatile fixture allows for flexible effect design and precise show control. The color wheel has eight colors plus white and eight built-in fixed gobo patterns, plus an open position. The fixture can be dimmed from full brightness to zero.

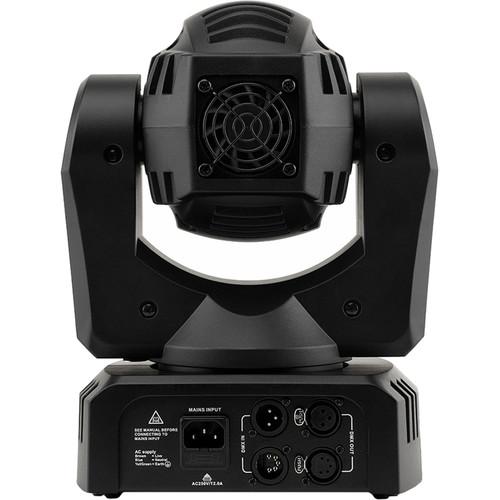

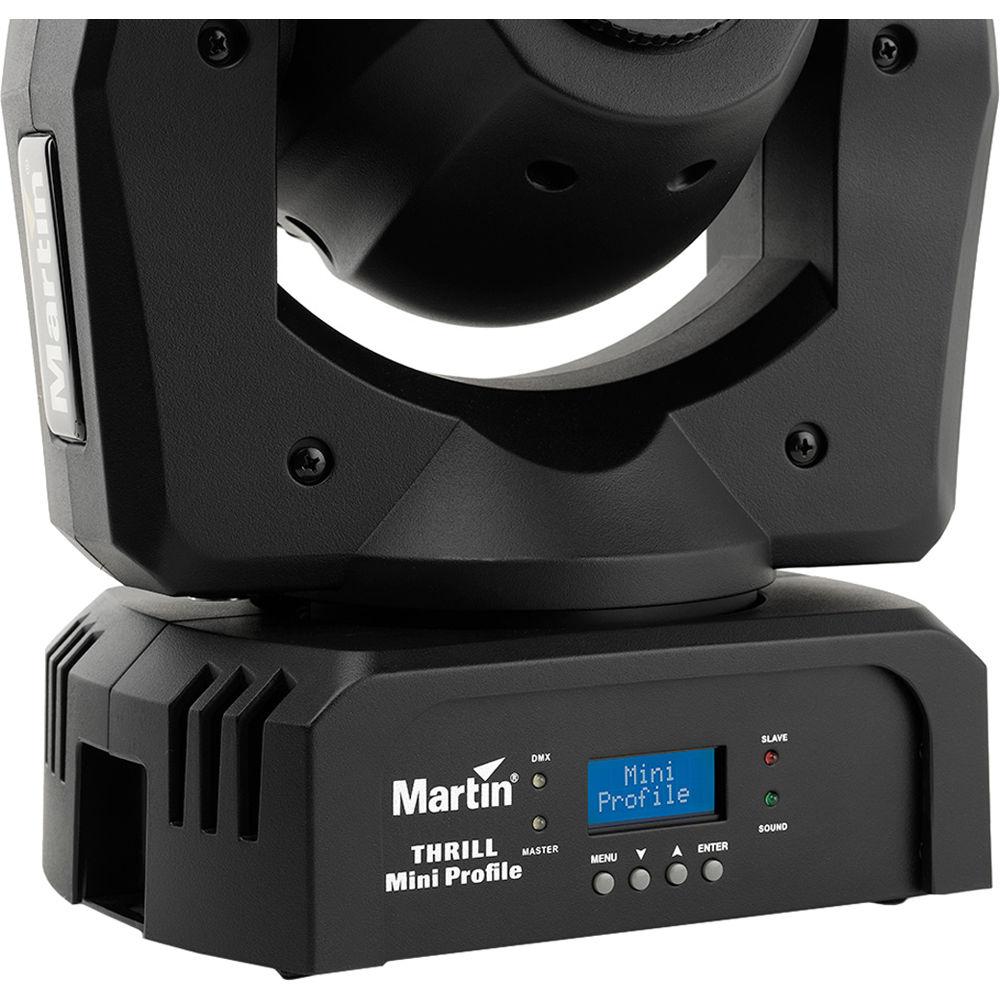

The fixture supports 10-channels of DMX control via both 3- and 5-pin XLR in and out connectors. In addition to the DMX control, it features 4 preprogrammed shows and a variety of control methods including an audio trigger. Four LED indicators and a display screen provide information about the condition of the fixture. Four push buttons enable control from the light's front panel. An IEC AC power connector features a built-in fuse that helps protects the fixture's circuitry. - Effects and Features
-
- Bright, compact, and lightweight LED moving head, perfect for mobile applications
- One 18W cool-white LED
- Crisp optics and even output
- Beam angle: 14°
- Pan/tilt: 540°/230°
- Independent color and gobo wheels
- 8 colors + white
- 8 gobos + open
- Electronic dimming: 0-100%
- Variable strobe
- LED display with 4-button menu for easy navigation
- Multi-voltage operation: 100-240 VAC
- Includes hanging bracket
- Control
-
- The fixture supports 10 DMX channels
- Sound-active and automated programs provide shows right out of the box
- Use Master/Slave configuration with other fixtures for a coordinated show
- Linking
- DMX-link via the 3-pin or 5-pin DMX in/out connectors
UPC: 668705002929 In the Box Martin Professional Lighting Thrill Mini Profile Compact LED Moving Head Power cable, US, IEC C13 female, molded NEMA 5-15P Power cable, EU, IEC C13 female, molded Schuko Hanging Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting Thrill Mini Profile Compact LED Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting Mini Profile Specs | Light Source | 18 W white LED | | LED Life Expectancy | 50,000 hours (at >70% luminous output) | | Beam Angle | 14° | | Dimming | 0-100% | | Pan/Tilt | Pan: 540°
Tilt: 230° | | Effects | Variable strobe (3 to 20 Hz)
Pulse effects
Random strobe | | DMX Connectors | Input:
XLR 5-pin
XLR 3-pin
Output:
XLR 5-pin
XLR 3-pin | | DMX Channel Modes | 10 channels | | Display/Controls | 4-LED display
4 control buttons | | Input Voltage Range | 100-240 VAC, 50/60 Hz | | Power Connectors | Input: IEC | | Power and Current | 120 VAC/60 Hz: 52 W, 0.9 A
230 VAC/50 Hz: 50 W, 0.4 A
Typical Half-Cycle RMS Inrush Current: 6.4 A | | Fuse | 2 A, 250 VAC | | Cooling System | Fan-assisted convection | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Approvals | EU Safety: EN 60598-2-17, EN 61000-3-3, EN 62471, EN 62493
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61547
US Safety: UL 1573
US EMC: CFR Title 47 Part 15 Class A
Canadian Safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
CE
ETL C US Intertek | | Dimensions | 9.33 x 6.10 x 13.31" / 23.70 x 15.50 x 33.80 cm | | Weight | 9.5 lb / 4.3 kg | | | | Package Weight | 13.15 lb | | Box Dimensions (LxWxH) | 15.4 x 12.9 x 10.2" |
