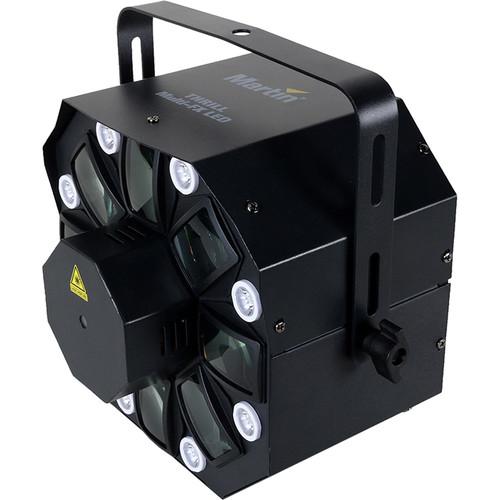

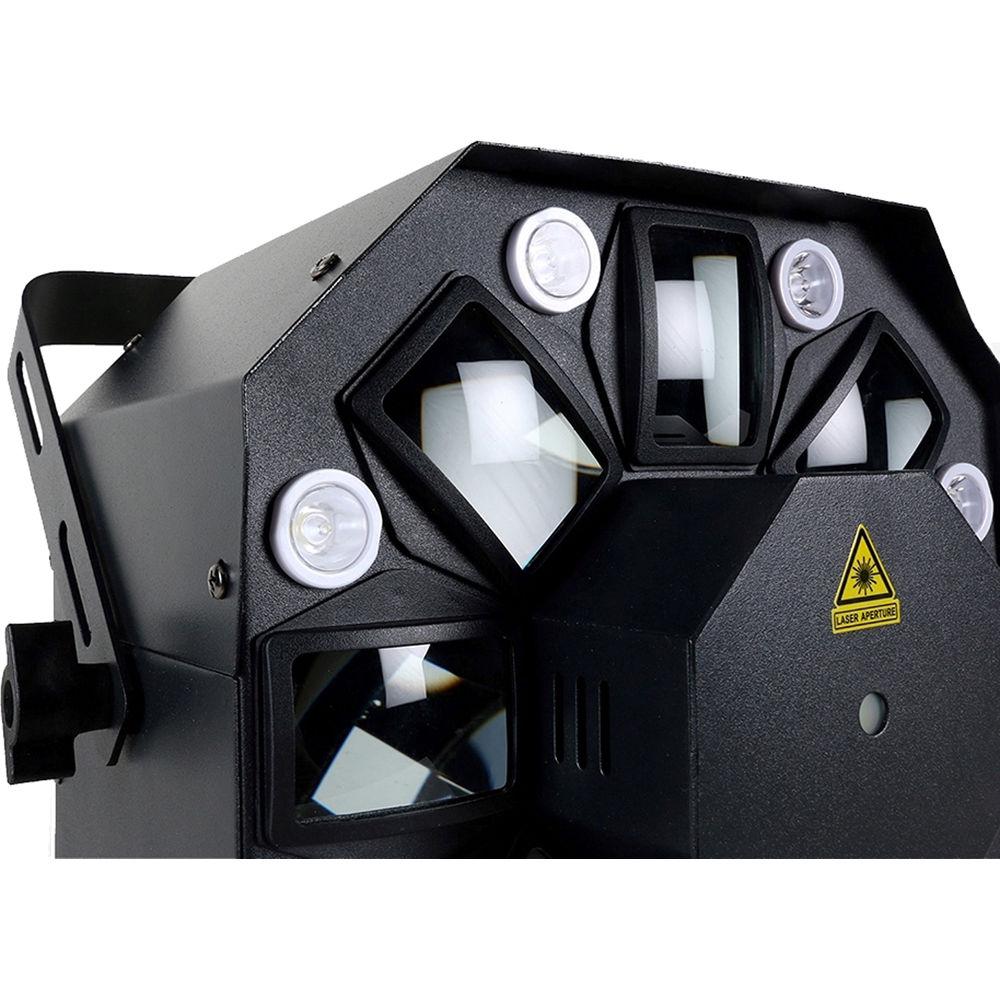

Product description The Martin Professional Lighting THRILL Multi-FX LED creates a stunning light show from a single fixture. Well suited for use by musicians, DJs, and home enthusiasts, the THRILL is easy to set up and can be set to follow the beat of the music, follow one of eight preprogrammed shows, or connect to a DMX system for programmed control. The unit outputs rotating multibeam colored effects, white strobe flashes, and red and green laser beams.

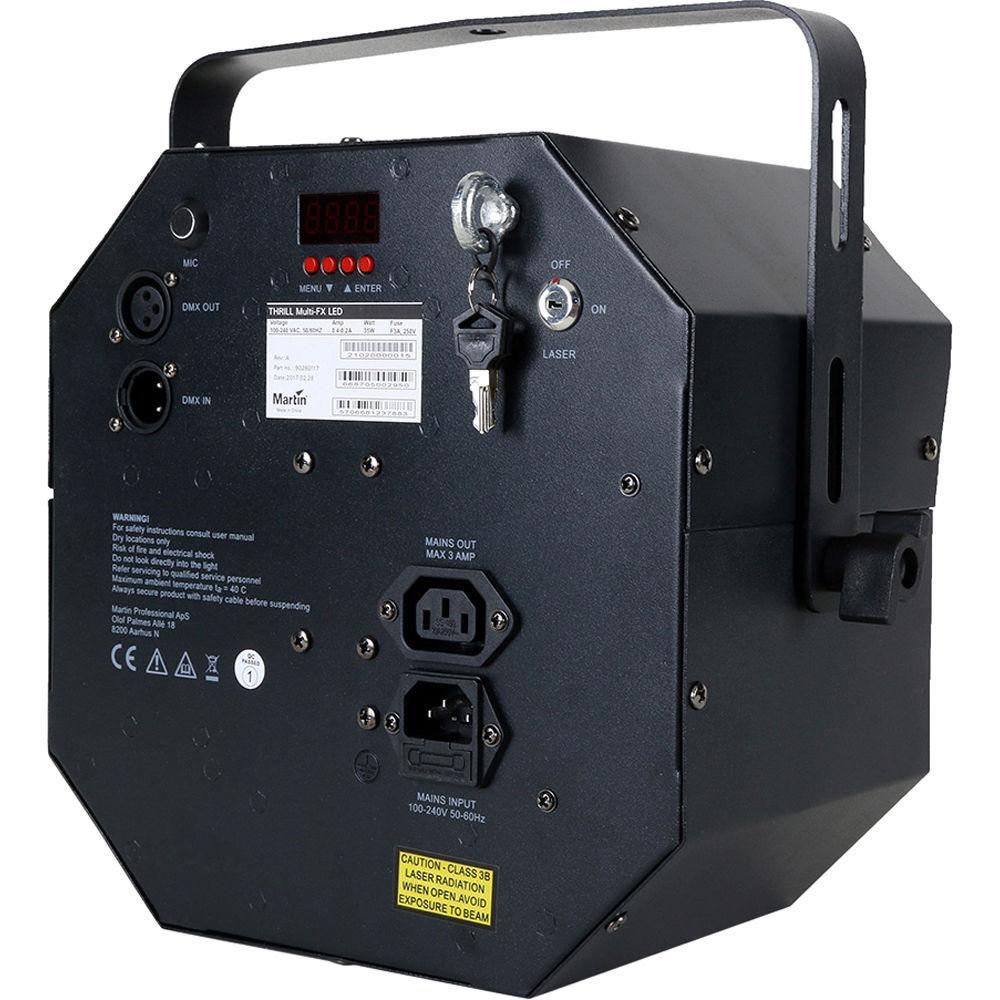

It supports local control via rear panel buttons and an info display screen. You can set the local control to run using an audio trigger or to auto run 8 different preprogrammed light shows. You can also control the light fixture via DMX protocol, and you can daisy-chain both DMX and power. You can use the DMX protocol to daisy-chain together units, even when using the local control preprogrammed shows. An adjustable mounting bracket is included. - Dynamic Effects
- Multibeam Effects:
- Color mixing: RGBWA color selection: 36 color presets
- Electronic dimming: 0-100%
- Strobe rate: 0-22 Hz
- Strobe and pulse effects: Variable speed and action, random strobe
- Electronic shutter effect: Instant open and blackout
Strobe Effects:- Color: White
- Strobe rate: 15 Hz fixed
- Special effects: On/off, strobe effect, pulse effects, random and blackout
Laser Efects:- Color: Red, green
- Special effects: On/off, strobe effect, pulse effects, random and blackout
UPC: 668705002950 In the Box Martin Professional Lighting THRILL Multi-FX LED Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Martin Professional Lighting THRILL Multi-FX LED in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMartin Professional Lighting THRILL Multi FX Specs | Optics | Multibeam Light Source: 5 x 3 W RGBWA LEDs
Strobe Light Source: 8 x 1 W White LEDs
Minimum LED Lifetime: 30,000 hours (>70% luminous output) | | Laser | Green Laser Power / Wavelength: 50 mW / 532 nm
Red Laser Power / Wavelength: 150 mW / 650 nm
Aperture Diameter: 7 mm
Beam Shape: Divergent
Pulse Duration (Frequency): Not pulsed
Maximum Single-Beam Laser Power from Aperature: 7.5 mW
Class: 3B (US: Class IIIB)
Minimum Laser Lifetime: 3000 hours | | Material of Construction | Housing: Steel
Color: Black | | IP Rating | 20 | | Minimum Distance | Above Floor: 9.8' / 3 m
From Public: 9.8' / 3 m | | Control | Local
Sound Trigger
Autorun
Interface: Control panel with LED display
DMX
Protocol: 512
Channels: 2/16
Input: 1 x 3-pin XLR
Output: 1 x 3-pin XLR
Compliance: ANSI E1.11 - USITT DMX512-A | | Power | VAC: 100 to 240 VAC, 50/60 Hz
Fuse: F 3 AL, 250 V
Typical Power Consumption: 35 WConnetors: IEC Input/Output
Max Number of Fixtures 100 to 130 VAC: 6
Max Number of Fixtures 220 to 240 VAC: 10 | | Thermal | Cooling: Passive | | Approvals | EU Safety: EN 60598-1, EN 60598-2-17, EN 60825-1, EN 62031, EN 6247-1, EN 6247-2-13, EN 62493, IEC TR 62471-2
EU EMC: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547
CE | | Environmental | 32 to 104°F / 0 to 40°C | | Dimensions | 9.8 x 9.02 x 9.8" / 24.9 x 22.9 x 24.9 cm | | Weight | 8.9 lb / 4.0 kg | | | | Package Weight | 10.89 lb | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 10.0" |
