Martin Professional Lighting THRILL Vertical Fog

Search your instruction manual in PDF to download

User Manual for Martin Professional Lighting THRILL Vertical Fog And Light Effects Generator US

Click to enlarge the picture
Martin Professional Lighting THRILL Vertical Fog And Light Effects Generator US Contents of the user manual for the Martin Professional Lighting THRILL Vertical Fog
  • Product category: Fog & Haze Machines Martin Professional Lighting
  • Brand: Martin Professional Lighting
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Martin Professional Lighting Fog & Haze Machines

Martin Professional Lighting THRILL Vertical Fog And Light Effects Generator US Martin Professional Lighting THRILL Vertical Fog And Light Effects Generator US Martin Professional Lighting THRILL Vertical Fog And Light Effects Generator US Martin Professional Lighting THRILL Vertical Fog And Light Effects Generator US Martin Professional Lighting THRILL Vertical Fog And Light Effects Generator US
User manual for the Martin Professional Lighting THRILL Vertical Fog contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Martin Professional Lighting product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Martin Professional Lighting user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Martin Professional Lighting product will considerably shorten its lifespan!



Product description

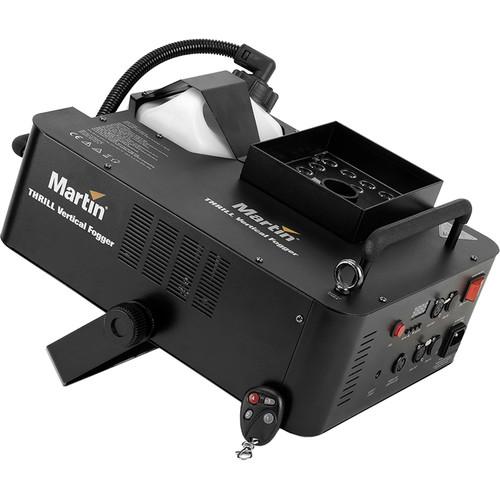

The Martin Professional Lighting THRILL Vertical Fog And Light Effects Generator US is a versatile instrument that can output both fog and visually dynamic light shows. The fog maker requires only 8 minutes of warmup time, and can be suspended from at a variety angles. It can produce fog at a rate of 17,000 cubic feet of fog per minute, with a maximum plume height of 25'. It has a 2.6-quart capacity, and works with a variety of fog fluids (fog fluid not included).

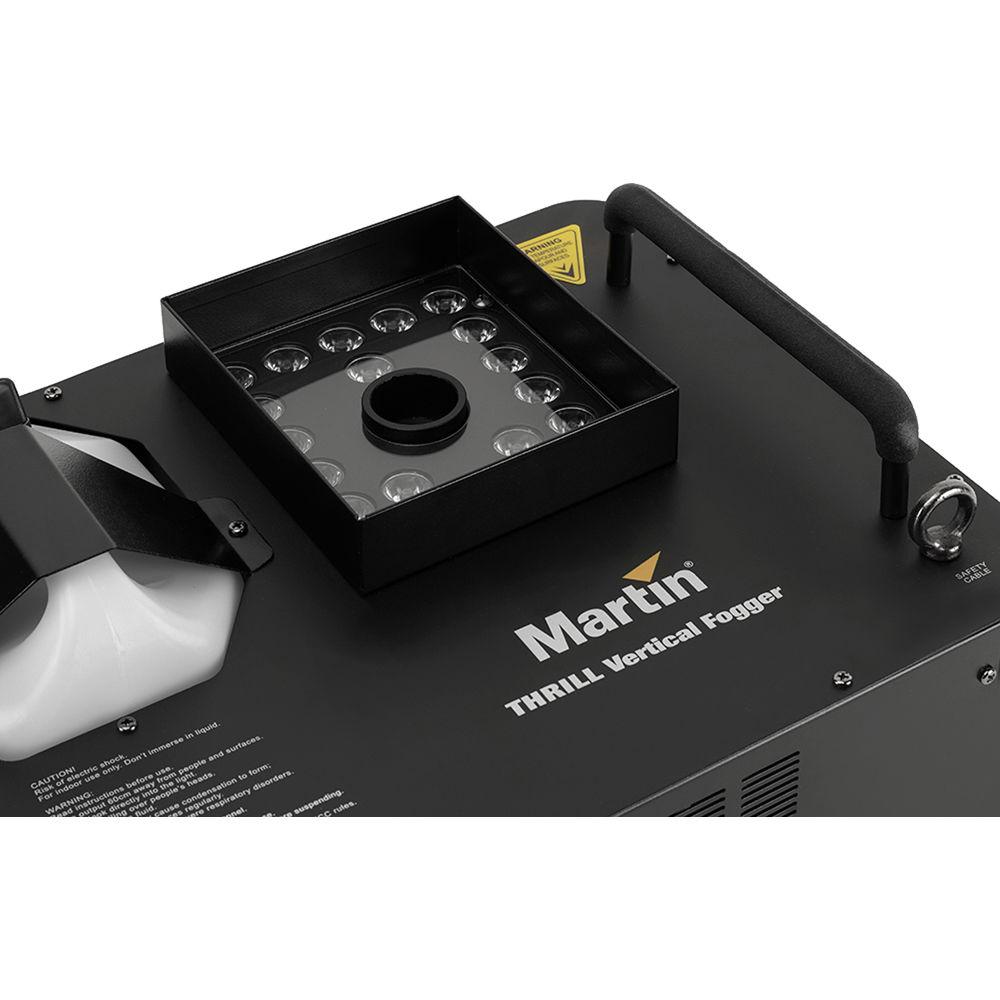

In addition to its fog machine capabilities, this unit also has 21 LEDs that can create a variety of light effects. It comes with 36 preprogrammed color combinations and can be controlled via DMX or by an included wireless remote. For ease of use and set up both a US power cable and adjustable mounting bracket are included.
    Dynamic Effects
  • Color Mixing: RGB
    Color Selection: 36 color presets
    Electronic Dimming: 0 - 100%
    Strobe and Pulse Effects: Variable speed and action, random strobe
    Electronic Shutter Effect: Instant open and blackout
    Fog: On/Off
UPC: 668705002882 In the Box Martin Professional Lighting THRILL Vertical Fog And Light Effects Generator US
  • Wireless Remote Control
  • US Power Cord
  • Hanging Bracket and Hardware
  • M8 Safety Eyebolt
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Martin Professional Lighting THRILL Vertical Fog And Light Effects Generator US in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Martin Professional Lighting THRILL Vertical ... Specs

    Fog Output Coverage: 17,000 ft³ / 480 m³ per minute
    Maximum Fluid Consumption: 2.03 oz / 60 mL per minute
    Maximum Operating Time at Full Output: 30 sec
    Max Fog Plume: 25' / 7.62 m
    Built-in Reservoir Fog Fluid: 2.64 qt / 2.5 L
    Optics Light Source
    7 x 3 W red LEDs
    7 x 3 W green LEDs
    7 x 3 W blue LEDs
    Minimum LED Lifetime: 30,000 hours (@ >70% luminous output)
    Construction Housing: Steel
    Color: Black
    Heat Exchanger: 1400 W, thermally protected
    Fluid Pump: Oscillating piston, high pressure

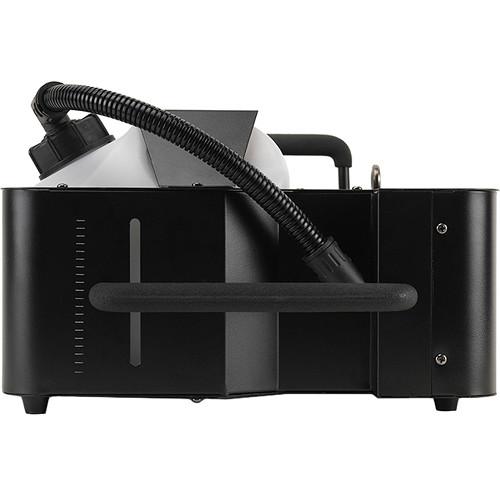

    Fluid Management: Fluid out sensing, sight glass

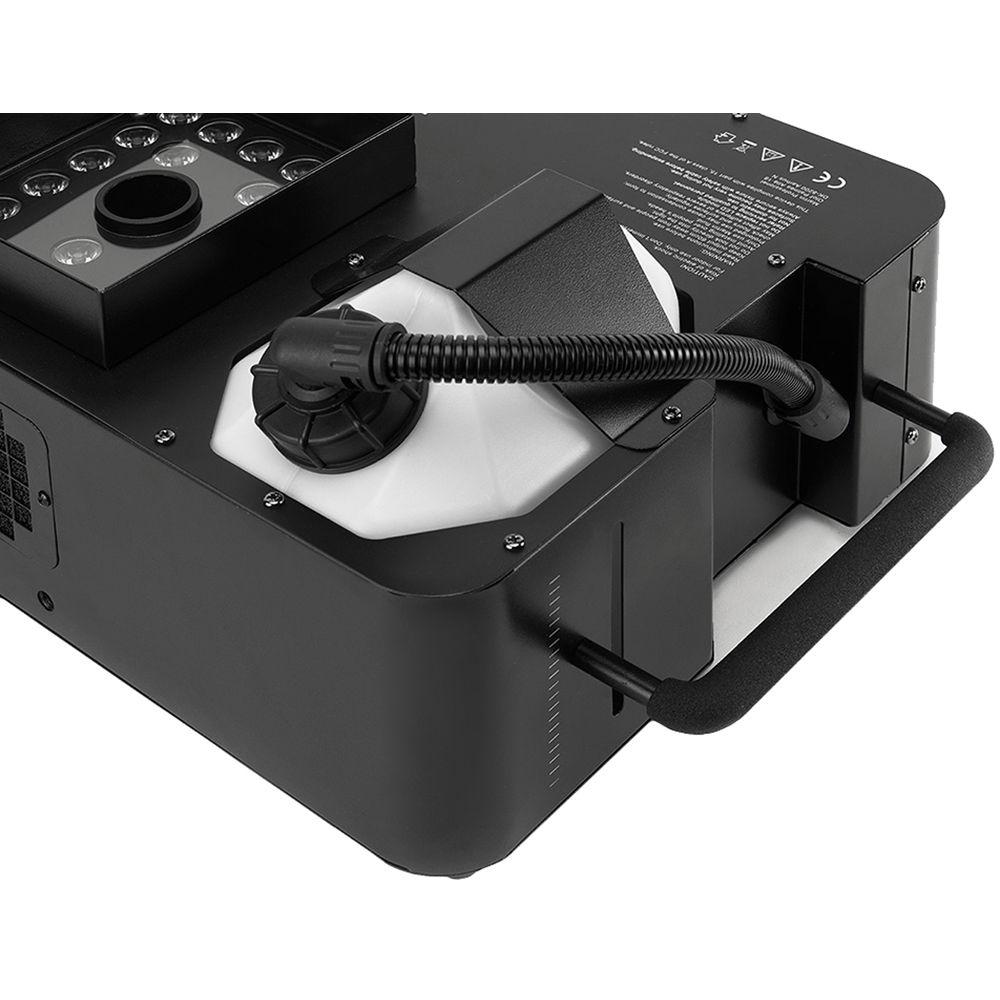

    Fluid Reservoir: 2.5 liters, removable
    Hanging Bracket: Integrated adjustable yoke
    Safety Attachment Points: 2-threaded inserts, front/side (M8 eyebolt included)

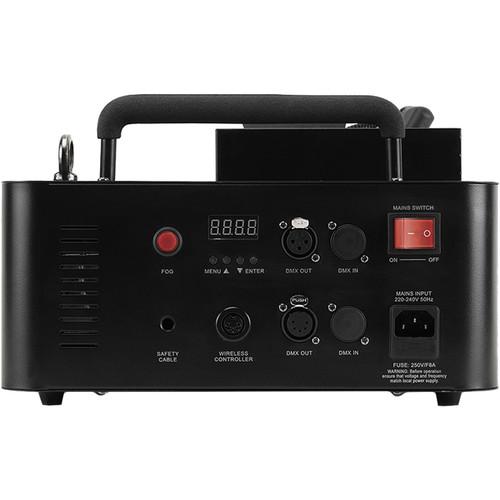

    DMX Connectors Input
    3-pin XLR
    5-pin XLR

    Output
    3-pin XLR
    5-pin XLR
    DMX Channels 7
    Wireless Channels: 4
    Range: 100' / 30 m
    Connector: DIN 41524, 5-pin
    Power Connection Type IEC male, C14
    Power Consumption AC: 100 to 240 V, 50/60 Hz
    Main Fuse: F 15 AL, 250 V
    Typical Power and Current at 100 V: 980 W, 9.8 A
    Typical Power and Current at 120 V: 1400 W, 11.6 A
    Installation Mounting: Hanging or standing
    Orientation: ±45°
    Mounting Points: Bracket for single/double rigging clamp, M12 or ½"
    Clearance: 24" / 60.96 cm
    Environment Operating Temperature: 41 to 104°F / 5 to 40°C
    Exterior Surface Temperature: 122°F / 50°C (steady state)
    Max Nozzle Temperature: 573°F / 300°C
    IP Rating: 20
    Certifications US EMC: CFR Title 47, Part 15, Class B
    CE
    Dimensions (L x W x H) 17.9 x 12.5 x 7.8" / 45.47 x 31.75 x 19.81 cm
    Weight Empty: 20.9 lb / 9.48 kg
    Filled: 26.5 lb / 12.02 kg
    Package Weight 26.5 lb
    Box Dimensions (LxWxH) 21.0 x 15.5 x 11.0"
