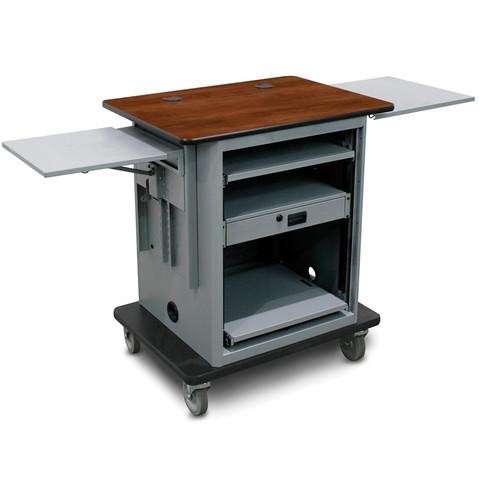

Product description The Silver model Instructor Series Presentation Cart from Marvel functions as a teacher's station, supporting both A/V and desk functions with a small footprint. The "Instructor" is designed to support today's classroom needs and safety requirements. The cart is constructed of 18 and 22 gauge welded steel, and is equipped with a no-tip safety base which prevents tipping over when rolled over thresholds. Two fold-down shelves, one fixed and one adjustable, extend from either side the desktop. Inside the storage area are a CPU shelf, locking drawer, and a keyboard shelf; this model does not have a door for the storage area. Cable management grommets and casters further enhance its ease of use and convenience. This model features a cherry laminate desktop and silver finish. The cart also includes a UL listed 8-outlet electrical unit with surge protection and 20' power cord. - Top Work Surface
-
- 3⁄4" Thick, high-pressure laminate work surface with full backing sheet bonded to bottom
- Round-edge T-molding
- Two 2" diameter wire-handling grommet holes; able to accept monitor posts
- Threaded metal inserts for secure assembly to base
- Cabinet
-
- Welded steel construction
- Made of 18 and 22 Gauge steel throughout
- Wire handling grommet holes with safety rubber gaskets on each side panel
- No Tip Safety Base
-
- 13⁄16" Thick high-pressure laminate with full backing sheet on the bottom
- Black with black round edge T-molding
- Two 2" wire handling grommet holes with rubber gaskets
- Four 5" non-marring ball bearing swivel casters, 2 of them lockable
- Pull-Out Keyboard Shelf
-
- 18 1⁄8 x 11 3⁄4" area, with 3" height clearance
- Easy lock/unlock locking tabs
- Ball bearing slides
- Made of 18 gauge steel
- Pull Out Drawer with Dust Cover
-
- Full locking drawer with two keys that also fit the lock on the back panel door
- Safety no-grab recessed drawer pull
- Rack mount adjustable installation
- Interior dimensions: 16 x 12 1⁄2 x 2 1⁄2"
- Ball bearing slides
- Made of 18 gauge steel
- Right Side Slow-Close Fixed-Height Shelf
-
- Fixed height safety shelf with a working height of 34 1⁄2" from floor
- No-pinch, slow-close safety mechanism with piano hinge
- Safety no-pinch clearance design
- Made of 18 gauge steel with three hat channel strength reinforcements
- 40 lb maximum recommended load capacity
- Left Side Feather Touch Adjustable-Height Shelf
-
- Adjustable height safety shelf; from 24 1⁄2 to 34 1⁄2" in 1" increments
- Patent pending "Marvel Feather Touch" height adjusting mechanism
- No-pinch Slow-Close shelf safety mechanism with piano hinge
- Safety No Pinch Clearance Design
- Made of 18 Gauge Steel with hat channel strength reinforcement
- 40 lb maximum recommended load capacity
- CPU Shelf
-
- 15 1⁄4 x 17" Pull Out CPU Shelf made of 18 gauge steel
- Ball bearing slides
- Hook and loop safety security strap
- Electrical
- 8 Outlet, 20' cord
14 Gauge AWG On/Off switch 90° interior rack mount bracket UL-Listed electrical assembly - Rack Rails
- Four pre-tapped 6U rack rails
17" Long rails mounted 4 1⁄2" from top door cavity to 2 3⁄4" from bottom door cavity UPC: 762805304201 In the Box Marvel Instructor Series Presentation Cart Silver Version (Cherry, Silver) 8-Outlet Electrical Unit with Surge Protection and 20' Power Cord Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Marvel Instructor Series Presentation Cart Silver Version in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarvel MVIS3022CHST Specs Dimensions | Overall: 30 x 22 x 36" (76 x 56 x 91 cm) No Tip Safety Base 30 x 22" (76 x 56 cm) Top Surface 30 x 22" (76 x 56 cm) CPU Shelf 15 x 17" (38 x 43 cm) Keyboard shelf: 18 x 12" (46 x 30 cm) with 3" (8 cm) Height Clearance Drawer: 16.0 x 12.5 x 2.5" (40.6 x 31.7 x 6.3 cm) Interior Dimensions: 16" x 13" x 29" (41 x 33 x 74 cm) Right Side Shelf: 16 x 17" (41 x 44 cm), at 35" (88 cm) from floor Left Side Shelf: 14.0" x 1.45" (35.5 x 36.8 cm), adjustable from 24.5 to 34.5" (62.2 x 87.6 cm) floor height in 1.0" (2.5 cm) increments | Rack Rails | 4x Pre-tapped 6U rack rails | Electrical Components | 20', 8-outlet 14 Gauge AWG cord with On/Off switch UL Listed Electrical assembly 90° Interior Rack Mount Bracket | Certifications | Greenguard Gold Certified | Construction Material | 18 and 22 GA welded steel |
