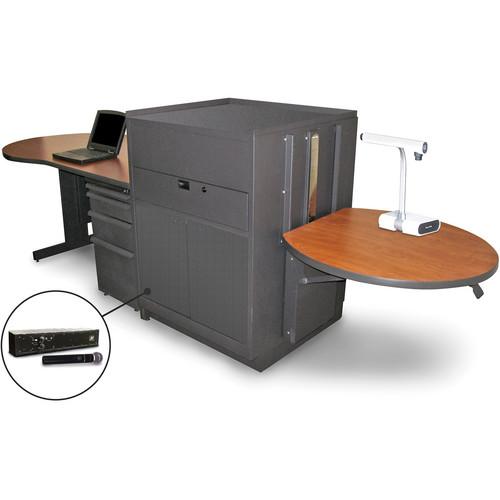

Product description The Marvel Vizion Stationary Teacher's Desk with Adjustable Platform, Steel Doors, and Handheld Microphone features steel construction and high-pressure, cherry laminate surfaces. This media center features a one-handed, height-adjustable work station on one side, plus a 60" desk area on the other. The desk area is 30" in depth and broadens to 36" where it extends into a semi-circle.
Storage area is plentiful with room for a CPU, and a rack- or component-capable storage cabinet with lockable steel doors. Additionally, there is a pull-out pencil drawer, two box drawers and a large file drawer, which are all lockable. The desk also features the capability to accommodate optional 4" speakers or 2" box speakers.
The media center comes with a 50W amplifier for use with the included microphone. The microphone works on 584-608 MHz, and requires two AA batteries (included). This system will enable you to project to a larger audience during your presentation. The media center also features six 2" speakers, and will accept additional (optional) 4" speakers. UPC: 762805006440 In the Box Marvel Vizion Stationary Teacher's Desk with Adjustable Platform, Steel Doors, and Handheld Microphone (Cherry Laminate) AmpliVox Wireless 16-Channel UHF Handheld Microphone 50W Amplifier 2 x AA Batteries 6 x 2" Speakers 2 x Keys Limited Lifetime Warranty on Media Center Limited 1-Year Warranty on AmpliVox Sound System Table of Contents
|
Upload User Manual
Have you got an user manual for the Marvel Vizion Stationary Teacher's Desk with Adjustable Platform, Steel Doors, and Handheld Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMarvel MVMDM7230CHDT-H Specs | Construction | Unit: steel
Platform Surfaces: high-pressure laminate
Doors: steel | | Finish | Dark neutral powder coat
Cherry laminate | | Adjustments | Height of Side Platform: 26 to 42" (66 to 107 cm) | | Cabinet | Yes; lockable steel doors
CPU, rack or component area | | Drawers | Lockable equipment or media storage drawer
Lockable pull-out pencil drawer
Two lockable box drawers
One lockable large file drawer | | Shelf | Side work platform
Lockable pull-out projector shelf | | Casters | None | | Speakers | Six 2" (5.08 cm) speakers
Frequency Response: 400-12,000 Hz
Power Handling: 30 Watts
Impedance: 4 Ω
Rear Speaker In: RCA
Enclosure: sealed type/rotational molded
Mounting Bracket: 2U rackmount flanges
Metal grille | | Amplifier | 16-channel wireless receiver
Frequency: 584-608 MHz
Range: 300' (91 m)
50 W
Enclosure: sealed type/rotational molded
Mounting Bracket: 2U rackmount flanges
Front:
On/off switch
Line-in volume control
Microphone volume
Two 3.5 mm line-in jacks
Rear:
Speaker out (RCA)
One 3.5 mm line-in jack
12 DC power jack
XLR/1/4" TRS (Tip Ring Sleeve) combo jack
Dimensions: 17 x 3.4 x 5" (43 x 9 x 13 cm) | | Microphone | 16-channel wireless UHF handheld microphone
Frequency: 584-608 MHz | | Platform Dimensions | Overall: 30.0 x 29.75" (76.2 x 75.6 cm)
Height Adjustable: 26 to 42" (66 to 107 cm) | | Dimensions | Overall: 133 x 36 x 47" (338 x 91 x 119 cm)
Desk Length: 60" (152.4 cm)
Desk Depth: 30-36" (76.2-91.44 cm) |
