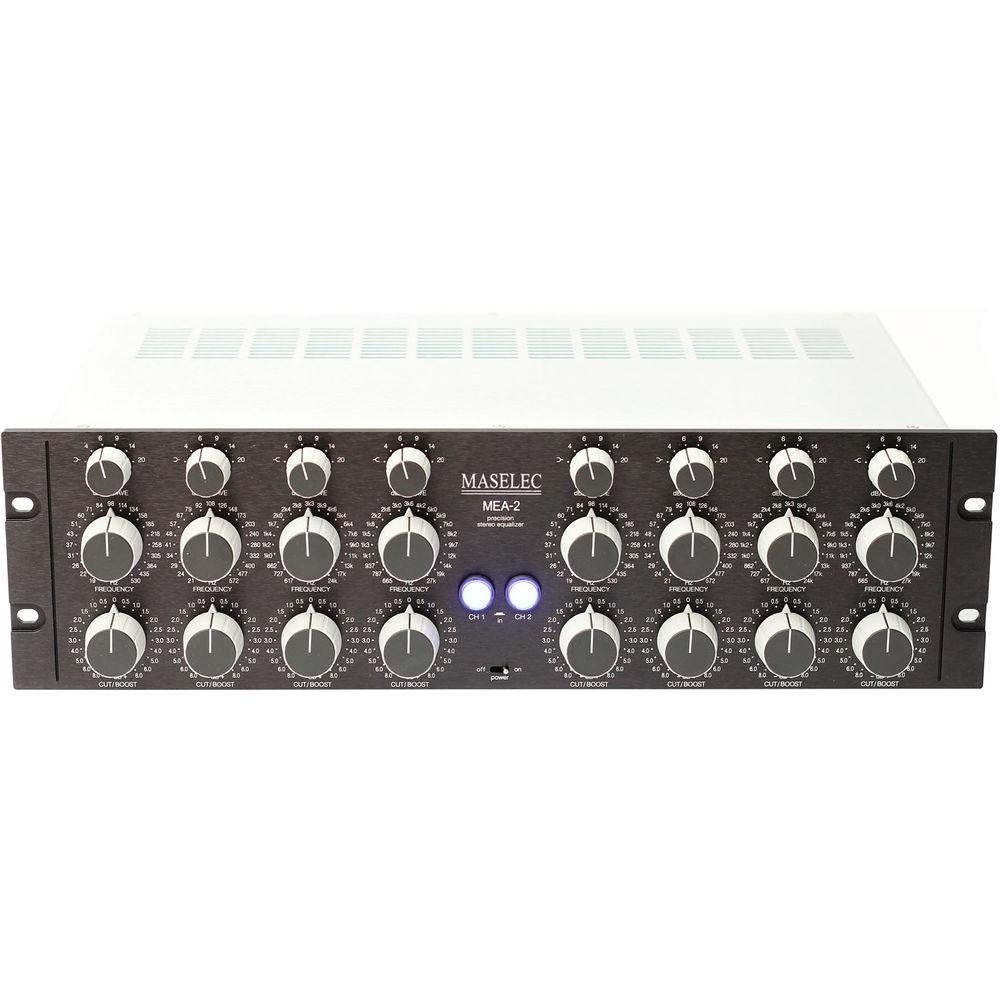

User Manual for MASELEC MEA-2 Stereo 4-Band Parametric Equalizer Click to enlarge the picture
Contents of the user manual for the MASELEC MEA-2 Stereo 4-Band Parametric Equalizer
- Product category: Equalizers MASELEC
- Brand: MASELEC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MASELEC Equalizers
 |
User manual for the MASELEC MEA-2 Stereo 4-Band Parametric Equalizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MASELEC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MASELEC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MASELEC product will considerably shorten its lifespan!
|
Product description The MASELEC MEA-2 is an analog stereo 4-band parametric equalizer optimized to provide flexible and precise tonal enhancement for recording, mixing, and mastering engineers in home and commercial studios. Each channel features four independent bands, which can be set between shelving or 5 different peaking bandwidth responses. With each band offering 21 selectable frequencies and up to 8 dB of boost or cut, the MEA-2 is ideal for anything from broad tone shaping to subtle, surgical tweaks.Per-channel bypass buttons enable quick comparative listening, and all controls are stepped for reliable repeatability and easy recall. Inputs and outputs are accessible via XLR 3-pin jacks, which accommodate connectivity with balanced or unbalanced equipment. The unit offers extended headroom with a maximum input amplitude of +28 dBu. The MEA-2 is rack-mountable and occupies 3 RU of rack space. - Choose between shelving or one of five peaking bandwidths for each of the four bands on each channel
- Peaking curves utilize an asymmetric shape
- Each band offers up to 8 dB of boost or cut in preset increments—0 dB, ±0.5 dB, ±1 dB, ±1.5 dB, ±2 dB, ±2.5 dB, ±3 dB, ±4 dB, ±5 dB, ±6 dB, ±7 dB, ±8 dB
- Overlapping frequency bands on each channel provide 21 selectable frequencies per band
- XLR 3-pin input and output jacks can accommodate connections to balanced or unbalanced equipment
- All controls are stepped for precision and easy recall
In the Box MASELEC MEA-2 Stereo 4-Band Parametric Equalizer IEC320 Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MASELEC MEA-2 Stereo 4-Band Parametric Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMASELEC MEA-2 Specs | Filter Type | Shelving or peaking (selectable per-band) | | Number of Channels | 2 | | Inputs | 2 x XLR 3-pin female (balanced) | | Outputs | 2 x XLR 3-pin male (balanced) | | Input Impedance | Differential: 27 kOhms
Single-Ended: 27 kOhms
Coupling Impedance to Chassis: 1 MOhm | | Output Impedance | Differential: 62 Ohms
Single-Ended: 31 Ohms | | Maximum Input Level | +28 dBu | | Frequency Bands | 4 per channel | | Bandwidth | Shelf, 4, 6, 9, 14, 20 | | Range (Boost/Cut) | -8 to +8 dB | | Maximum Output Level | +28 dBu | | Frequency Response | <1 hz to>50 kHz (+0.1 dB, -0.4 dB) | | Dynamic Range | EQ Out: >125 dB
EQ In: >117 dB | | Crosstalk | < -100 dB from 20 Hz to 20 kHz (undriven input terminated at 150 Ohms) | | Total Harmonic Distortion (THD) + N | EQ In: < -105 dB (<0.0006%), 997 Hz | | Noise | EQ Out: < -97 dBu
EQ In: < -89 dBu | | Common Mode | Range: 20 Vrms | | Power Requirement | 90 to 130 VAC or 180 to 260 VAC, 50 to 60 Hz | | Power Consumption | 15 W maximum | | Fuse | 0.8 x 0.2" / 20 x 5 mm, 250 V, 315 mAT (anti-surge, slow) | | Dimensions (W x H x D) | 19.0 x 5.2 x 10.2" / 483 x 132 x 260 mm | | Weight | 17 lb / 7.7 kg |
