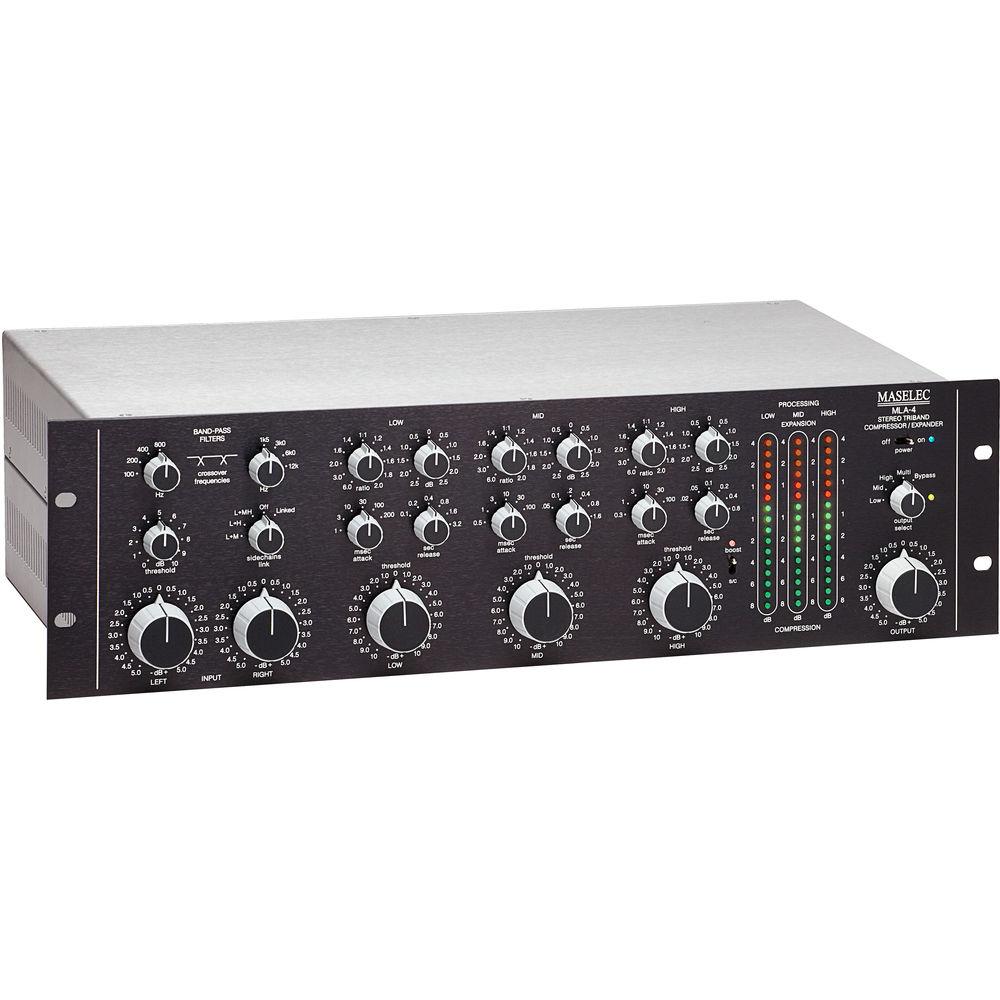

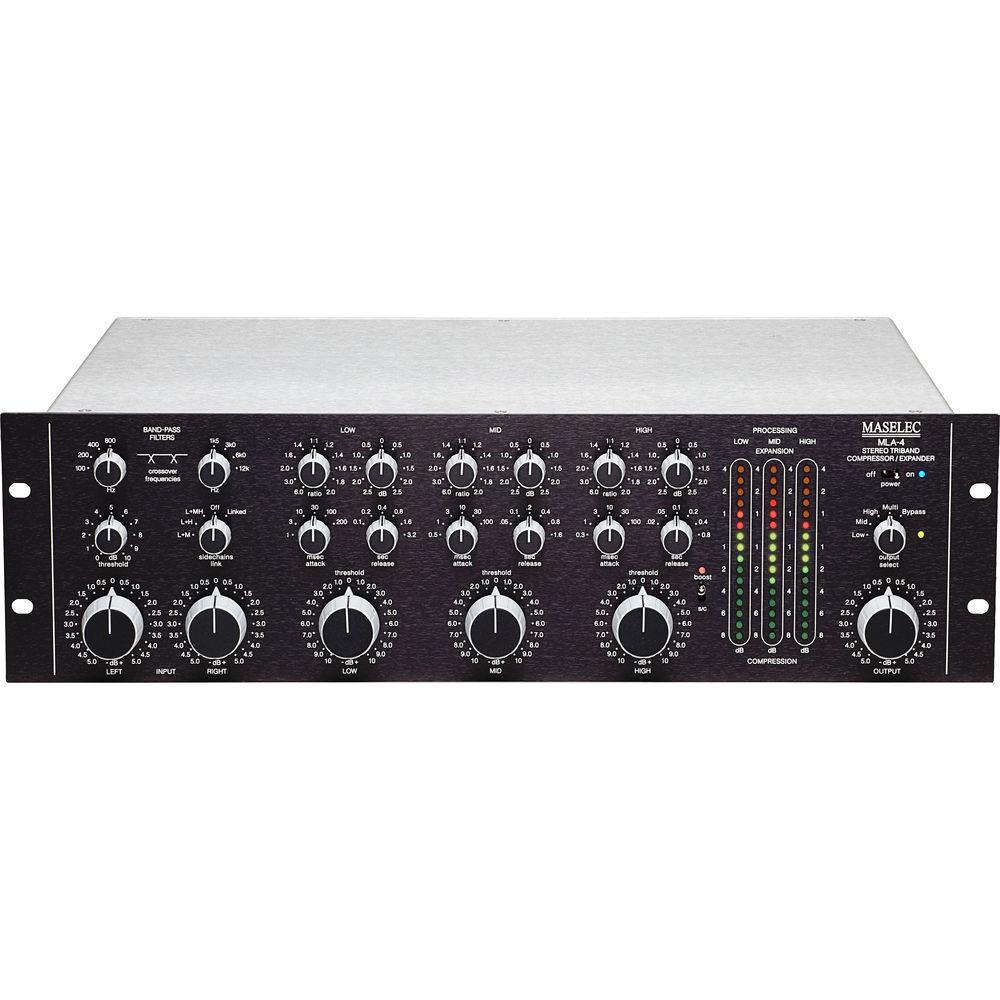

Product description The MASELEC MLA-4 is a rack-mountable 3 RU stereo multiband compressor/expander designed to deliver precise and versatile dynamics processing for recording, mixing, and mastering engineers in home, project, and commercial studios. Two adjustable crossover filters split the input signal into three bands, which can be independently compressed or expanded with per-band controls for threshold, ratio, attack, release, and make-up gain.The sidechains can remain separate or be linked with one of four linking options. Additionally, a selectable sidechain boost offers increased compression or expansion for high frequencies. Any single band or all bands may be sent to the outputs for flexible monitoring, while 16-segment LED meters always display gain change for the three bands. As with the per-band controls, the master input, output, and threshold knobs are stepped for easy recall. XLR 3-pin inputs and outputs ensure standardized connectivity with balanced line-level devices. - Input signal is split into three frequency bands via adjustable crossover filters
- Each band is passed through a stereo compressor/expander for customizable processing
- Outputs of the three compressors/expanders are re-combined and fed to the overall output
- Four selectable frequencies for each of the two crossovers
- Per-band controls for threshold, ratio, attack, release, and make-up gain
- Separate left and right input controls offer 0.5 dB increments
- Master threshold and output level controls
- Selectable output source allows any one of the bands or all the bands to feed the XLR outputs
- Sidechains can be unlinked or set to one of four different linking options—low-band to mid-band, low-band to high-band, low-band to mid-and-high bands, or all-bands linked
- Selectable sidechain boost makes higher frequencies compress or expand more
- All controls are stepped for easy recall
- Three 16-segment LED meters show gain change for each of the bands
- Master bypass allows easy comparative listening
- Rack-mountable enclosure occupies 3 RU of rack space
In the Box MASELEC MLA-4 Stereo Multiband Compressor/Expander Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MASELEC MLA-4 Stereo Multiband Compressor Expander in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMASELEC MLA-4 Specs | Function | Multiband compressor/expander | | Number of Channels | 2 | | Inputs | 2 x XLR 3-pin female (balanced) | | Outputs | 2 x XLR 3-pin male (balanced) | | Input Impedance | 100 kOhms | | Output Impedance | 33 Ohms | | Maximum Input Level | +29 dBu (0 dBu = 0.775 V) | | Maximum Output Level | +28 dBu | | Compression Threshold | -10 to +20 dBu | | Compression Ratio | No Processing: 1:1
Compression: 1.4:1, 1.6:1. 2:1, 3:1, 6:1
Expansion: 1:1.2, 1:1.4, 1:1.6, 1:1.8, 1:2 | | Attack Time | Low Band: 1 ms, 3 ms, 10 ms, 30 ms, 100 ms, 200 ms
Mid Band: 0.5 ms, 1 ms, 3 ms, 10 ms, 30 ms, 100 ms
High Band: 0.3 ms, 1 ms, 3 ms, 10 ms, 30 ms, 100 ms | | Release Time | Low Band: 100 ms, 200 ms, 400 ms, 800 ms, 1.6 sec, 3.2 sec
Mid Band: 50 ms, 100 ms, 200 ms, 400 ms, 800 ms, 1.6 sec
High Band: 20 ms, 50 ms, 100 ms, 200 ms, 400 ms, 800 ms | | Make-up Gain | Master: -5 to +5 dB (adjustable in 0.5 dB steps)
Per Band: -2.5 to +2.5 dB (adjustable in 0.5 dB steps) | | Filters | Slope: 6 dB/octave
Crossover 1: 100 Hz, 200 Hz, 400 Hz, 800 Hz
Crossover 2: 1.5 kHz, 3 kHz, 6 kHz, 12 kHz | | Frequency Response | 20 Hz to 20 kHz (±0.05 dB) | | Bandwidth | >1 Hz to 500 kHz | | Total Harmonic Distortion (THD) | < -90 dB (typical, 1:1 ratio) | | Noise | -90 dBu (typical) | | Dimensions (W x H x D) | 19.0 x 5.2 x 10.2" / 483 x 132 x 260 mm | | Weight | 17 lb / 7.7 kg |
