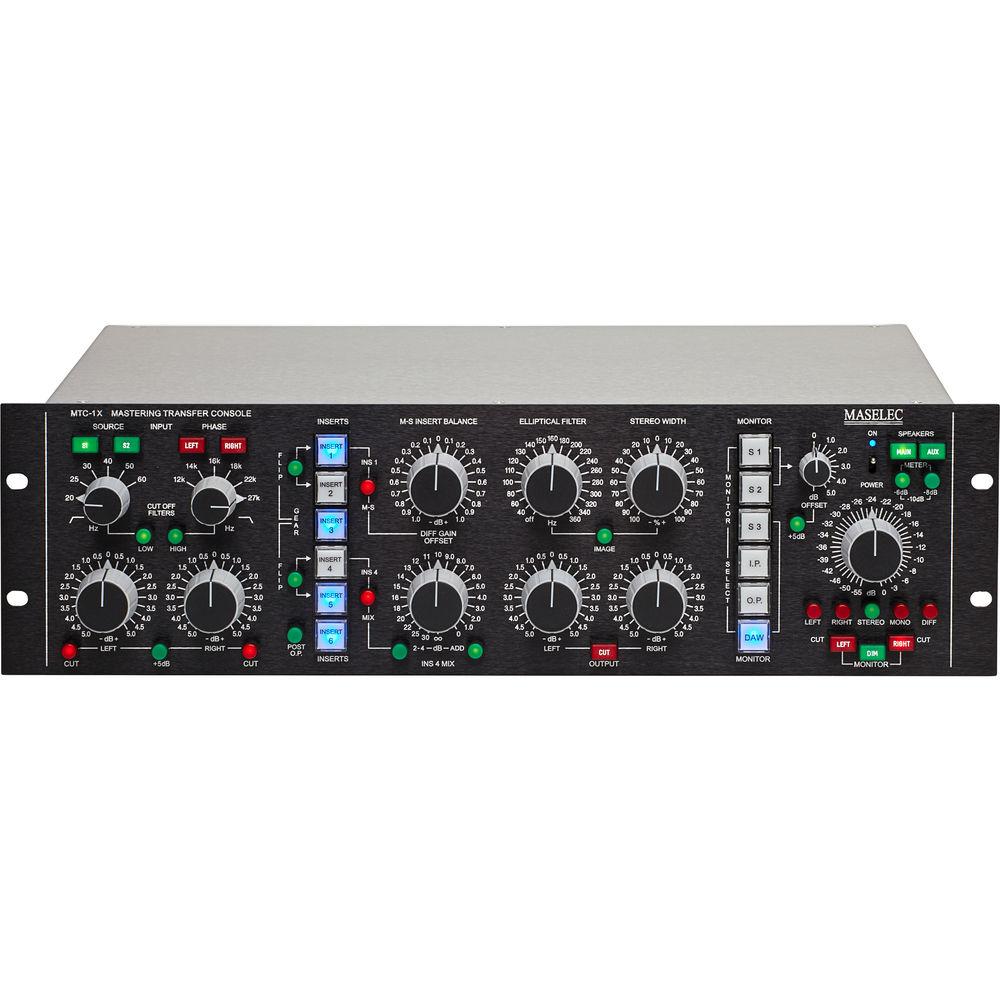

Product description The MASELEC MTC-1X is a rack-mountable 3 RU analog stereo mastering transfer console designed to deliver flexible routing and uncompromising signal quality for mastering engineers in personal and commercial studios. It features four switchable analog inputs, six switchable stereo inserts, and two sets of stereo speaker outputs, all on gold-plated XLR 3-pin connectors.With a bevy of adjustable options including low- and high-cut input filters, a mid-side circuit, and additive routing (for parallel processing), the MTC-1X offers powerful signal manipulation. The adjustable elliptical filter and stereo width controls provide impactful changes to the image of your mix. Connect two sets of speakers and use the monitor offset gain to avoid level changes when switching between them. All controls on the MTC-1X are stepped for easy, reliable recall. - Four switchable stereo inputs—inputs 1 and 2 feed the input, inserts, and output sections
- Selectable polarity and adjustable low- and high-cut filters for inputs 1 and 2
- Six insert in/out switches with equipment flipping for inserts 1-2 and 4-5
- Post O.P. switch moves insert 6 after the output section for easy configuration of a brick-wall limiter (available separately)
- Parallel processing is possible via Ins 4 Mix function—either crossfade between the processed and non-processed signals, or add insert 4 or inserts 2-4 to the main signal
- Selectable Mid-Side mode converts the signal in the first insert to Mid-Side (sum and difference) and gain adjustment of the difference signal
- The adjustable elliptical filter cuts out-of-phase signals and converts non-correlated signal components to mono
- Stereo width allows modification of the image from mono to extra-wide stereo without altering the mono signal
- Monitor signal from any of the four input sources or at the input or output section
- Select between two sets of speakers and level match them via the monitor offset gain control
- All controls are stepped for easy recall
- Rack-mountable enclosure occupies 3 RU of rack space
In the Box MASELEC MTC-1X Analog Stereo Mastering Transfer Console Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MASELEC MTC-1X Analog Stereo Mastering Transfer Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

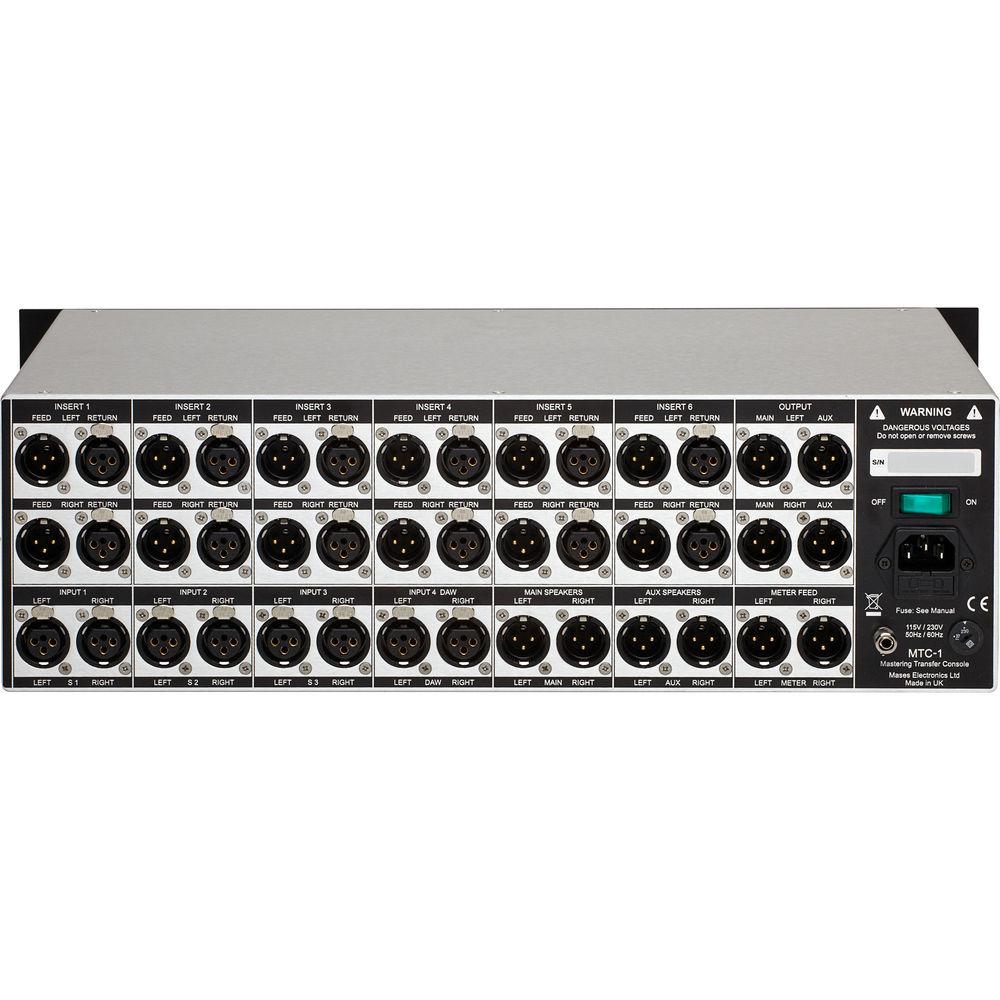

Technical parametersMASELEC MTC-1X Specs | Inputs | 8 x XLR 3-pin female (four stereo pairs) | | Outputs | 10 x XLR 3-pin male (five stereo pairs) | | Inserts | 12 x XLR 3-pin male sends (six stereo pairs)
12 x XLR 3-pin female returns (six stereo pairs) | | Controls and Indicators | Input source selectors
Input polarity switches
Filter on/off switches
Low-cut filter frequency
High-cut filter frequency
Left input gain
Right input gain
+5 dB input boost
Left and right input cut switches
Insert in/out switches
Insert 1 M-S mode switch
M-S insert balance
Insert 1-2 equipment flip
Insert 4-5 equipment flip
Insert 4 mix switch
Insert 4 mix level
Insert 4 additive switch
Insert 2-4 additive mix switch
Insert 6 post-output switch
Elliptical filter frequency
Stereo width percentage
Image section on/off switch
Left output gain
Right output gain
Left and right output cut switch
Monitor source selectors
Monitor offset level
+5 dB monitor offset boost
Monitor level
Meter level offset switches
Main/aux speaker selectors
Left/right/stereo/mono/diff monitor mode switches
Left monitor cut switch
Right monitor cut switch
Dim switch
Power on/off switch | | Filters | Slope: 12 dB/octave
Low-Cut Frequency: 20 Hz, 25 Hz, 30 Hz, 40 Hz, 50 Hz, 60 Hz
High-Cut Frequency: 12 kHz, 14 kHz, 16 kHz, 18 kHz, 22 kHz, 27 kHz | | Maximum Level | +28 dBu | | Power Requirement | 115/230 VAC, 50/60 Hz | | Fuse | 1.25 AT (slow blow) | | Dimensions (W x H x D) | 19.0 x 5.2 x 10.2" / 483 x 132 x 260 mm | | Weight | 22 lb / 10 kg |
