Product description

  • Matrix Light / ML-115R

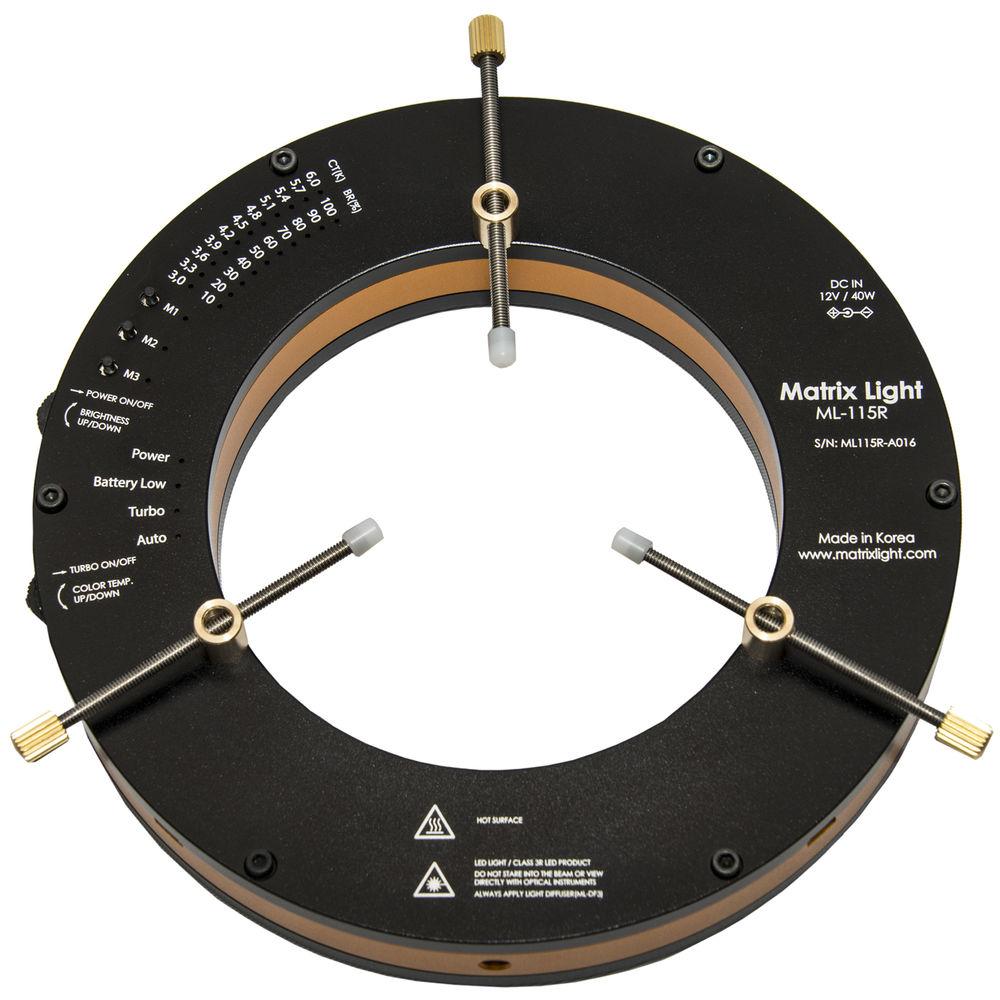

The ML-115R LED Light DSLR Camera Kit from Matrix Light includes an ML-115R LED light module, ML-DF3 diffuser, ML-SL10/AT1 C-type slide / attachment, ML-PC1 power cable, ML-BA12 Li-ion battery, and an ML-CHG1 battery charger. The LED light module is designed to be used for Virtual Reality 360° shooting, high-speed camera shooting, digital microscopes, chroma key lighting, and IR ray lighting. It features brightness and color temperature controllers where brightness can be controlled in 10% increments from 150 lumens to 2200 lumens, and color temperature can be controlled in 11 steps (in 240K increments) from 3200K to 5800K. With brightness and color temperature LED indicators on the back side, it allows the user to check the current brightness and color temperature. The Turbo mode supports up to 2200 lumens of brightness, equivalent to a 220W light bulb.

Using adaptable accessories, the ML-115R light module is suitable for electronic news gathering cameras, digital single-lens reflex cameras, and action cameras. It also has a USB communication port that allows simultaneous control of multiple units, making it useful for virtual reality / 360° shooting. The ML-BA12 Li-ion battery is compatible with ML-80, ML-7, ML-9, and ML-115R LED lights. Weighing 13.3 oz, it features a compact and lightweight design.
  • Designed to fit most macro lens systems
  • Can be used with industrial camera devices

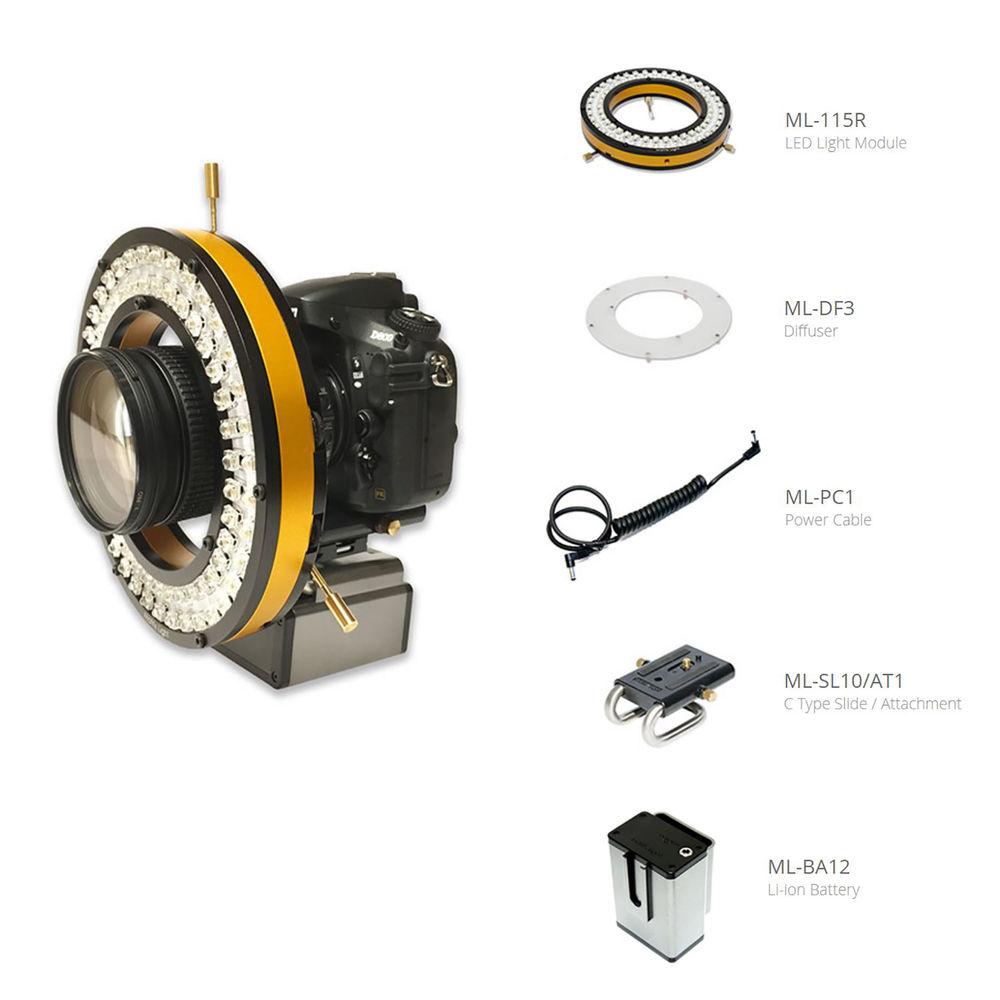

UPC: 704006296756 In the Box Matrix Light ML-115R LED Light DSLR Camera Kit

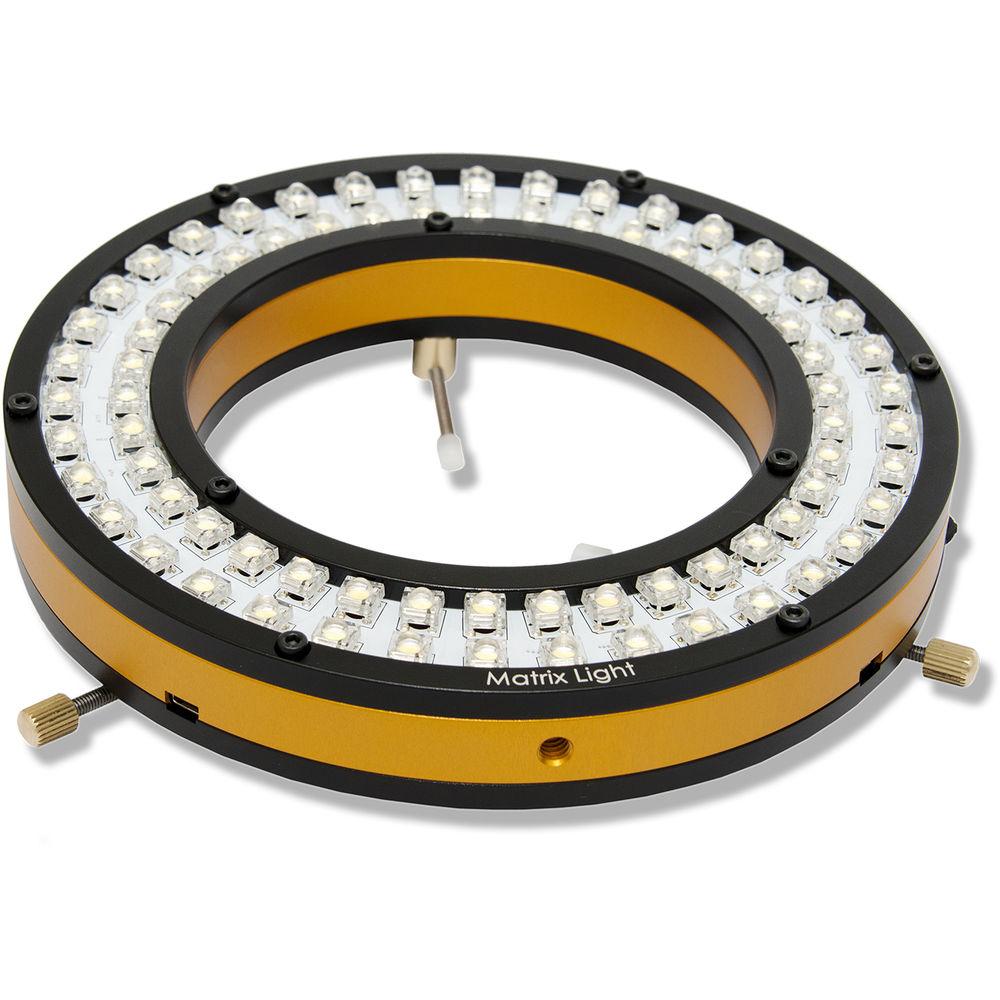

  • ML-115R LED Ring Light Module axqzcwbvwvzxtrceayedzwtwyrevf

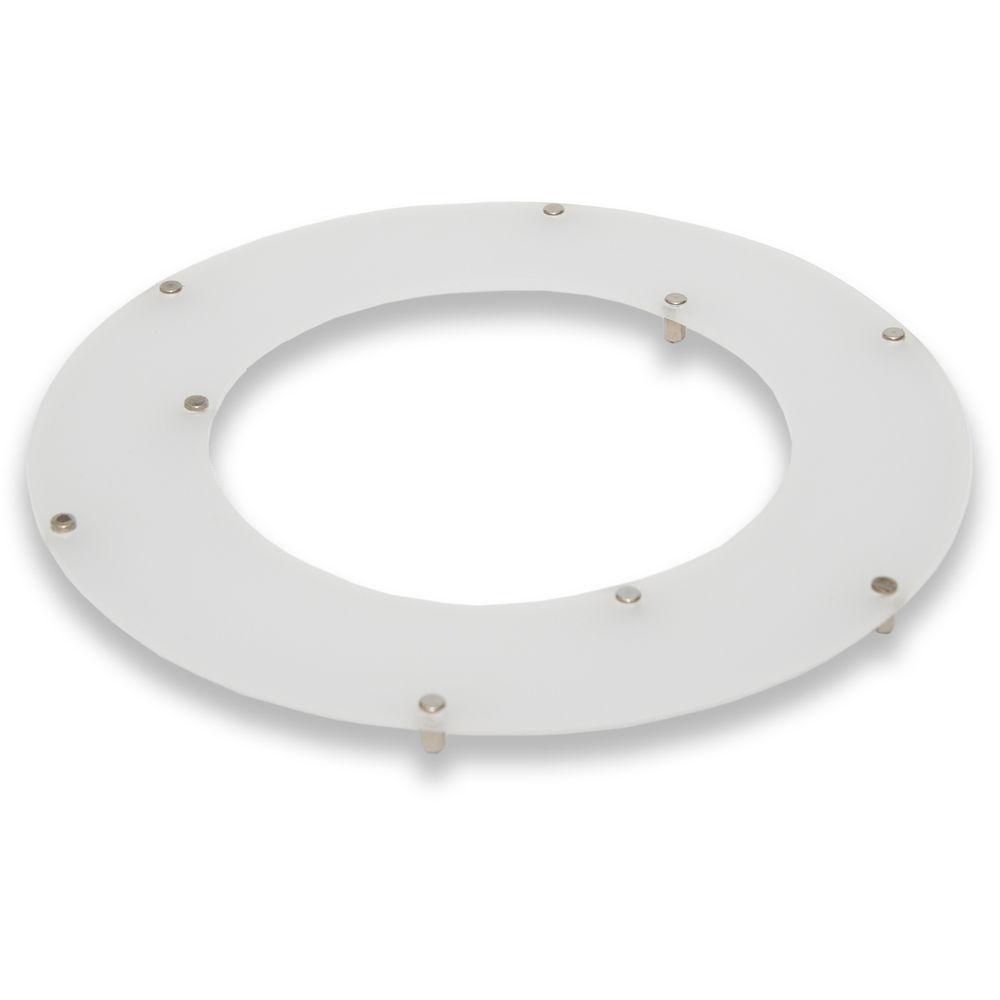

  • ML-DF3 Diffuser

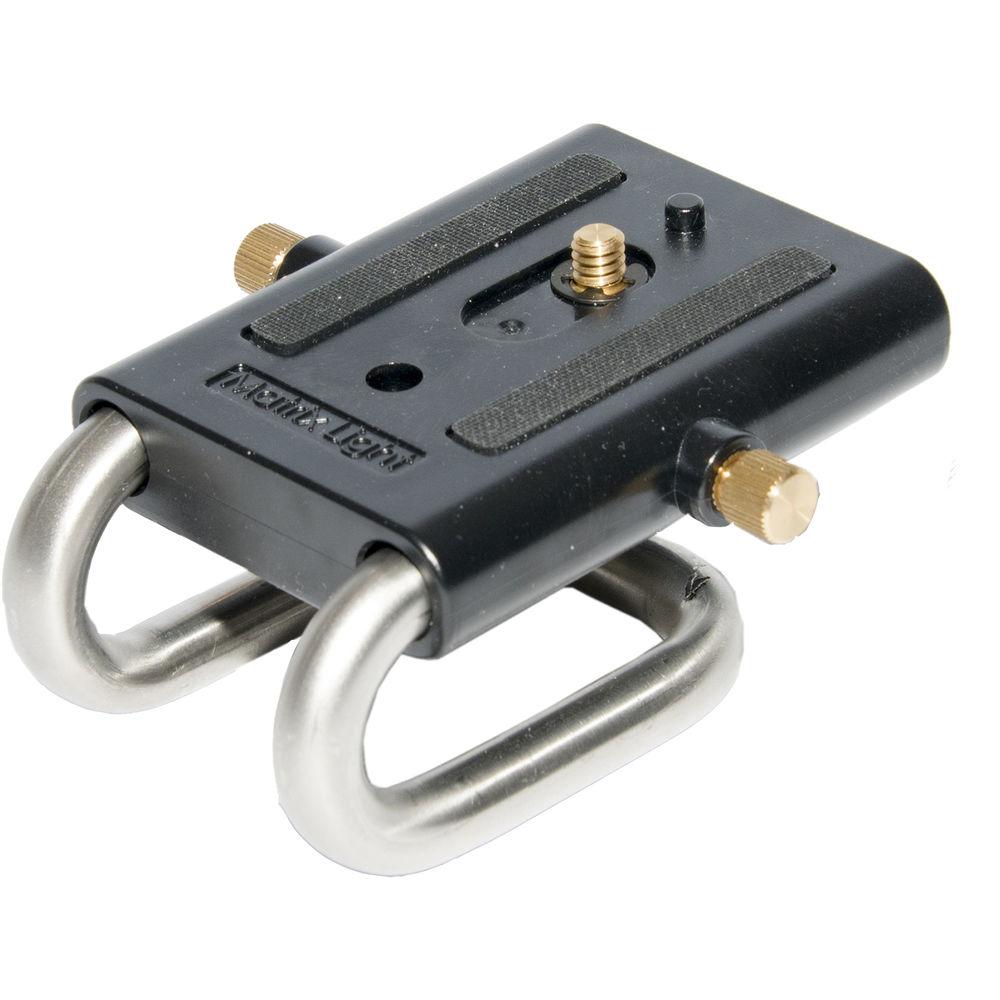

  • ML-SL10/AT1 C-Type Slide / Attachment

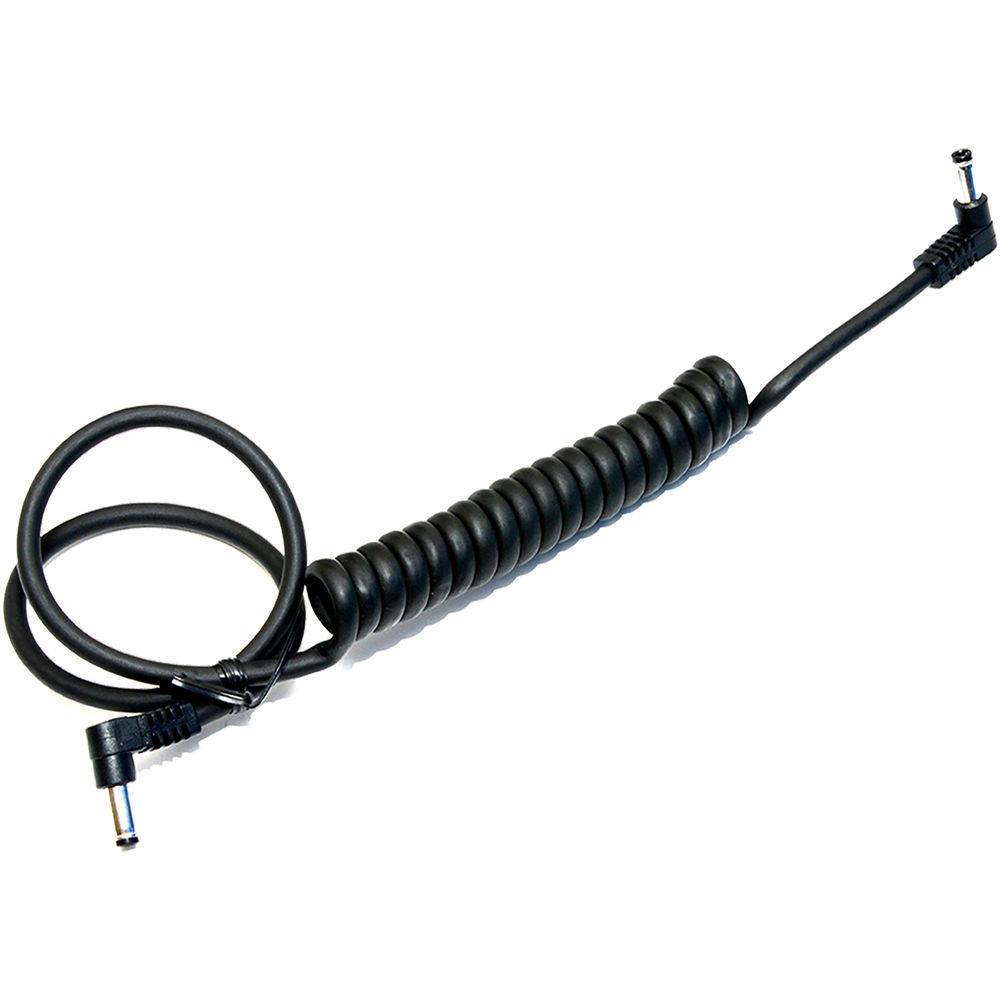

  • ML-PC1 Power Cable

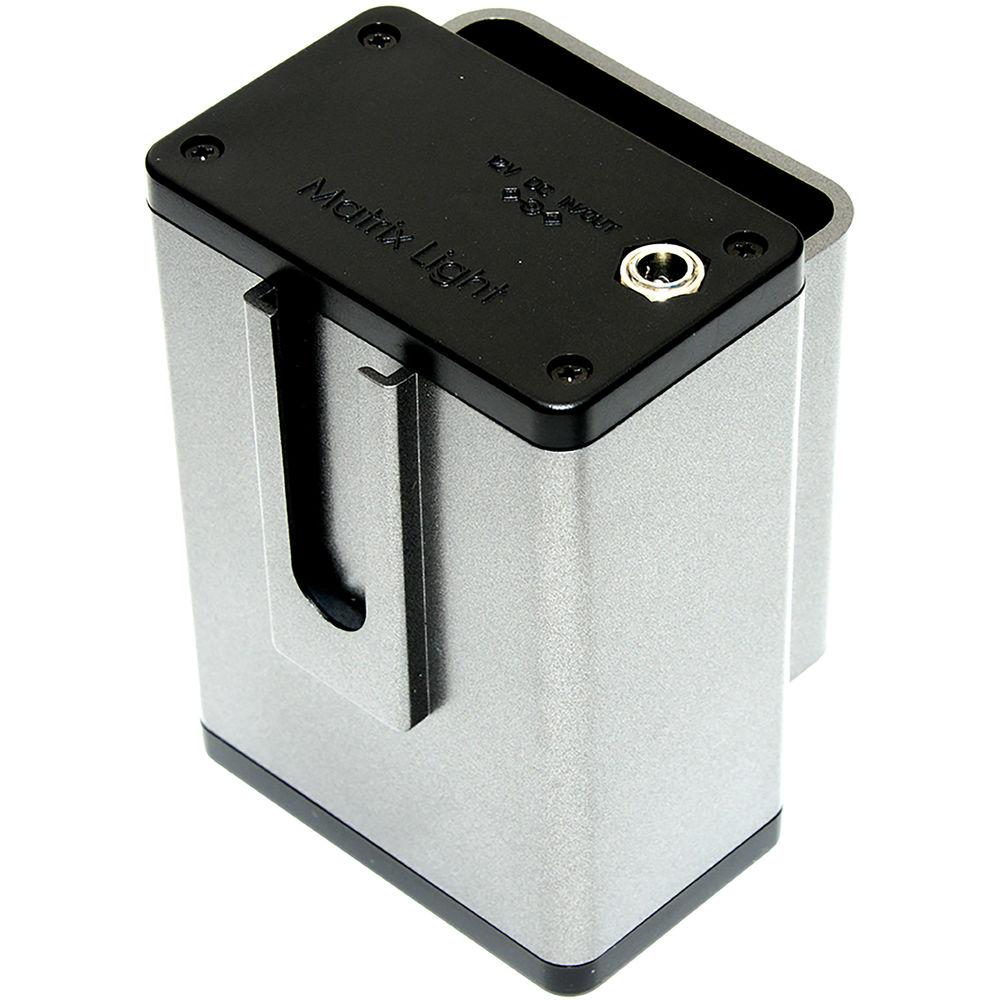

  • ML-BA12 Li-Ion Battery
  • ML-CHG1 Battery Charger
  • Limited 1-Year Warranty
  • User Manual - Ring Light PDF 2.3mbaxqzcwbvwvzxtrceayedzwtwyrevf Table of Contents




    Upload User Manual

    Have you got an user manual for the Matrix Light ML-115R LED Light DSLR Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Matrix Light ML-115R Specs

    Type Current regulated power LED light
    Projection System Effective Light Projection Range: 0.6 to 6 m (Depends on shutter speed, aperture levels, and gain control)
    Projection Angle Light Projection Angle: 90°
    Color Temperature 3200K to 5800K (240K / 1 step)
    Brightness 10% to 100% (230 lumens / 1 step)
    Maximum Brightness Maximum 1100 lumens (Normal mode)
    Maximum 2200 lumens (Turbo mode)
    Luminance Flux Illuminance in 1 m distance
    Maximum 1100 lux (Normal mode)
    Maximum 2200 lux (Turbo mode)
    Power Supply 12 VDC
    Current Consumption Normal Mode: 1.5 A / 18 W (maximum)
    Turbo Mode: 3 A / 36 W (maximum)
    Luminance 66 lumens / W
    Dimensions Outer Diaphragm: 7.48" / 190 mm
    Inner Diaphragm: 4.58" / 115 mm
    Height: 1.14" / 29 mm
    Weight 1.1 lb / 500 g
    Battery Type Li-ion
    Output 2 VDC / 5200 mA
    Battery Life 2 hours 30 minutes (maximum brightness in normal mode)
    1 hour 15 minutes (maximum brightness in turbo mode)
    Charger Dedicated battery charger (ML-CHG1)
    Dimensions 2.7 x 3.7 x 2.4" / 69 x 95 x 61 mm
    Weight 13.3 oz / 377 g
    Package Weight 4.7 lb
    Box Dimensions (LxWxH) 11.8 x 9.8 x 7.7"
