User Manual for Matrix Light ML-115R LED Light VR360 Camera Kit Click to enlarge the picture
Contents of the user manual for the Matrix Light ML-115R LED Light VR360
- Product category: On Camera Lights Matrix Light
- Brand: Matrix Light
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matrix Light On Camera Lights
 |
User manual for the Matrix Light ML-115R LED Light VR360 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matrix Light product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matrix Light user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matrix Light product will considerably shorten its lifespan!
|

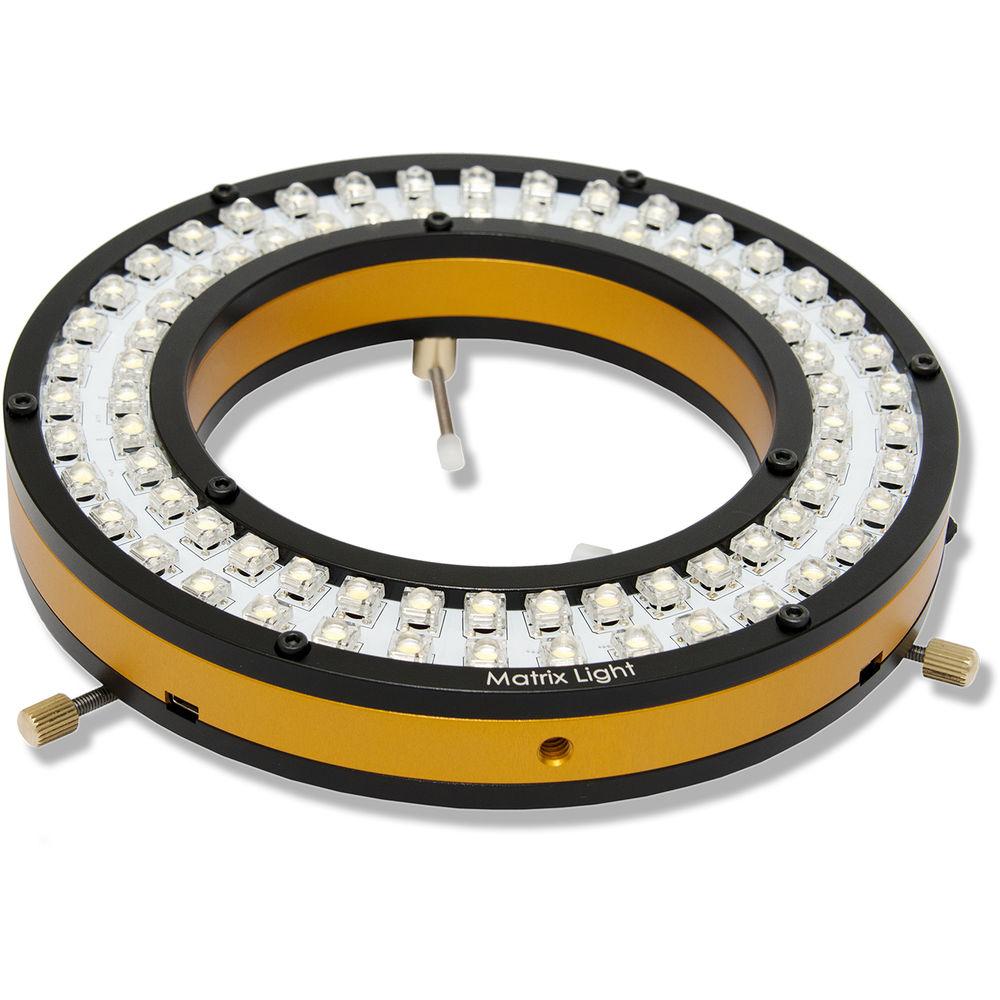

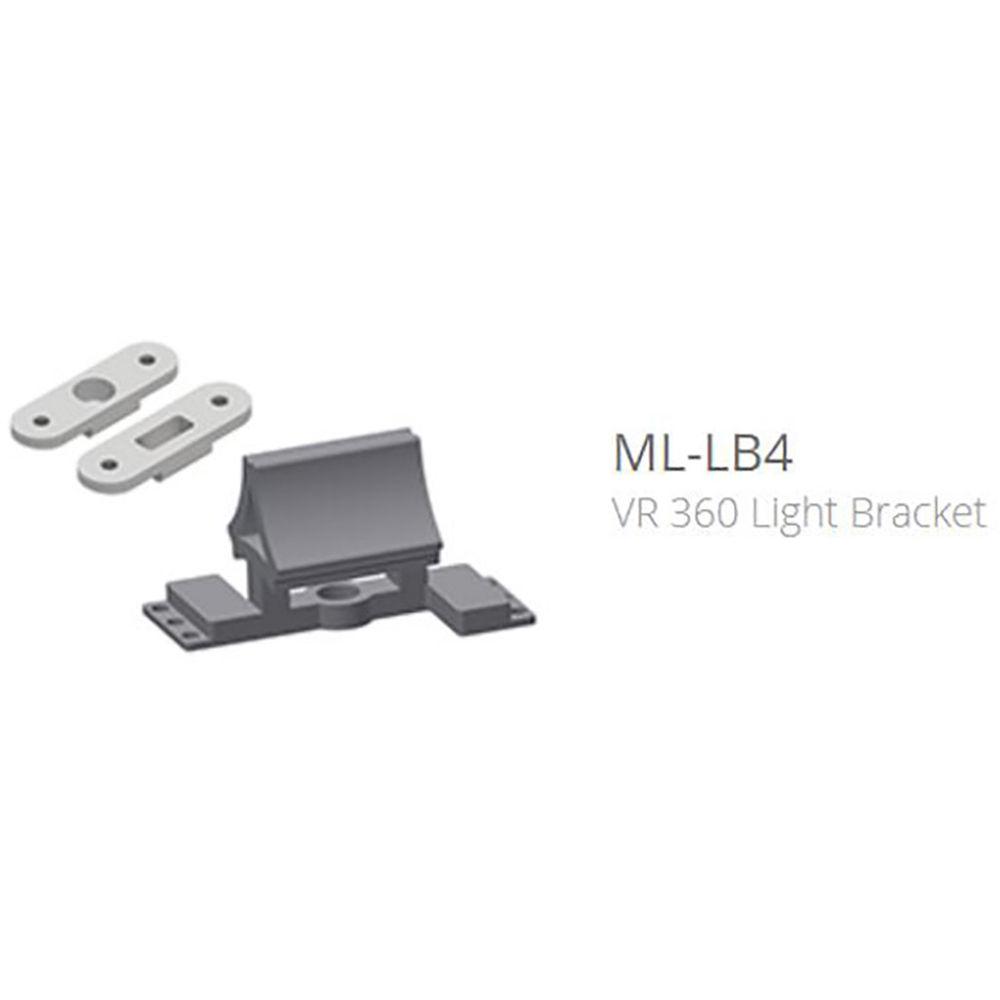

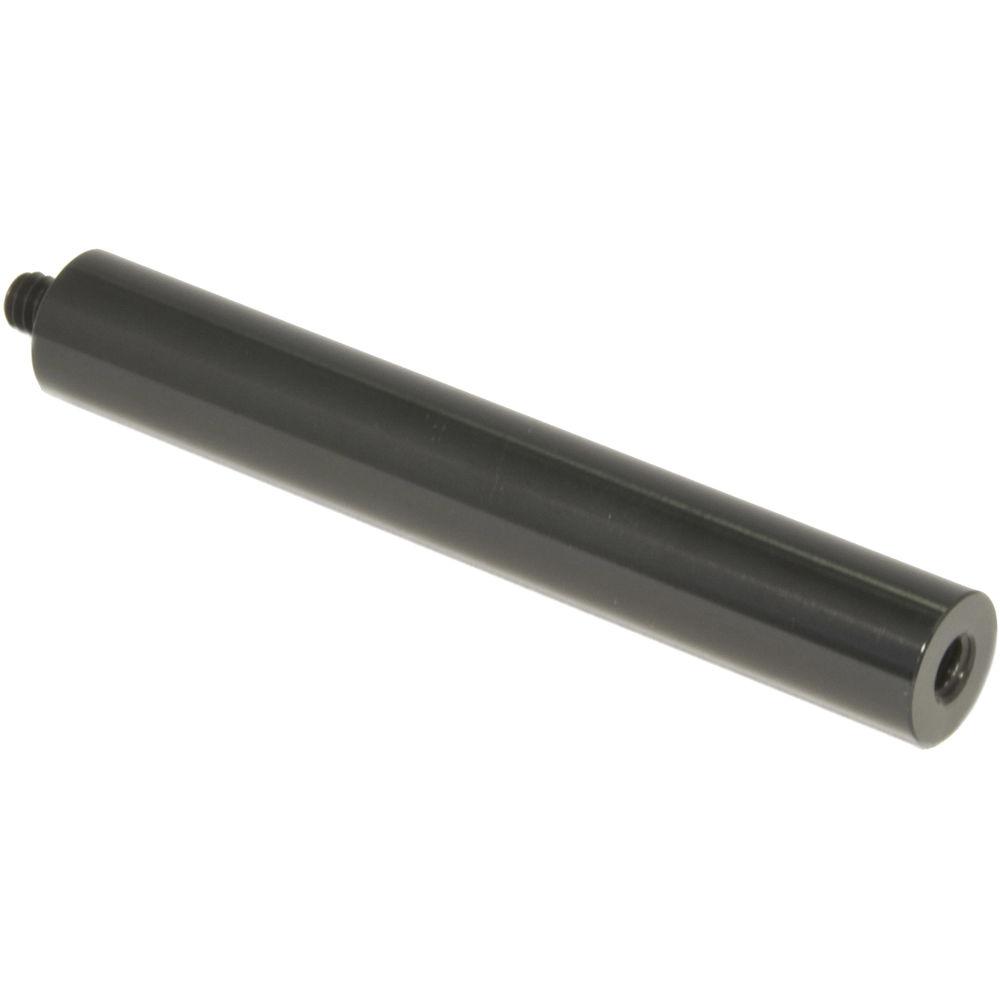

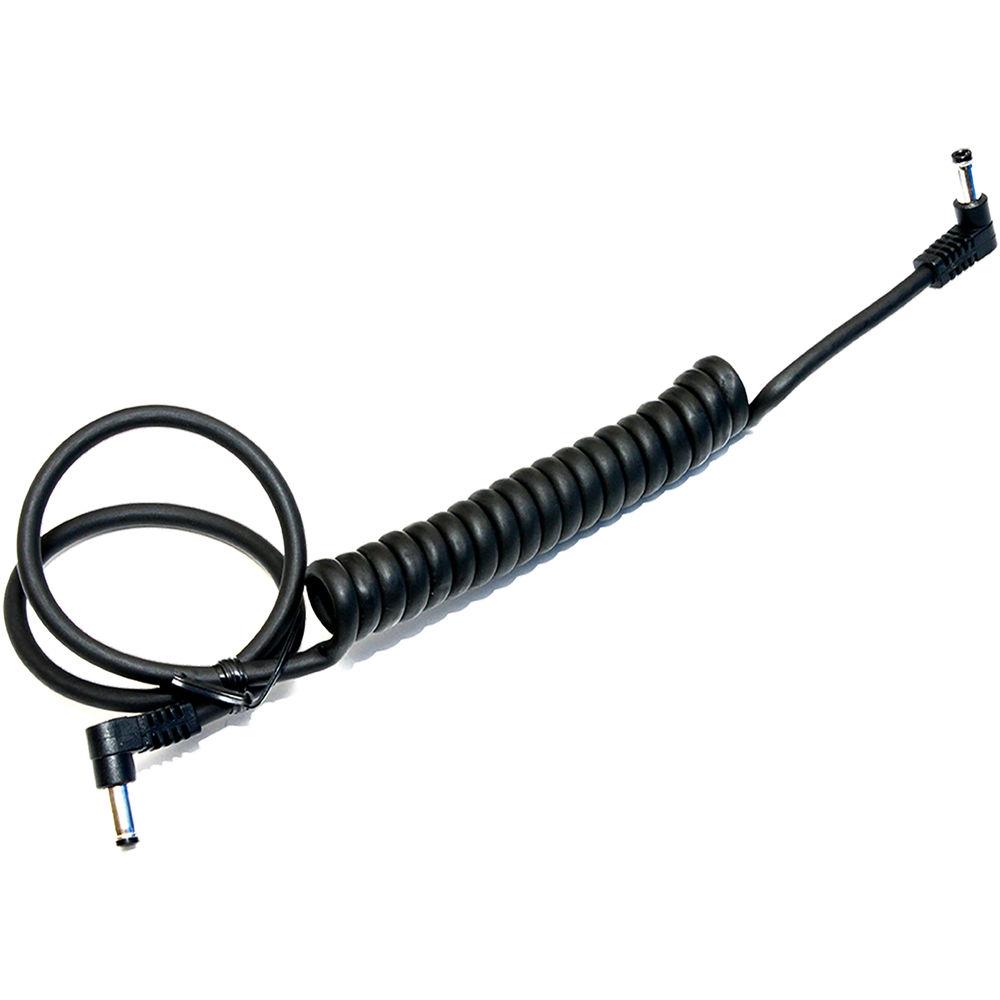

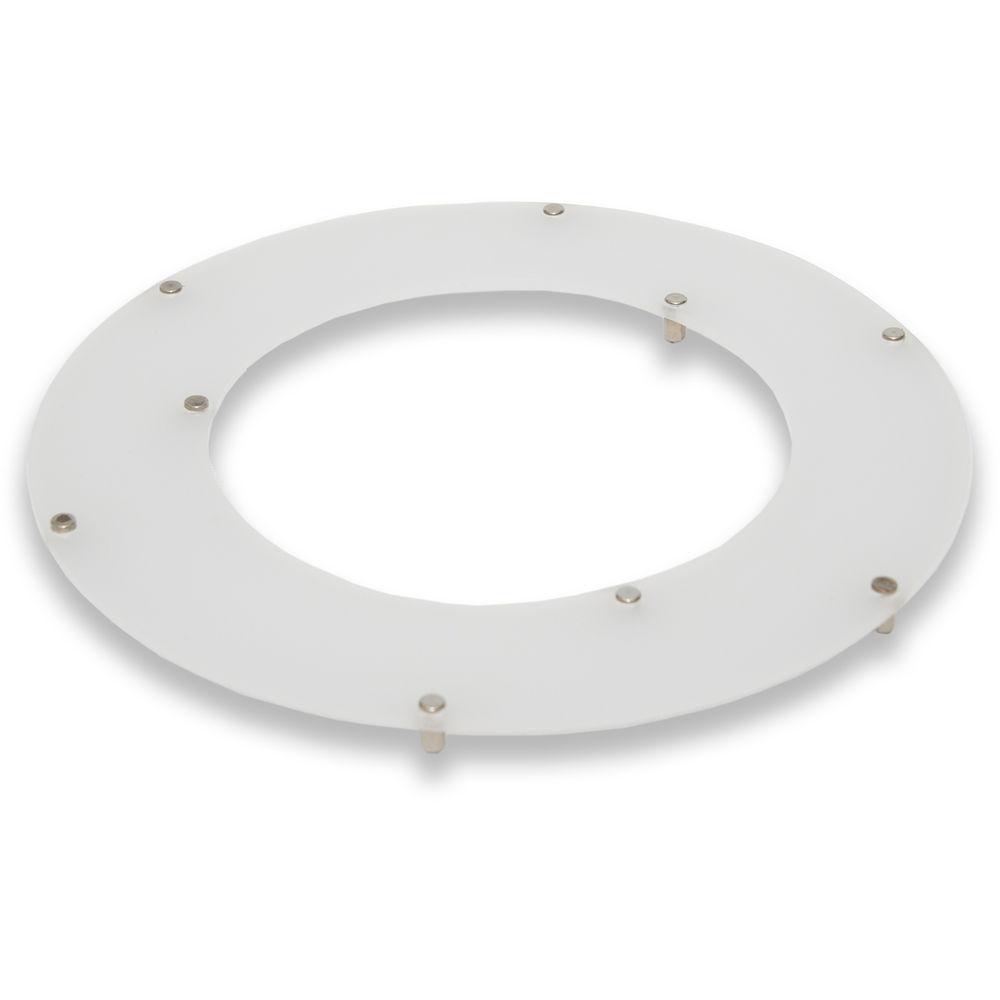

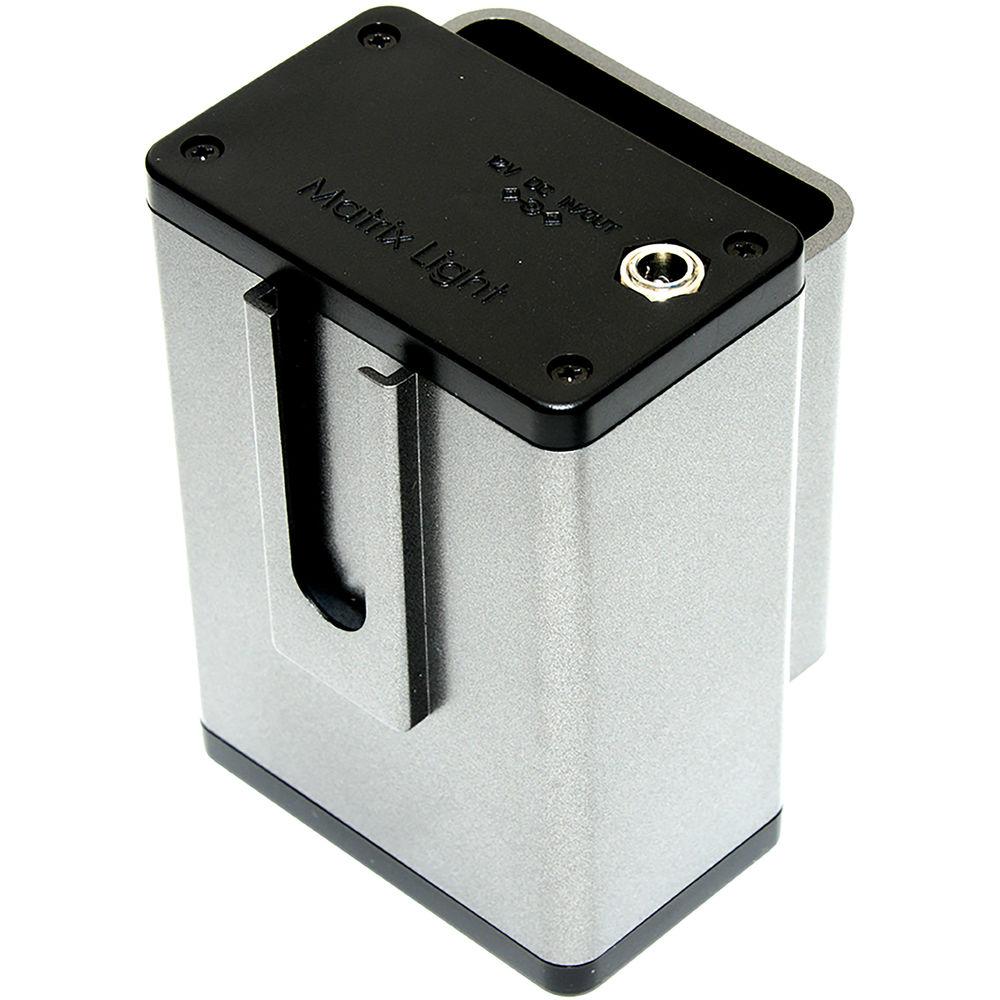

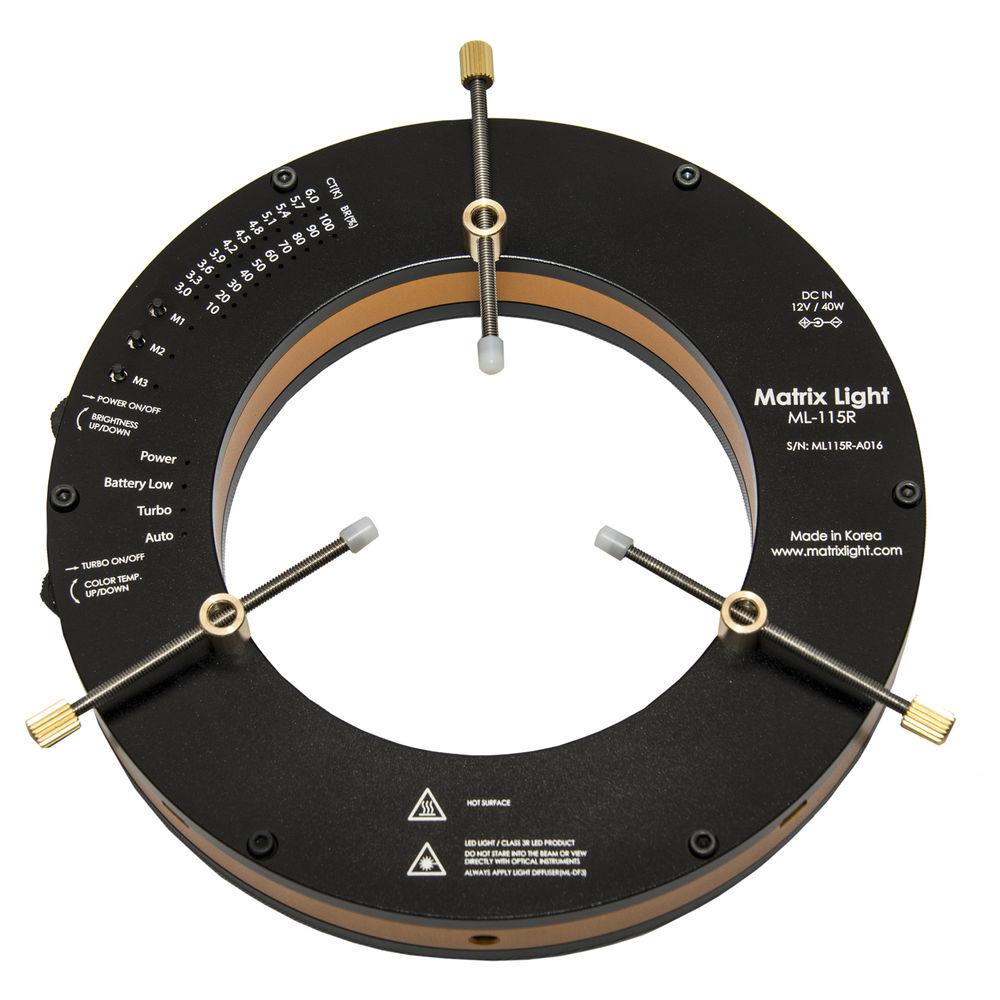

Product description The ML-115R LED Light VR360 Camera Kit from Matrix Light includes two ML-115R LED light modules, two ML-DF3 diffusers, an ML-LB4 VR 360 light bracket, an ML-EB1 3.9" extension bar, two ML-PC1 power cables, two ML-BA12 Li-ion batteries, and an ML-CHG1 Battery Charger. The LED light module is designed to be used for virtual reality / 360° shooting, high-speed camera shooting, digital microscopes, chroma key lighting, and IR ray lighting. It features brightness and color temperature controllers where brightness can be controlled in 10% increments from 150 lumens to 2200 lumens, and color temperature can be controlled in 11 steps (in 240K increments) from 3200K to 5800K. With brightness and color temperature LED indicators on the back side, it allows the user to check the current brightness and color temperature. The Turbo mode supports up to 2200 lumens of brightness, equivalent to a 220W light bulb.
Using adaptable accessories, the ML-115R light module is suitable for electronic news gathering cameras, digital single-lens reflex cameras, and action cameras. It also has a USB communication port that allows simultaneous control of multiple units, making it useful for virtual reality / 360° shooting. The ML-BA12 Li-ion battery is compatible with ML-80, ML-7, ML-9, and ML-115R LED lights. Weighing 13.3 oz, it features a compact and lightweight design. - Designed to fit most macro lens systems
- Can be used with industrial camera devices

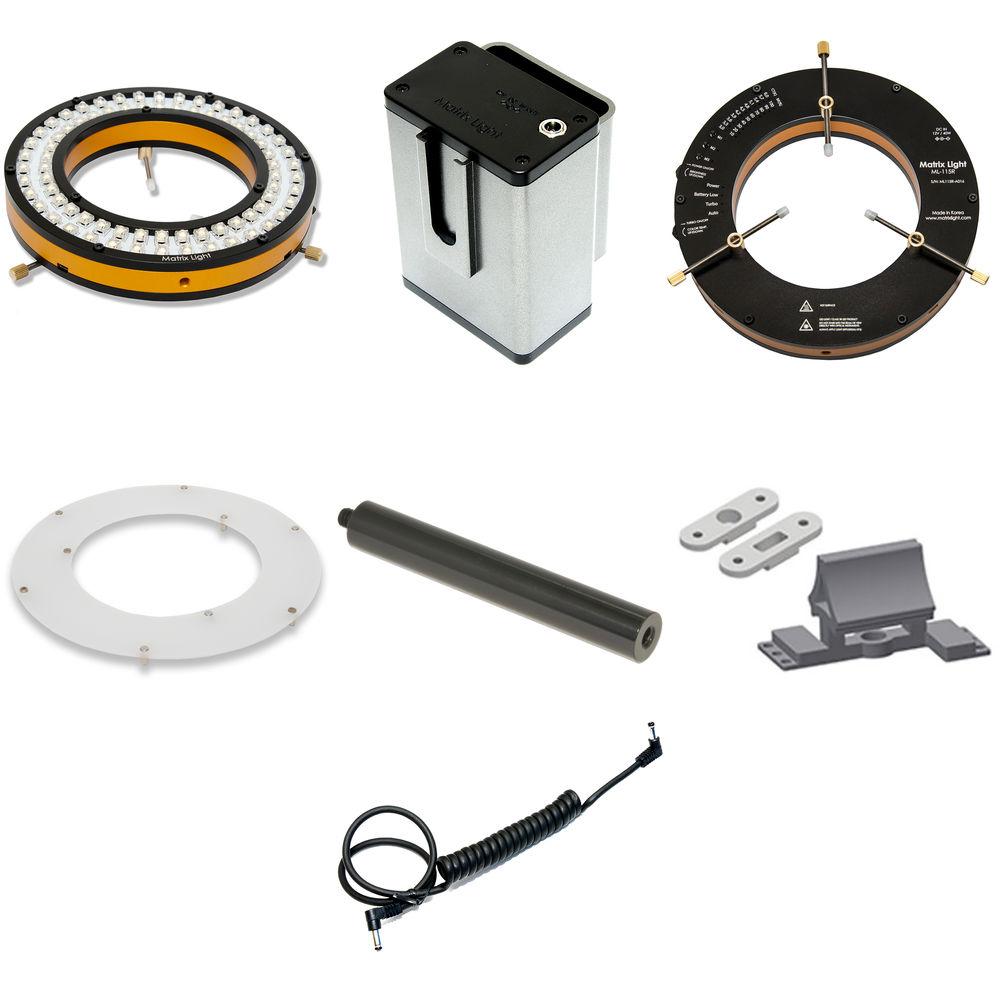

UPC: 704006296749 In the Box Matrix Light ML-115R LED Light VR360 Camera Kit 2 x ML-115R LED Ring Light Module 2 x ML-DF3 Diffuser 2 x ML-PC1 Power Cable 2 x ML-BA12 Li-Ion Battery ML-CHG1 Battery Charger ML-LB4 VR 360 Light Bracket ML-EB1 3.9" Extension Bar Limited 1-Year Warranty User Manual - Ring Light PDF 2.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrix Light ML-115R LED Light VR360 Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrix Light ML-115R Specs | | | Type | Current-regulated power LED light | | Projection System | Effective Light Projection Range: 0.6 to 6 m (Depends on shutter speed, aperture levels, and gain control) | | Projection Angle | Light Projection Angle: 90° | | Color Temperature | 3200K to 5800K (240K / 1 step) | | Brightness | 10 to 100% (230 lumens / 1 step) | | Maximum Brightness | Maximum 1100 lumens (Normal mode)
Maximum 2200 lumens (Turbo mode) | | Luminance | Illuminance in 1 m distance
Maximum 1100 lux (Normal mode)
Maximum 2200 lux (Turbo mode) | | Power Supply | 12 VDC | | Current Consumption | Normal Mode: 1.5 A / 18 W (maximum)
Turbo Mode: 3 A / 36 W (maximum) | | Luminance | 66 lumens / W | | Dimensions | Outer Diaphragm: 7.48" / 190 mm
Inner Diaphragm: 4.58" / 115 mm
Height: 1.14" / 29 mm | | Weight | 1.1 lb / 500 g | | | | Battery Type | Li-ion | | Battery Power | 12 VDC / 5200 mA | | Battery Life | 2 hours 30 minutes (Maximum brightness in normal mode)
1 hour 15 minutes (Maximum brightness in turbo mode) | | Charger | Dedicated battery charger (ML-CHG1) | | Dimensions | 2.7 x 3.7 x 2.4" / 69 x 95 x 61 mm | | Weight | 13.3 oz / 377 g |
