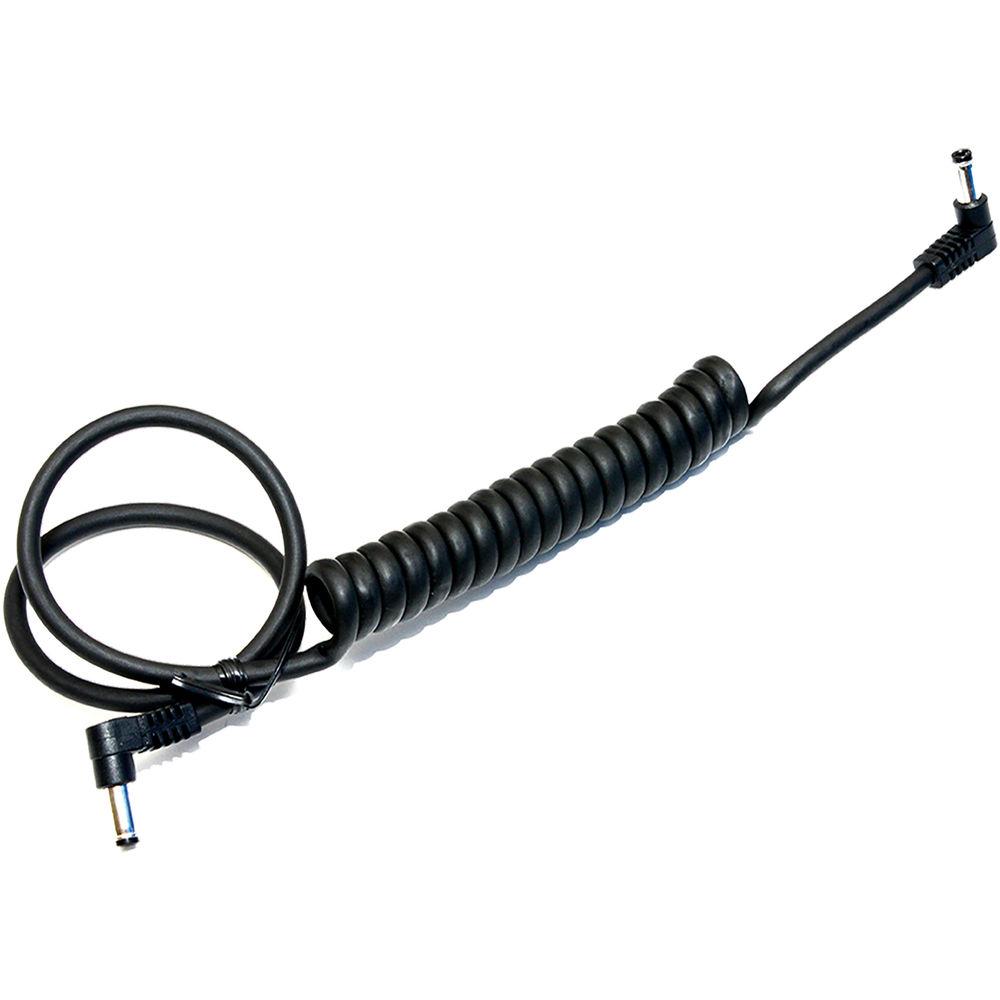

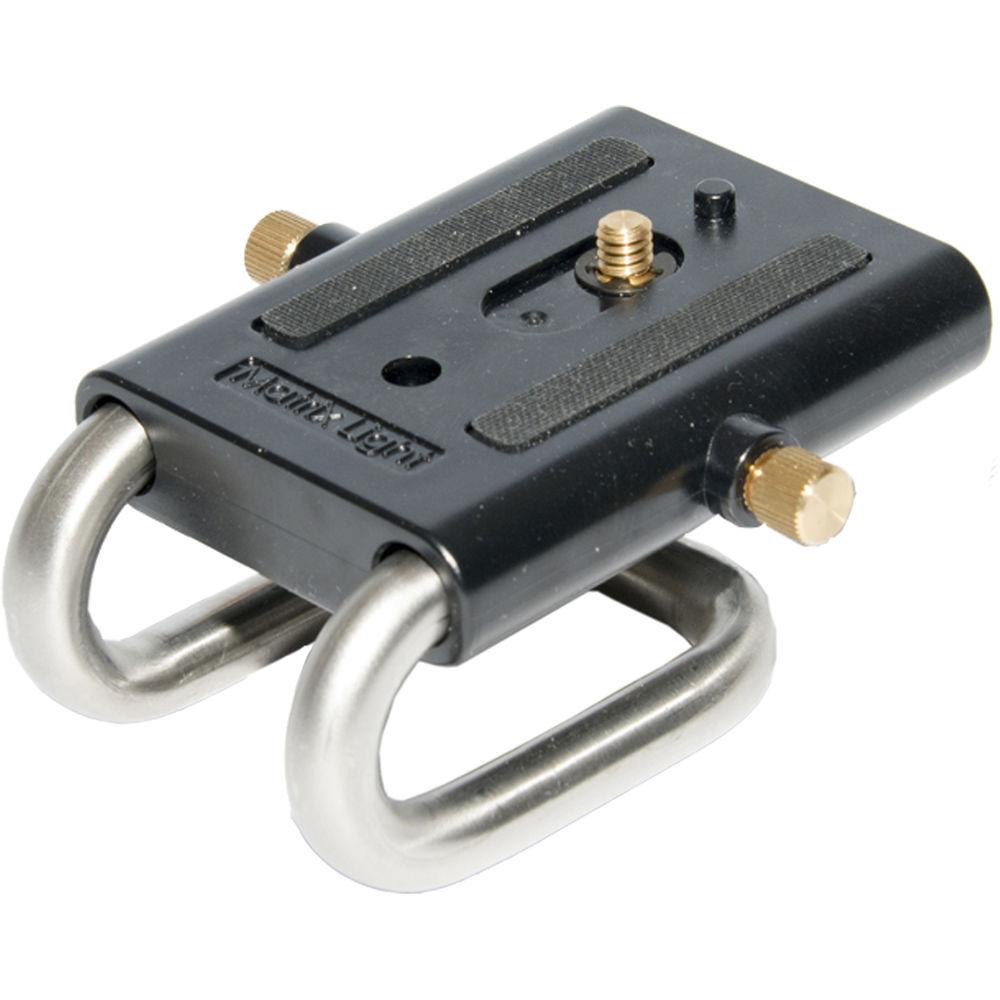

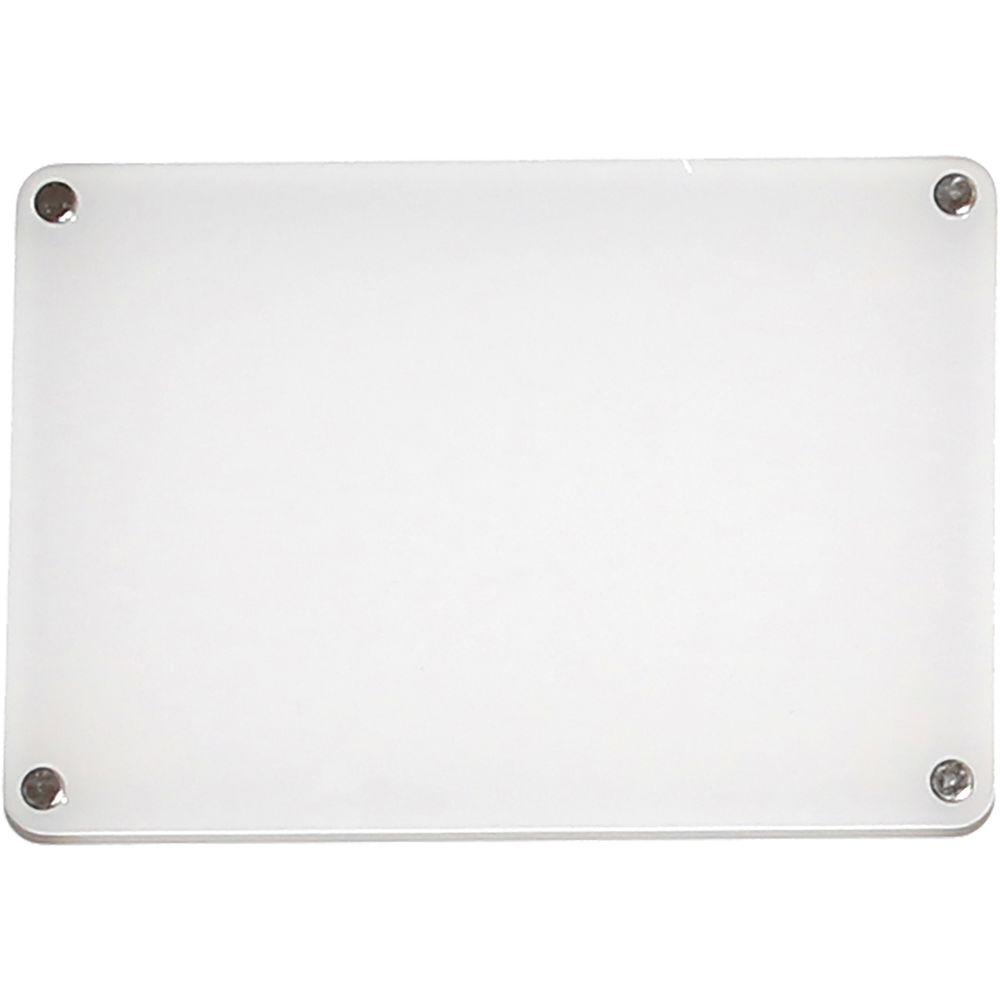

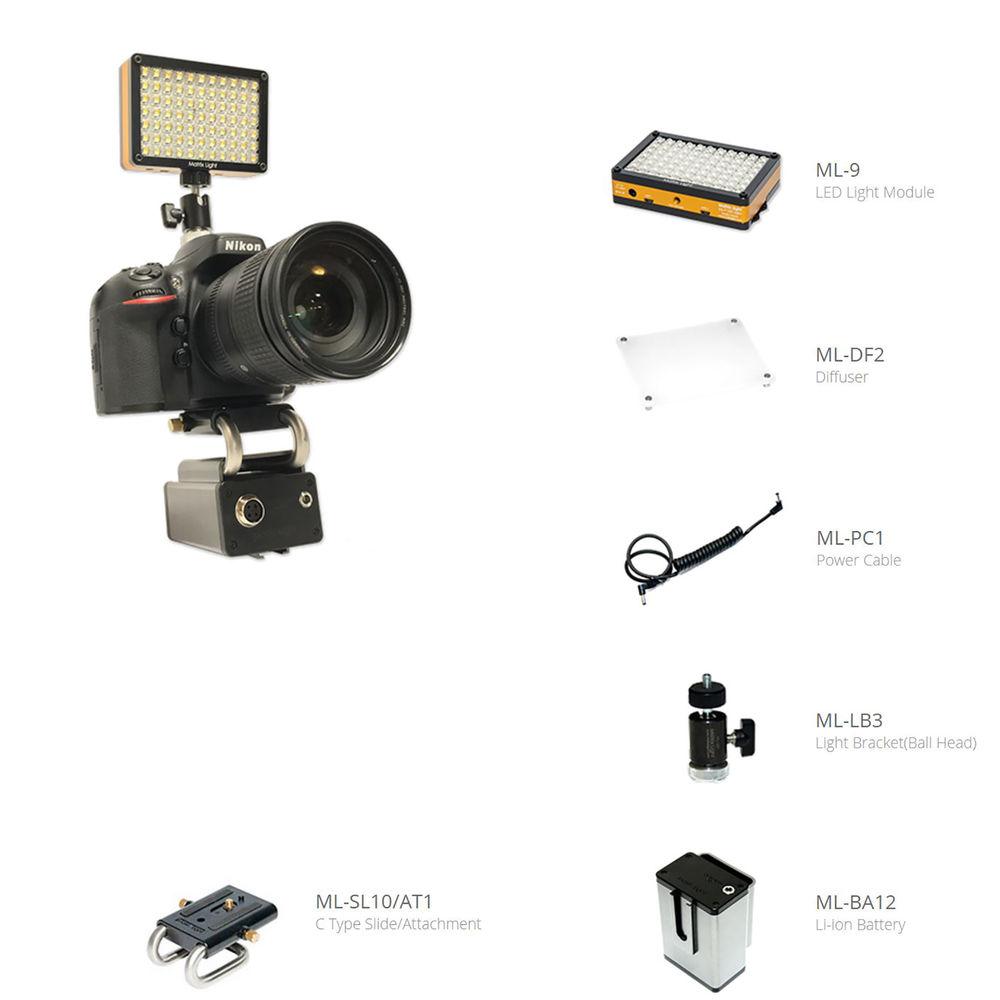

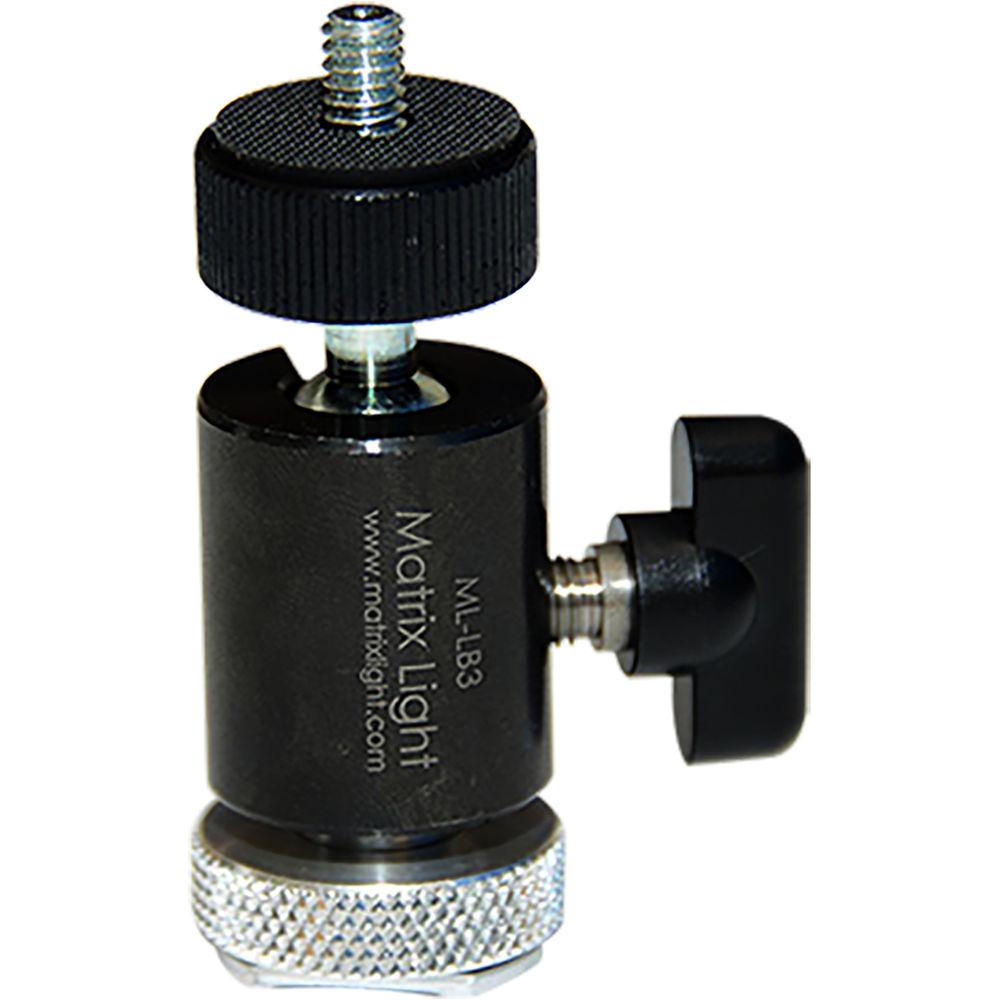

Product description The ML-9 LED Light DSLR Camera Kit from Matrix Light includes ML-9 LED Light Module, ML-DF2 Diffuser, ML-PC1 Power Cable, ML-LB3 Ball Head Bracket, ML-BA12 Li-Ion Battery, ML-CHG1 Battery Charger, and ML-SL10/AT1 C-Type Slide/Attachment.

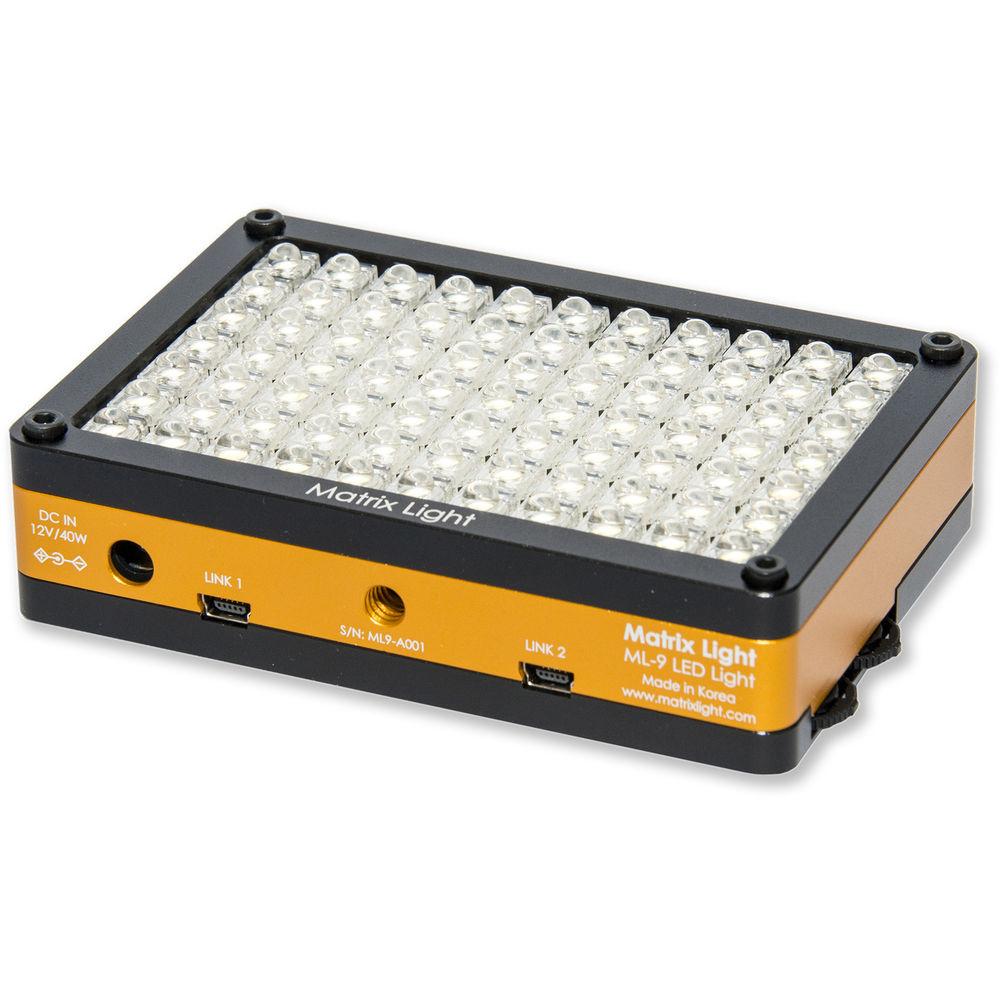

The ML-9 module features three built-in memory buttons that allow you to store your most frequently used brightness and color temperature settings. The dual indicators display current brightness and color temperature. With precision dimming and coloring controllers, the ML-9 allows the user to adjust the brightness and color temperature. Turbo mode supports up to 2200 lumens of brightness, equivalent to a 220W light bulb.

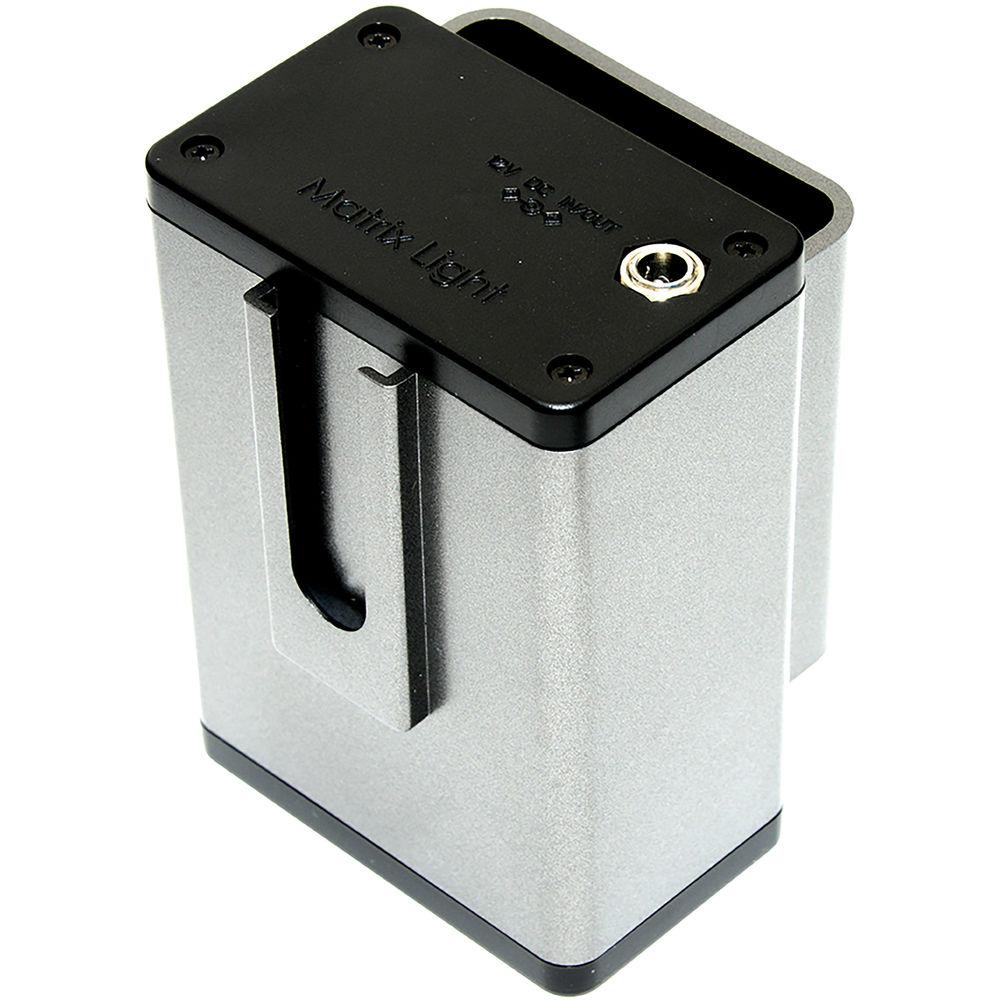

The ML-BA12 Li-ion battery is compatible with the ML-80, ML-7, ML-9, and ML-115R LED lights. Weighing just 13.3 oz, it features a compact and lightweight design. UPC: 704006296718 In the Box Matrix Light ML-9 LED Light DSLR Camera Kit ML-9 LED Light Module awdawwazzvvdywxyxvytcqfeaqtsbf ML-DF2 Diffuser ML-PC1 Power Cable ML-LB3 Light Bracket (Ball Head) ML-BA12 Li-Ion Battery ML-CHG1 Battery Charger ML-SL10/AT1 C-Type Slide/Attachment Limited 1-Year Warranty User Manual- ML-9 PDF 9.2mbawdawwazzvvdywxyxvytcqfeaqtsbf Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrix Light ML-9 LED Light DSLR Camera Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrix Light ML-9 Specs | | | Type | Current-regulated power LED light | | Projection | Effective Light Projection Range: 0.6 to 6 m (depends on shutter speed, aperture levels, and gain control) | | Projection Angle | Light Projection Angle
Horizontal: 110°
Vertical: 90° | | Color Temperature | 3200K to 5800K (240K / step) | | Brightness | 10 to 100% (230 lumens / step) | | Maximum Brightness | Maximum 1100 lumens (Normal mode)
Maximum 2200 lumens (Turbo mode) | | Luminance | Maximum 1100 lux at 3.3' (Normal mode)
Maximum 2200 lux at 3.3' (Turbo mode) | | Power Supply | 12 VDC | | Current Consumption | Normal Mode: 1.5 A / 18 W (maximum)
Turbo Mode: 3 A / 36 W (maximum) | | Luminance | Efficiency: 66 lumens / W | | Brightness Control | 150 to 2200 lumens in 240-lumen increments | | Color Temperature | 3200K to 5800K in 240K increments | | Dimensions | 3.07 x 4.45 x 0.12" / 78 x 113 x 30 mm | | Weight | 8.9 oz / 251 g | | | | Battery Type | Lithium-ion | | Battery Power | 12 VDC / 5200 mA (Li‐ion) | | Battery Life | 2 hours 30 minutes (Maximum brightness in Normal mode)
1 hour 15 minutes (Maximum brightness in Turbo mode) | | Charger | Dedicated battery charger (ML-CHG1) | | Dimensions | 2.7 x 3.7 x 2.4" / 69 x 95 x 61 mm | | Weight | 13.3 oz / 377 g | | | | Package Weight | 3.51 lb | | Box Dimensions (LxWxH) | 14.5 x 6.4 x 3.8" |
