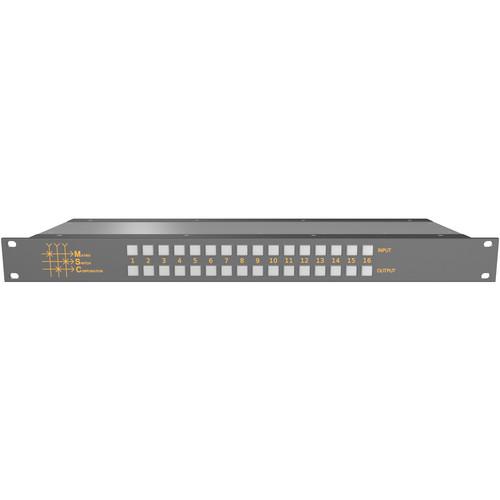

User Manual for Matrix Switch 16 x 16 Composite Analog Video Router with Button Panel Click to enlarge the picture
Contents of the user manual for the Matrix Switch 16 x 16 Composite
- Product category: Routers & Switchers Matrix Switch
- Brand: Matrix Switch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matrix Switch Routers & Switchers
 |
User manual for the Matrix Switch 16 x 16 Composite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matrix Switch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matrix Switch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matrix Switch product will considerably shorten its lifespan!
|
Product description The 16 x 16 Composite Analog Video Router from Matrix Switch has 16 inputs and 16 outputs. With a minimum signal bandwidth of 50 MHz, this router is suitable for analog video installations. The video router can be used standalone or combined with additional analog video routers to produce a 2-channel YV router or 3-channel YUV, or RGB router. When used in conjunction with the MSC-GCP2U32 LCD remote control panel (sold separately), multiple analog video routers can be combined to expand the available input or output channels, using cascaded systems or input replication. The router provides several options for control and system integration. The built-in webpage interface offers a convenient method for control and configuration using a PC or mobile device (Interactive Demo). In addition to the easy-to-use MASCOT protocol, there is support for some common 3rd party protocols. Additional control interfaces on this router are USB, RS-485, RS-232, AUX GPIO, and TCP/IP over the Ethernet interface. Optional Matrix Switch Corporation Remote Panels can also be used with this router for remote control up to an unlimited distance over TCP/IP. The built-in button panel provides an additional interface for directly changing the matrix routing state. -
- Additional audio level can be connected to the D25 connector with break-away from video support
- Inputs can be switched to multiple outputs without restriction
- Outputs can be individually muted
- Vertical interval switching using vertical sync input (tri-level sync or NTSC/PAL black burst)
- Store and recall up to 10 preset salvos
- Includes button control panel interface
- Supports Matrix Switch Corporation remote panels
- Ethernet port for control via built-in web page interface or TCP/IP ports
- Interactive web page interface (Interactive demo)
- Serial control via RS-232 port
- RS-485 port for an additional high-speed, long-distance capable control interface
- Support for some common 3rd-party protocols for added integration flexibility
- Auxiliary port for external status and control signaling
- RTOS (Real Time Operating System) with 32-bit ARM processor
- System software updates from webpage interface
- External DC power supply
- Redundant power supply included
In the Box Matrix Switch 16 x 16 Composite Analog Video Router with Button Panel 12 VDC, 3A Power Supply Redundant Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrix Switch 16 x 16 Composite Analog Video Router with Button Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrix Switch MSC-XV1616L Specs | | | Connector Type | BNC | | XLR Input/Output Impedance | 75 Ohms | | Nominal | Input/Output Level: 1 V p-p | | Maximum Input/Output Level | +/- 2 V p-p | | Input Return Loss | < 40 dB at 5 MHz typical | | Output Return Loss | < 35 dB at 5 MHz typical | | Overall Gain | Unity: +/-1% into a 75 Ohms termination | | Frequency Response | +/- 0.1 dB to 5 MHz, 0 -3 dB to 60 MHz | | Crosstalk | > 60 dB at 5 MHz (all hostile) | | Differential Phase | < 0.2° at 3.58 MHz @ 4.43 MHz | | Differential Gain | < 0.2% at 3.58 MHz @ 4.43 MHz | | S/N Ratio | > 75 dB, 0 to 10 MHz | | | | Connector Type | Analog BNC with pass-through | | Format | Tri-level sync and NTSC/PAL black burst | | | | Inputs | 16 | | Outputs | 16 | | Enclosure Type | 1 RU | | Power | 12 VDC, 5 A adapter | | Power Connector | D9 male | | Certifications | FCC, U/L, CE, RoHS | | Panel Type | Buttons | | Ethernet | 10/100 Base-T Auto MDIX | | Dimensions | 19 x 1.75 x 6" (48.2 x 4.4 x 15.2 cm) | | Weight | 5 lb (2.2 kg) | | | | Package Weight | 9.65 lb | | Box Dimensions (LxWxH) | 24.0 x 10.5 x 6.7" |
