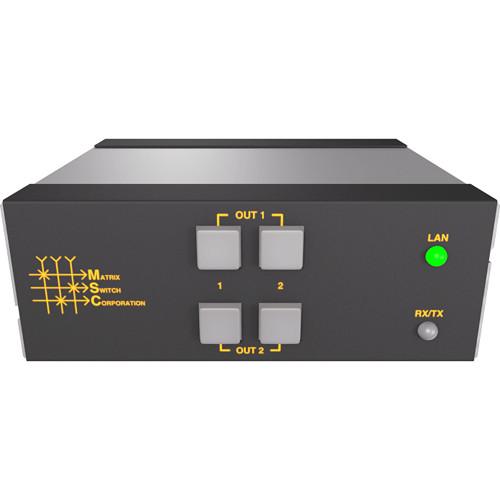

Product description The Matrix Switch Corporation 2 x 2 Mini SDI Video Routing Switcher features 2 inputs and 2 outputs and has dual BNC connectors per output. The Mini router is suitable for applications that do not need rackmounting and require a compact-sized device.
This small router offers good technical performance and control features. It also offers flexible and user friendly control, including a built-in Javascript enabled web page interface and simple yet powerful text-based control protocol, which can be sent via TCP/IP or an RS-232 serial port. - Re-clocks SDI Video SD (270 Mb/s) / HD (1.484 Gb/s) / 3G (2.97 Gb/s)
- Auto bypass any rate from 20 Mb/s to 3 Gb/s
- Passes SDI embedded audio
- Dual BNC connectors per output
- Weighs less than 2 lb (0.90kg) including the power supply
- Low-power consumption of less than 5VA
- Store and recall up to 10 non-volatile presets
- Includes local control panel
- Vertical interval switching
- Control via simple text based protocol over TCP/IP via Ethernet port, RS-232, or web page interface
- Javascript web page interface
- System software updates using Ethernet port
In the Box Matrix Switch 2 x 2 Mini SDI Video Routing Switcher DC Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrix Switch 2 x 2 Mini SDI Video Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrix Switch MSC-HD22L Specs | Inputs | 3G-SDI: 2 x BNC | | Outputs | 3G-SDI: 2 x BNC (Pairs) | | Input Impedance | 75 Ohms ±1% | | Input Return Loss | > -15 dB at 1.5 Gb/s
> -12 dB at 2.97 Gb/s | | Input Level | 800 mV pp ±20% | | Output Impedance | 75 Ohms ±1% | | Output Return Loss | > -15 dB at 1.5 Gb/s
> -12 dB at 2.97 Gb/s | | Output Level | 800 mV pp ±5% | | Cable Equalization | Belden-Type 1694A Cable:
1148.29' / 350 m @ SD (143 to 540 Mb/s)
574.15' / 175 m @ HD (1.5 Gb/s)
328.08' / 100 m @ 3G (2.97 Gb/s) | | Jitter | < 0.2 UI pp | | Power Consumption | < 5 VA | | Embedded Audio | Clean Pass-Through | | Dimensions | 5 x 1.75 x 5" / 12.7 x 4.45 x 12.7 cm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 7.25 x 5.5 x 3.4" |
