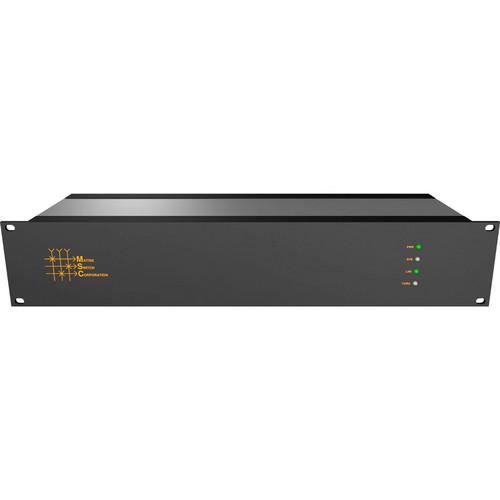

User Manual for Matrix Switch 32x32 3G-SDI Modular 2RU Switcher Click to enlarge the picture
Contents of the user manual for the Matrix Switch 32x32 3G-SDI Modular 2RU
- Product category: Routers & Switchers Matrix Switch
- Brand: Matrix Switch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matrix Switch Routers & Switchers
|
User manual for the Matrix Switch 32x32 3G-SDI Modular 2RU contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matrix Switch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matrix Switch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matrix Switch product will considerably shorten its lifespan!
|
Product description The Matrix Switch 32x32 3G-SDI Modular 2RU Switcher features automatic cable equalization and re-clocking, vertical interval switching, and flexible control options including a built-in web page interface and a simple text based protocol over RS-232 or TCP/IP.
The switcher passes embedded audio but also supports AES digital audio and analog audio per the addition of an audio switcher. A remote software update feature allows convenient software updates by Ethernet.
Applications include flyaway productions, TV stations, mobile units, post production facilities, stadiums, hospitals, and pretty much anywhere else. - Control Options
-
- The switcher features built-in web page control and configuration interface
- Text-based protocol control via TCP/IP by Ethernet, RS232, or web page interface
- Your page can be run with any browser on any platform, even on a tablet or a smartphone
- Many users can access the page at the same time (no lock-out), and the last command stands
- Audio
-
- The switcher passes embedded audio, but an audio switcher can also be connected
- The audio switcher connects via a 25-pin port to form a 2-level rack and pass digital / analog
- Redundant Power Supplies
-
- The switcher features 2 power sockets and comes with 2 external AC power supplies
- Both can be used at once, in different circuits, with either the main, or one can be left out
- Sophisticated Features
-
- Automatic cable equalization and re-clocking
- Re-clock / bypass any rate from 19Mbps-2.97Gbps
- You can store and recall up to ten non-volatile presets
- The switcher features seamless vertical interval switching
- A remote software update feature easily updates by Ethernet, without need to take the box apart
In the Box Matrix Switch 32x32 3G-SDI Modular 2RU Switcher 2 x Power Supply User Manual 2-Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrix Switch 32x32 3G-SDI Modular 2RU Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrix Switch MSC-2HD3232S Specs | Connectors | 32 3G/HD/SD-SDI inputs
32 3G/HD/SD-SDI outputs
1 25-pin AFV
1 RS-232
1 Ethernet
1 SYNC on BNC
1 REF on BNC | | | | Data Rate | 20MHz - 3Gbps
Reclock rates: 270Mbps, 1.485Gbps and 2.97Gbps | | Data Type | SMPTE 259M, SMPTE 292M, SMPTE 344M, DVB | | Cable Equalization | 325 yards (300 m) @ 270Mbps, 191 yards (175 m) @ 1.485Gbps, 110 yards (100 m) @ 2.97Gbps | | Video Level | 800mV P-P ±20% | | Video Impedence | 75 ohms +/-1% | | Coupling | AC | | Return Loss | > -15 dB at 1.5Gbps > -12 dB at 2.97Gbps | | | | Video Level | 800mV P-P +/-5% | | Video Impedance | 75 ohms +/-1% | | Return Loss | > -15 dB at 1.5Gbps > -12 dB at 2.97Gbps | | Jitter | < 0.2 UI | | Vertical Interval Switching | Line 6 | | | | Power Consumption | 70 VA typical | | AC Voltage | 90 - 240VAC, 50 - 60Hz | | Compliance | All relevant FCC, U/L and CE requirements | | Temperature | 32 - 122°F ambient (0 - 50°C) | | Humidity | 10 - 100% non-condensing | | Dimensions | 3.5 x 19 x 11" (8.9 x 48.2 x 28 cm) | | Weight | 20 lbs (9 kg) | | | | Package Weight | 16.0 lb | | Box Dimensions (LxWxH) | 24.0 x 10.0 x 8.0" |
