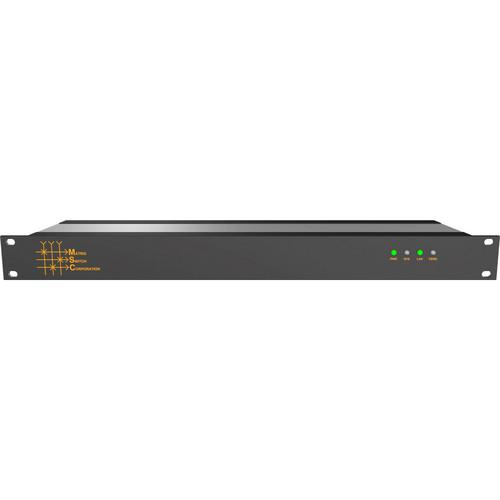

User Manual for Matrix Switch 4 x 4 HD-SDI SDI Video Routing Switcher with AES3 Audio Click to enlarge the picture
Contents of the user manual for the Matrix Switch 4 x 4 HD-SDI
- Product category: Routers & Switchers Matrix Switch
- Brand: Matrix Switch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matrix Switch Routers & Switchers
|
User manual for the Matrix Switch 4 x 4 HD-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matrix Switch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matrix Switch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matrix Switch product will considerably shorten its lifespan!
|
Product description The Matrix Switch 4 x 4 HD-SDI/SDI Video Routing Switcher with AES3 Audio accepts multiple HD and SDI video inputs across 4 ports and switches a source across Dual output ports. In addition, it supports digital AES3 audio via BNC connectors and extends support for DVB-ASI signals. Supporting data transfer rates from 19 Mbps to 2.97 Gbps, the switcher, using automatic cable loss compensation, transmits error-free signals up to 1000’ (304.8 m).
The 4 x 4 HD-SDI/SDI Video Routing Switcher with AES3 Audio features auto detection of standard SMPTE data rates which are re-clocked across each output for a jitter-free operation, and the auto rater detect logic bypasses all signals with non-SMPTE data rates. Control options consists of text based protocol (MASCOT) over TCP/IP port, RS-232 serial, or web page interface. The switcher is compatible with optional Matrix Switch Corporation TCP/IP remote panels. It is suitable for use in broadcast studios, post-production facilities, ENG/OB applications, remote trucks, and flyaway video production cases. - Accepts multiple HD and SDI video inputs across 4 ports and switches a source across Dual output ports
- Supports digital AES3 audio via 75Ω BNC connectors
- Data transfer rates from 19 Mbps to 2.97 Gbps
- Uses automatic cable loss compensation
- Transmission distance - 1000' (304.8 m)
- Re-clocked outputs for a jitter-free operation
- Auto detection of standard SMPTE data rates
- Auto rater detect logic - bypasses all signals with non-SMPTE data rates
- Flexible control via a text based protocol -- MASCOT -- over TCP/IP port, RS-232 serial, or web page interface
- Compatible with Matrix Switch Corporation TCP/IP remote panels
- Suitable for - broadcast studios, post-production facilities, ENG/OB applications, remote trucks, and flyaway video production cases
In the Box Matrix Switch 4 x 4 HD-SDI/SDI Video Routing Switcher with AES3 Audio 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrix Switch 4 x 4 HD-SDI SDI Video Routing Switcher with AES3 Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrix Switch MSC-HD44DES Specs | | | Data Rate | 143 Mbps, 270 Mbps, 1.483 to 2.97 Gbps | | Support Data Type | SMPTE 259M, SMPTE 292M, SMPTE 344M, DVB-ASI | | Cable Equalization | Auto up to 300 meters@270 Mbps, 100 meters @ 1.485Gbps (input) | | Video Level | 800 mV | | Impedance | 75 Ohm 1% | | Coupling | AC | | Connector | BNC | | Return Loss | 15 dB @ 1.5Gbps | | AES Digital Audio Inputs | Signal type: 75 Ohm unbalanced
Connector type: BNC or multi-pin - 3 pin breakout adaptors available
Level: 100mV to 10 Vpp
CMR: greater than 25 V | | AES Digital Audio Outputs | Signal Type: 75 Ohm unbalanced
Connector Type: BNC or multi-pin - 3 pin breakout adaptors available
Level: 7 Vpp
Jitter: less than 0.25 UI | | | | Temperature | 32 to 122° F (0 to 50° C) ambient | | Humidity | 10 - 100% non-condensing | | Power Consumption | 7 VA typical | | AC Voltage | 90 to 240V AC 50/60Hz | | Dimensions (HxWxD) | 1.75 x 19 x 5" (4.45 x 48.26 x 12.7 cm) | | Weight | 4 lb (1.8 kg) |
