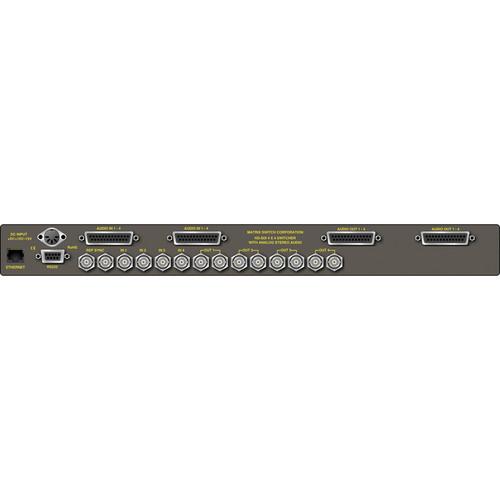

Product description The Matrix Switch 4 x 4 HD-SDI/SDI Video Routing Switcher with Stereo Analog Audio accepts HD and SDI video using 4 ports for distribution across 4 dual output ports. In addition, it supports balanced analog stereo audio and extends support for DVB-ASI signals. Supporting data transfer rates from 19 Mbps to 1.485 Gbps, the switcher, using automatic cable loss compensation, transmits error-free signals up to 1000’ (304.8 m).
The 4 x 4 HD-SDI/SDI Video Routing Switcher with Stereo Analog Audio features auto detection of standard SMPTE data rates which are re-clocked across each output for a jitter-free operation, and the auto rater detect logic bypasses all signals with non-SMPTE data rates. Control options consists of text based protocol (MASCOT) over TCP/IP port, RS-232 serial, or web page interface. The switcher is compatible with optional Matrix Switch Corporation TCP/IP remote panels. It is suitable for use in broadcast studios, post-production facilities, ENG/OB applications, remote trucks, and flyaway video production cases. - Accepts HD and SDI video using 4 ports for distribution across 4 dual output ports
- Supports balanced analog stereo audio
- Data transfer rates from 19 Mbps to 1.485 Gbps
- Uses automatic cable loss compensation
- Transmission distance - 1000' (304.8 m)
- Re-clocked outputs for a jitter-free operation
- Auto detection of standard SMPTE data rates
- Auto rater detect logic - bypasses all signals with non-SMPTE data rates
- Flexible control via a text based protocol -- MASCOT -- over TCP/IP port, RS-232 serial, or web page interface
- Compatible with Matrix Switch Corporation TCP/IP remote panels
- Suitable for - broadcast studios, post-production facilities, ENG/OB applications, remote trucks, and flyaway video production cases
- Includes a local control panel
In the Box Matrix Switch 4 x 4 HD-SDI/SDI Video Routing Switcher with Stereo Analog Audio 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrix Switch 4 x 4 HD-SDI SDI Video Routing Switcher with Stereo Analog Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrix Switch MSC-HD44AAL Specs | | | Re-clocking Data Rates | 143Mbps, 270Mbps, 1.484Gbps, 2.97Gbps | | Support Data Type | SMPTE 259M, SMPTE 292M, SMPTE 344M, DVB-ASI | | Cable Equalization | Auto up to 300 meters@270 Mbps, 100 meters @ 1.485Gbps (input) | | Video Level | 800 mV | | Impedance | 75 Ohm 1% | | Coupling | AC | | Connector | BNC | | Return Loss | 15 dB @ 1.5Gbps | | Analog Audio Inputs | Signal type: Balanced
Connector type: D25F with optional breakout adaptors
Impedance: greater than 30 kOhm
Level: +8 dBm nominal +24 dBm maximum
CMRR: greater than 70dB | | Analog Audio Output | Signal Type: Balanced
Connector Type: D25F with optional breakout adaptors
Impedance: less than 30 Ohms
Level: +8 dBm nominal +24 dBm maximum
Frequency response: 10 Hz to 50 KHz +/- 0.1 dB
S/N: greater than 110 dB (20 Hz to 20 Khz) | | | | Temperature | 32 to 122° F (0 to 50° C) ambient | | Humidity | 10 - 100% non-condensing | | Power Consumption | 7 VA typical | | AC Voltage | 90 to 240V AC 50/60Hz | | Dimensions (HxWxD) | 1.75 x 19 x 5" (4.45 x 48.26 x 12.7 cm) | | Weight | 4 lb (1.8 kg) | | | | Package Weight | 8.1 lb | | Box Dimensions (LxWxH) | 24.2 x 10.5 x 6.8" |
