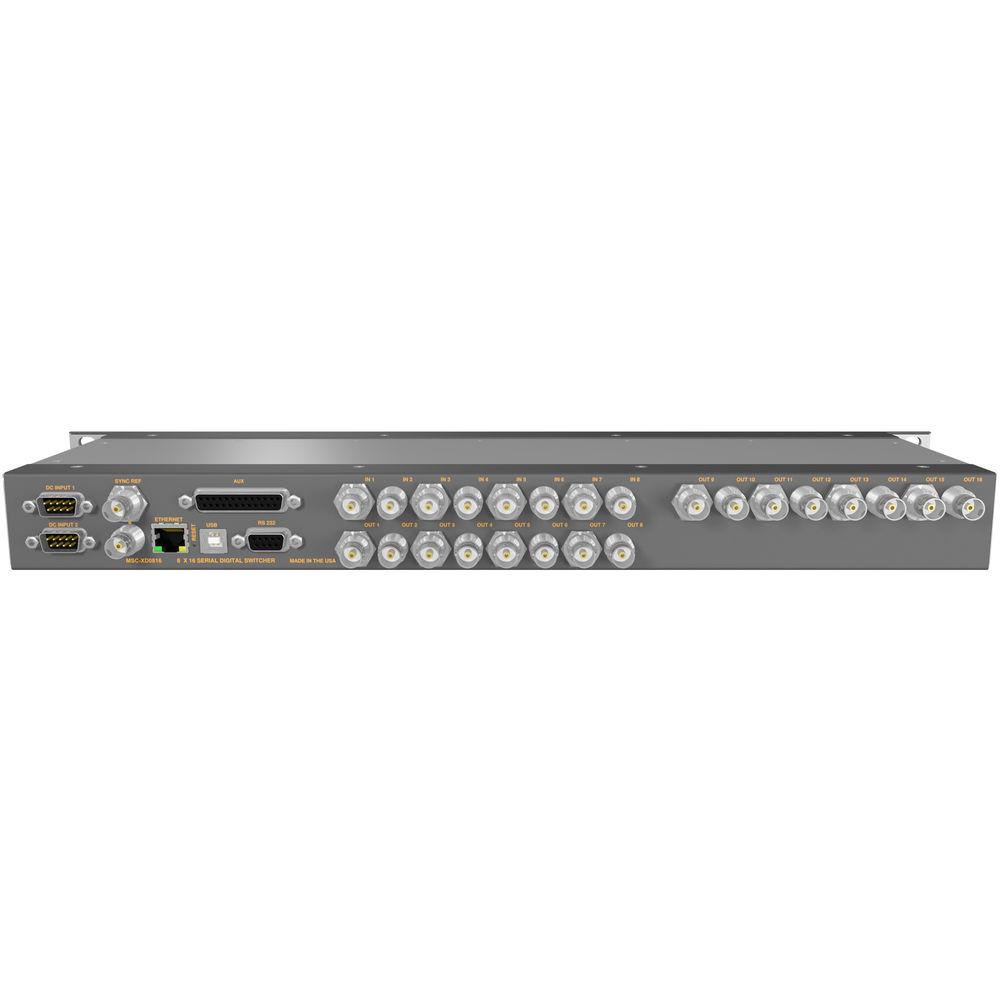

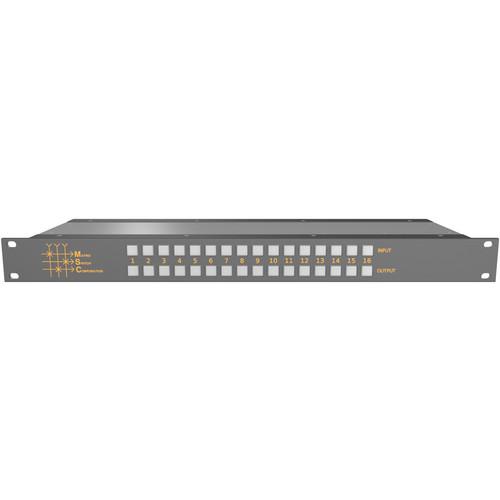

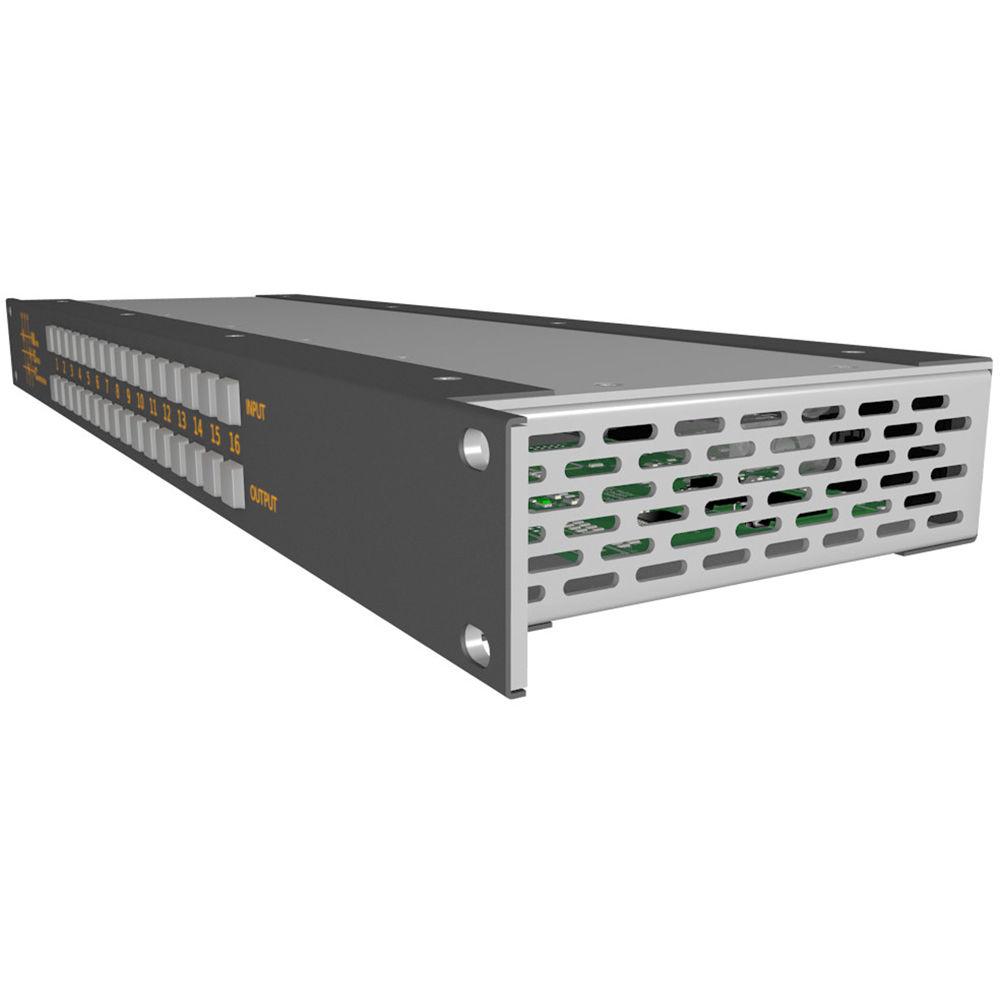

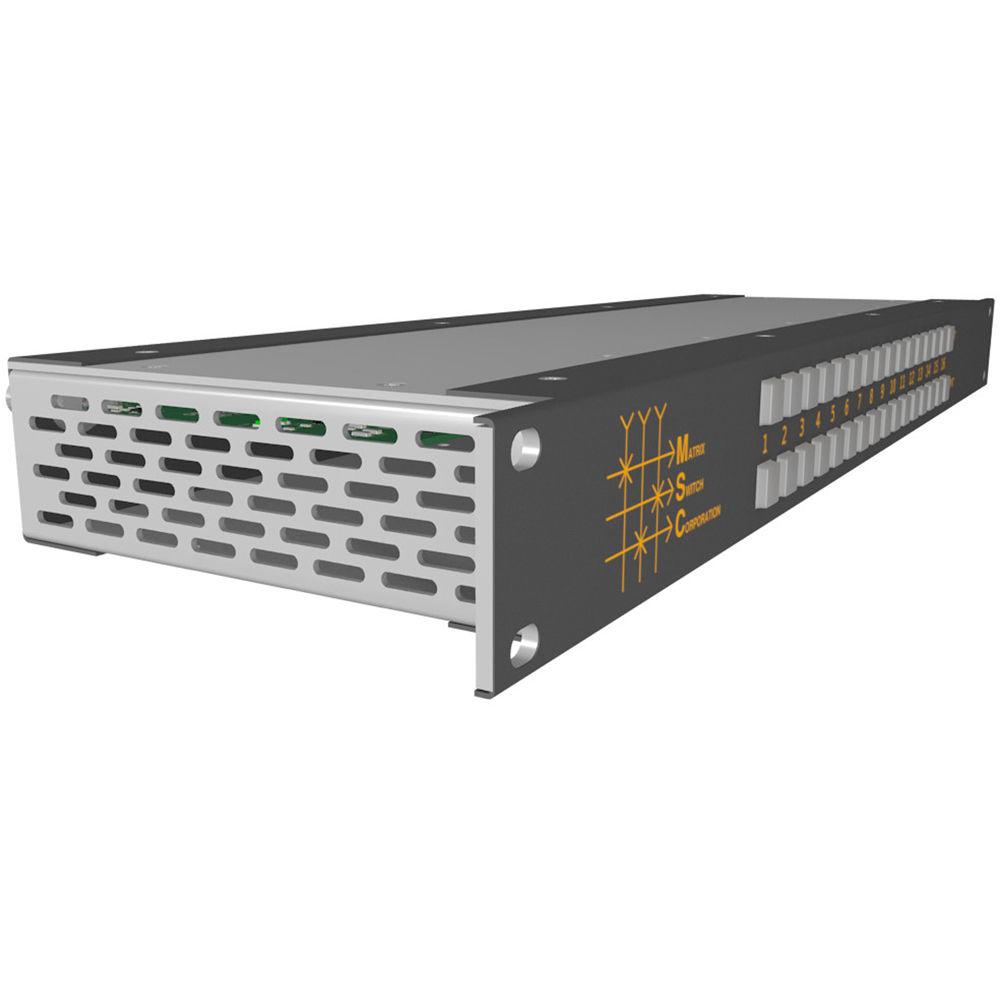

Product description The 8 x 16 3G-SDI Video Routing Switcher from Matrix Switch has 8 inputs and 16 outputs. It provides re-clocking for standard 3G/HD/SD rates with automatic bypass for non-standard rates between 20 Mb/s and 3 Gb/s and pass all SDI embedded audio/ancillary data. The switcher supports output mute. Switch on vertical sync is provided with the sync reference input with a pass-through connector and provides support for tri-level sync and NTSC/PAL black burst signals.
The routing switcher provides several options for control and system integration. Built-in webpage interface offers a convenient method for control and configuration using a PC or mobile device (Interactive Demo). In addition to the MASCOT protocol, there is also support for some common 3rd party protocols.
Additional control interfaces on this router include USB, RS-485, RS-232, AUX GPIO, and TCP/IP over the Ethernet interface. Remote Panels can also be used with this router for remote control up to a virtually unlimited distance over TCP/IP. In addition, the built-in button panel provides an additional interface for directly changing the matrix routing state. - Re-clocks standard SDI rates 3G (2.97 Gb/s), HD (1.484 Gb/s), and SD (270 Mb/s)
- Auto bypass of non-standard SDI rates from 20 Mb/s to 3 Gb/s
- Passes SDI embedded audio and ancillary data
- Different SDI rates can be used on different inputs without any restriction
- Additional audio level can be connected to the D25 connector (sold separately) with break away from SDI support
- Inputs can be switched to multiple outputs without restrictions
- Outputs can be individually muted
- Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
- Store and recall up to 10 preset salvos
- Includes an integrated button control panel interface
- Supports Matrix Switch Remote Panels
- Ethernet port for control via built-in web page interface or TCP/IP ports
- Interactive web page interface (Interactive Demo)
- Serial control via RS-232 port
- RS-485 port for an additional high-speed, long-distance capable control interface
- Support for some common 3rd party protocols for added integration flexibility
- Auxiliary port for external status and control signaling
- System software updates from webpage interface
- Redundant power supply included
- Low noise forced air cooled
In the Box Matrix Switch 8 x 16 3G-SDI Video Routing Switcher with Button Panel 12 VDC, 3A Power Supply Redundant Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrix Switch 8 x 16 3G-SDI Video Routing Switcher with Button Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrix Switch MSC-XD0816L Specs | | | Connector Type | BNC | | Data Rates | 19 Mb/s through 3 Gb/s | | Input Return Loss | > 15 dB @ HD
> 12 dB @ 3G | | Input Impedance | 75 Ohms +/- 1% | | Input Level | 800 mV p-p +/- 20% | | Cable Equalization | 1312.34' (400 m) @ SD
459.31' (140 m) @ HD
393.7' (120 m) @ 3G (1694A coax) | | | | Connector Type | BNC | | Data Rates | 19 Mb/s through 3 Gb/s | | Re-Clocking Data Rates | 2.97 Gb/s, 1.485 Gb/s, 270 Mb/s | | Output Return Loss | > 15 dB @ HD
> 12 dB @ 3G | | Output Impedance | 75 Ohms +/- 1% | | Output Level | 800 mV p-p +/- 5% | | Output Jitter | < 0.2 UI | | | | Formats | SD: 625/25 PAL and 525/29.97 NTSC
HD Formats: 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60
3G Formats: 1080p50, 1080p59.94, 1080p60
2K Formats: 2048 x 1556/23.98/24/25 | | Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601 | | Video Sampling | 4:2:2 and 4:4:4 | | Audio Sampling | 24-bit @ 48 kHz | | Color Precision | 4:2:2 and 4:4:4 10-bit | | Color Space | YUV or RGB | | Metadata Support | Ancillary data as defined by SMPTE 352M | | | | Connector Type | Analog BNC with pass-through | | Format | Tri-Level Sync and NTSC/PAL black burst | | | | Inputs | 8 | | Outputs | 16 | | Enclosure Type | 1 RU | | Power | 12 VDC, 5 A | | Power Connector | D9 male | | Panel Type | Buttons | | Ethernet | 10/100 Base-T Auto MDIX | | Certifications | FCC, U/L, CE, RoHS | | Dimensions | 19 x 1.75 x 6" / 482.6 x 44.45 x 152.4 mm | | Weight | 5 lb / 2.26 kg | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 24.0 x 10.0 x 6.5" |
