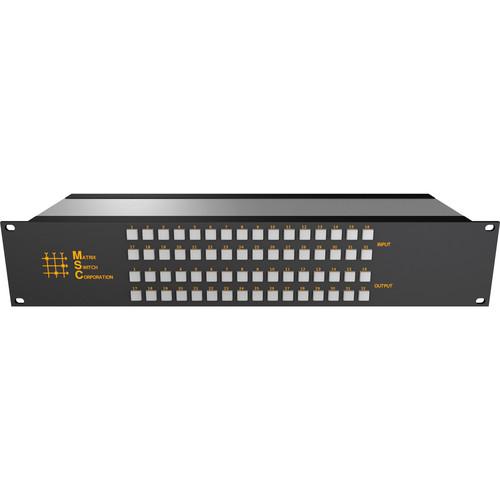

Product description The Matrix Switch Corporation 8 x 24 2RU 3G/HD/SD-SDI Video Router Switch with Button Control Panel offers factory configurable matrix I/O size configurations of 8 x 24. This system is 2RU in height and less than 7" deep, allowing for installation in space- and weight-limited situations.
Forced air cooling ensures low internal temperatures for long service life in harsh environments, and a redundant power supply is also included for added reliability. An extra audio option provides audio routing capabilities in addition to the included embedded SDI audio routing support. This option is ordered as a separate 2RU device connected via a D25 straight through male-to-male cable. Either AES digital (MSC-DE3232) or analog stereo audio (MSC-AA3232) can be chosen (both sold separately).
The button control panel provides an additional savings opportunity for applications that only use remote control panels, web page interface, telnet, or RS-232 serial control.
This router offers flexible and user-friendly control, including a built-in Javascript-enabled web page interface and simple yet powerful text-based control protocol which can be sent via TCP/IP, RS-232 serial port, or the web page interface. - Re-clocking of standard SD, HD, and 3G SDI data rates
- Auto bypasses non-standard SDI rates from 20 Mb/s to 3 Gb/s
- Video mute on every output
- Passes SDI-embedded audio and ancillary data
- Interactive Web page interface
- Vertical interval switching
- Stores and recalls up to 10 presets (complete or partial matrix state recall)
- Compact design with 2RU and less than 7" deep
- Software updates via Ethernet port
- Flexible control using the MASCOT text-based protocol via TCP/IP, serial port, or Web page interface
- Redundant power supply included
- Can be used with one or more Matrix Switch Corporation TCP/IP Remote Panels
In the Box Matrix Switch 8 x 24 2RU 3G/HD/SD-SDI Video Router Switch with Button Control Panel Power Supply Limited 2-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrix Switch 8 x 24 2RU 3G HD SD-SDI Video Router Switch with Button Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrix Switch MSC-2HD0824L Specs | Inputs | 8 | | Outputs | 24 | | Reference Signal | Connector Type: Analog BNC with pass-through
Format: NTSC, PAL, and Tri-level sync | | Connector Type | SDI Video: BNC | | Data Type | SMPTE 259/292/424 | | Data Rates | 19 Mb/s through 3.0 Gb/s
Re-Clocking: 270 Mb/s, 1.485 Gb/s, 2.97 Gb/s | | Return Loss | Input/Output: >15 dB @ HD, >12 dB @ 3G | | Input Level | 800 mVpp ±20% | | Input Impedance | 75 Ω ±1% | | Cable Equalization | 1,148.29' (350.00 m) @ SD, 574.147' (175.00 m) @ HD, 328.08' (100.00 m) @ 3G (1694A coax) | | Output Level | 800 mVpp ±5% | | Output Impedance | 75 Ω ±1% | | Output Jitter | <0.2 UI | | RS232 | Serial: 9,600 Baud 8N1 | | Ethernet | 10 BaseT TCP/IP | | Panel | Control: Local and remote panel options | | Temperature | Storage: 14 to 122°F (-10 to 50°C)
Operating: 32 to 104°F (0 to 40°C) | | Humidity | 0 to 90% non-condensing | | Power | 12 VDC | | Rack Size | 2RU | | Dimensions (W x H x D) | 19.00 x 3.5 x 7.00" (482.60 x 88.90 x 177.80 mm) | | Weight | 8.00 lb (3.63 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 24.0 x 10.0 x 8.0" |
