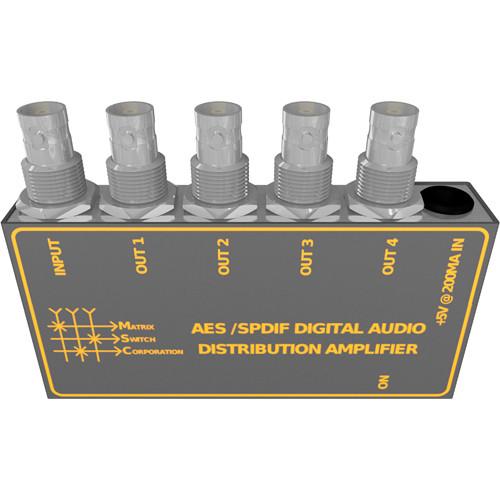

Product description The Matrix Switch Corporation AES / SPDIF Digital Audio Distribution Amplifier (1 x 4) accepts audio signals from 1 input and distributes them across 4 identical ports. It is specifically designed for 75 ohm digital audio distribution over the AES / SPDIF protocol. The amplifier accepts digital audio signals in the range of 100 mVpp to 5 Vpp, and provides 4 individual buffered 1 V P-P outputs. It supports digital audio with data rates from 10 Kbps to 20 Mbps. All the connectors have been placed on 1 edge for ease of installation and operation. - Receives 1 input and distributes it over 4 outputs
- Specifically designed for 75 ohm digital audio distribution
- Accepts signals from 100 mVpp to 5 Vpp
- Supports data rates from 10 Kbps to 20 Mbps
- All connectors on 1 edge for easy installation and operation
In the Box Matrix Switch AES / SPDIF Digital Audio Distribution Amplifier (1 x 4) 2-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrix Switch AES SPDIF Digital Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrix Switch MSC-AES/SPDIF4 Specs | Input Impedance | 75 ohms +/-1% | | AES / SPDIF DA Input level | 200 mV - 8 V P-P | | Cable Equalization | 574' (175 m) for Belden type 1694A cable at 1.5 Gbps | | Output Impedance | 75 ohms +/-1% | | AES / SPDIF DA Output level | 1 V P-P +/-5% | | AES / SPDIF DA input cable | Up to 656' (200 m) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.2 x 5.4 x 3.6" |
