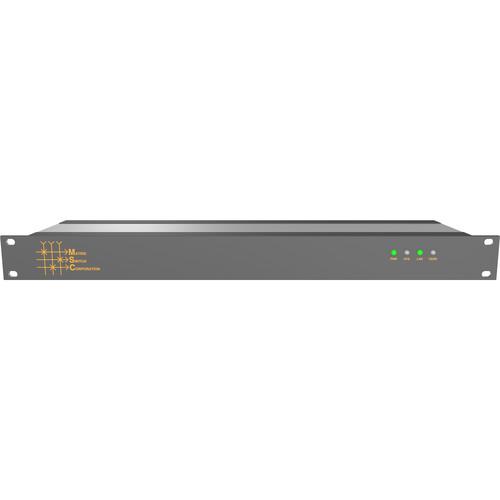

Product description The Matrix Switch Aviation Ready 16 x 16 SD/HD/3G-SDI Video Routing Switcher with Status Panel accepts multiple SD, HD, and 3G-SDI (video with SDI embedded audio) inputs across 16 ports and switches a source across 16 output ports. Supporting data transfer rates from 19 Mbps to 3 Gbps, the switcher transmits SD signals up to 1312 ft (400m). The aviation ready switcher comes with a Mil spec power connector for aircraft DC power interfaces, 18-50 VDC isolated internal power supply (28 VDC nominal), secured Locktite screws and chassis components for anti-vibration characteristics and airworthiness, and 24-hour burn-in. This aviation ready switcher is built to be conformant with certain application requirements that were originally set down by the Sierra Nevada Corporation. The 16 x 16 SD, HD, 3G-SDI Video Routing Switcher features auto detection of standard SMPTE data rates, which are re-clocked across each output for jitter-free operation, and non-standard SDI rates are bypassed (20 Mbps to 3 Gbps). Control options consists of text based protocol (MASCOT) over TCP/IP port, RS-232 serial, or web page interface. The switcher is compatible with optional Matrix Switch Corporation TCP/IP remote panels. - Compatibility
- Matrix Switch Corporation TCP/IP remote panels
MSC-DE1616 AES digital audio module
MSC-AA1616 balanced analog stereo audio module - Aviation Ready Features
-
- 18-50 VDC isolated internal power supply (28 VDC nominal); operates directly from aircraft power source
- Mil-Spec power connector for aircraft DC power interface
- Secured (Locktite) screws and chassis components for anti-vibration characteristics and airworthiness
- 24-hour burn in
- Conforms with necessary application requirements for aviation systems originally set down by Sierra Nevada Corporation
- General Features
-
- Accepts multiple SD, HD, and 3G SDI (video only) inputs across 16 ports and switches a source across 16 output ports
- Passes SDI embedded audio
- Data transfer rates from 19 Mbps to 3 Gbps
- Auto bypasses non-standard SDI rates from 20 Mbps to 3 Gbps
- Transmission distance – 1,148 ft for SD, 574 ft for HD, and 328 ft for 3G-SDI
- Re-clocking of standard SD, HD, and 3G-SDI data rates
- Store and recall up to 10 presets (complete or partial matrix state recall)
- Vertical interval switching
- Auto detection of standard SMPTE data rates
- Interactive web page interface
- Flexible control via a text based protocol—MASCOT—over TCP/IP port, RS-232 serial, or web page interface
- Software updates via Ethernet port
- Compact design — 1RU
In the Box Matrix Switch Aviation Ready 16 x 16 SD/HD/3G-SDI Video Routing Switcher with Status Panel Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrix Switch Aviation Ready 16 x 16 SD HD 3G-SDI Video Routing Switcher with Status Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrix Switch MSC-1HD1616S+DC Specs | | | Connector Type | BNC | | Data Rates | 19 Mbps to 3 Gbps | | Support Data Type | SMPTE 259/292/424 | | Re-Clocking Data Rates | 270 Mbps, 1.485 Gbps, 2.97 Gbps | | Bypass | Auto bypass for non-standard data rates from 20 Mbps to 3 Gbps | | Input Level | 800 mV pp ±20% | | Input Impedance | 75 Ohm ±1% | | Cable Equalization | 1.312 ft (400 m) @ SD, 459 ft (140 m) @ HD, 393 ft (120 m) @ 3G | | Output Level | 800 mV pp ±5% | | Output Impedance | 75 Ohm ±1% | | Output Jitter | <0.2 UI | | | | Connector Type | Analog BNC with pass-through | | Format | NTSC, PAL, and Tri-level sync | | | | RS-232 | 9600 baud 8N1 | | Ethernet | 10 BaseT TCP/IP | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | 14 to 122°F (-10 to 50°C) | | Humidity | 10 to 90% non-condensing | | | | Connector | MS3112E8-2P | | Power Supply | 18 to 50 VDC (28 VDC nominal), internal | | Power Consumption | >20 VA | | | | Rack Size | 1 RU | | Dimensions (W x H x D) | 19.0 x 1.75 x 6.0" (48.26 x 4.45 x 15.2 cm) | | Weight | 5.0 lb (2.26 kg) | | | | Package Weight | 8.3 lb | | Box Dimensions (LxWxH) | 24.1 x 10.4 x 6.6" |
