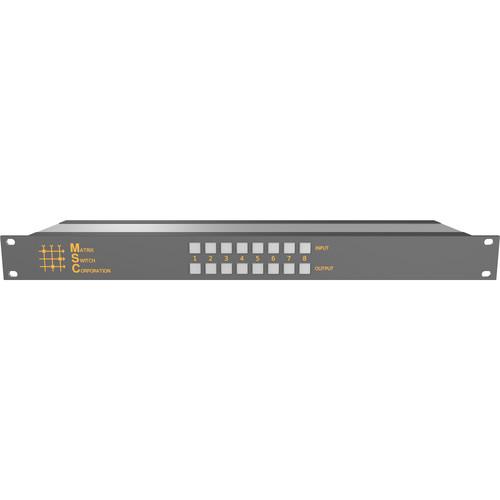

User Manual for Matrix Switch Compact High Performance 8x8 HD-SDI Digital Video Switcher Click to enlarge the picture
Contents of the user manual for the Matrix Switch Compact High Performance 8x8
- Product category: Routers & Switchers Matrix Switch
- Brand: Matrix Switch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matrix Switch Routers & Switchers
|
User manual for the Matrix Switch Compact High Performance 8x8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matrix Switch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matrix Switch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matrix Switch product will considerably shorten its lifespan!
|
Product description The Compact High Performance 8x8 HD-SDI Digital Video Switcher from Matrix Switch Corporation is an ideal solution for HD and SDI video environment, and will easily handle any SDI or HD format from 19 MBps to 1.485 GBps, as well as DVB-ASI signals. Each input has automatic cable loss equalization, while each output auto detects standard SMPTE data rates. Standard SMPTE data rates are re-clocked, while the Auto Rater Detect logic switches to bypass for any non-SMPTE data rate.
The switcher features a variety of audio and control panel options, including no audio (video only), AES3 S/PDIF 75 ohm digital audio on BNC I/O, AES3 balanced 110 ohm digital audio, stereo analog audio, no local control panel, built in local control panel and/or Ethernet TCP/IP based remote control panel(s). - Automatic cable compensation up to 1,000 feet
- Automatic HD/SDI rate detect and re-clocking
- RS232 and Ethernet remote control
- Optional local control panel
- Optional remote control panel
In the Box Matrix Switch Compact High Performance 8x8 HD-SDI Digital Video Switcher Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrix Switch Compact High Performance 8x8 HD-SDI Digital Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrix Switch MSC-HD88DEL Specs | HD/SDI Video Input | Data Rate: 143 MBps, 270 MBps, 1.483-1.484 GBps
Data Type: SMPTE 259M, SMPTE 292M, SMPTE 344M, DVB-ASI
Input Cable Equalization: Auto up to 300 m @ 270 MBps
100 m @ 1.485 GBps
Video Level: 800 MV
Impedance: 75 ohms 1%
Connector: BNC
Return Loss: 15 dB @ 1.5 Gbps | | AES Digital Audio Inputs | Signal Type: 75 ohms unbalanced or 110 ohms balanced
Connector Type: BNC or multi-pin - 3 pin breakout adapters available
Level: 100 mV to 10 V p-p
CMR: >25 V | | Analog Audio Inputs | Signal Type: Balanced Connector Type: D25F with optional breakout adapters
Impedance: >30 kOhms
Level: +8 dBm nominal +24 dBm maximum
CMR: >70dB | | HD/SDI Video Output | Connector: BNCLevel: 800 MV Return Loss: 12 dB @ 1.5 GBps
Jitter: <0.2 UI
Impedance: 75 ohms 1%
Vertical Interval Switching: line 6 | | AES Digital Audio Outputs | Signal Type: 75 ohms unbalanced or 110 ohms balanced
Connector Type: BNC or multi-pin - 3 pin breakout adapters available
Level: 7 V p-p Jitter: <0.25 UI | | Analog Audio Output | Signal Type: Balanced
Connector Type: D25F with optional breakout adapters
Impedance: <30 ohms
Level: +8 dBm nominal +24 dBm maximum
Frequency response: 10 Hz - 50 kHz +/- 0.1 dB
S/N: >110 dB 20 Hz to 20 KHz | | Environmental | Temperature: 32 to 122°F / 0 to 50°C ambient
Humidity: 10 - 100% non-condensing | | Typical Power Consumption | 7 VA | | Dimensions | 1.75 x 19.0 x 5.0" / 4.3 x 48.2 x 12.7 cm | | Weight | 4.0 lb / 1.8 kg |
