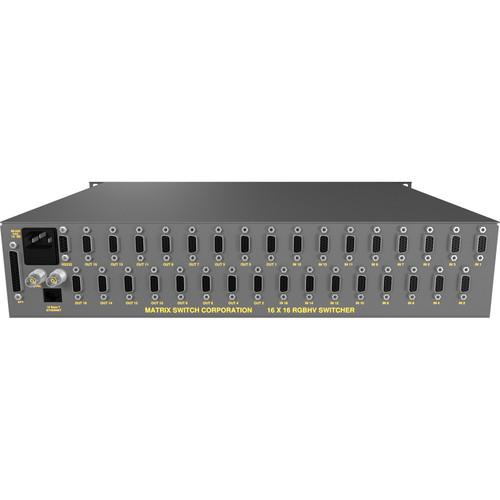

User Manual for Matrix Switch MSC-5-1616 16 x 16 VGA RGBHV Video Routing Switcher Click to enlarge the picture
Contents of the user manual for the Matrix Switch MSC-5-1616 16 x 16
- Product category: Routers & Switchers Matrix Switch
- Brand: Matrix Switch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Matrix Switch Routers & Switchers
|
User manual for the Matrix Switch MSC-5-1616 16 x 16 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Matrix Switch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Matrix Switch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Matrix Switch product will considerably shorten its lifespan!
|
Product description The Matrix Switch Corporation MSC-5-1616 16 x 16 VGA RGBHV Video Routing Switcher offers a wide signal bandwidth and low crosstalk technology, allowing for artifact-free images at almost any image resolution including QXGA. For applications that require a very large number of inputs or outputs, this router can be cascaded up to 256 VGA inputs by 16 VGA outputs, with no degradation of overall performance. It can also be combined with Matrix Switcher’s Analog Audio or AES digital audio routers, by connecting them with a D25 straight through cable. This 16 x 16 switcher consists of audio and control panel options. It has no audio (video only), AES3 S/PDIF 75Ω digital audio on BNC I/O, AES3 Balanced 110Ω digital audio, and unbalanced or balanced stereo analog audio. - HD-15 VGA I/O connectors save space and eliminate the need for breakout cables
- Store and recall up to 10 non-volatile presets
- Mean Time to Repair (MTTR) is less than 1 minute
- Local and/or remote control panels
- Vertical interval clean switch
- RS-232 control via simple ASCII based protocol
- TCP/IP Ethernet including a built-in web page and SNMP control
- Complies with all relevant FCC, U/L, and CE requirements
- Modern JavaScript web page interface
- Control via simple text based protocol over TCP/IP via Ethernet port, RS-232, or web page interface
- Can be used with Matrix Switch control panels and/or any third-party control system (AMX, Crestron, Calypso, Leightronix, etc.)
- Applications include command and control centers, homeland security monitoring, emergency response centers, and large multi-screen venues
Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrix Switch MSC-5-1616 16 x 16 VGA RGBHV Video Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrix Switch MSC-5-1616 Specs | | | Input Impedance | RGB: 75 Ω ±1%
HV: 75 Ω Â ±1% | | Input Return Loss | RGB: > -35 dB at 5 MHz
HV: > -35 dB at 5 MHz | | Nominal Input Level | RGB: 1 Vpp
HV: 2 Vpp | | Maximum Input Level | RGB: 1.8 Vpp
HV: 6 Vpp | | I/O | RGB & HV: DC (coupling) | | Output Impedance | RGB & HV: 75 Ω ±1% | | Output Return Loss | RGB & HV: > -35 dB at 5 MHz | | Nominal Output Level | RGB: 1 Vpp
HV: 2 Vpp | | Maximum Output Level | HV: 4 Vpp | | Uniformity | RGB & HV: < ±0.5% (gain) | | Frequency Response | RGB: ±0.1dB to 10 MHz
±3 dB to 100 to 400 MHz depending on signal level
HV: ±0.1 dB to 10 MHz
±3 dB to 50 MHz | | Crosstalk | RGB:
< -60 dB at 5 MHz
< -40 dB at 50 MHz
< -25dB at 100 MHz
HV:
< -50 dB at 5 MHz
< -30 dB at 20 MHz | | | | Signal Type | 75 Ω unbalanced or 110 Ω balanced | | Connector Type | BNC or multi-pin, 3-pin breakout adapters | | Level | 100 mV to 10 Vpp | | CMR | > 25 V | | | | Signal Type | Balanced | | Connector Type | D25F with optional breakout adapters | | Impedance | > 30 K Ω | | Level | +8 dBm nominal
+24 dBm maximum | | CMRR | > 70 dB | | | | Signal Type | 75 Ω unbalanced or 110 Ω balanced | | Connector Type | BNC or multi-pin, 3-pin breakout adapters | | Level | 7 Vpp | | Jitter | < 0.25 UI | | | | Signal Type | Balanced | | Connector Type | D25F with optional breakout adapters | | Impedance | < 30 Ω | | Level | +8 dBm nominal
+24 dBm maximum | | Frequency Response | 10 Hz to 50 KHz
±0.1 dB | | S/N | > 110 dB 20 Hz to 20 KHz | | | | Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 10 to 100% non-condensing | | Power Consumption | 7 VA typical | | AC Voltage | 90 to 240 VAC, 50 to 60 Hz | | Power Requirement | 30 VA | | Size | 2 RU | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 24.0 x 18.0 x 8.0" |
