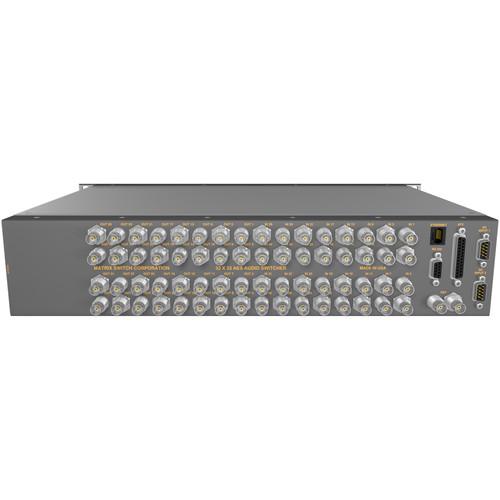

Product description The MSC-DE3232 32 x 32 AES Audio Router from Matrix Switch Corporation uses the AES-3id (SMPTE 276M) standard that defines a 75-Ohm BNC electrical variant of AES3. It supports all AES audio rates up to 192 kHz and can use the same cabling, patching, and infrastructure as analog video, or it can be digital switcher designed for AES data rates and a 700mV to 1V input-output interconnect. This router is designed for use as a secondary level to one of Matrix Switch Corporation's video routing switchers with a D25 AFV or AUX connector. In the Box Matrix Switch MSC-DE3232 32 x 32 AES Audio Router Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Matrix Switch MSC-DE3232 32 x 32 AES Audio Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMatrix Switch MSC-DE3232 Specs | Inputs | 32 channels | | Outputs | 32 channels | | Enclosure Type | 2 RU | | Power Type | AC | | Power Connector | IEC 320 C14 | | Connector Type | BNC | | Input Level | 200 mV to 5 V p-p | | Output Level | 1 V p-p | | Impedance | Input/Output: 75 Ohms ±1%
Output: 75 Ohms 1% | | Dimensions | 19.0 x 3.5 x 11.0" (48.3 x 8.9 x 27.9 cm) | | Weight | 12.0 lb (5.4 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 24.5 x 21.0 x 8.5" |
